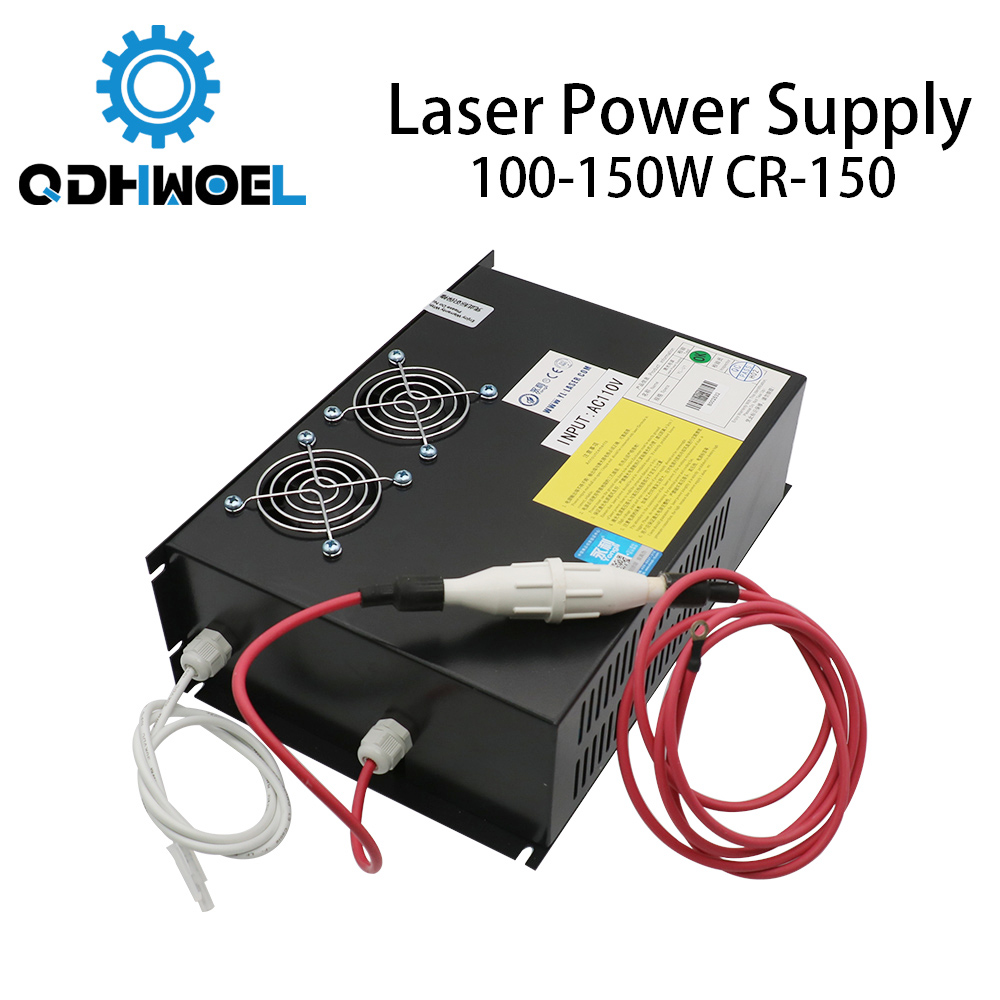

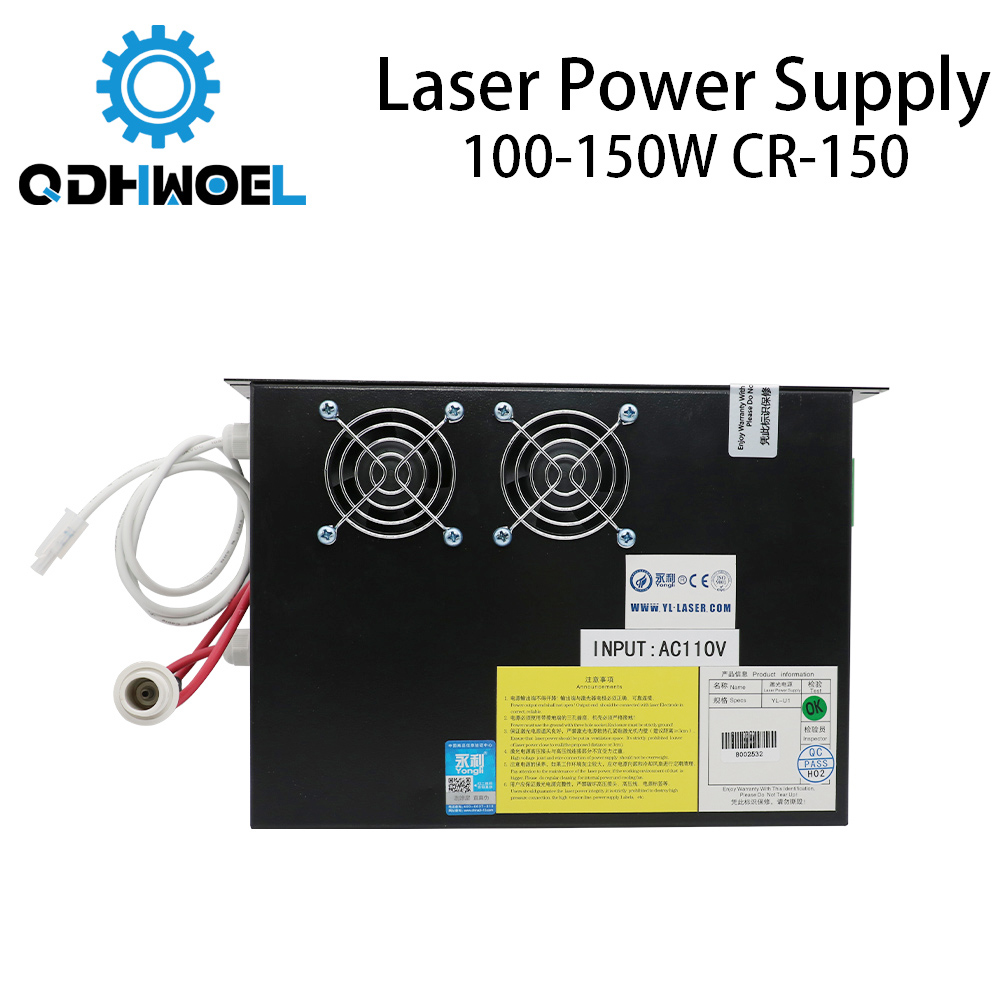

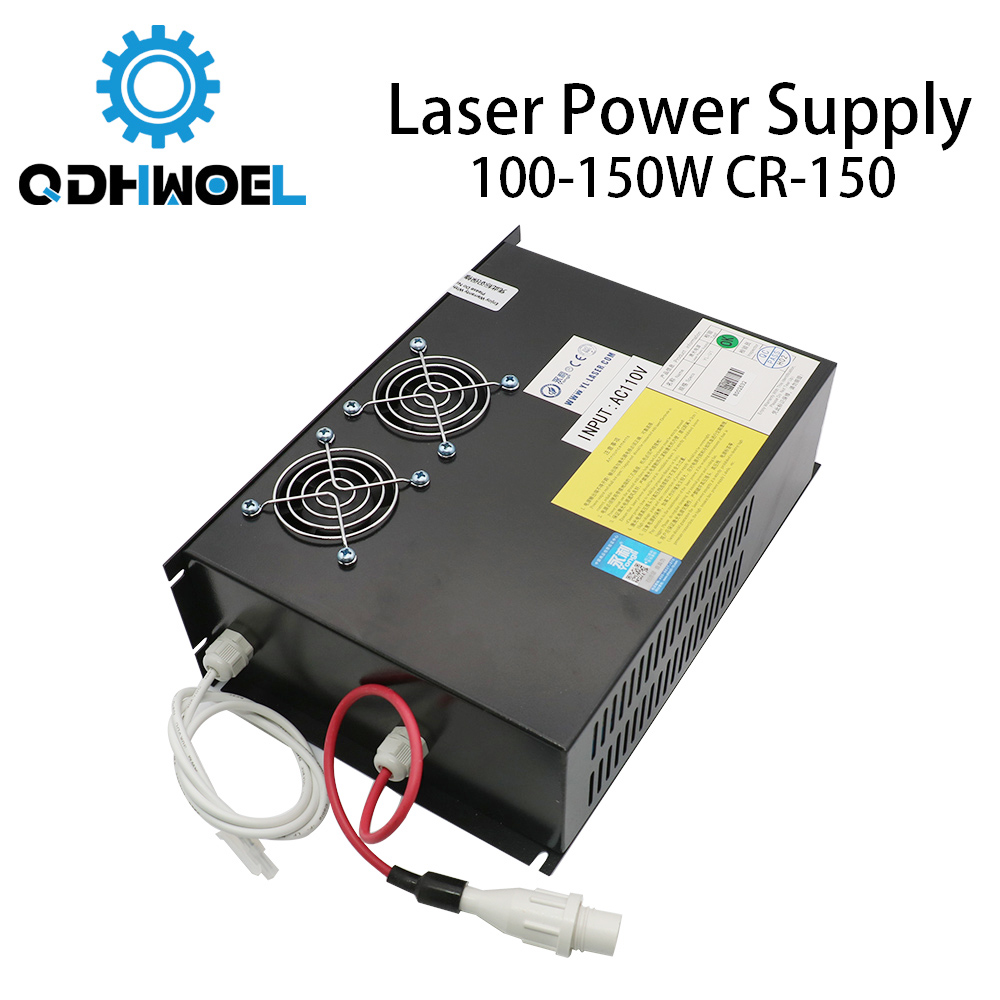

Yongli Laser Power Supply 100-150W  for CO2 Laser Tube CR-U100 U Series CO2 Laser Engraving Cutting Machine



Main Features:

1. Targeted good: specifically targeted at my company enhanced CO2 laser tube supporting the use of laser power supply.

2. Superior performance: good stability, fast response, dramatically lengthens the service life of laser. 3. Small volume, convenient installation.Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.

4. Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.

5. The power supply has the function of open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.

6. The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.

7. Application: CO2 laser power supply are mainly applied in engraving & cutting machine, laser marking machines and medical laser machine.





Main Parameters:

Specifications:



Model	Power (W)	Max output current (mA)	Output Voltage (KV)	Dimension(mm)	N.W kg
YL-U I	80-100	24	45	270*180*80	3.5
YL-U II	110-150	32	50	320*207*80	5



Technical Parameters:



Input Voltage	AC220V or AC110V(to be specified when placing order)
AC Input Frequency	47~440Hz
Over current Protection	Yes
Open Circuit Protection	Yes(short term)
Cooling way	Fan cooling
Working Temperature Relative Humidity	-30℃~65℃ 20~85%RH(no condensation)
Vibration Resistance	Amplitude: 1mm frequency 30Hz  Two hours
Agingtime	Continuous＞4 hours Pulse＞Half an hour(frequency60Hz)
