Description
- Brand Name: QDHWOEL
- Certification: CCC
- Current / Phase: 3.5A
- Step Angle(degrees): 1.2 Degree
- Phase: 3
- Type: Hybrid
- Model Number: 573S09-L-18
- Holding Torque: 0.9N.m
- Holding Torque: 0.9N.M
- Step Angle(degrees): 1.2 Degree
- Model Number: 573S09-L-18
- Current / Phase: 3.5A
- Frame Size: NEMA23 3-phase
- Shaft Size: 6.35mm (0.25 inch)
- Length: 50mm (1.97 inch)
- Weight: 0.75kg

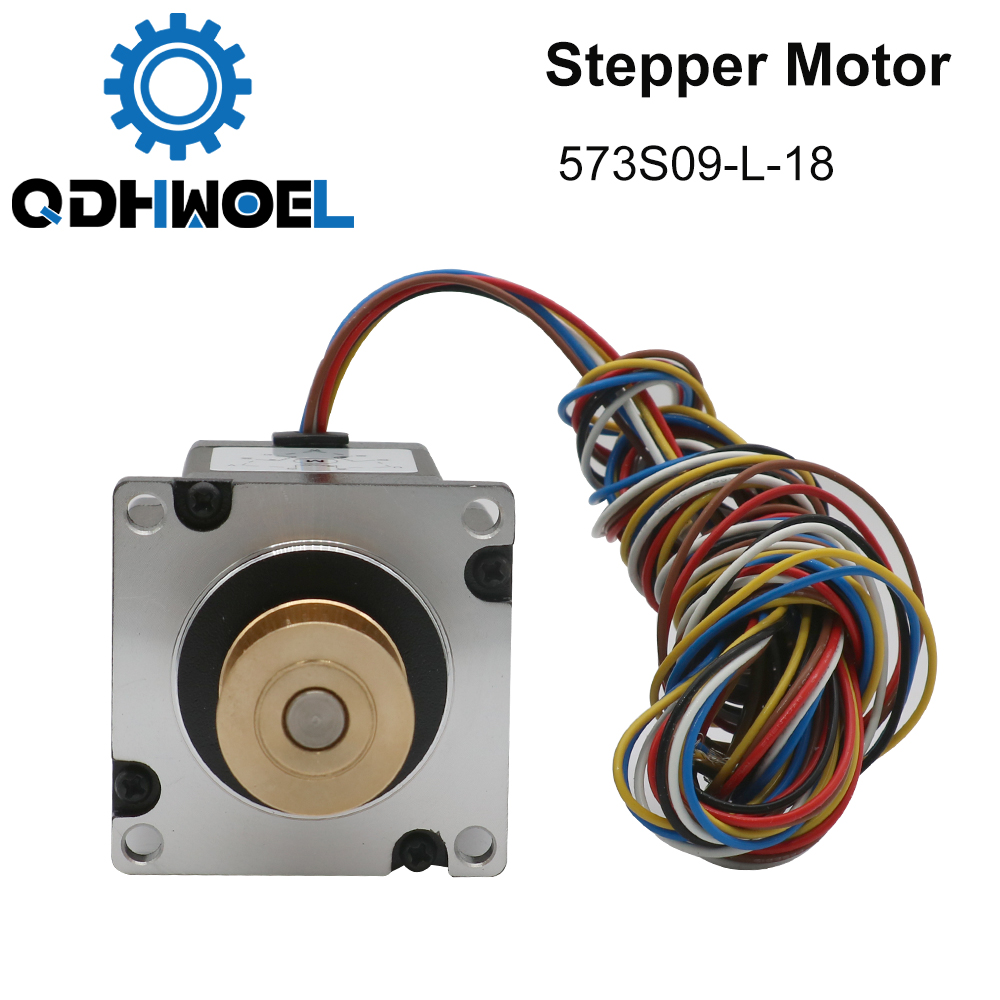

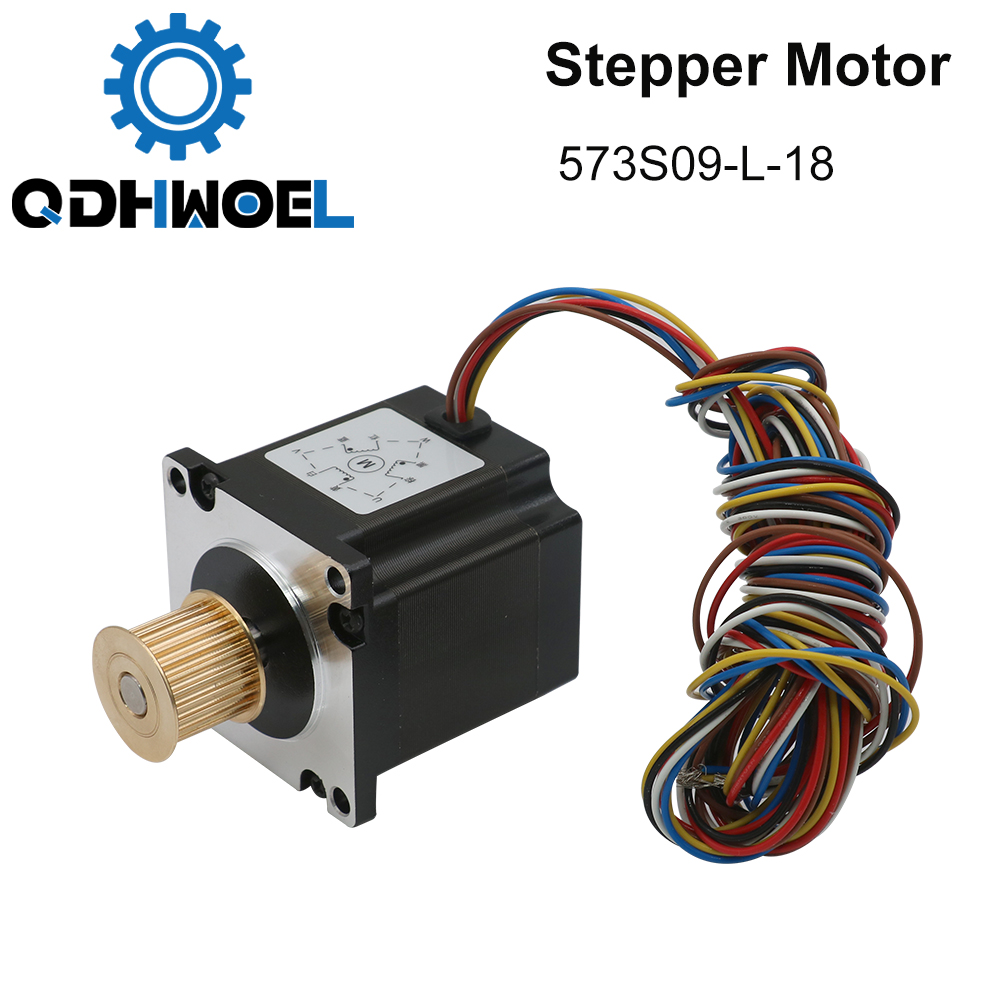

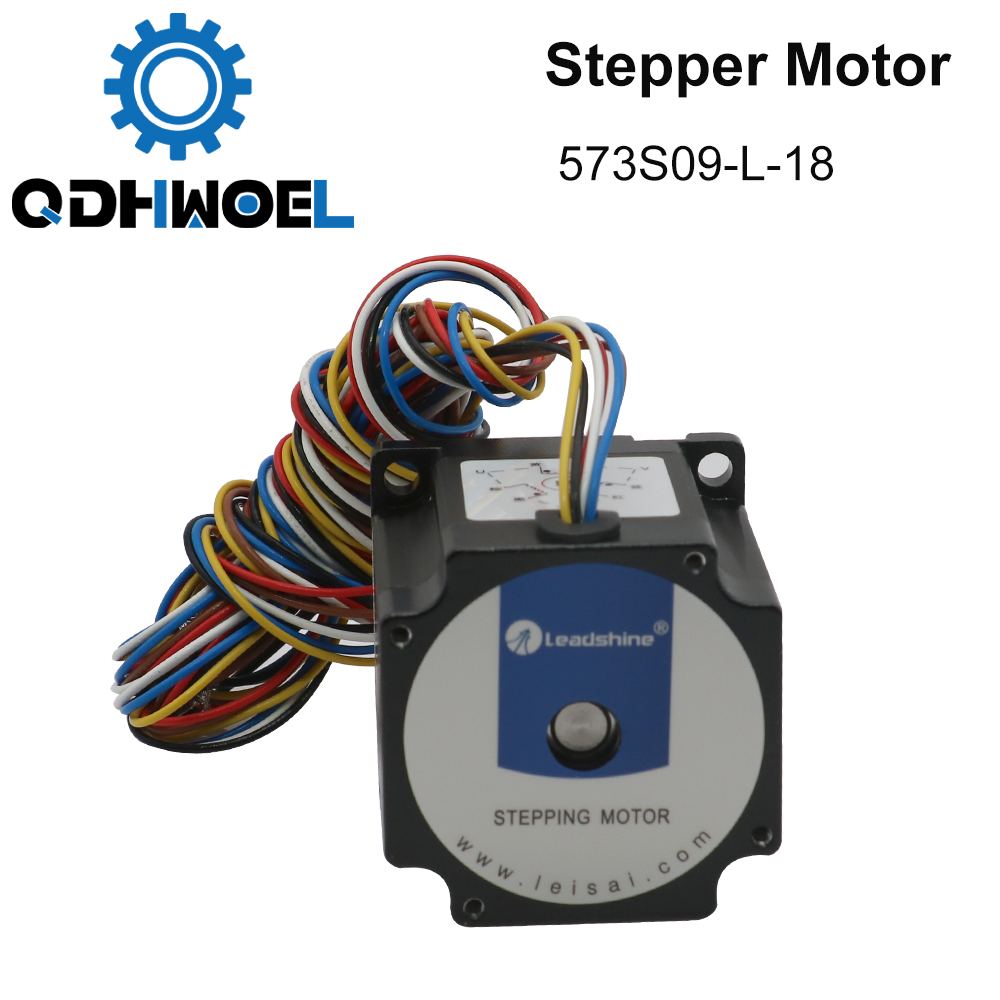

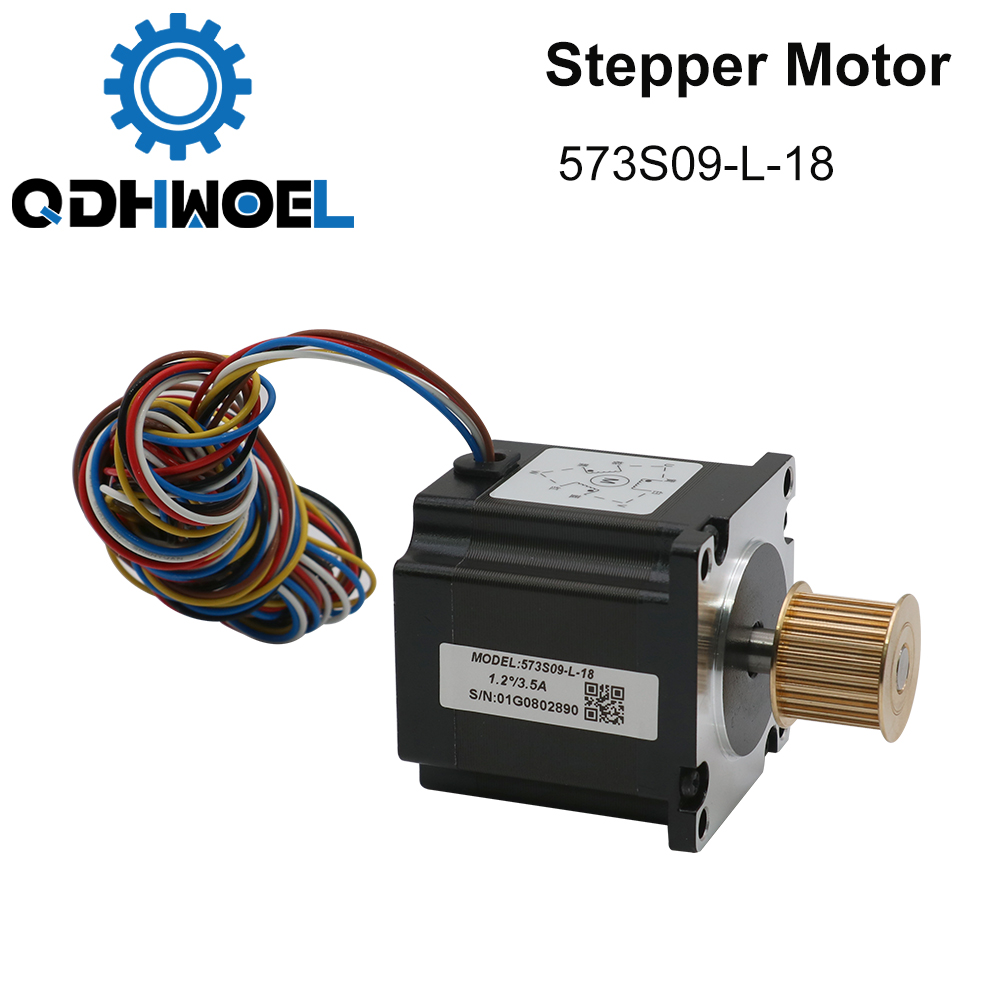

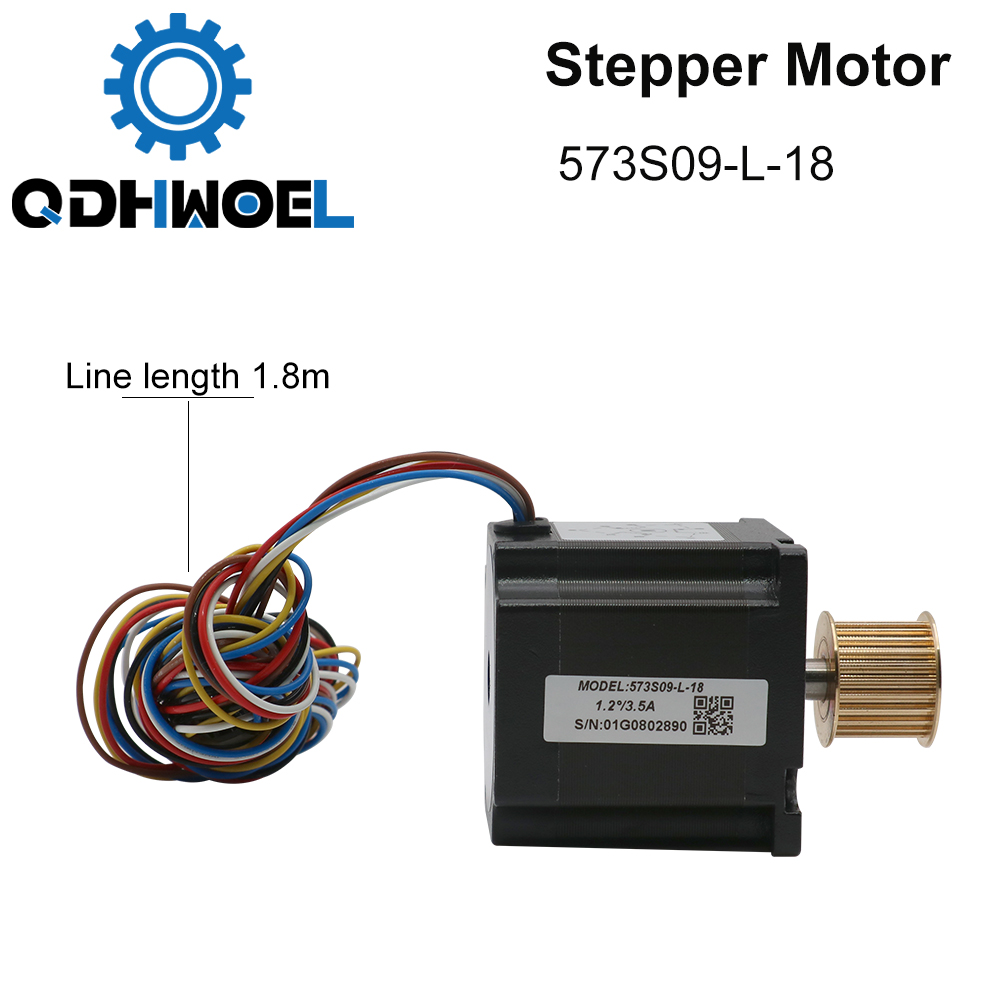

3-Phase Stepper Motor 573S09-L-18
Features
1. 3-phase, NEMA 23 frame size.
2. 50mm(1.97inch) long.
3. 3.5A phase current.
4. 0.9N.m holding torque.
5. 6.35mm(0.25inch) shaft size.
6. Built with high quality material including bearing and shaft made in Japan.
7. High precision, low motor heating and low vibration.
Specification
| Common Rating Specification | |||
| Step angle | 1.2° | Frame Size | NEMA 23 |
| Position Accuracy | ± 5% | Holding Torque | 0.9N.m |
| Dielectric Strength | 500VAC 1Min | Current/Phase | 3.5A |
| Insulation Resistance | 100MOhm(500VDC) | Length | 50mm/1.97″ |
| Insulation Class | B | Shaft Size | 6.35mm/0.25″ |
| Temperature rise(Max.) | 80℃ | Number of wires | 8 |
| Radial Play | 0.06Max.(450g-load) | Weight | 0.75kg |
| Axial Play | 0.08Max.(450g-load) | Matching driver | 3DM580/3DM683 |
Product Dimension
Connection
Speed-torque Curves
Matching Driver
