Description
- Brand Name: QDHWOEL
- Certification: CE
- Origin: CN(Origin)
- Model Number: 150W PSU HY-T150 / T150 Plus
- Input Voltage: AC110V or AC220V
- Max Input Power: 1000W
- Max Input Current: 10A
- Max Output Voltage: DC 50KV
- Max Output Current: DC 38mA

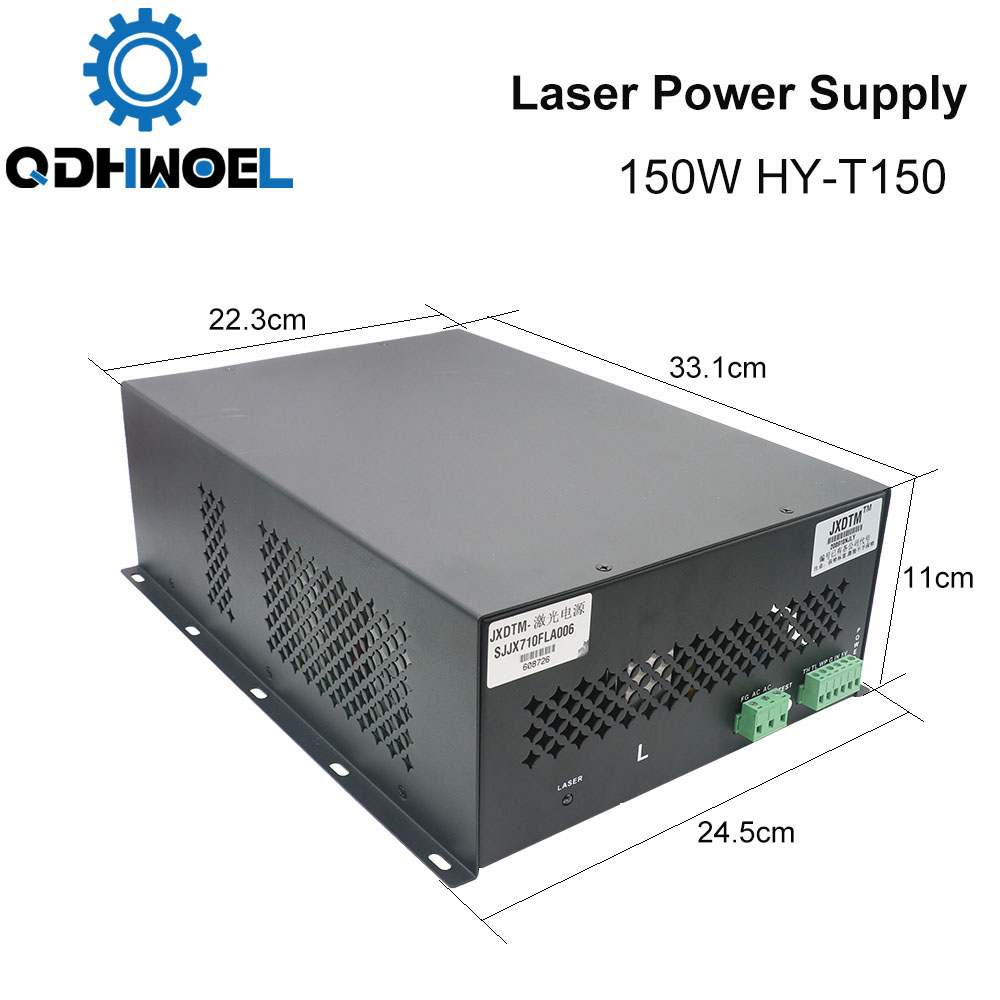

- Dimension L*W*H(mm): 328*239*101 mm
- Weight (KG): 4.6 kg
Features
1.Zero-current half-bridge soft-switching circuit.High efficiency and fast response.Match various manufacturers of laser tubes.

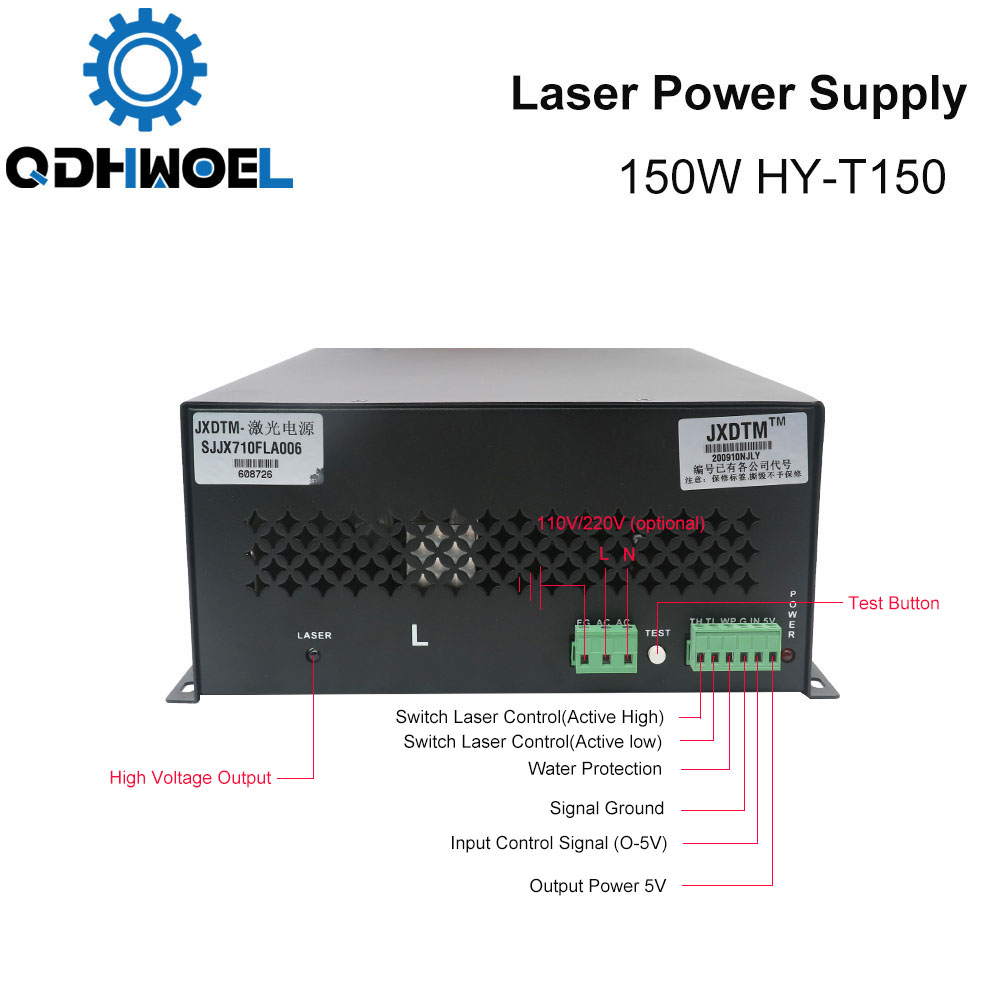

2.Simple Port Control,TTL level signals can control the laser start/stop.
3.Protection switch is to check the outside water,ventilation,etc.
4.Laser Power Adjustment:input OV to 5V analog signal,can also input PWM signal.
5.Open Circuit Protection Function:avoid the damage to laser power supply due to laser tube burst.
6.Factory Aging Test:1.Each power supply will go through 60°C and 12 hours aging test under full load. 2.500 times 7 seconds Start/Stop test.
