This PWM TO TTL module is mainly designed for EleksMaker series machine and its controller boards.

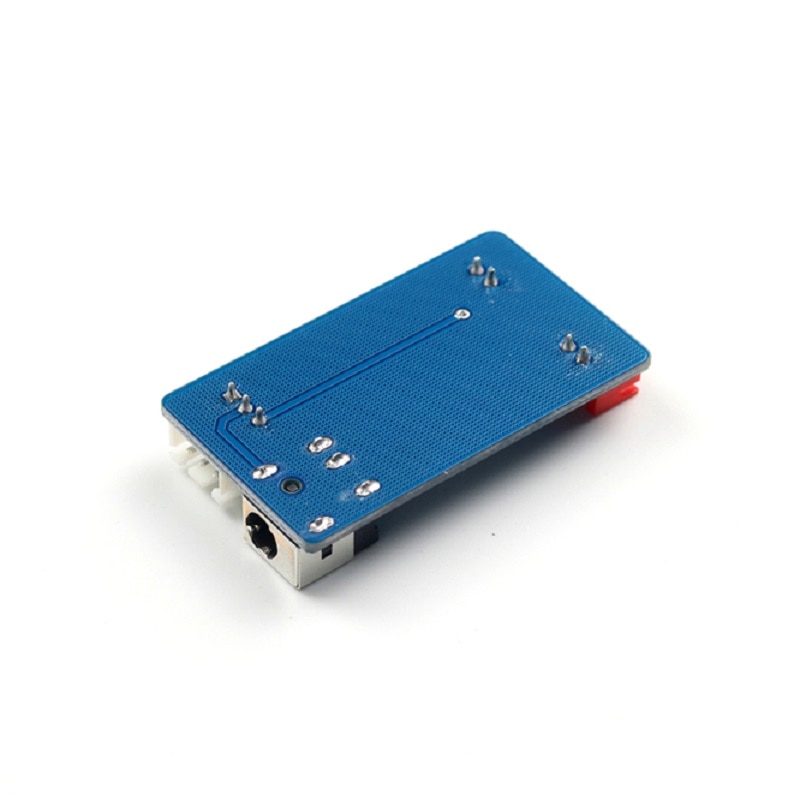

PWM To TTL Transition Module for Laser Cutter Engraving Machine Controller Board Mana SE,  Laser Engraver Control Board TTL Modulation

And it can also be used for other DIY laser engraving machines which need to change TTL modulation.

Specifications:

Power port size: 5.5*2.1mm
Working voltage: DC 12V
Working power: >2A

Package Include:

1 x PWM TO TTL transition module





FAQs & Instructions:

1. When or why I need to have a PWM TO TTL transition module?

As some controller boards are designed with a 3-pin port (12V/GND/PWM) for connection to laser module with the same port.  However, if your laser module is designed as 2*2.54-2P port (2*2-pin port, usually power port and TTL port), it can not be directly used on the 3-pin port board. Therefore, you need to have a PWM TO TTL transition module.

2. How to use this transition module? (How to transform PWM to TTL?)

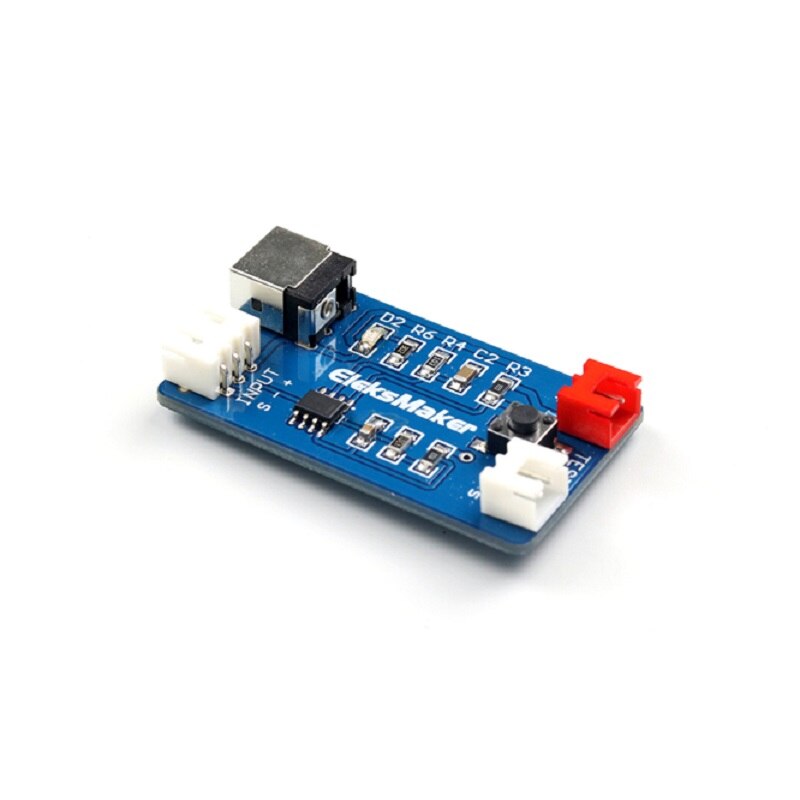

You can see 3 port on the transition module.

(They respectively are Input Port (3-Pin, White), Output Power Port (2-Pin, Red), Output TTL Port (2-Pin, White).
① Connect Input Port to your machine controller board, like: Mana SE / Mana / IVAxis.
② Connect Output Power Port to the power port on your laser module.
③ Connect Output TTL Port to the TTL Port on laser module.
④ Power on ManaSE board.

3. How to test whether the laser module is broken?

​You can also see a DC Port on the transition module. It can be used to test whether your laser module works or not.

Connect the DC Port with power supply.
Connect Output Power Port to the power port on your laser module.
Plug in power, press the button on the transition module—laser off; release the button— laser on. Then it means laser works fine.
