Description
- Brand Name: QDHWOEL
- Model Number: HY-C150
- Power: 150W
- Warranty: 1 Year
- Certificate: CE&ISO9001
- Used For Tube: For 150W co2 laser tube
- used For Machine: For YUEMING co2 laser engraving and cutting machine
- Color: Black
- Maximum Input Voltage: DC 40KV
- Maximum Output Current: DC 25mA
- Application: Sculpture and cut acrylic ,fabric,double color sheet and rubber sheet.

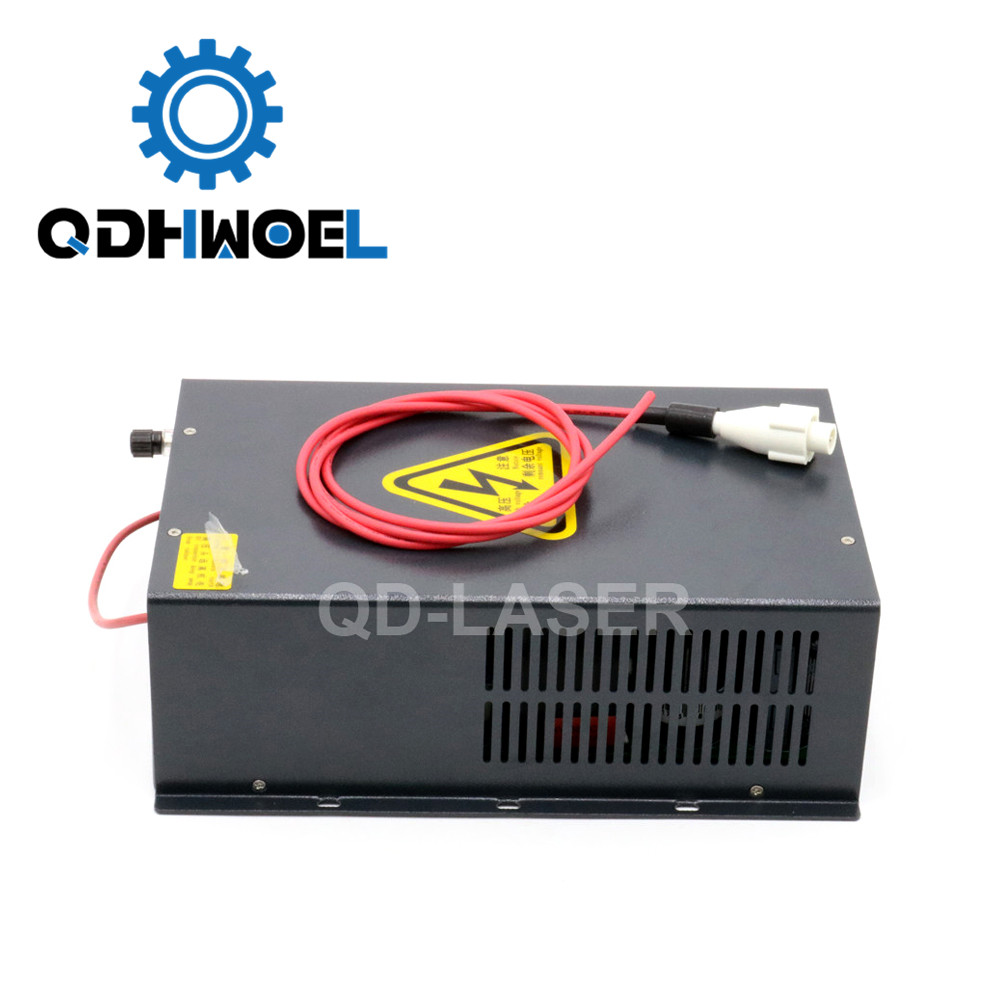

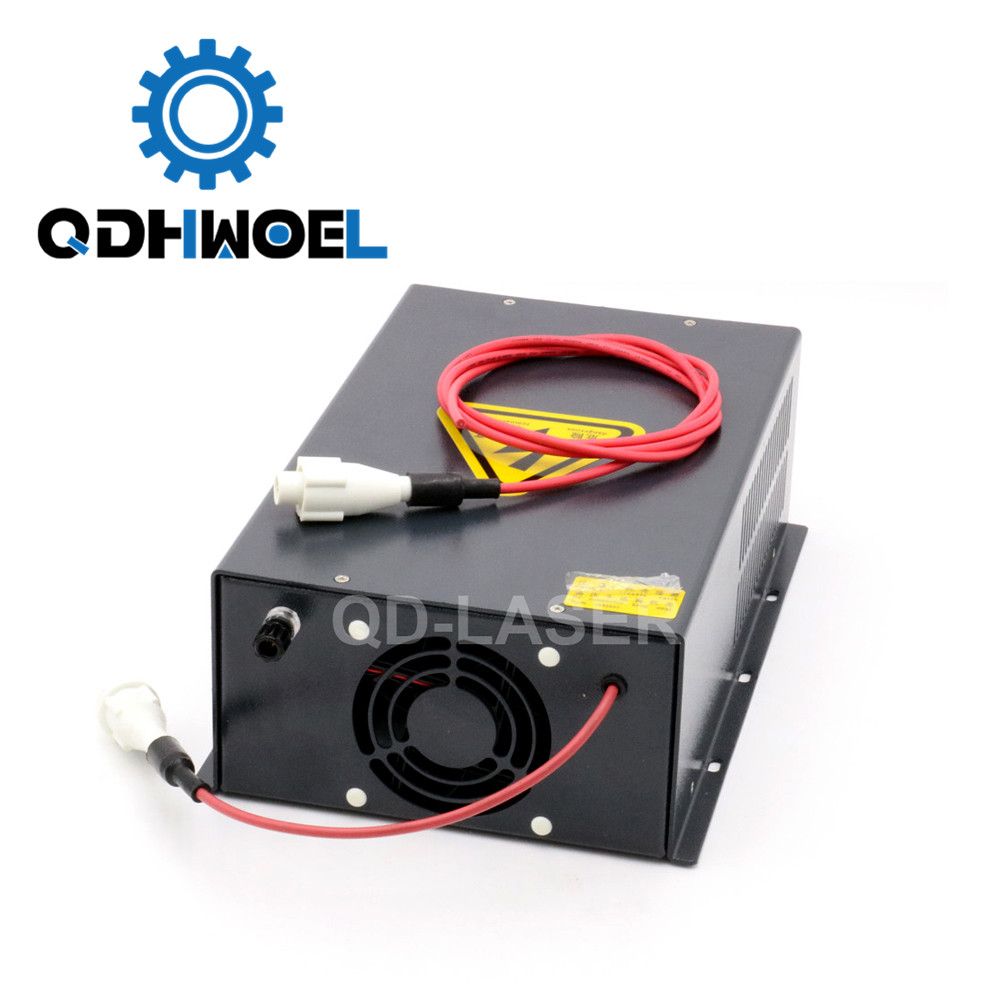

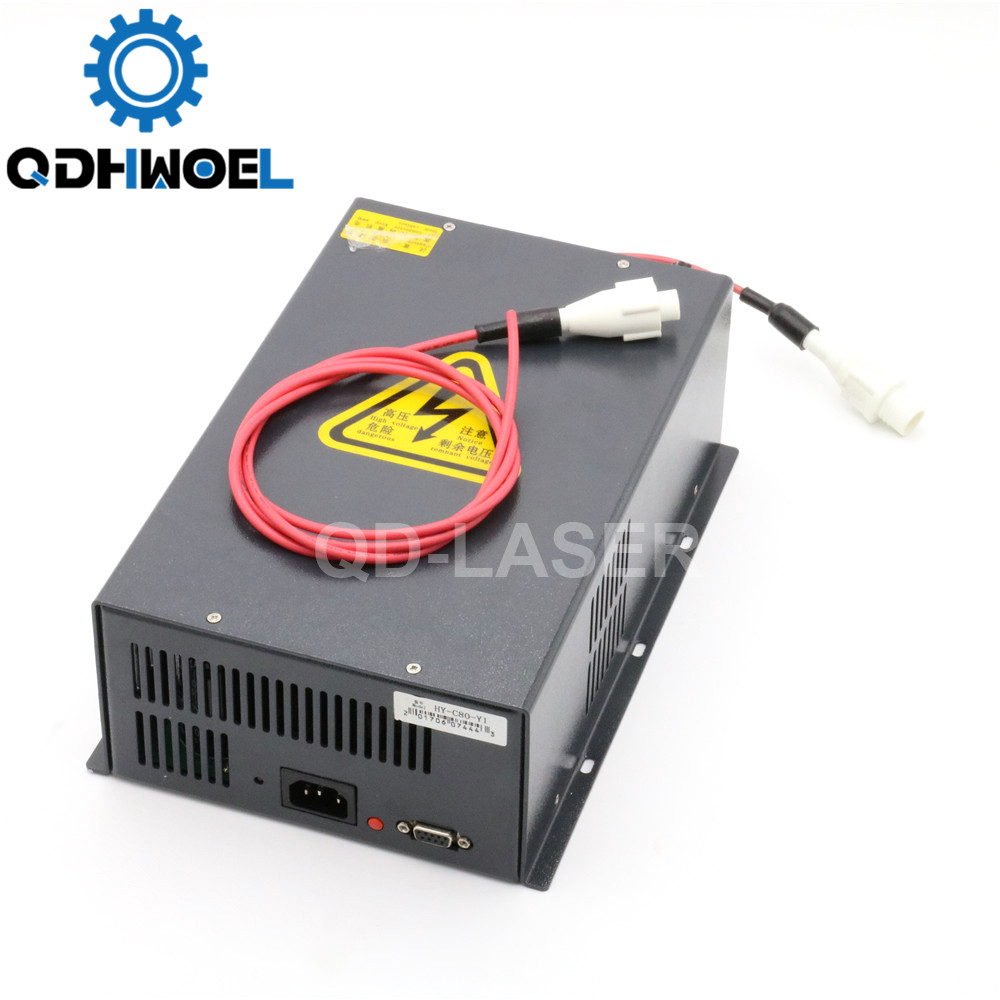

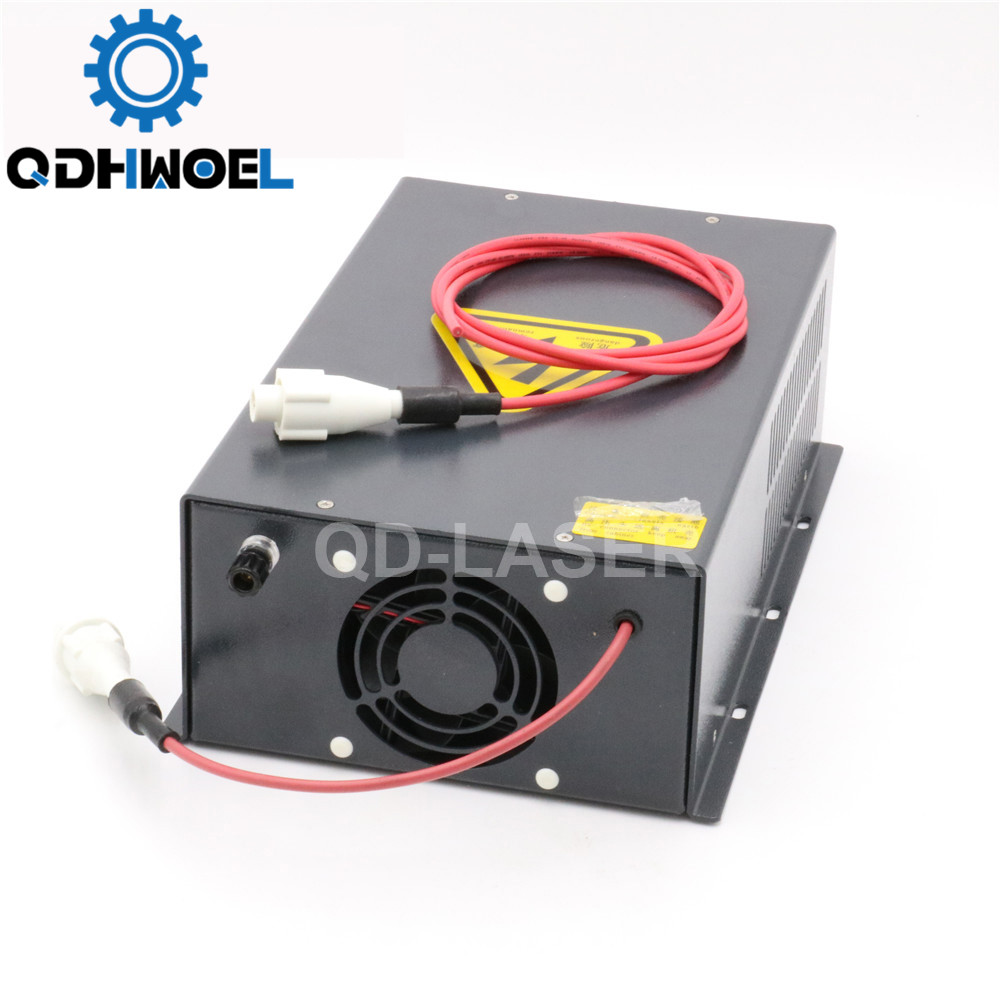

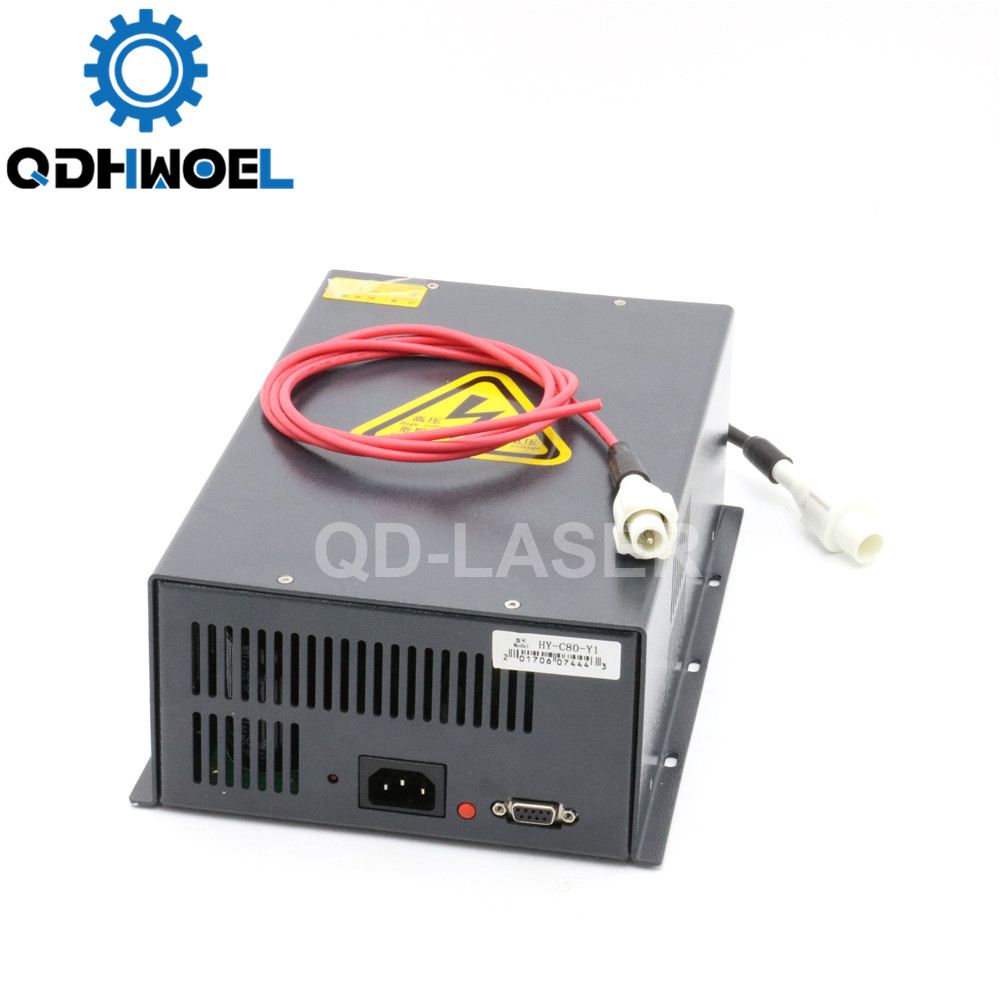

PWM C150 Co2 Laser Power Supply 150w For YUEMING Laser Engraving And Cutting Machine
150W Power Supply for CO2 Laser Tubes
1.Main Features:
2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.
3) Easy Control: The start and stop of laser can be easily controlled by TTL level.
4) The power supply has output open circuit protection.
5) The power supply has TTL signal indication, water through signal indication and laser output indication.
6)This power supply has the BUTTON to test output laser manually.
7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.
2.Parameters:
|
Input |
Input voltage |
AC110V-AC250V |
|
AC frequency |
47-440HZ |
|
|
Max input power |
1000W |
|
|
Max input current |
10A |
|
|
Output |
Max output voltage |
50KV |
|
Max output current |
38mA |
|
|
Efficiency |
>=90%(full load) |
|
|
MTBF(Mean time between failure) |
>=10000hours |
|
|
Response speed |
<=1ms(from the TTL signal is given to the output current up to 90% of setting current) |
|
|
Withstand voltage |
Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. |
|
|
Environment |
Operating temperature:-10~40degrees, relative humidity:<=90% |
|
|
Cooling |
Force air cooling(FAC) |
|
|
Dimension |
L*W*H=328*239*101mm |
|
|
Weight |
4.6kg |
|
