Packing list

10 laser set Product List: 10 green light emitting devices, 10 receivers ,10 laser reflectors, an alarm, a magnetic lock, a centralized power supply, 2 reset button function controller(red.), 2 open buttons (green),

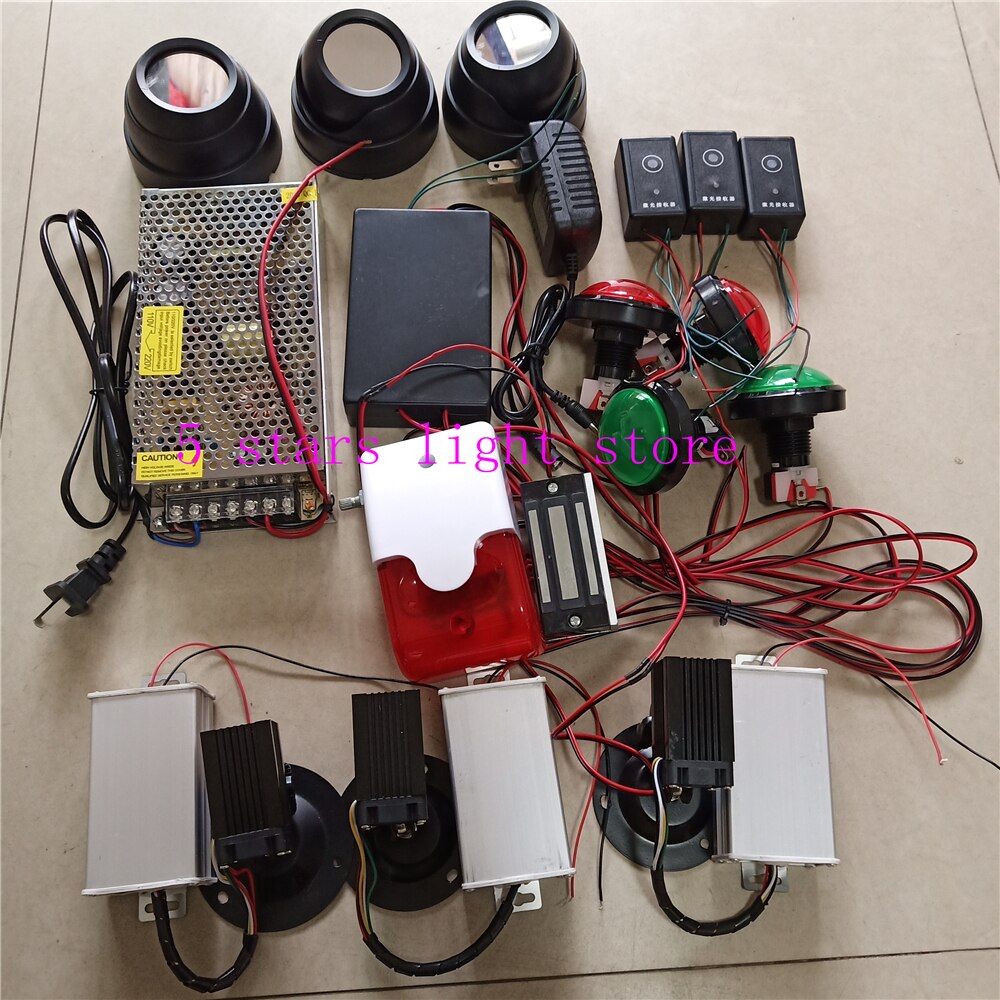

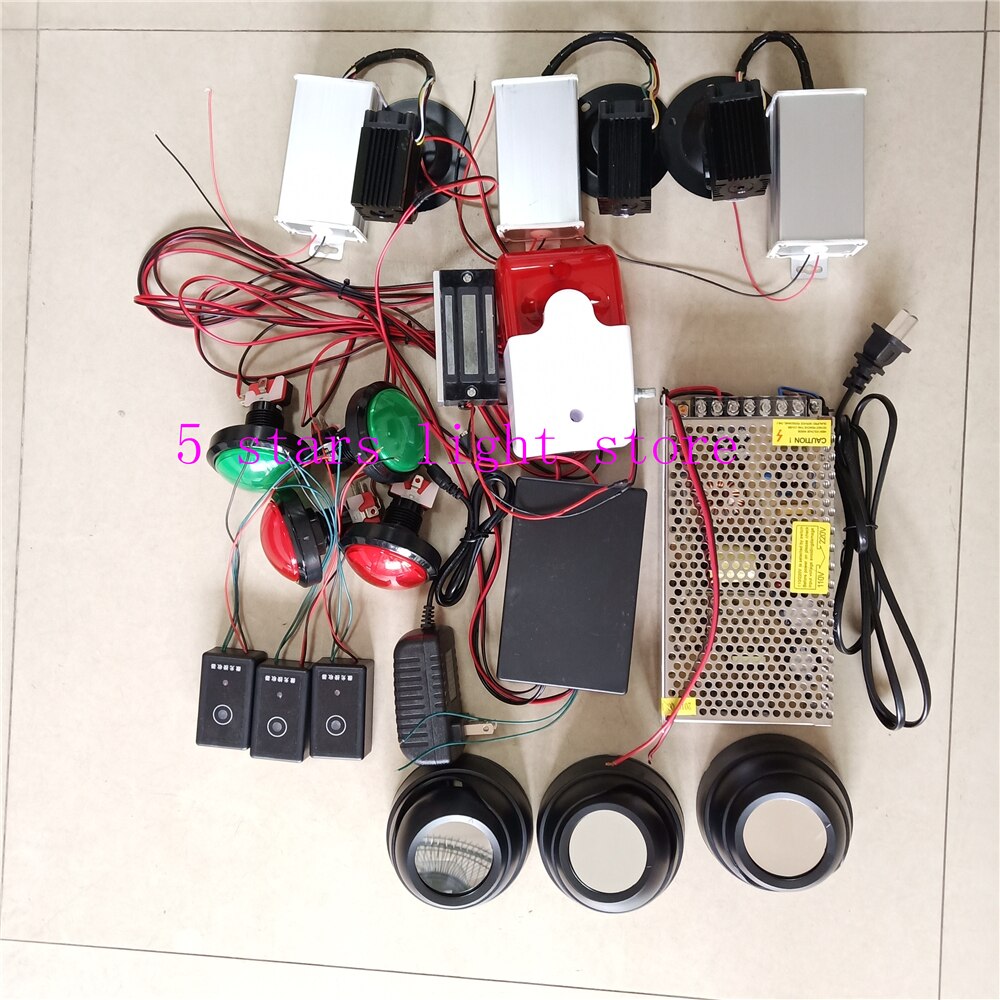

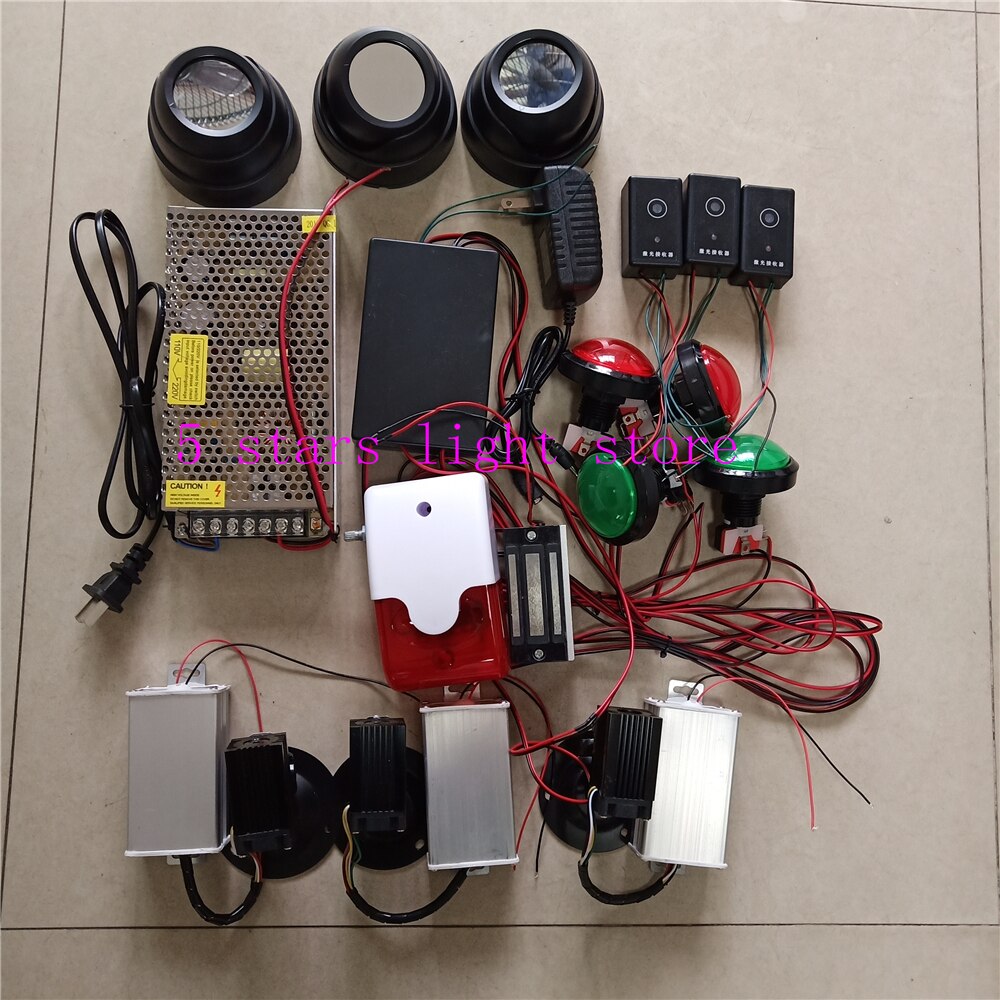

3 laser set Product List: 3 green light emitting devices, 3 receivers , 3 laser reflectors, an alarm, a magnetic lock, a centralized power supply, 2 reset button function controller(red.), 2 open buttons (green),

6 laser set Product List: 6 green light emitting devices, 6 receivers , 6 laser reflectors, an alarm, a magnetic lock, a centralized power supply, 2 reset button function controller(red.), 2 open buttons (green),

warm tips: if you want to design more laser lights, receivers, reflecters, feel free to tell me please

Laser equipment connection diagram

emitting devices: black wire connect power supply black wire, red wire connect red wire

each receiver: black wire connnect to power black wire, red wire connect to power red wire, one green wire connect to controller black wire, one green wire connect to controller red wire.

we have already connected the controller alarm buttons, magnetic locks, 12v2A Power

Game rules

    After the power system, the entire laser array device is running, three launchers 3 green clear green light beam through the mirror to the receiver, electromagnetic lock to lock. Players must pass through without touching any  the laser line laser array reaches the end, in order to open the door, there must be two people at the same time pressing the button to open the door; 10 minutes later the door opened automatically turned off (off time can be adjusted by) . If the players do not accidentally touch the laser line, the alarm will sound and light alarms, then the door will be locked. Force is not open the door. Players need to return to the starting point,two player press the reset button simultaneously, sound and light alarms disappear,the game system work on again.
