Description

Features:
This is a multi-purpose toolkit, provides the tools necessary for the assembly of mechanical splices.
FTTH optical fiber cold construction kit is Fttx FTTH rapid connection in the construction of rubber insulated wire stripping, fiber cutting, cleaning and testing process.

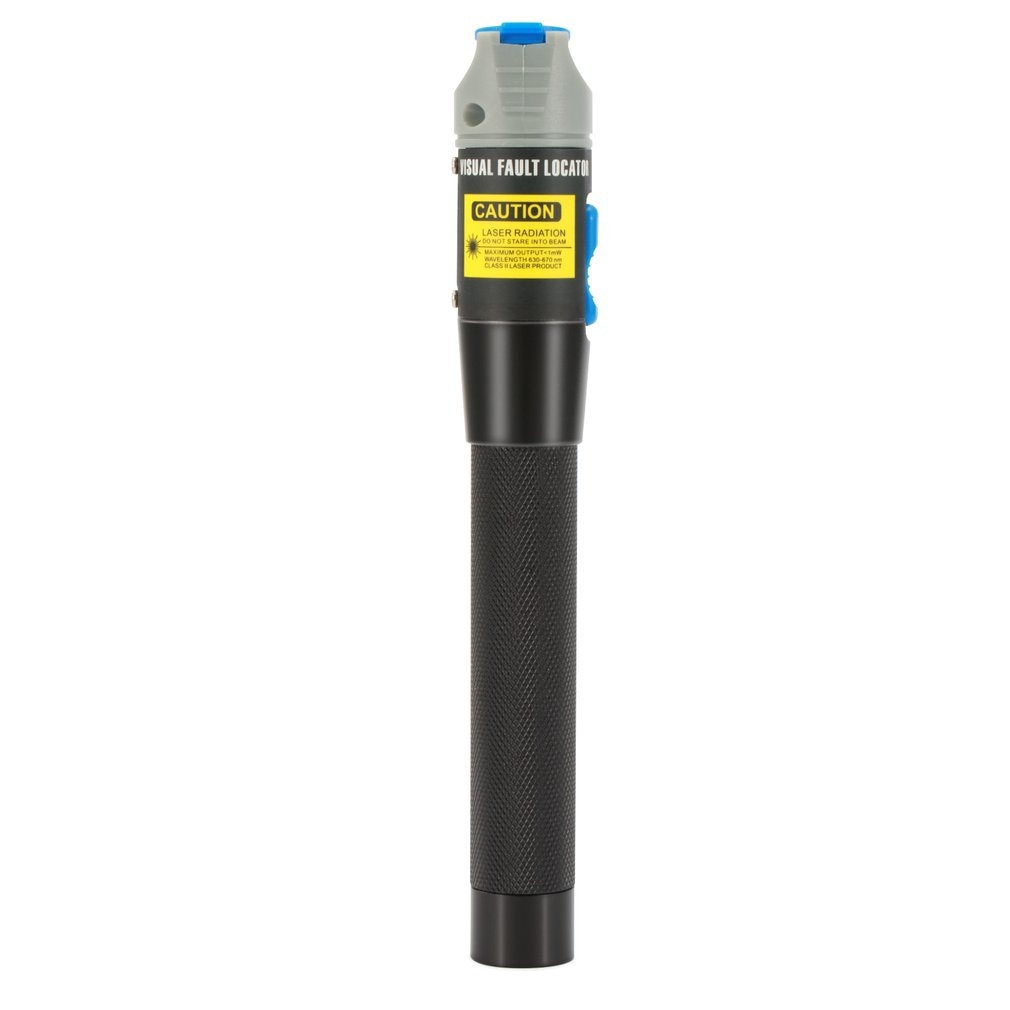

1mW Visual Fault Locator Fiber Optic Cable Tester Meter for CATV.

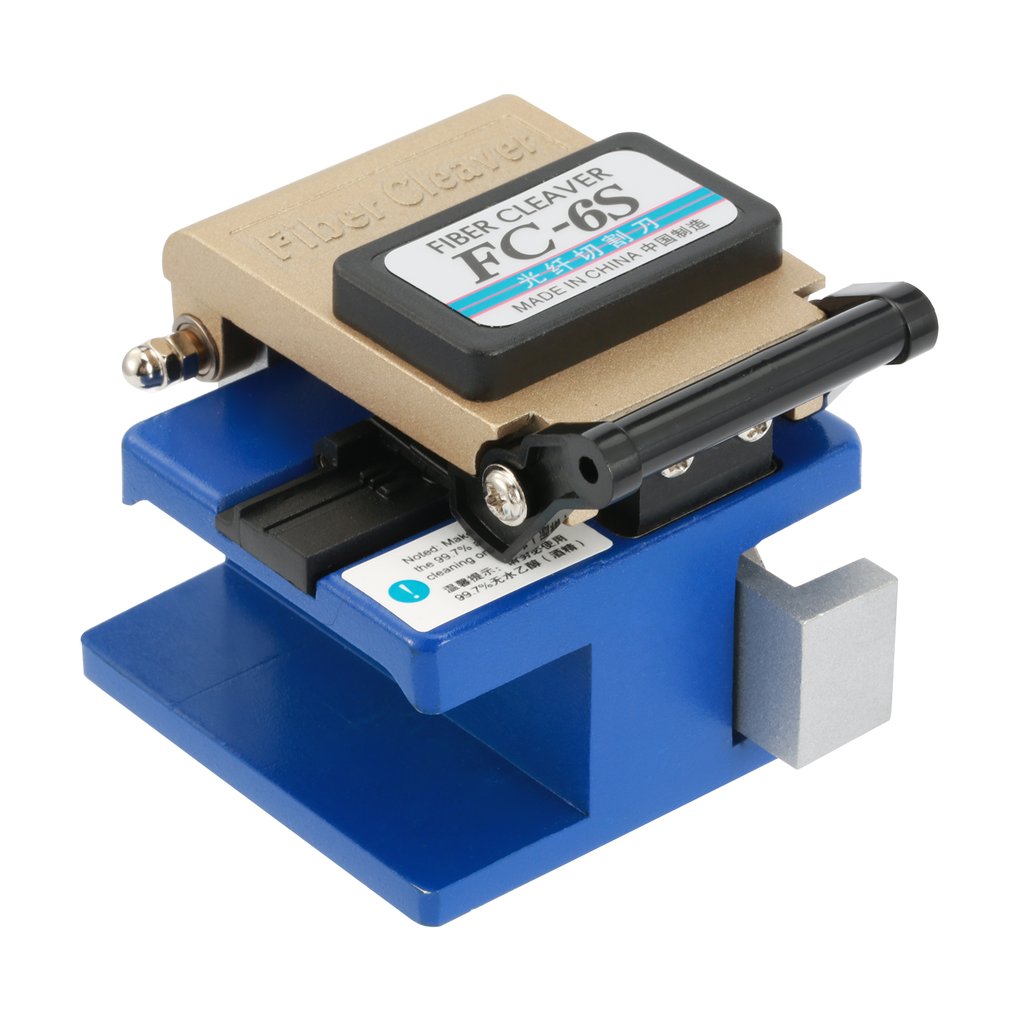

The FC-6S fiber optic cleaver is used for single fiber cleaving. This FC-6S optical fiber cleaver is for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
Fixed length guide rail groove, used for indoor cable stripping coating layer and positioning length.
This is an ideal tool for construction operators.

Descriptions:
Wavelength(nm): 800~1700nm
Detector: InGaAs
Measurement Range (dBm): -70~+10
Uncertainty: ±0.2(5%)
Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
Resolution(dB): Linear indication: 0.1%
Loharithmic indication: 0.01dBm
Optical Connector: FC/ Universal 2.5mm adaptor
Operating Temperature: -10 ~ +60C
Storage Temperature: -25 ~ +70C
Relative Humidity: 0 to 95% (non-condensing)

Specifications:
Main Color:Black & blue
Size:190*90*30mm

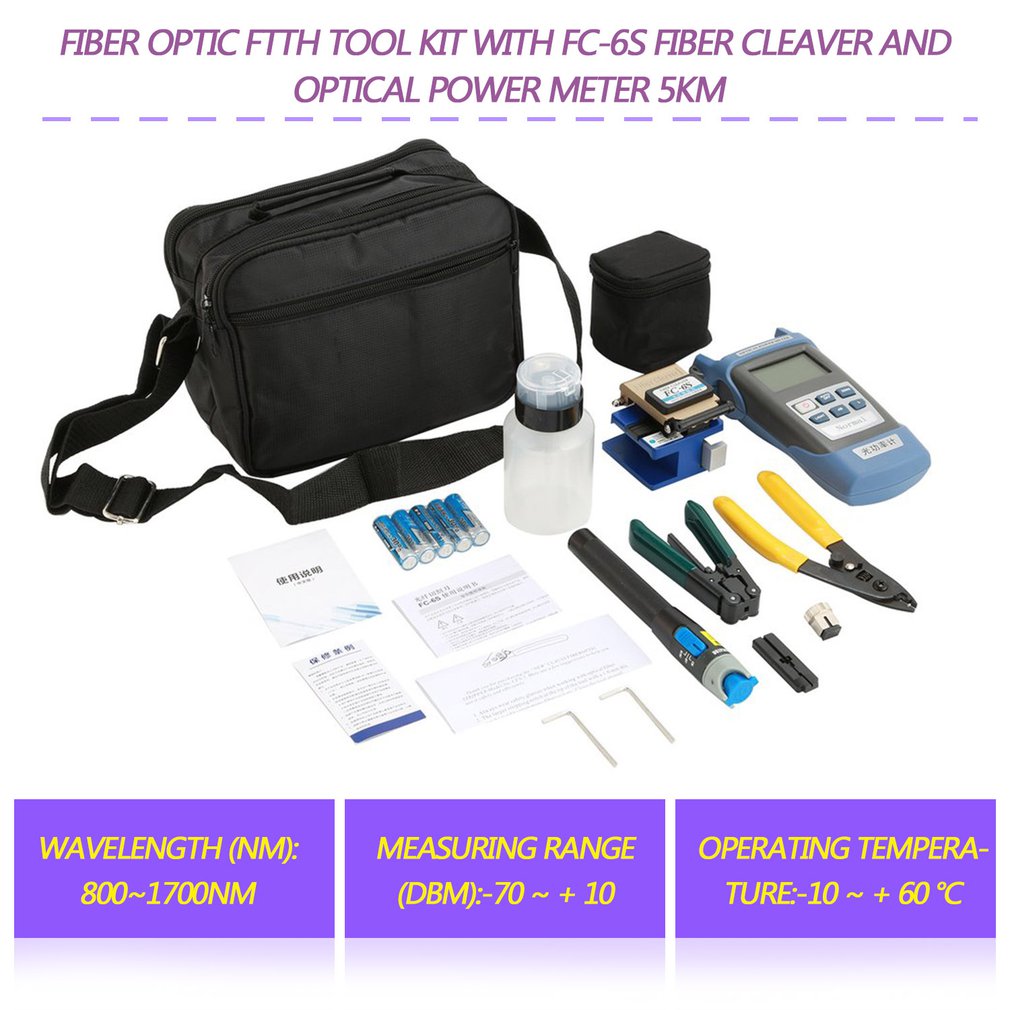

Package Includes:

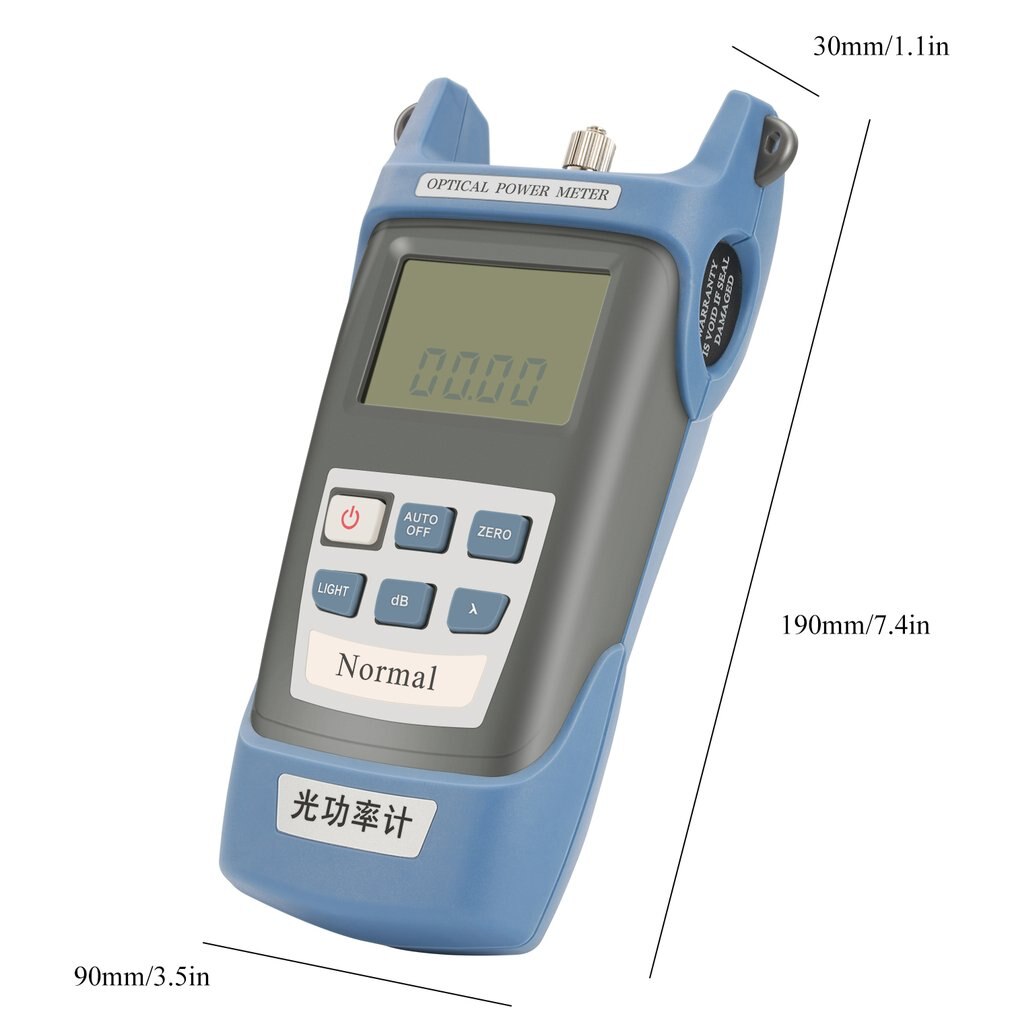

1 x Optical Power Meter with SC FC ST Connector
1 x FC-6S Fiber Cleaver
1 x Visual Fault Locator 1mw

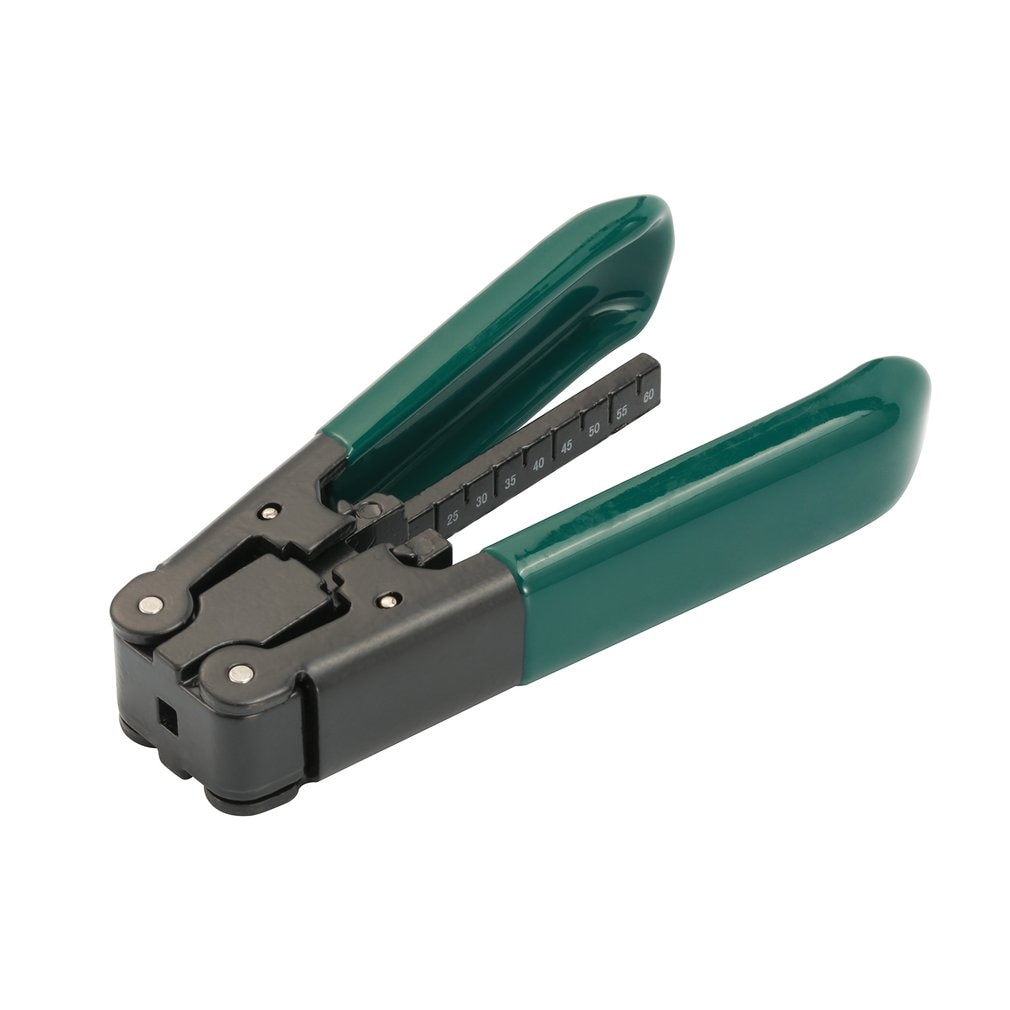

1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Alcohol Bottle
1 x Set Dustfree Paper
1 x Cleaver Stripping Guide Bar
2 x Cleaver Adjusting Tool
2 x Ceramic Sleeves for VFL
1 x Cleaver Bag
1 x For VFL Bag
1 x Toolkit Bag

Notes:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight deviation for the measurement data.
