NEJE 405nm 3500mw Continuous Laser Module
Application: Grayscale engraving, Photo engraving, Depth engraving, Paper cutting, g-code drawing…

Engraving material: wood, gray paper card, non-transparent plastic, leather, paint pcba, etc.( flat, opaque and can be burned black)

Weight: 116g

Input: 12V280mA (about 3500mw)

Output optical power: 600mw

PWM: 50KHz-20KHz / 3.3V-12V

Temperature Sensor: yes

Focus range: 0mm-50mm ( Recommend 0-10mm)

Max cutting thickness(Non Woven Fabric): 3mm(Light diameter:<0.15mm)

Minimum Focus Diameter:0.01mm ( Recommend Focus Range<10mm)
packing list:
1 x module
2 x screw
2 x gasket

Application:Depth Engraving, High-Speed Engraving, g-code drawing, Paper cutting, Wood cutting(<2mm) …

Engraving material: wood, gray paper card, non-transparent plastic, leather, paint pcba, etc.( flat, opaque and can be burned black)

Weight: 116g

Input: 12V750mA (about 7w)

Output optical power: 2.5W

PWM: 50KHz-20KHz / 3.3V-12V

Temperature Sensor: yes

Best focus range: 0mm-50mm( Recommend 0-10mm)

Max cutting thickness: 3mm(Light diameter:<0.15mm)

Minimum Focus Diameter:0.01mm ( Recommend Focus Range<10mm)

Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master

packing list

1 x module
2 x screw
2 x gasket
1 x control line

NOTE: It is more suitable for cutting since its high power.
Main applications: cutting, drawing etc.
Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Wavelength: 450nm
Radiator size: 30*80mm
Material: copper + aluminum
Weight: 202g
Drive position: built-in
Is the power adjustable: PWM can be adjusted
Drive protection: surge protection, overvoltage protection
Input power: approx. 12V2A ≈ 20W (without fan power)
Output optical power: 5.5W
Line length: 300mm
Control line installation method: pluggable
Fan size: 30*10mm
Fan speed: 15000 rpm
Controllable temperature: less than 60 degrees Celsius

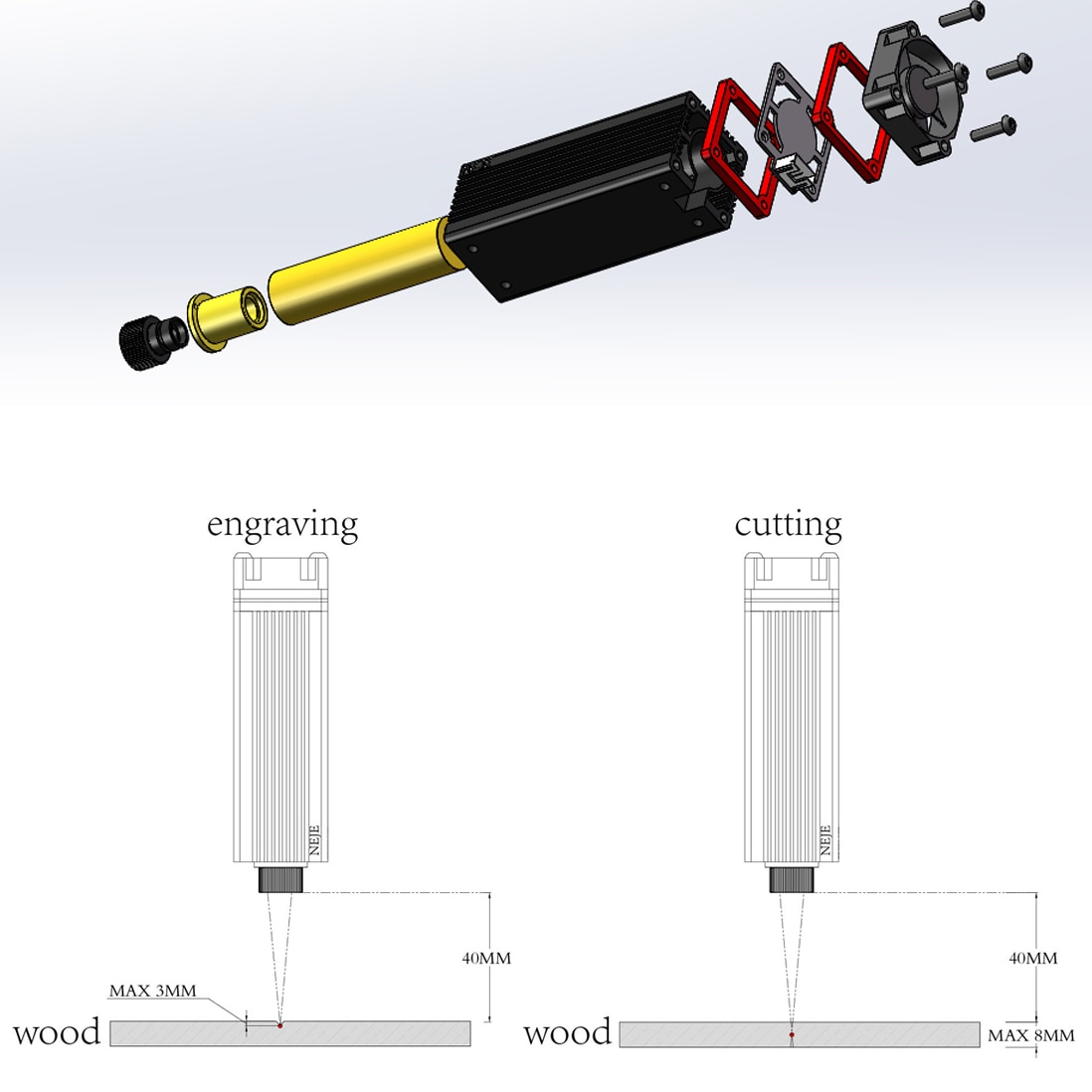

Focus range: 5-50mm
Best focal length: 10mm from the light exit
Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master
Note: NEJE Master comes standard with 12V2A charger. If you want to upgrade your
old machine, you need to prepare another 12V3A power supply.
packing list:
1 x module
2 x screw
2 x gasket
1 x control line
