Description

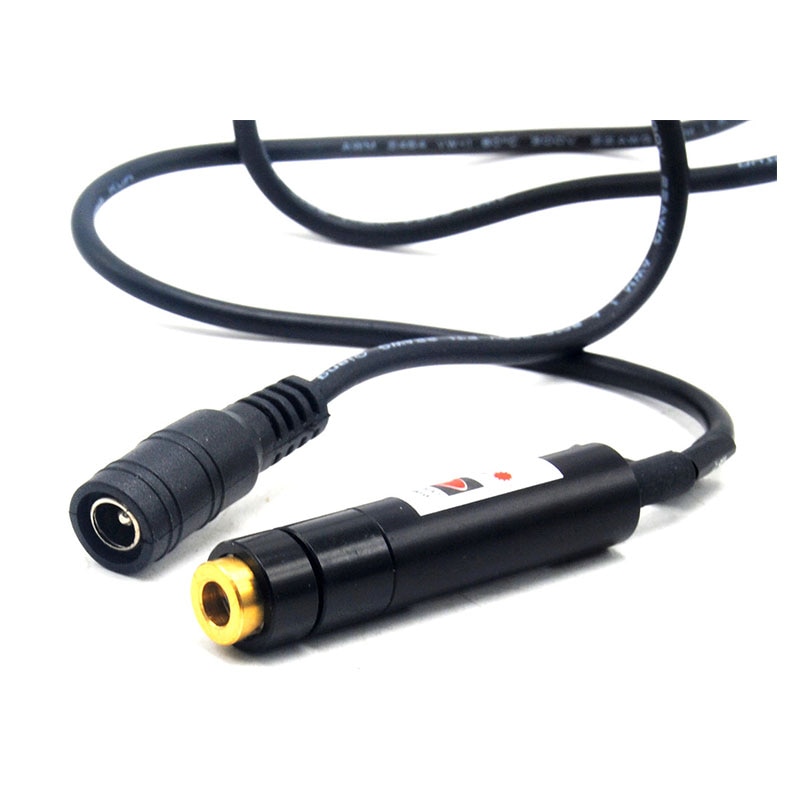

Positioning/Sewing Line Red Laser Module 650nm 5mw Adjustable Lazer w 5V Adapter

Parameters
Core device:　Mitsubishi diodes
Wavelength: 650 nM
Output power:  5mW
Supply voltage:  DC5V
Operating Current:  20mA
Spot Pattern:  LINE
Focusable:Yes
Optical part: pvc focus lens + K9 Lens
Material: Aluminum
Working temperature: ± 50 ℃
Lens material: pvc
Dimensions: 12mm * 55mm (adjustable focus)
Best working distance: 1-2 meters (can be used for a long time)
Output band: visible light

Features
Adjustable focal length
Small size
Dustproof retaining ring
Efficient heat dissipation
Sewing equipment Embroidery machine

Package

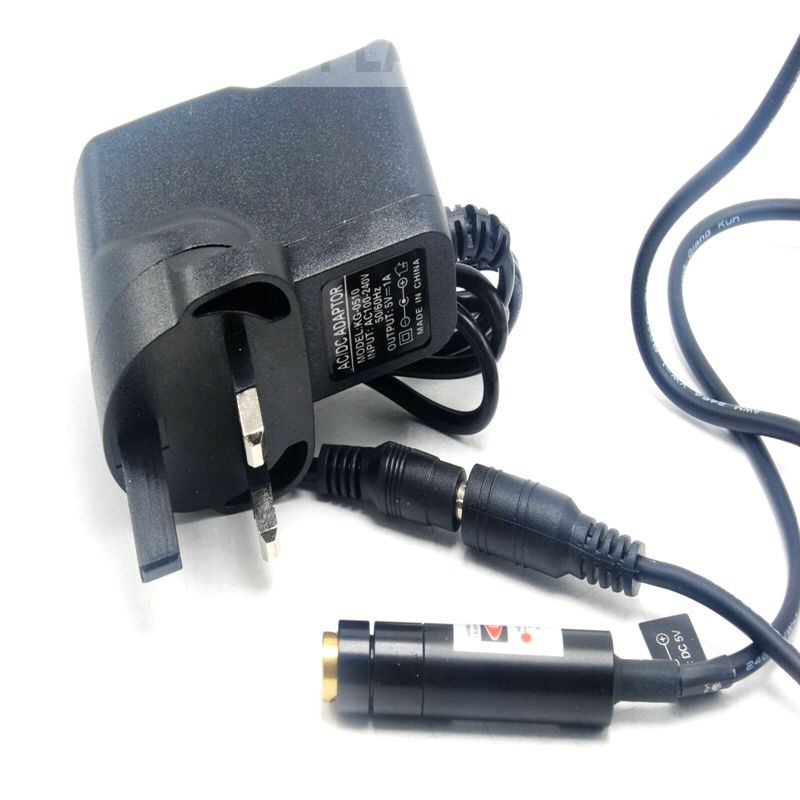

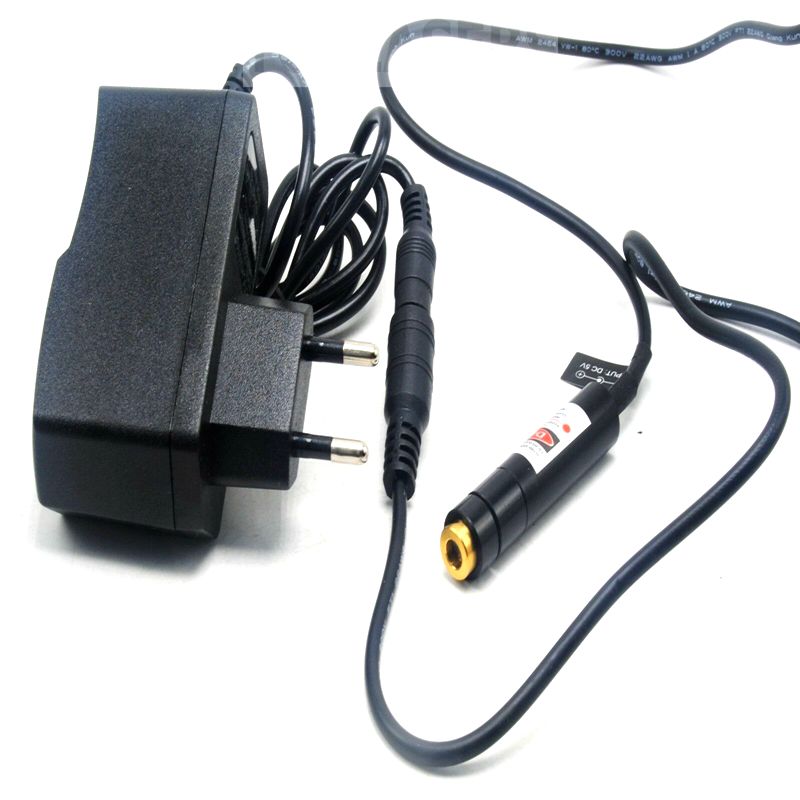

1pc DC5V 650nm Red Laser Diode Module for Positioning
1pc 5V Adapter
