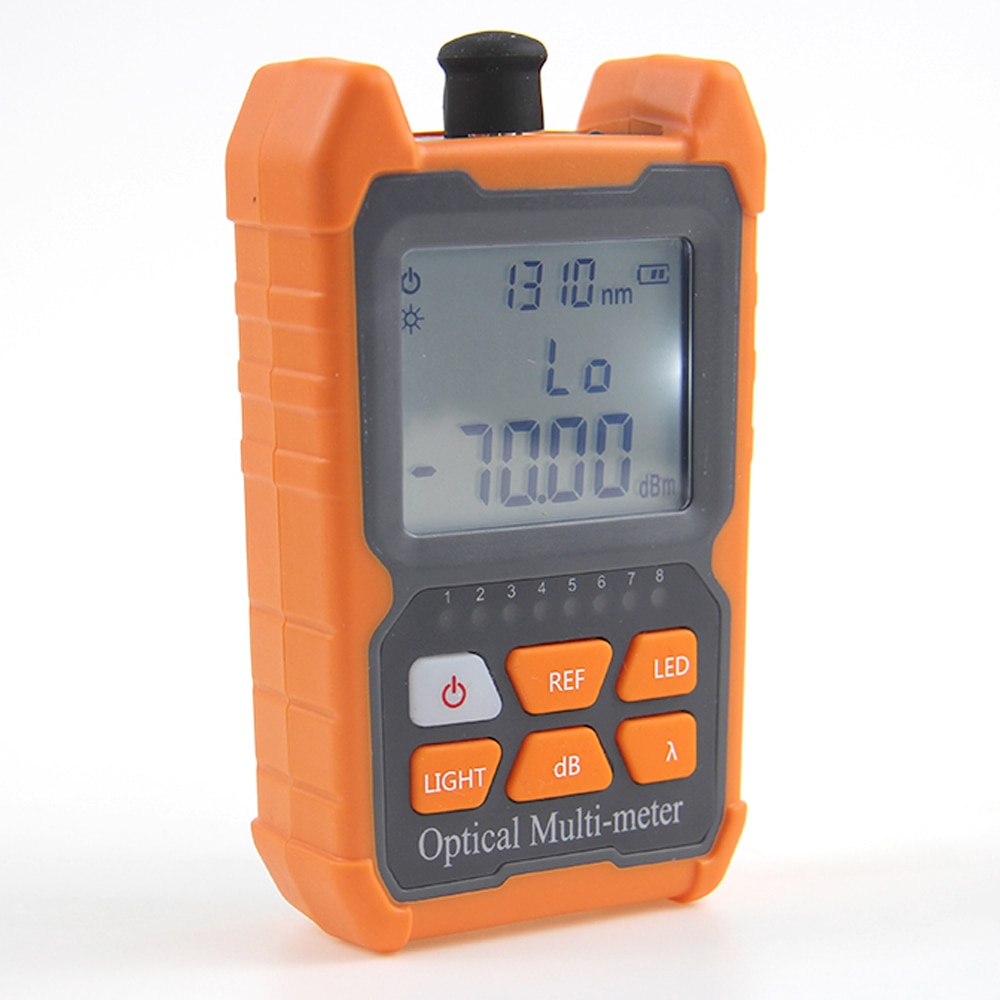

Portable Mini Fiber Optical Power Meter 8 Wavelengths with LED Light Network Cable Tester FTTH Fiber Optic Cable Tester

$39.00

SKU: 4000295665509 Category: Tag:

Description

Mini type light power meter series product mainly used for measuring to continue optical signal capacity and fibre-optical route closed-open testing. It applies single chip microprocessor to carry out control, and with completed function. It was widely used on optical cable construction and maintenance, fibre-optical communication, optical cable sensing, light CAT etc. areas. Machine body pattern design conforms to human body engineering requirements, and it applies advanced cold molding technology, it is beautiful and practical. Light power meter applies built-in detector and laser, and it could make it protected very well. Light power meter has delicate appearance, auto power off , three kinds of backlight mode, wavelength memory function, fibre-optical work identification, manual calibration, wide testing range.

Features:
Accurately test whether a single network cable transmits signals normally.
Added LED flashlight lighting function to facilitate line inspection in dark environments.
Added wavelength memory function to remember the test wavelength set before shutdown after shutdown.
Encapsulated case protection, can reduce the damage caused to the machine by accidental fall by a certain degree.
Press LIGHT in different environments to turn the backlight on or off at will.
You can self-adjustment test reference based on actual test requirements.

Specifications:
Test Range: -70 to +6dbm
Wavelength Range: 800~1700nm
Standard Wavelength: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Uncertainty: ±5%
650m red light source (optional): Imw, 10mw, 20mw, 30mw
Display Resolution: linear display 0.1%, logarithmic display 0.01dBm
Battery: 2 * AAA battery, 1.5V, 250mAh

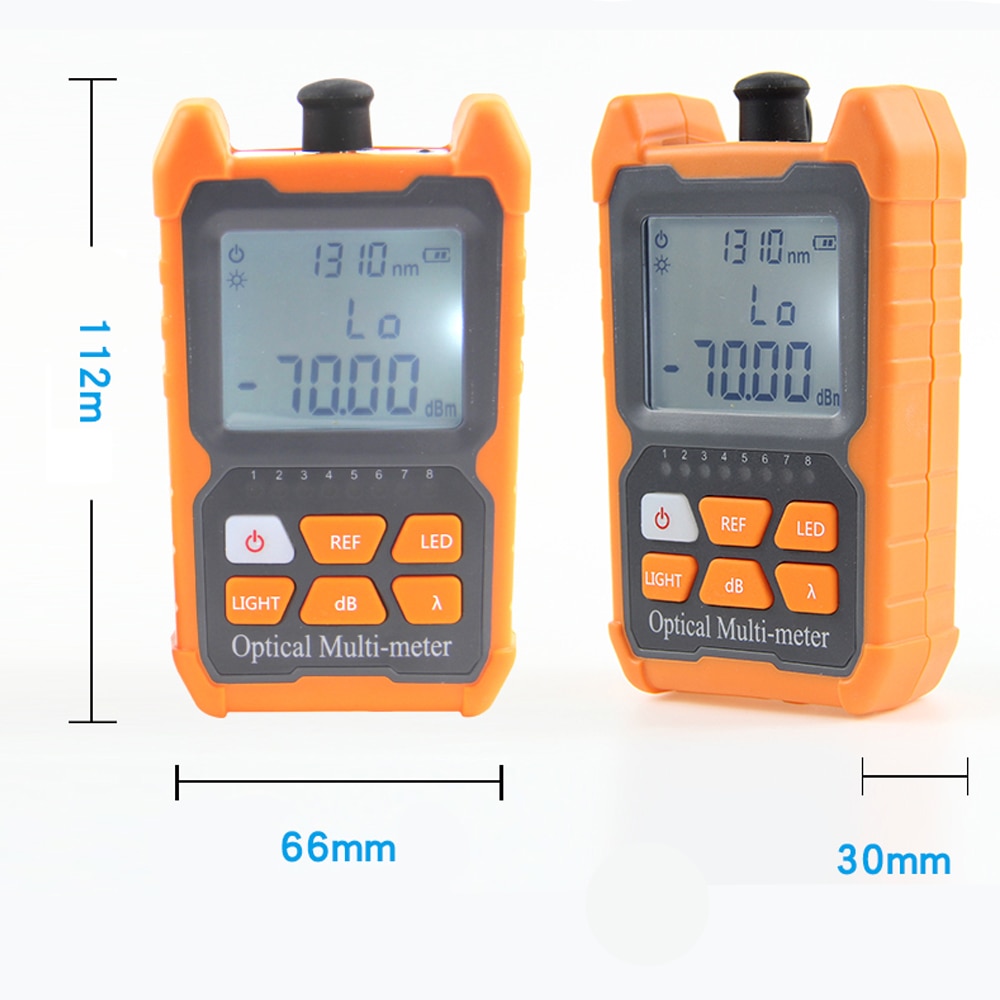

Item size: 130 * 63 * 29mm / 5.1 * 2.5 * 1.1in
Item weight: 310g / 10.9ounce
Package size: 260 * 150 * 100mm / 10.2 * 5.9 * 3.9in
Package weight: 350g / 12.3ounce

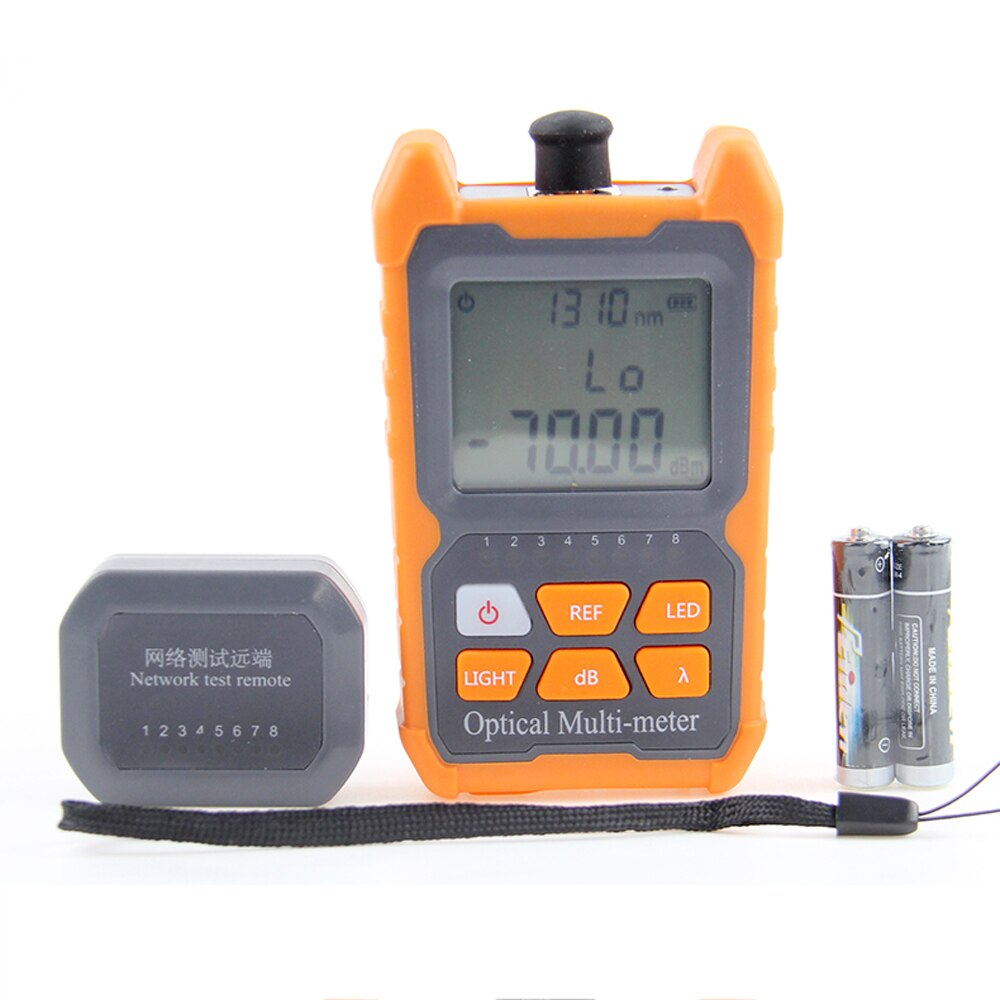

Package list:
1 * Fiber Optical Power Meter
1 * User Manual
2 * Battery
