Description
FEATURES
• Laser-based light scattering particle sensing
• Concentration range: 0 μg/m3 to 1,000 μg/m3
• Fully calibrated
• EMC: Heavy industrial level IEC61000
• Response time: <6 s
• Supply current: 80 mA max.
• Output signal: UART (Universal Asynchronous Receiver/
Transmitter)
• PM2.5 output (PM10 output optional with additional
programming)
• RoHS compliant
• REACH compliant
POTENTIAL INDUSTRIAL APPLICATIONS
• HVAC:
– Air conditioners
– Air quality monitors
– Environmental monitoring
• Consumer products:
– Air cleaners
– Air conditioners
– Air purifiers
– Car air cleaners
– Handheld air quality detectors
DESCRIPTION

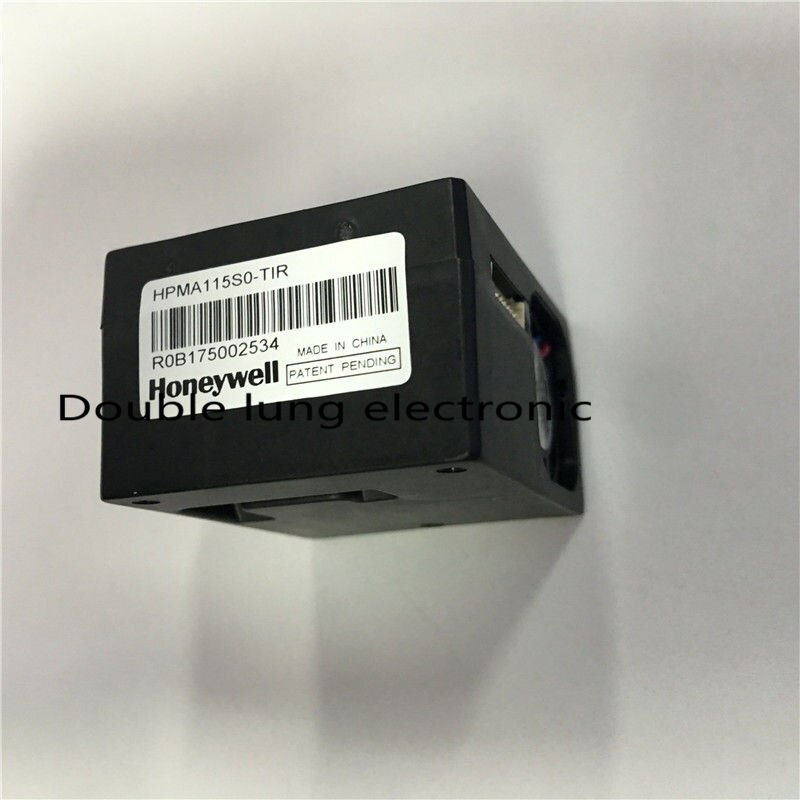

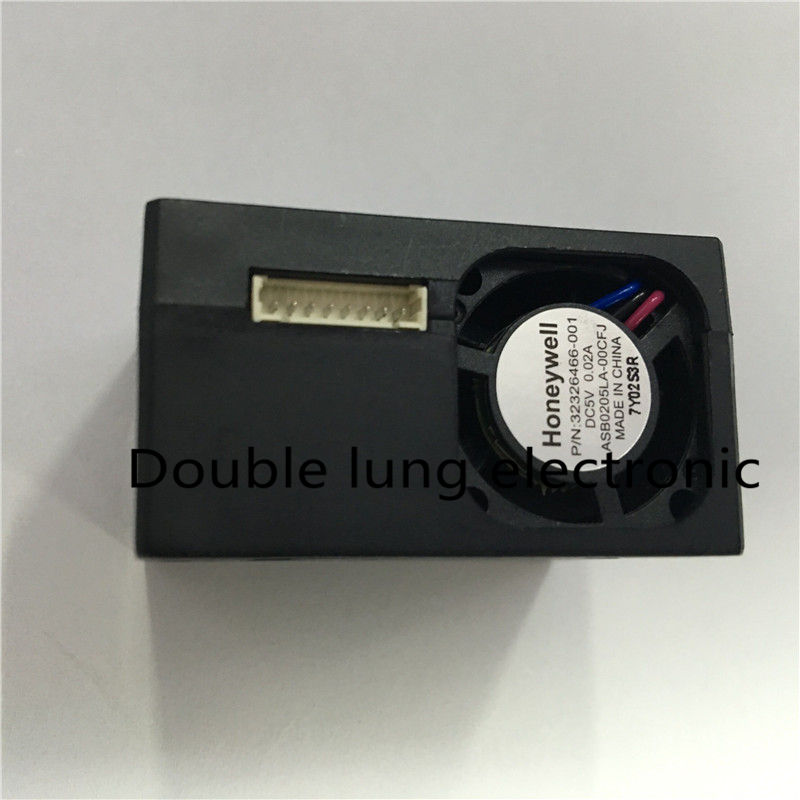

The Honeywell HPM Series Particle Sensor is a laser-based
sensor which uses the light scattering method to detect
and count particles in the concentration range of 0 μg/m3
to 1,000 μg/m3 in a given environment. A laser light source
illuminates a particle as it is pulled through the detection
chamber. As particles pass through the laser beam, the light
source becomes obscured and is recorded on the photo or
light detector. The light is then analyzed and converted to
an electrical signal providing particulate size and quantity to
calculate concentrations in real time. The Honeywell particle
sensor provides information on the particle concentration for
given particle concentration range.
VALUE TO CUSTOMERS
• Enables the ability to more accurately and cost-effectively
monitor or control environmental particulate contaminates
• Industry-leading long life of 20,000 hours of continuous
use essentially equates to seven years of product life
(based on eight hours of operation per day)
• Proven EMC performance enables the ability to
perform more accurately in a variety of tough industrial
environments
• Enhanced reliability allows for use in harsh environments
DIFFERENTIATION
• Industry-leading long life of 20,000 hours provides stable
operation and continuous use
• Proven EMC performance, based on IEC61000 stable
operation, ±15% accuracy
