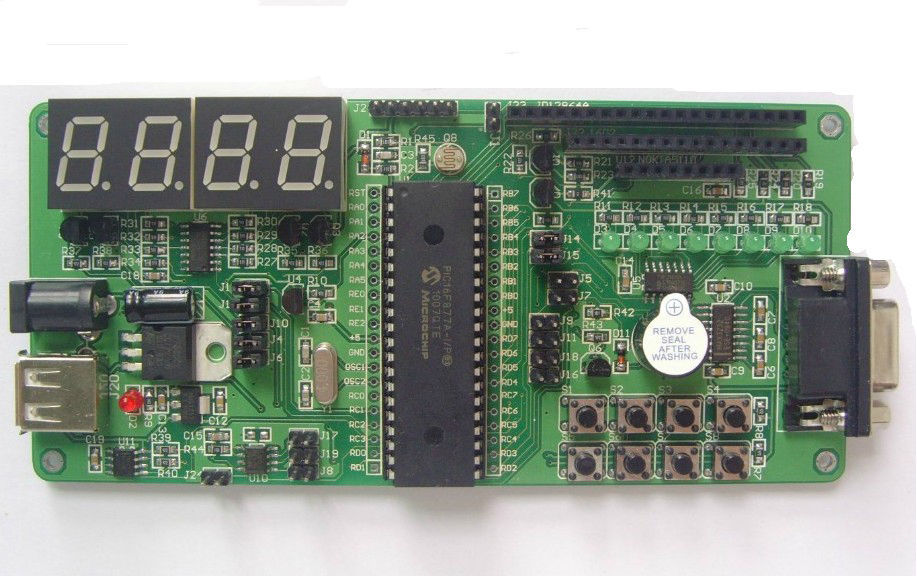

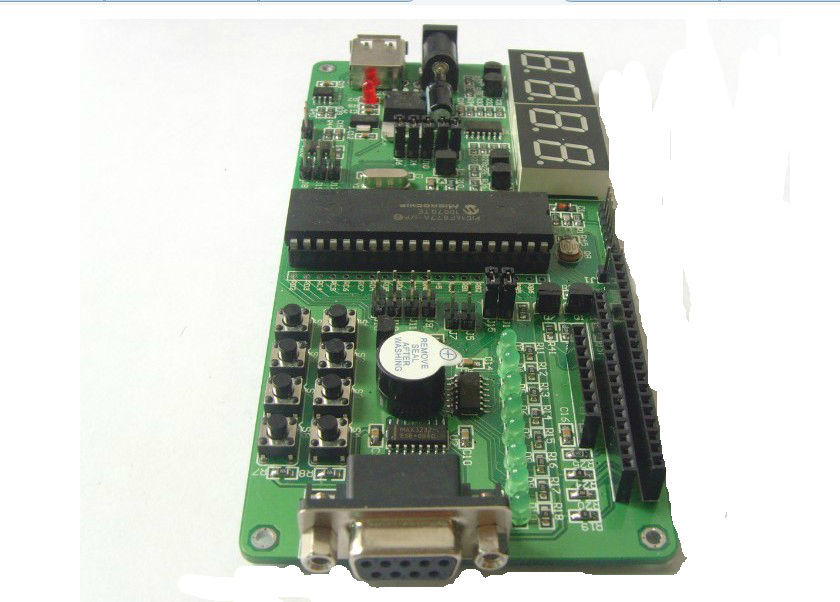

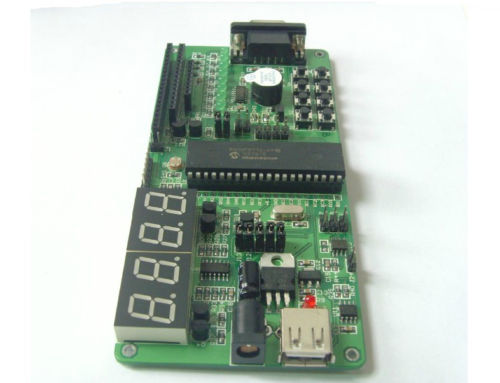

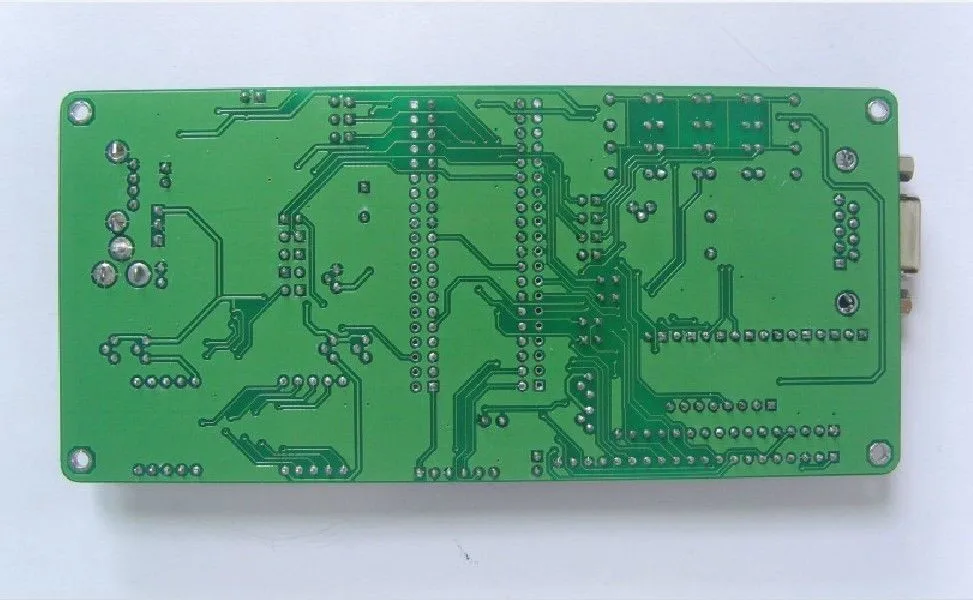

Description

Specification:

Single chip: PIC16F877A
On-board MAX232 chip, RS232 serial communication, you can easily communicate with PC
Onboard the 74HC164 +2 two digital tube display subsystem, you can simply show the experimental data
Board TLC5615 chip can be used to achieve the DA conversion function
Onboard DS18B20 chip can be used for temperature measurement function
Board AT24C02 chip can be used to store experimental
Onboard LCD5110 LCD interface, can be used to achieve 5110 LCD
Board LCD1602 LCD interface can be used to achieve 1602 LCD
The onboard LCD12864 LCD interface, can be used to achieve 12864 LCD
Onboard 8 free key can be used to achieve human-computer interaction experiments
Onboard 5V buzzer, you can easily do the voice newspaper
A photo resistor with the microcontroller can be used for the AD experiments
Development board can be used to 9VDC power supply or USB power supply onboard the 7805 power chip
Feature:

Note: ONLY FOR PROFESSIONALS

Package:

PIC16F877A MCU board X 1
