Technical Parameters:



Technical Parameters:

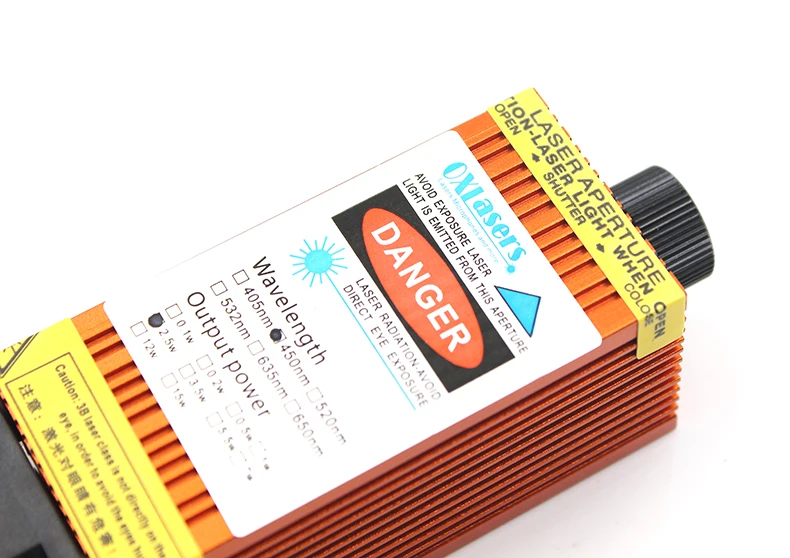

Laser wavelength: 445nm-450nm blue laser

Spot type: dotted (adjustable)

Output power: 2.5W(True Power)

                        3.5W(True Power)

                        5W(real output is:4W)



Size: 2.5W(33*70mm) , 3.5W(33*70mm), 5W(33*70mm)



Drive mode: external ACC constant current drive

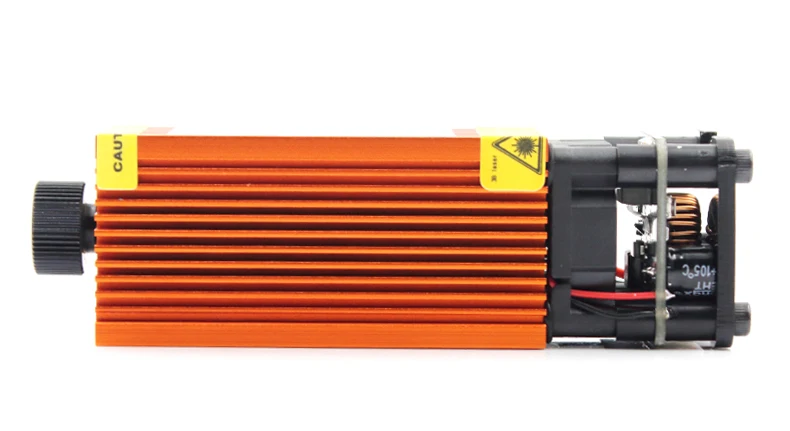

Cooling method: forced air cooling
Operating voltage: 12V  DC

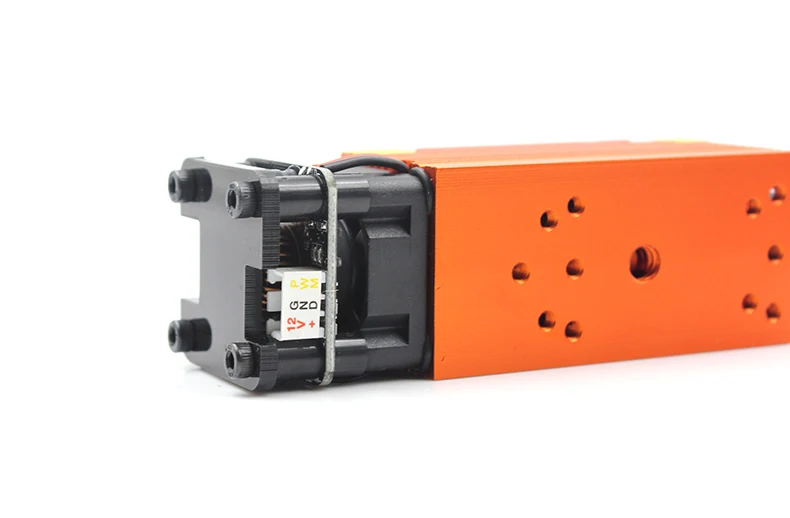

Control interface: 2 * 2.54 (TTL control switch, PWM control power)
Shell material: aluminum, surface anodized

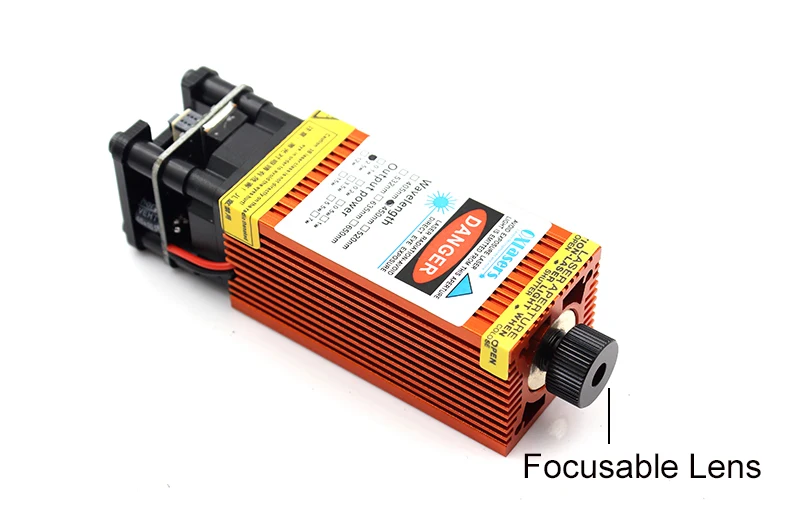

Collimator lens: optical glass coating

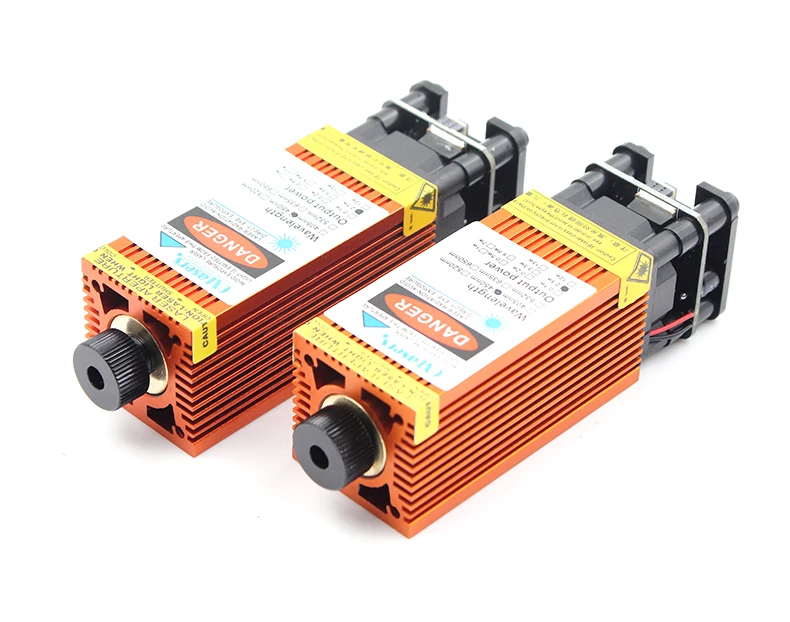

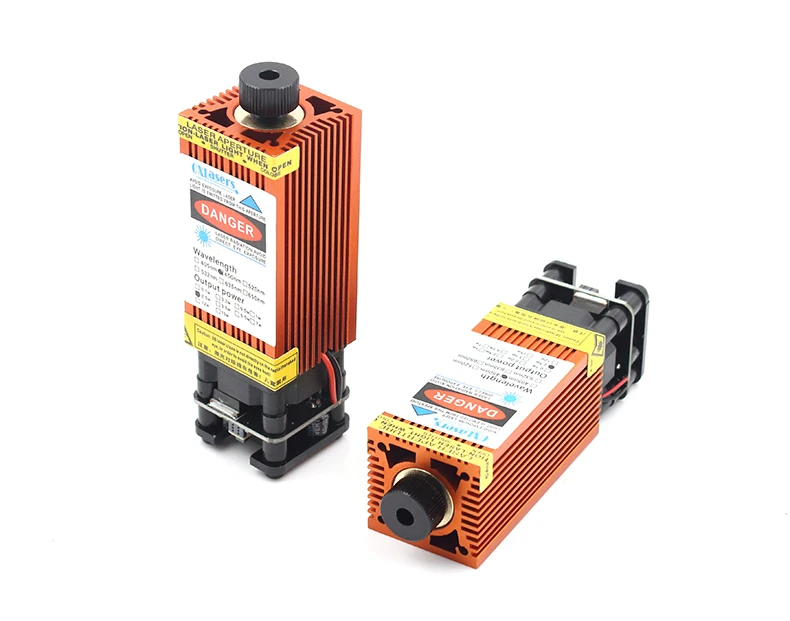

HEAT SINK COLOR: ORANGE

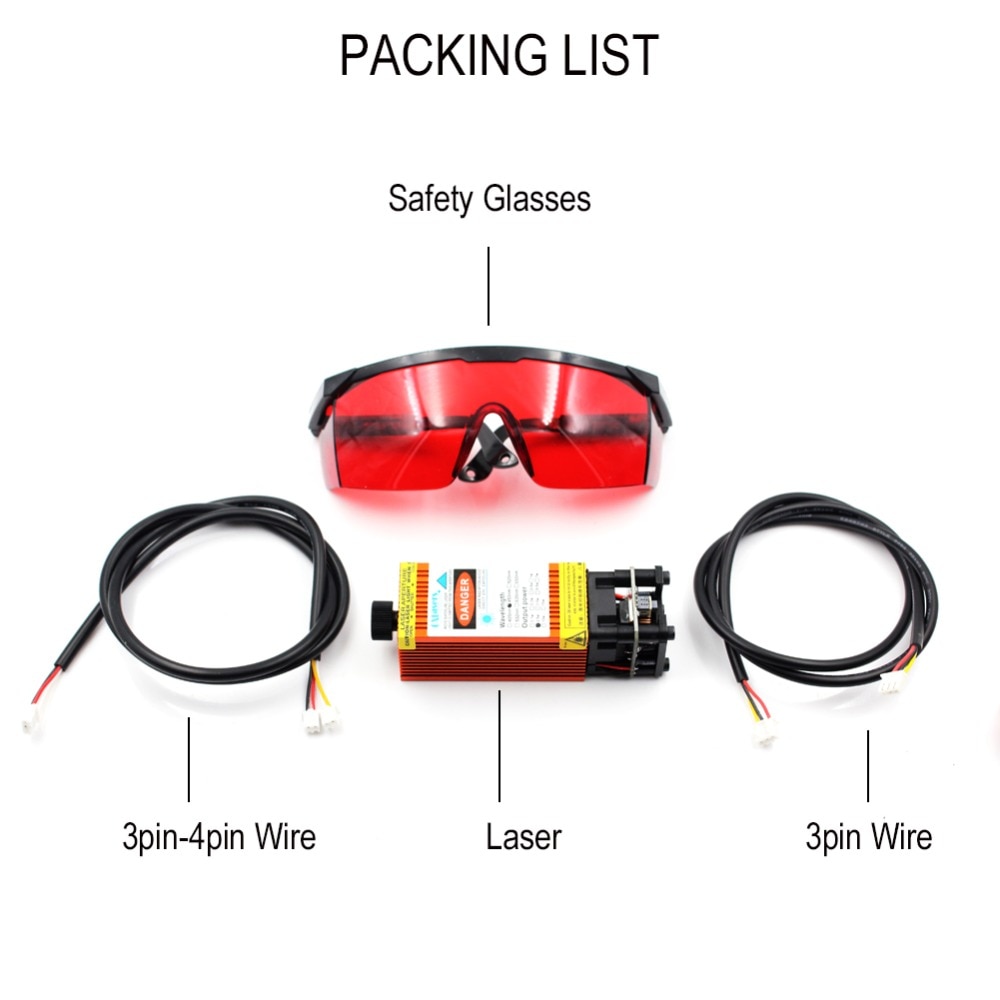

PACKING LIST:



LASER*1

3PIN CABLE*1

3PIN TO 4PIN CABLE*1

SAFETY GLASSES*1
