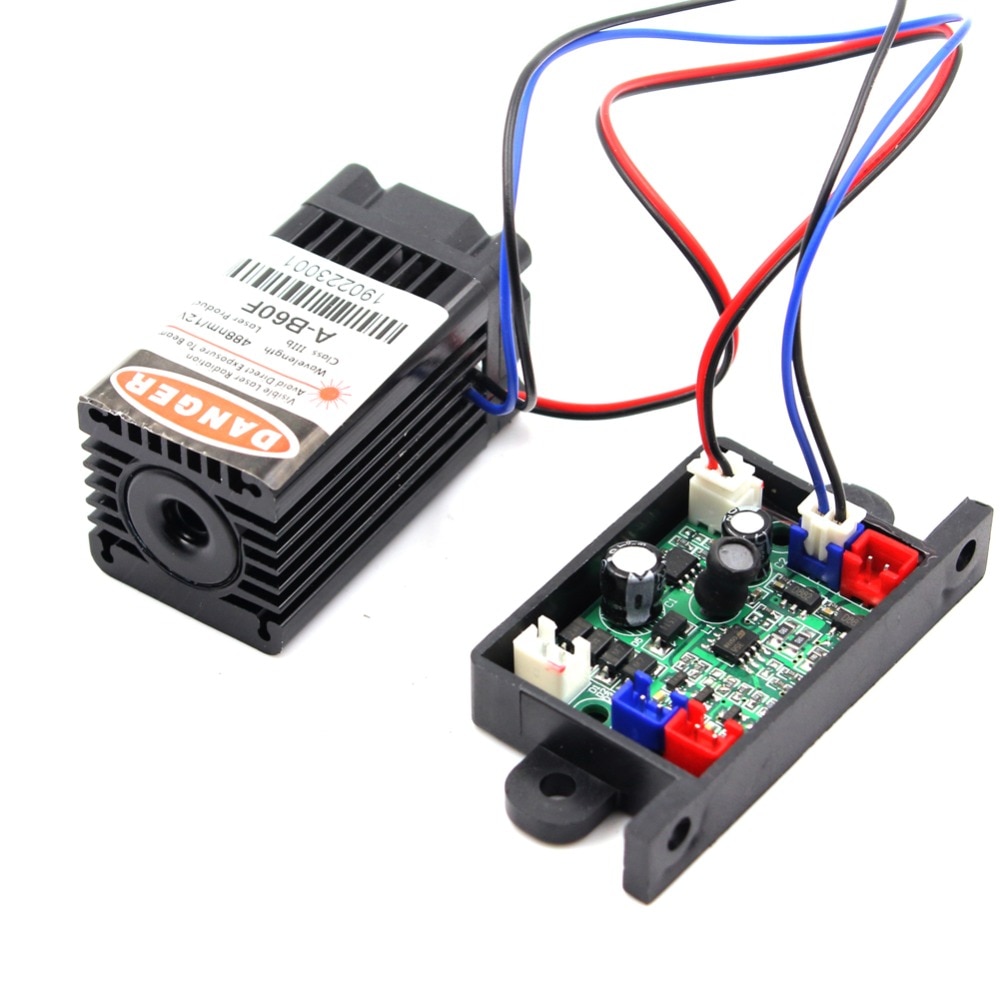

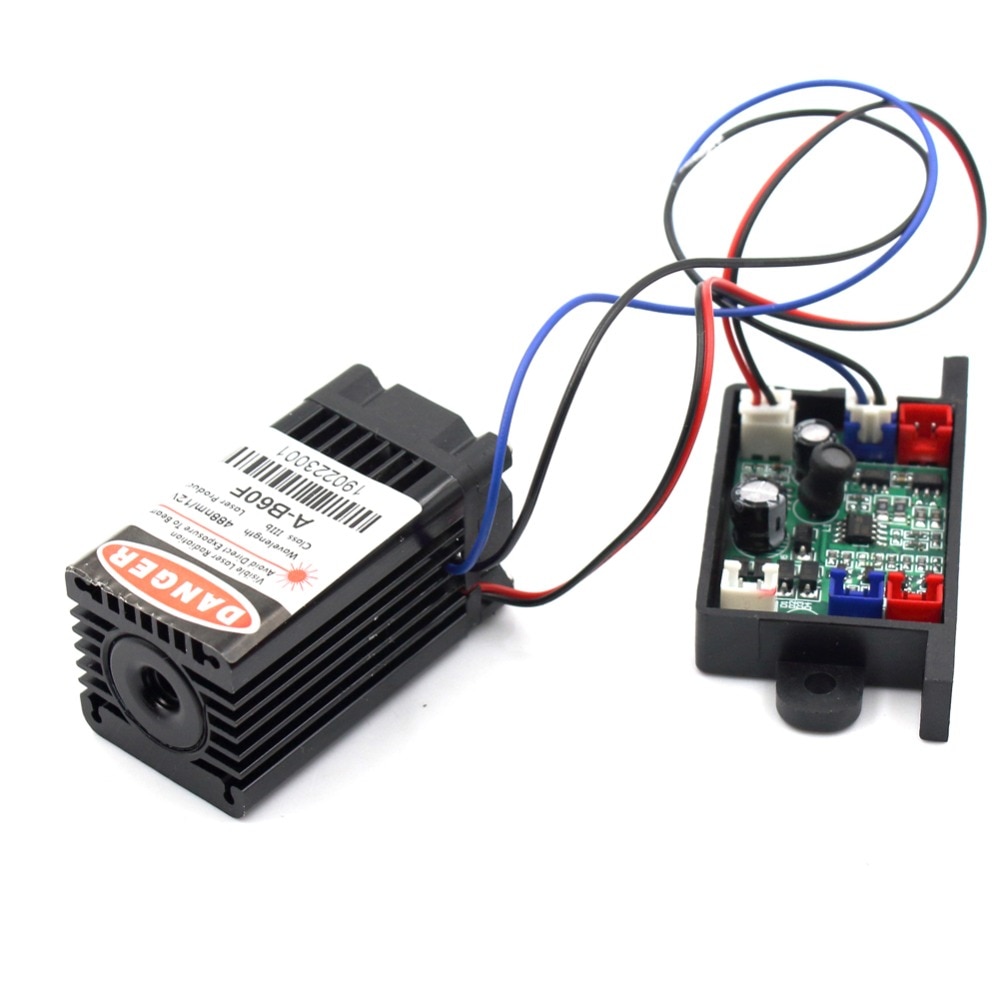

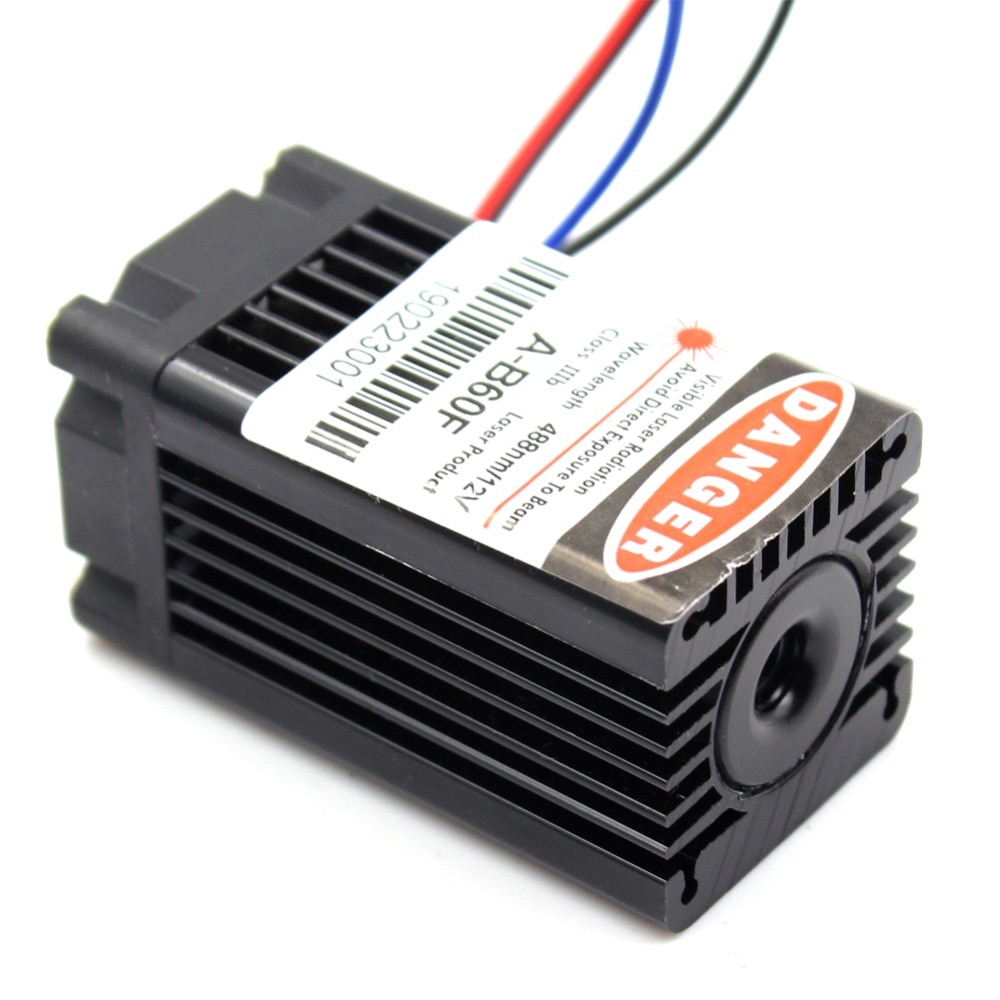

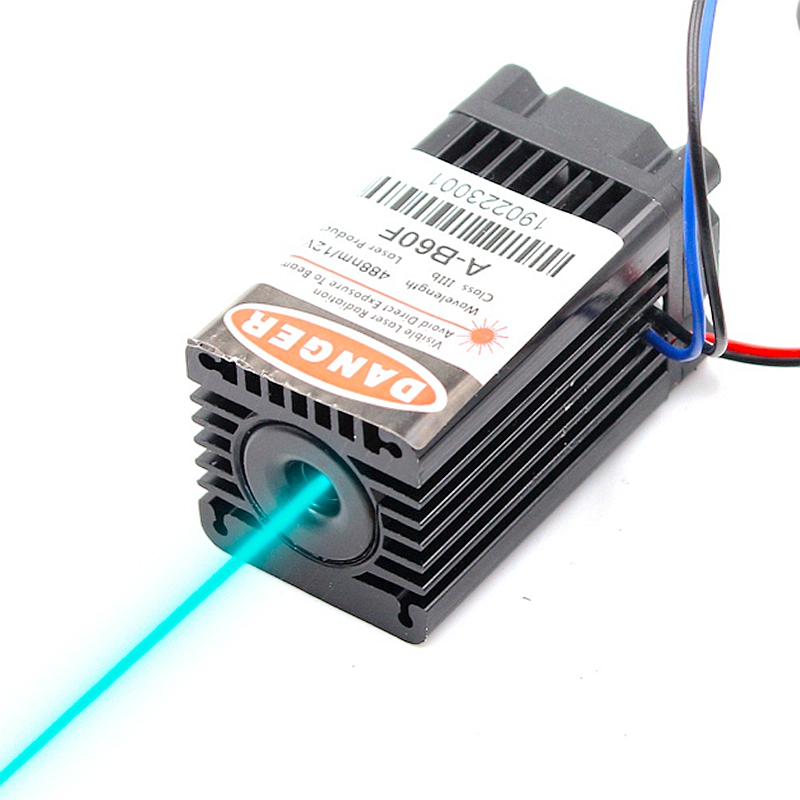

12V 488nm 100mw sky blue laser module TTL laser head LAB lasers medical laser

SPECS:

 Wavelength: 488nm
 Output power: 100mW(Real Output: 80-100mW)

spot pattern: round dot divergence angle ≤1mrad
 Laser Class Class 3
modulation mode TTL modulation (support TTL/PWM 0-5V)
input stability ±5%
Laser input voltage 7V
 current 180mA
rated power consumption 2.1W
Recommended ambient temperature -10~40°C
size 30*30*45mm

Working Voltage: 12V DC

Packing List:

488nm laser*1

Driver Board*1

12V 2A Power Adapter Plug*1

DC-2PIN connect wire*1
