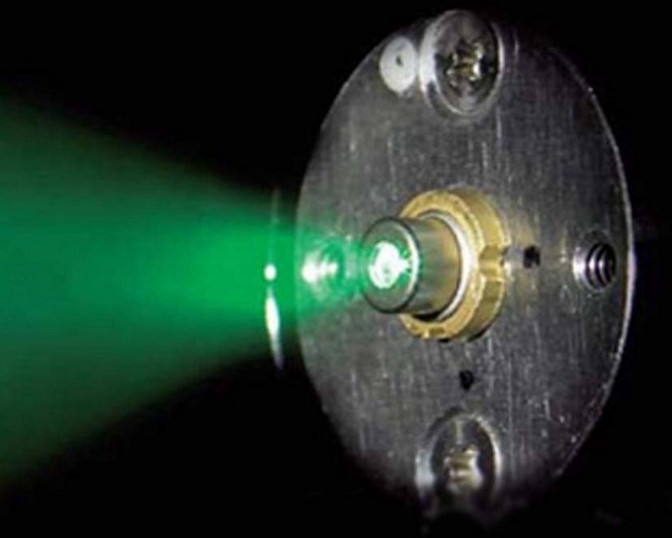

High Quality OSRAM 515nm/520nm Green Laser Diodes PL515. made in Germany.Green Laser Diode in TO38 ICut Package.

Output Power: CW 30mW

Working Current: < 180mA

Working Voltage: <8V

Package: 3.8mm

Operating Case Temperature:0~60

Storage Temperature:-40~85

Working life:>10,000 hours

FeaturesOptical

output power (continuous wave): 30mW (Case = 25)

Typ. emission wavelength: 515nm

Efficient radiation source for cw and pulsed operation

Single transverse mode semiconductor laser

High modulation bandwidth

Miniaturized TO38 Cut package

Laser diode isolated against package

Applications
MetrologyLaser shows

Biomedical applications

Laser projectionSafety Advice
Depending on the mode of operation, these devices emit highly concentrated visible light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions found in IEC 60825-1 Safety of laser products
