Sale!

Ortur PRO 12V 24V Ortur LU2-4 Laser Module Ortur Laser Engraving Machine Laser Head Laser Module DIY Woodworking Parts Tools

$49.00 – $269.00

SKU: 1005003381933225 Category:

Description

  • Brand Name: Ortur
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: LU1-2 LU1-3 LU1-4 L U2-4
  • CNC or Not: Normal
  • Is Smart Device: no
  • LU1-2: Luminous Power: 1200-1600 mw
  • LU1-3: Luminous Power: 4000-4500 mw
  • LU1-4: Luminous Power: 5000-5500mw

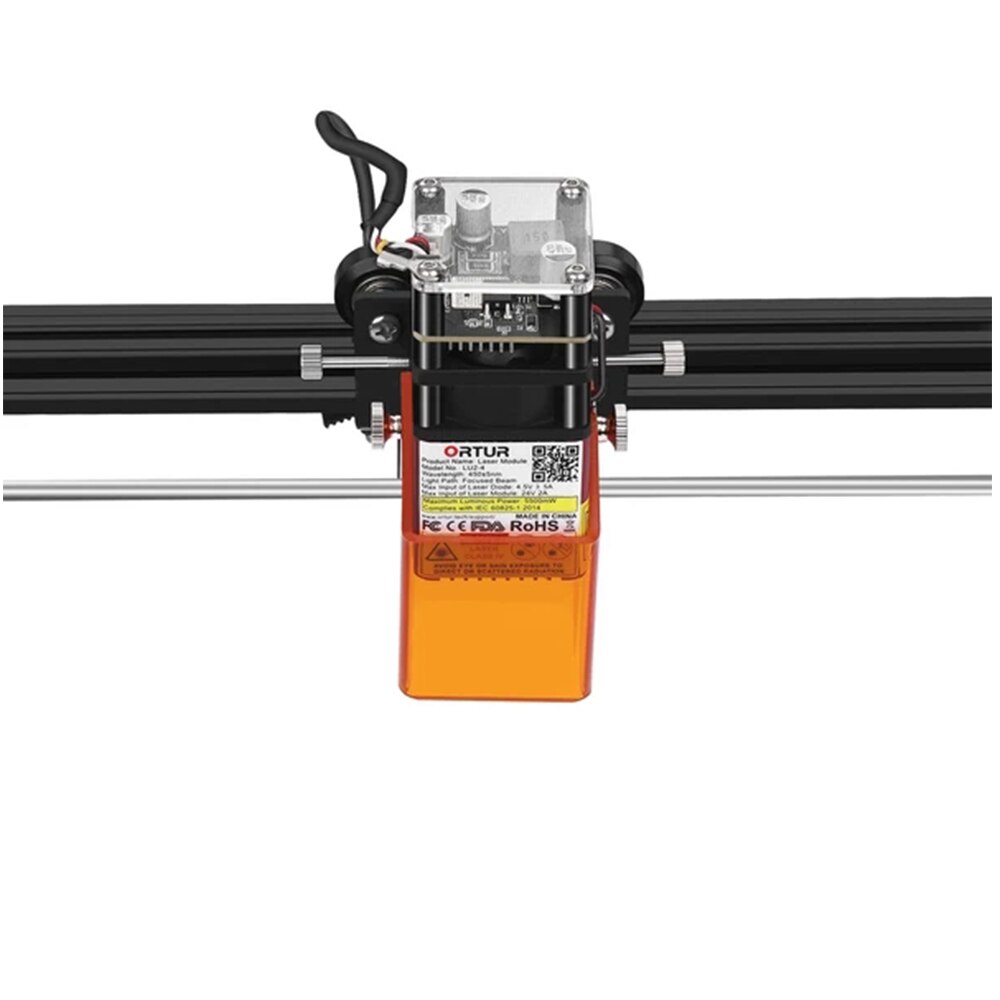

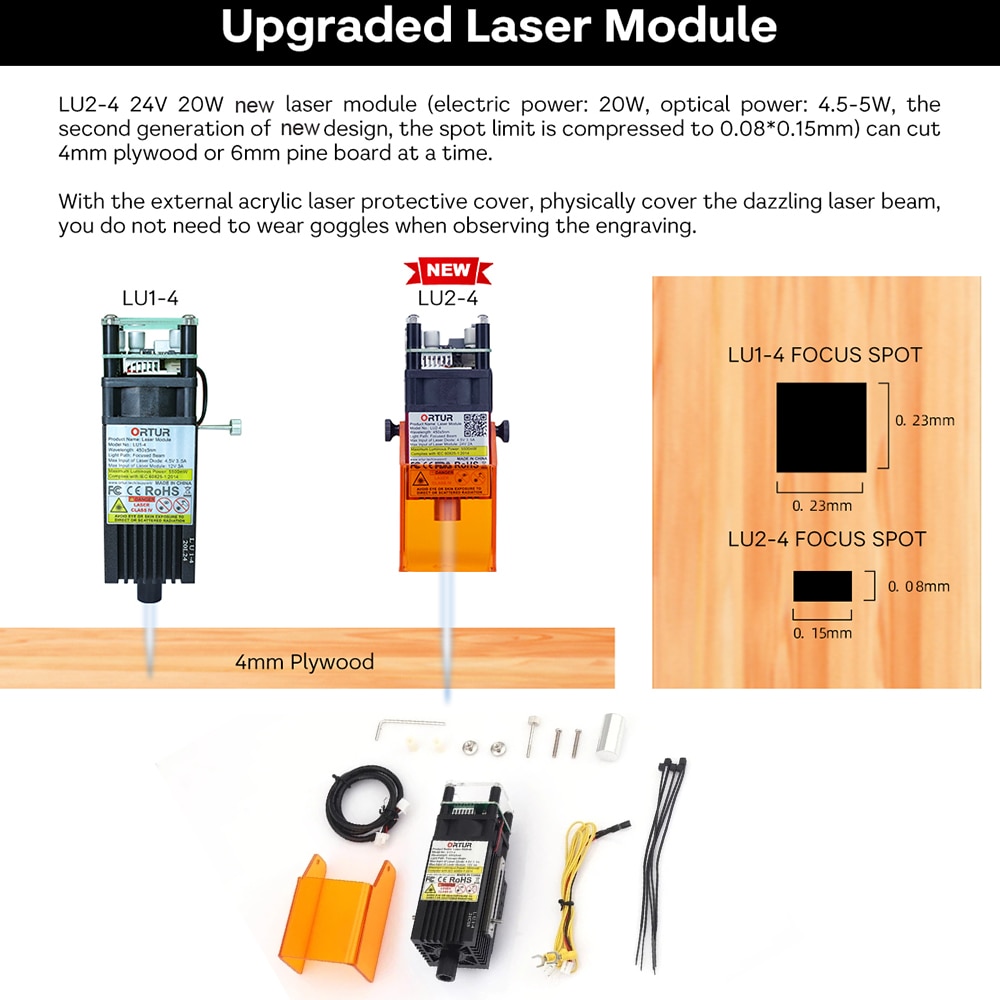

  • LU2-4: Luminous Power: 5000-5500mw

Ortur PRO 12V 24V Ortur LU2-4 Laser Module Ortur Laser Engraving Machine Laser Head Laser Module DIY Woodworking Parts Tools

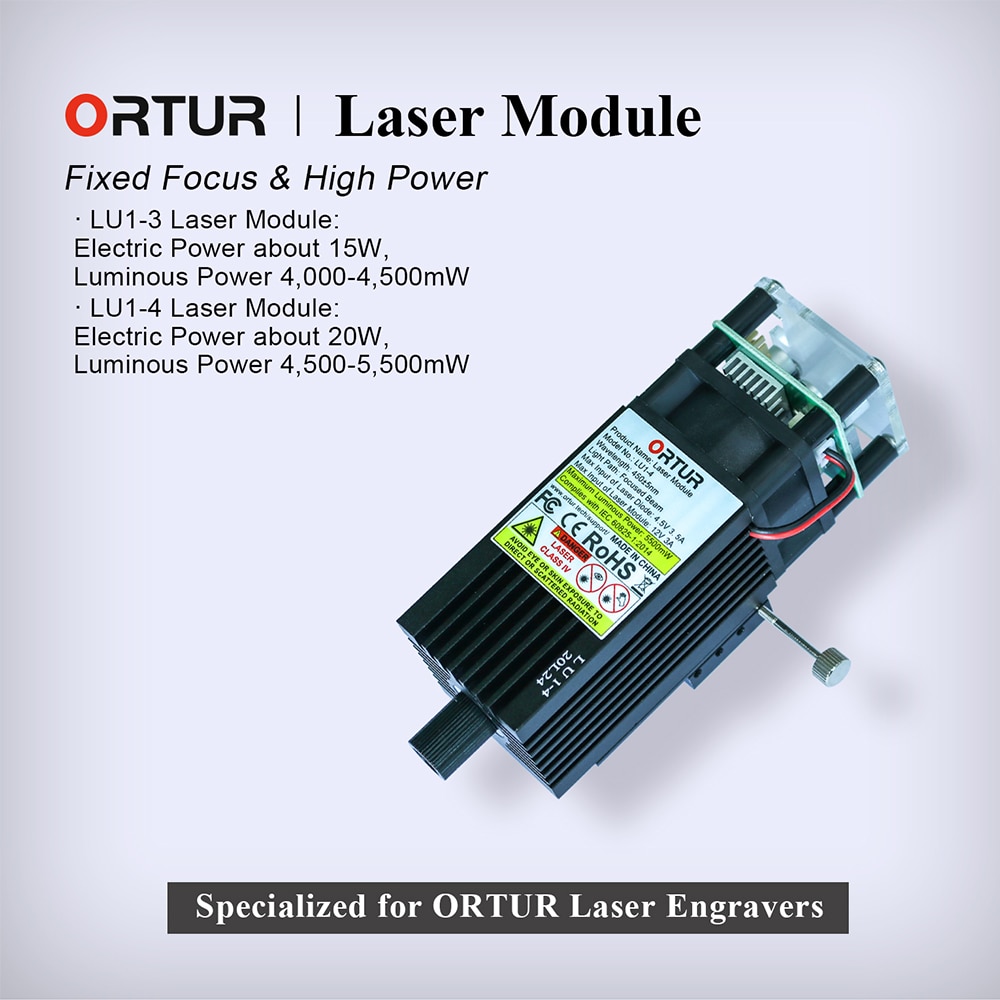

ORTUR LU1-4 Descriptions

LU1-4 20W Fixed Focus Laser Module
Specifications:
Interface specification: 20W laser head: HY2.0, 4Pin terminal (3-core cable, combined with one negative empty port, red: VCC, black: GND, white: PWM +).
Lens: φ6 / glass
Drive position: 20W: external
Adjustable power: PWM adjustable
Focusing range: 20W: 19mm
Factory focal length (adjustable): 20W: 55mm from light outlet (from bottom of radiator)
Drive protection: surge protection, overvoltage protection.
Input voltage: 12V
Input current: 20W: 2.1 A
Control line installation: pluggable
Fan:20W: 12V 0.15A 4020 fan
Fan speed: 10000 rpm
Operating temperature: -20 ℃ to 70 ℃

Specification

General

Type: Laser engraving module
Material: Aluminum + copper + PCBA + glass lens + plastic
Laser Power: 4500-5500mw
Laser Reaching Range: 19mm
Power By: 12V 2.1 A

Dimensions and Weight

Package weight: 0.4000 kg
Package size (L x W x H): 18.00 x 8.00 x 8.00 cm / 7.09 x 3.15 x 3.15 inches

Package Contents

Package Contents: 1 x Fixed Focus Laser Module



Ortur LU1-3 Descriptions

Parameters:
15W Fixed Focus Laser Module
● Interface specifications: HY2.0 4pin terminal (3 core cable, combined negative one empty port, red: VCC, black: GND, white: PWM +)
● Wavelength 445 ± 5nm
● Material: aluminum + copper + PCBA + glass lens + plastic
● Lens: glass
● Radiator: 40 x 40 x 80mm No. 6061 aluminum
● Drive position: external
● Power adjustable: PWM adjustable
● Focus / fixed focus: adjustable focus
● Focusing range: 19mm
● Drive protection: surge protection, overvoltage protection
● Control line installation: pluggable
● Fan: 12V 0.15A 4020 fan
● Fan speed: 10000rpm
● Working temperature: -20 Deg. C to 70 Deg. C
● LU15W Laser Module: Electric Power-15W, Luminous Power-4000-4500mW

Specification

General

Brand: Ortur
Model Number: LU1-3
Type: Laser module
Material: aluminum + copper + PCBA + glass lens + plastic
Laser Power: Electric Power 15W / Optical Power 4.0 – 4.5W
Laser Reaching Range: 19mm
Power By: 12V, Output Current 1.8A

Dimensions and Weight

Package weight: 0.4000 kg
Package size (L x W x H): 18.00 x 8.00 x 8.00 cm / 7.09 x 3.15 x 3.15 inches

Package Contents

Package Contents: 1 x Fixed Focus Laser Module



FAQ:
About Ortur Factory Store
100% factory manufacturerlocated in China, welcome to visit our factory whenever you like!
We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
It is important to know that our factory do not just sell “boxes”, but we offer support and advice to get the best results with the printer you choose.
We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have12 months warrantyagainst manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees.
