Description

Description

441 Reflection distance  200mm

442 Reflection distance  300mm

Detection distance: 20mm-300mm(white paper 100*100mm)

Set the range:40-300mm(white paper 100*100mm)
Reflectance characteristics (black white error)set distance’s less than 10%
light source: red laser
Power supply voltage:DC12V-24V +-10% (corrugated  (p-p) 10% under)
The current consumption: under DC30mA
Control output(output format)NPN :Open collector
Control output((load current) 0-100mA
Control output(residual voltage)( DC ) under 1V ( load current under 100mA)
Action mode: shading ON switch mode
load voltage: under DC26.4V
Protection circuit: absorption power reverse connection protection To prevent mutual interference function
response time under 1ms

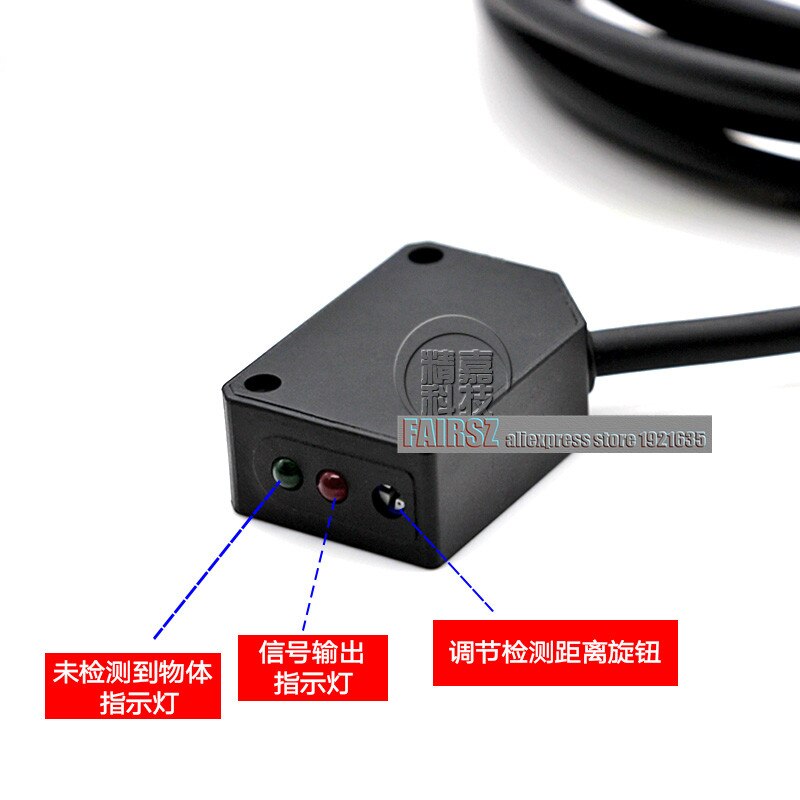

sensitivity adjustment: 5 circle No end  rotary knob
Using the environment lighting:incandescent lamp: less than 3000 lx, sunlight: less than 10000 lx
Ambient temperature range: when using:-25 to 55 °C
Save:-40 to 70 °C (the ice-free, condensation)

•
