Description

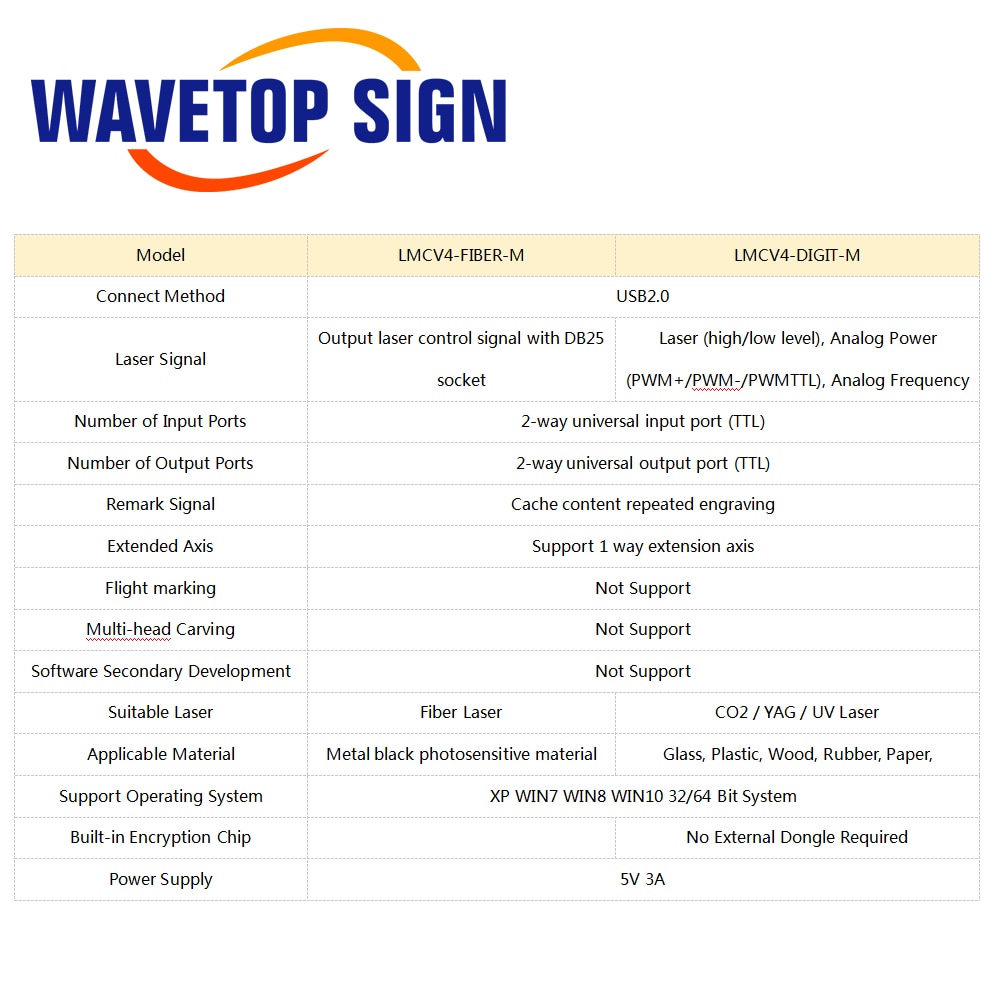

- Brand Name: wavetopsign
- Certification: CE
- Origin: Mainland China

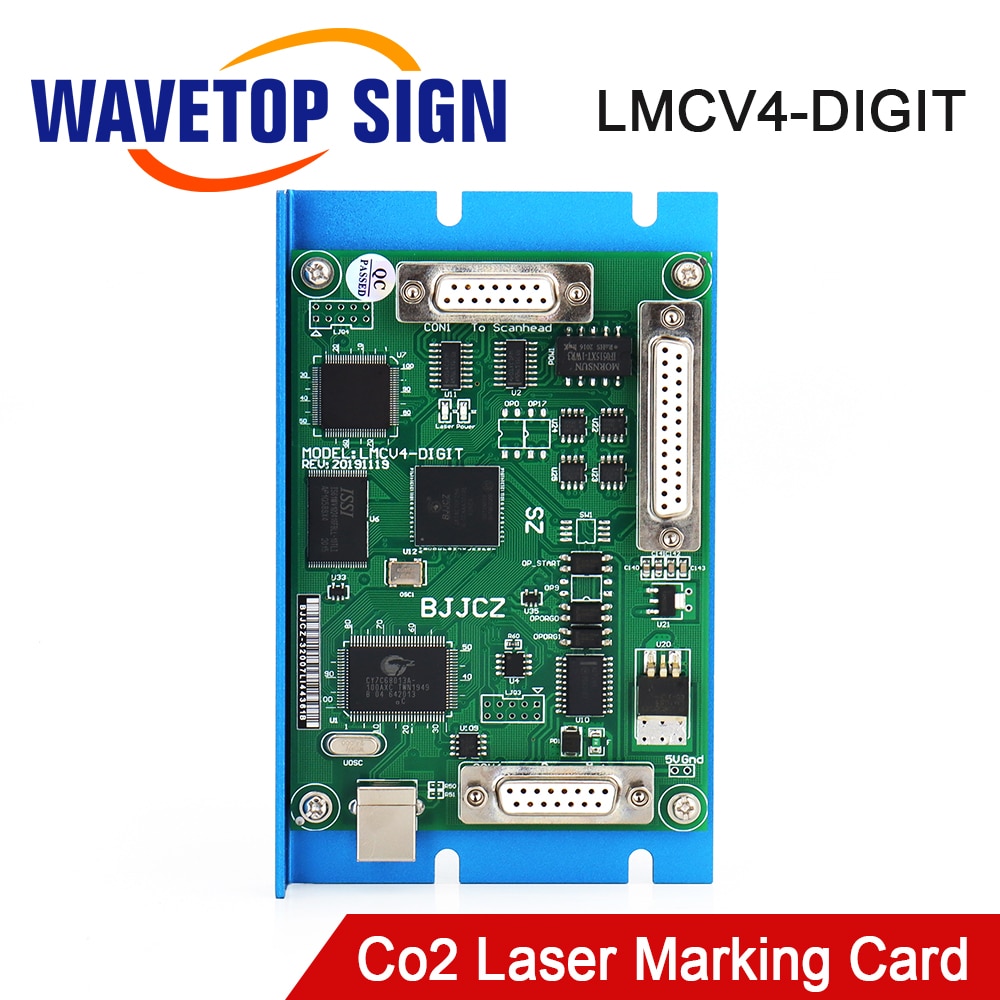

- Model Number: LMCV4-DIGIT
- Interface Port: USB
- Input Power: DC5V 3A
- Support Software: Ezcad
- Application: Use for CO2 YAG / UV laser
- SKU: WT03054018
Features:

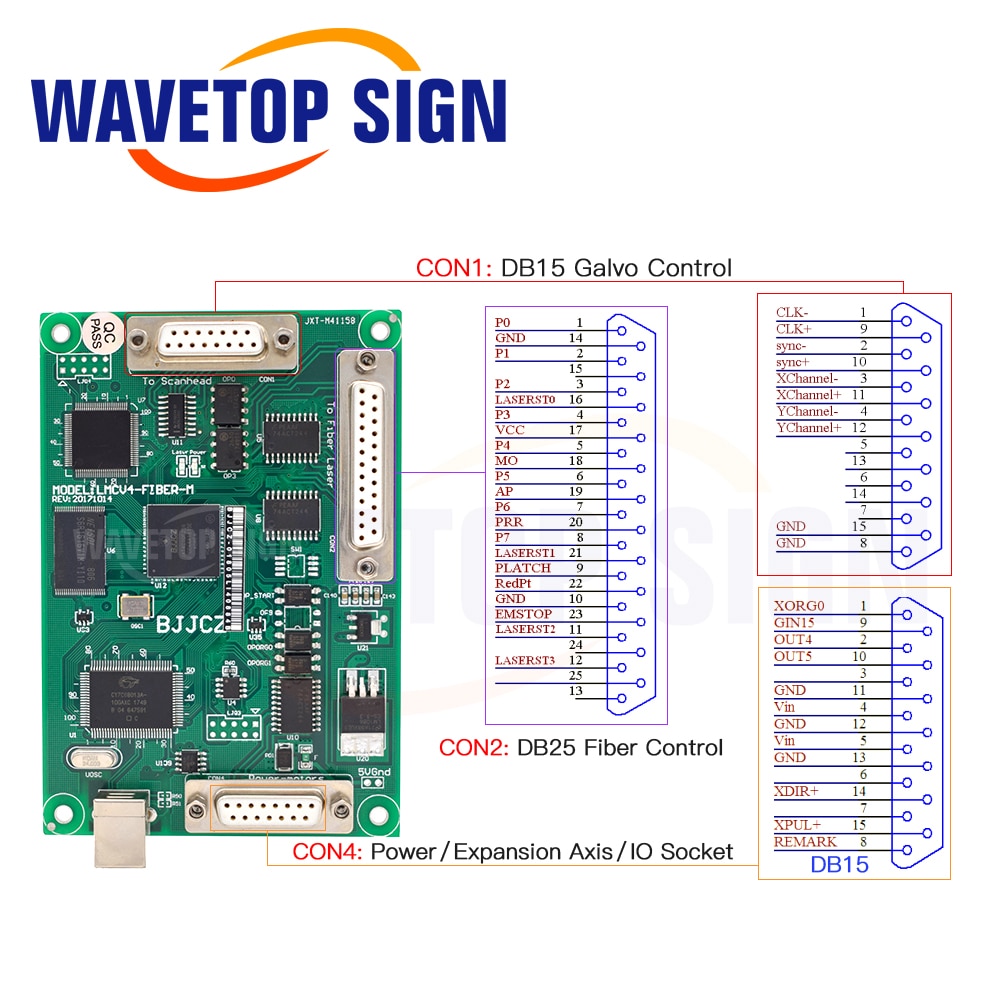

1. Use the DB25 socket connector, Can be directly connected pulsed fiber laser.
2. The galvanometer control signal is digital and can be directly connected to a universal digital galvanometer.
3. Extended axis (stepper motor/servo motor) output: It can output the direction/pulse signal of two channels to control the stepper motor (or servo motor), which can be used for shaft rotation or splicing.
4. 6 universal input digital signals (TTL compatible). XORG0 (IN14) (IN15) where IN0~IN3 are designated as laser state input signals are quoted by CON2 (Laser ST0~Laser ST3).
5. 2 general purpose output digital signals (TTL compatible). OUT4, OUT5 are TTL outputs;
6. ReMark (cache content repeated marking) Signal: used for marking the same content, requiring high-speed marking.
7. Compatible with USB2.0.
