Description
- Brand Name: DRAGON DIAMOND
- Certification: CE
- Origin: Mainland China

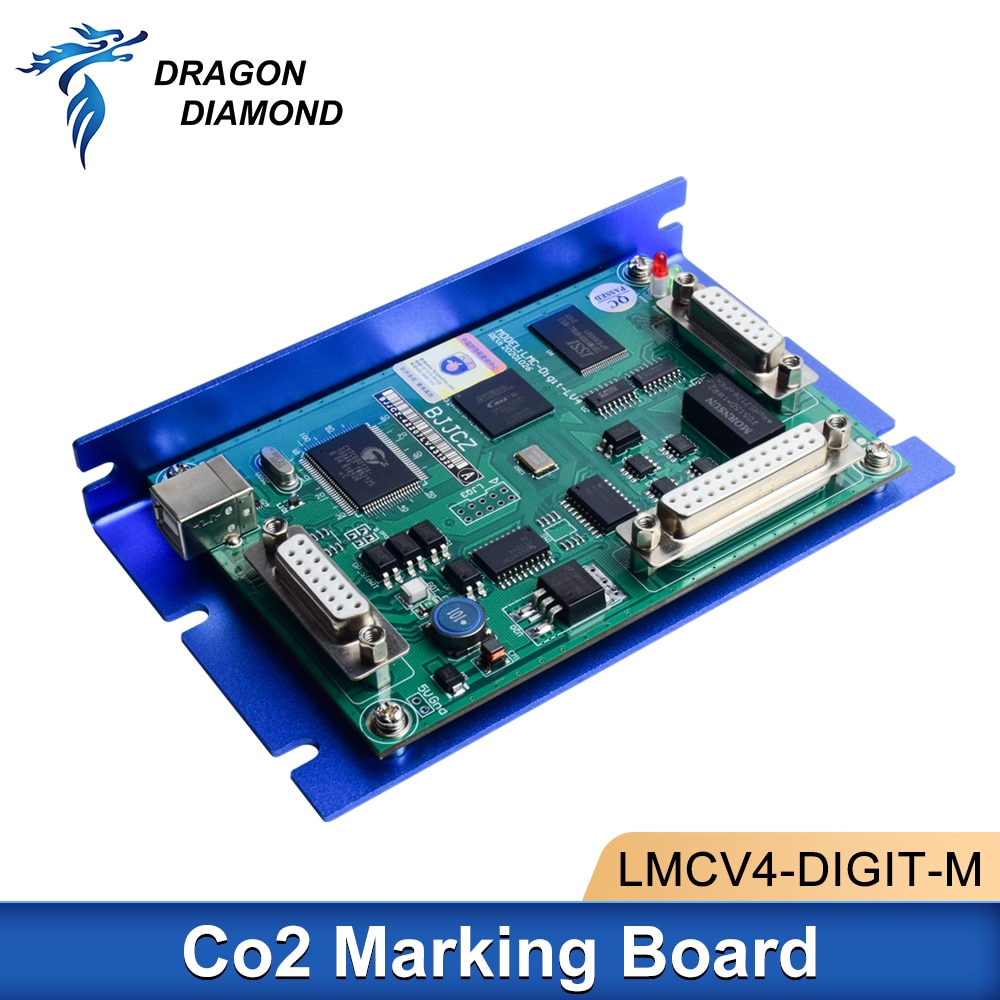

- Model Number: JCZ EzCad Co2 Laser Marking Controller
- Interface Port: USB
- Input Power: DC5V 3A
- Support Software: Ezcad
- Application: Co2 Marking Machine
Features:
-
Galvo control signal is digital,which can be connect to most scanhead directly.
-
Multiple board on 1 computer:one computer can control up to 8 control board to mark different pattern simultaneously.
-
Extension axis(step motor or server motor):one set of direction/pulse signal can be used to control 1 step(server)motors.
-

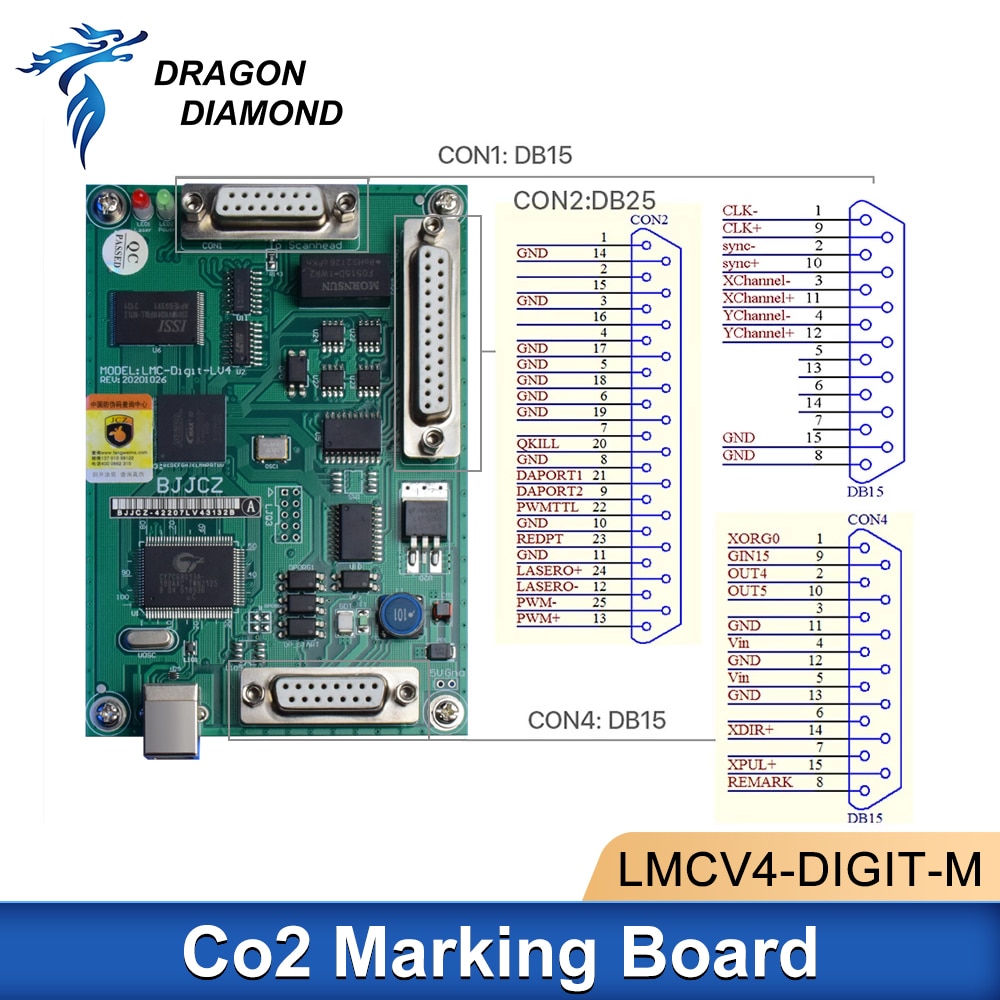

2 general input signals(TTL campatible):XORG0(IN14),IN15.
-
2 general output signals(TTL campatible):OUT4-OUT5 coming out of Con4.
-
Remark function:this function is used to remark what ever is in the memory of the board,especially convenient for high speed marking of a same pattern.
-
Compatible with USB 2.0 specifications.
