Description

Original 25Kpps Laser Scanning Galvo DC12V 6pin Galvanometer Based Optical Scanner Set For DJ Laser Light Show Laser Projector

Main Features:

High Speed ILDA Standard 25KGalvo Scanner 6Pin Laser Scanning Galvo With DC 12V Power Supply.

High Performance Closed Loop Optical Scanner Set For Laser Light Show Systerm.

Fast Delivery By Seller’s Shipping Methord Free Shipping! 2 Years Warranty.

Technical parameters:

Power supply voltage: ±15V/1.0A

Analog signal input impedance: 200K±1%Ω

Analog position input range: ±5 V

Working temperature: 0~50°C

Scanning angle: ±20° (optional ±30°)

Scanning speed: >35Kpps @ ±20° (30k ILDA standard test chart)

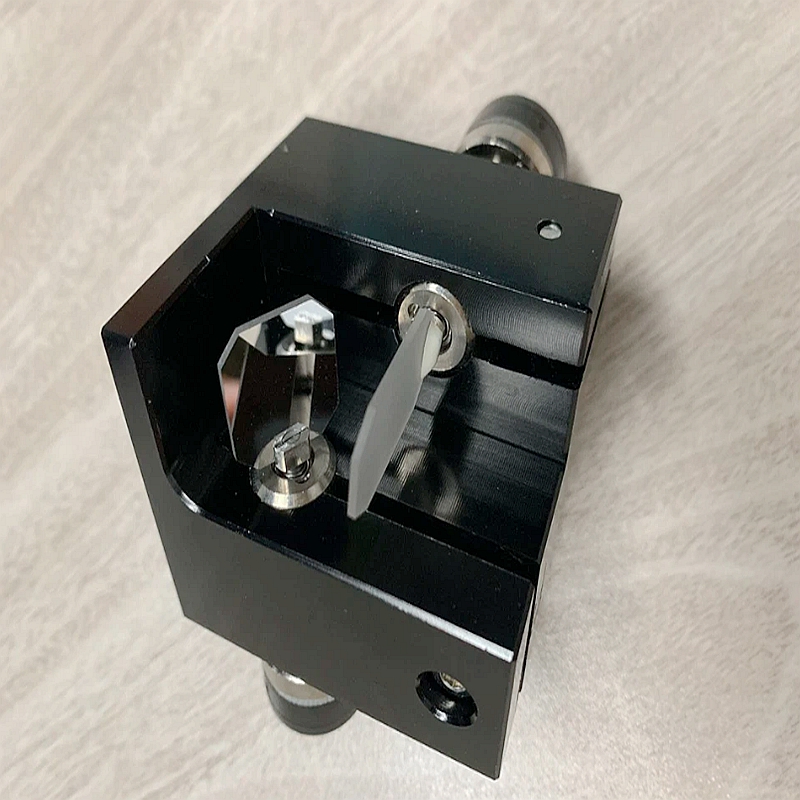

Lens size: 7mm*12mm*0.9mm

Lens reflectivity: >99% @45° incidence

Support light source wavelength @380~680nm

Driver plate size: 76mm×48mm×26

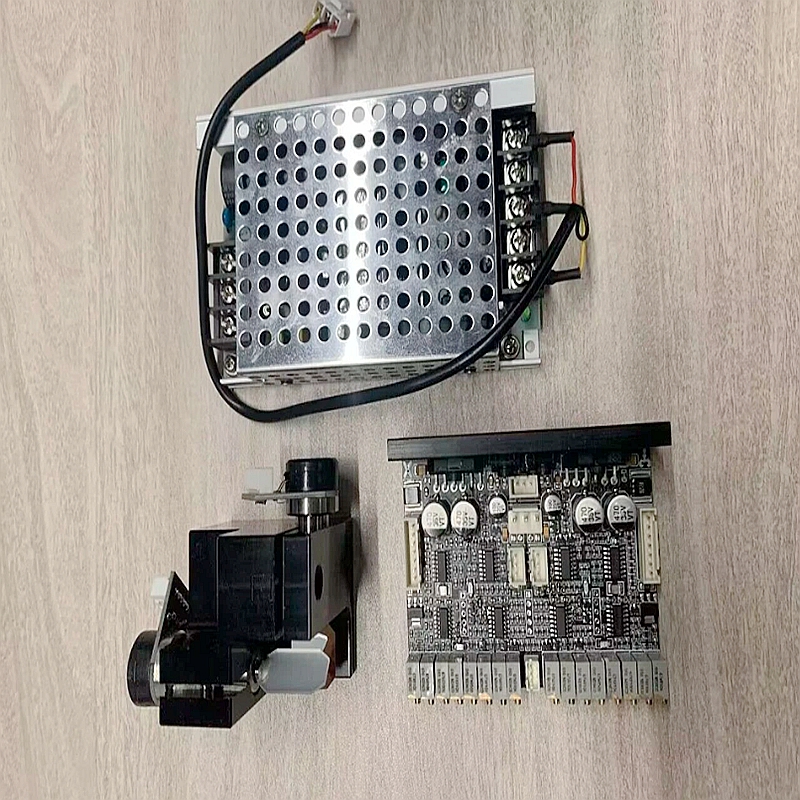

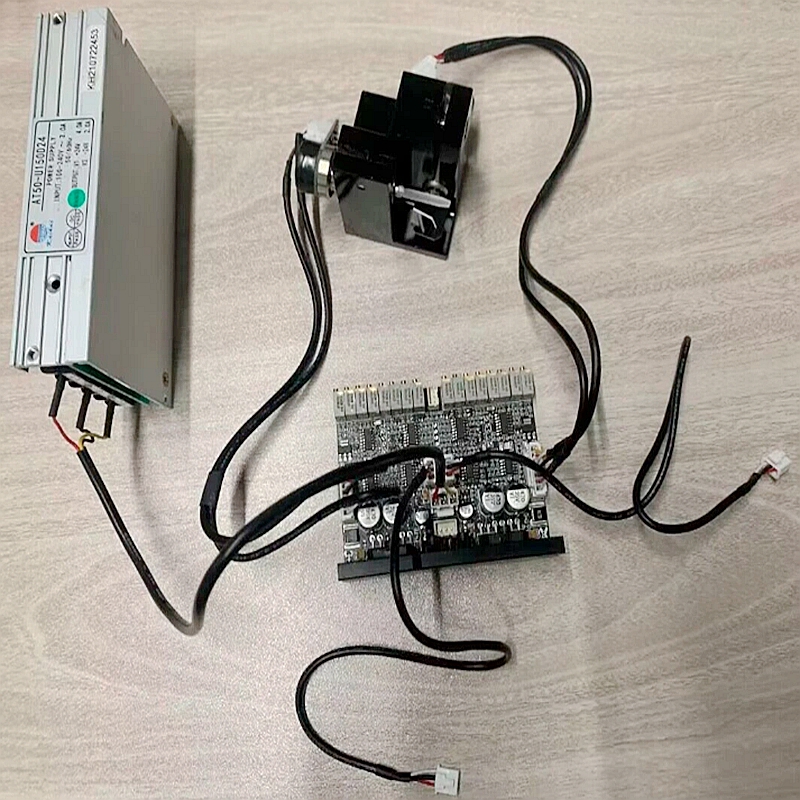

Checking parts:



Please make sure the following parts are included:
 2×Scanners
 1×Driver board
 1×Scanne mount
 1×power supply(PUS)
 2×Cables driver to scanner
 1×Cables driver to PUS
Optional parts:
Scanfail board is optional
DMX board is optional
ILDA board is optional
Multifunctional ILDA&DMX Control Board is optional
LCD display is optional
SD memory function is optional
