Oriental laser 50w laser module for Metal marking and cutting laser module

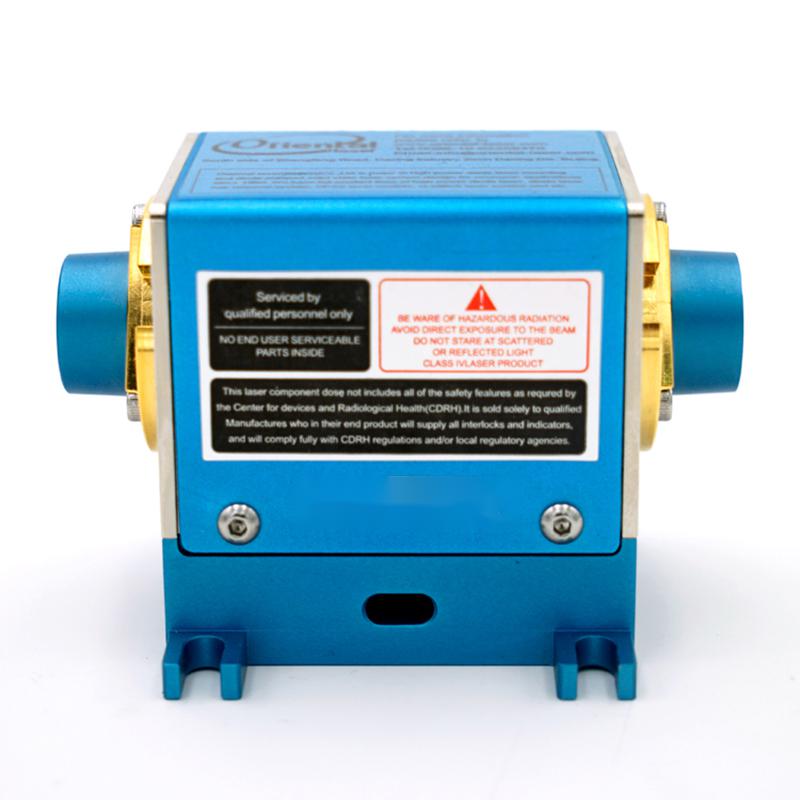

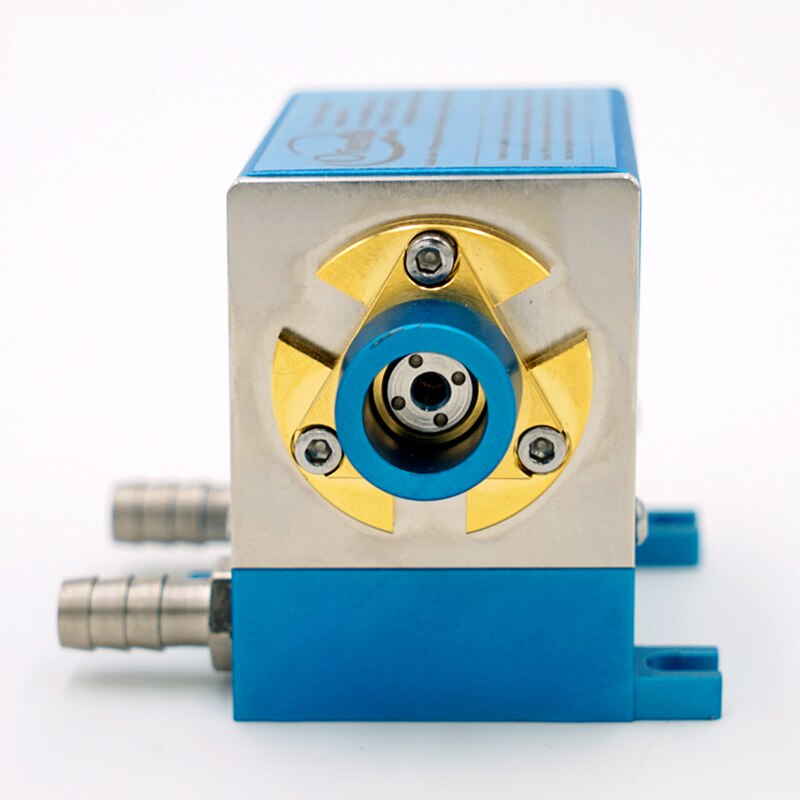

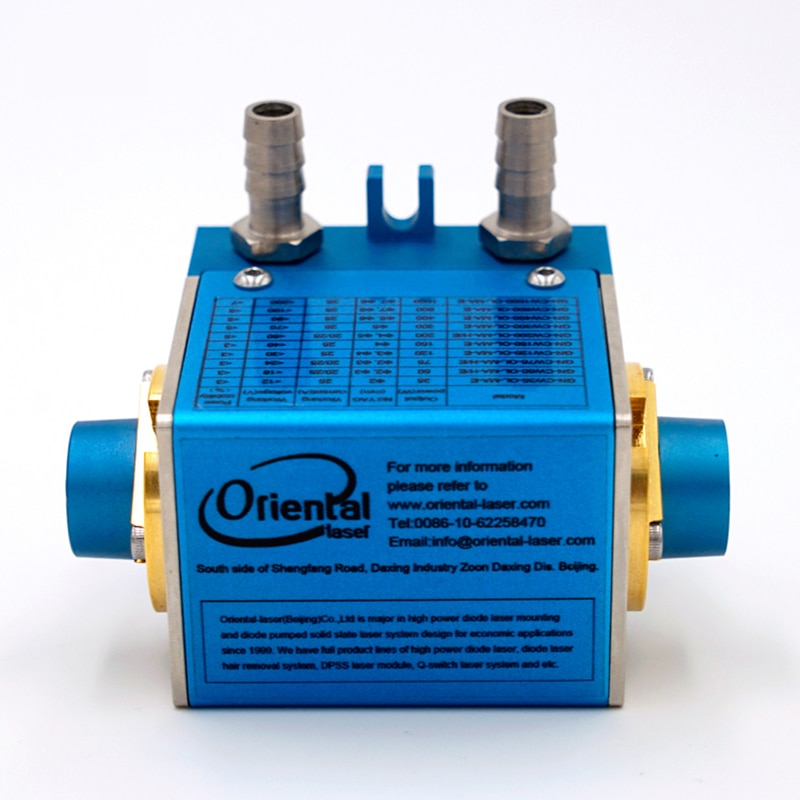

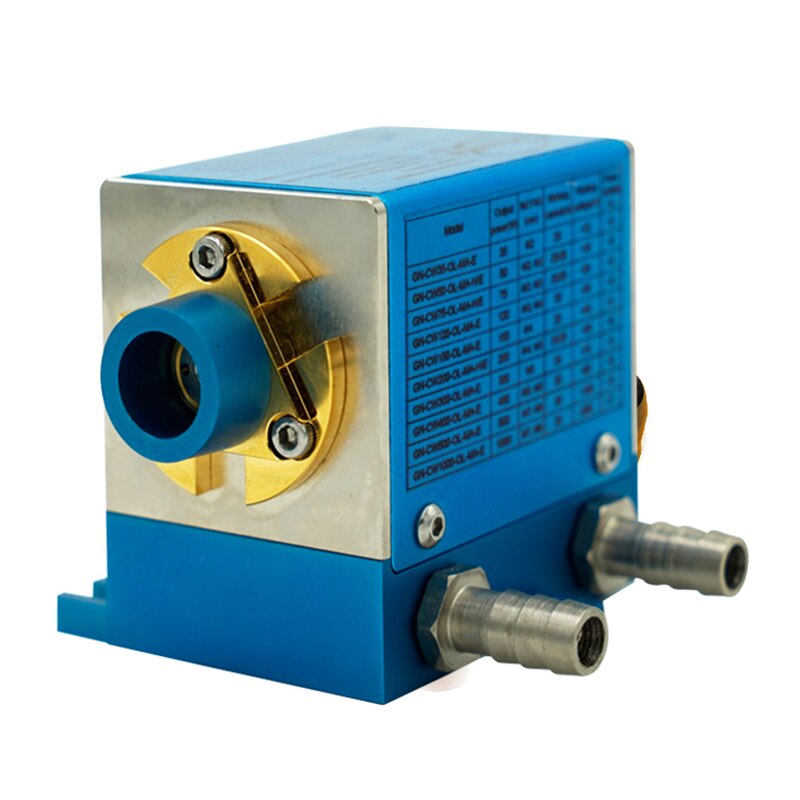

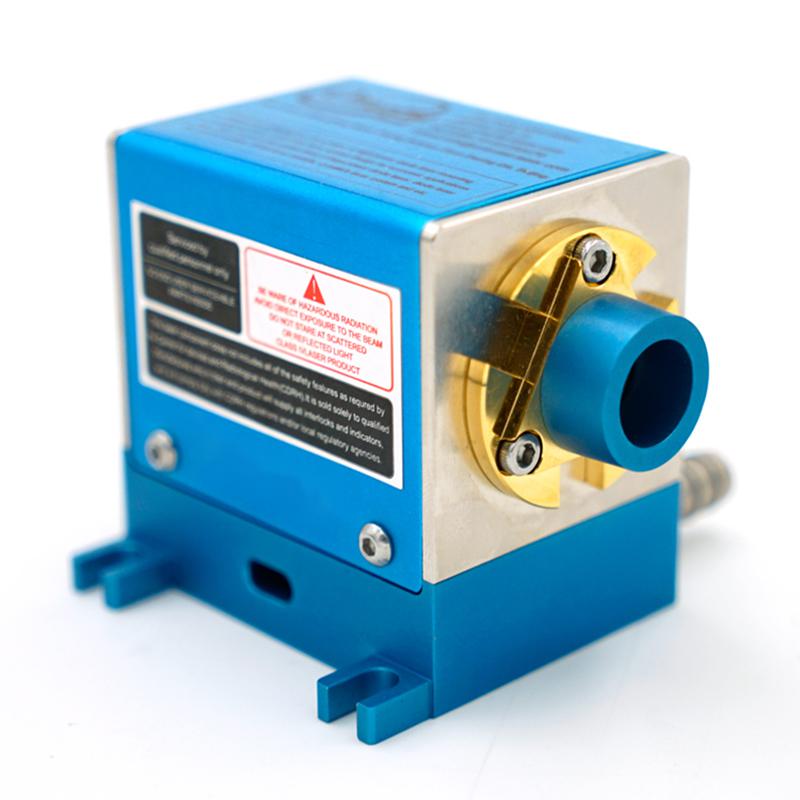

1.product display

2.Introduction

Oriental-Laser has develped a full product line of Diode-Pumped Solid State laser modules for industry applications.
This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 50W up to 500W (@1064nm).
These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.

3.Specifications

Module No
GN50-H
Unit
Central Wavelength
1064nm
nm
Typical Output Power
50
W
Typical Operating Current
18
A
Current Limit
22
A
Typical Operating Voltage
<18
V
Threshold Current
Around8-10
A
Nd:YAG Diameter
3
mm
Nd:YAG Length
65
mm
Nd:YAG Center Height
40
mm
Nd:YAG Doping
0.6%
–

4.Drawing

5.Application

1. Direct industry application 2. As laser oscillator or laser seed.
3. As laser amplifiers 4. To get high peak power with Q-switch.
5. Other lab & medical applications. 6. High repetition rate laser rangefinder.
7. High pulse energy military applications.
（Metal marking； Diamond cutting； Laser welding and cutting； Cleaning）

Diode laser is the most important type of laser in practical use. It is small in size, long in life, and can use simple current injection to pump its working voltage and current compatible with integrated circuits, so it can be integrated with it. And can also use the frequency up to GHz to directly modulate the current to obtain high-speed modulated laser output. Because of these advantages, Diode lasers have been widely used in laser communication, optical storage, optical gyro, laser printing, ranging, and radar.
