Description
- Brand Name: YIXTON
- Origin: Mainland China
- Item Length: 1m
- Fiber Type: Single Mode
- Connector Type: SC/APC
- Model Number: TM291SF-16
- Size: 10x10x10
- Compatible: Ubiquiti,Transition Networks,Customized Brands,TP-link
- Support: Active Fiber
TM291D Fiber Optic OTDR Live Test 1310/1550nm 22/24/26dB 80KM Fiber Reflectometer otdr Touch Screen OPM VFL OLS Tester SC APC/UPC Connector
OTDR
Wavelength(nm) 1610nm
Dynamic Range 20dB

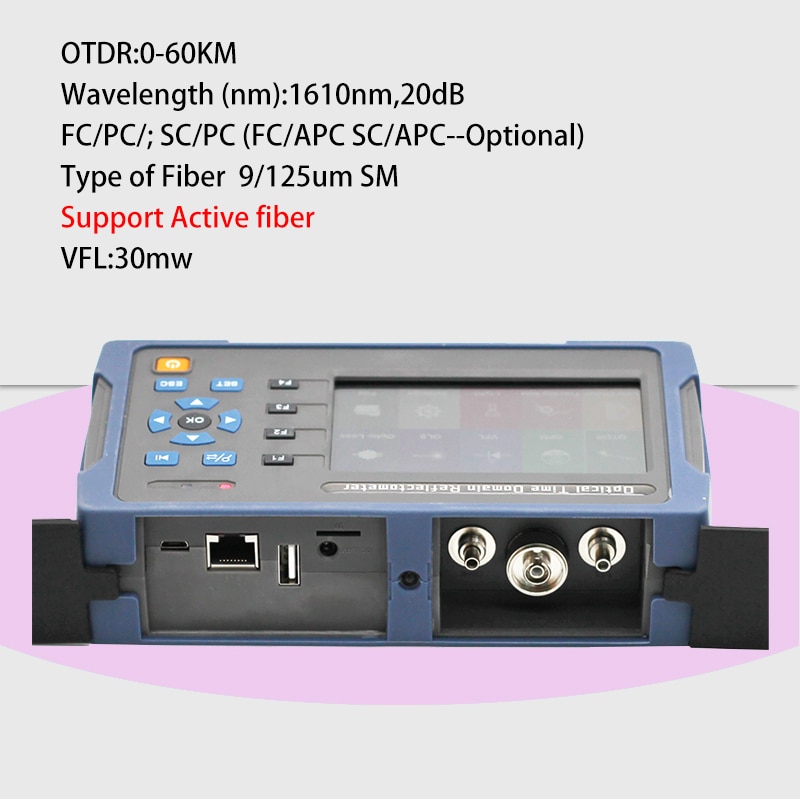

Measurement Distance 0-60 km
Type of Fiber 9/125um SM
Type of Connectors FC/PC/; SC/PC (FC/APC SC/APC–Optional)
Peak Value of laser >=30mW
Unit Meter/ inch/ mile
Dead Zone of Reflection 2m
Dead Zone of
attenuation Event 12m
Accuracy Distance
(Reflection Event) About ±(1m+2 *10(-4)* distance)
Storage of records 200 groups
Visual Fault locator（VFL）
Wavelength (nm) 650nm

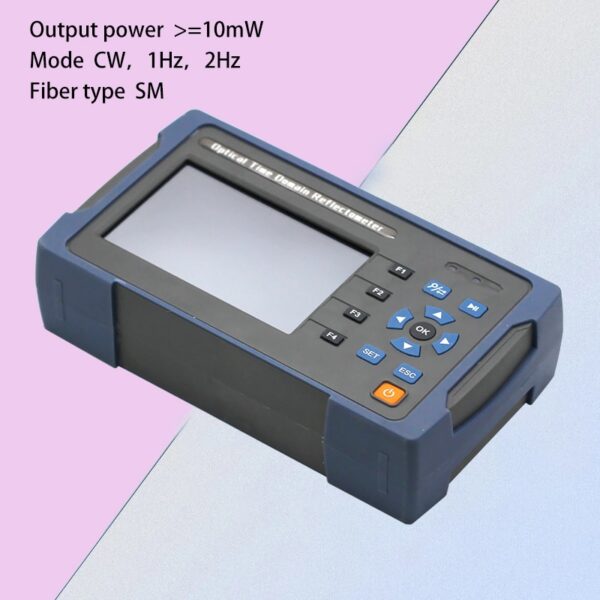

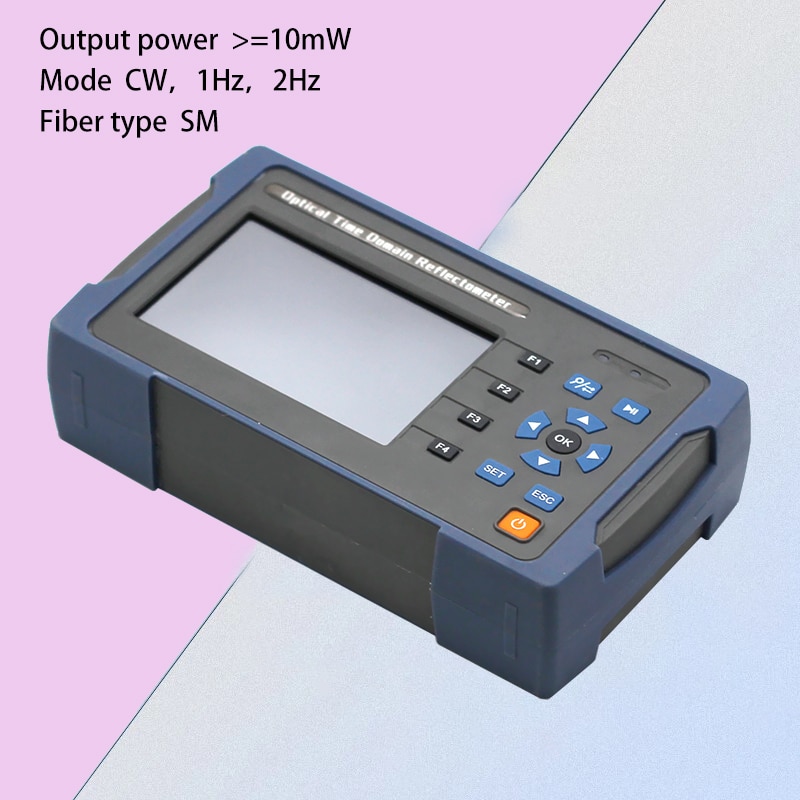

Output power >=10mW
Mode CW，1Hz，2Hz
Fiber type SM
Optical Power Meter
Measurement range dBm -50～+26 dBm
Wavelength range（nm） 800～1650
Detector InGaAs
Accuracy <±3% （-10dBm、22℃）
Resolution Linearity：0.1%，Non-linearity：0.01dBm
Connector Changeable FC/PC SC/PC ( ST as Optional)
Optical Light Source
Emitter FP-LD
wavelength (nm) 1310/1550nm
Connector FC/PC（SC/ST as optional）
Output power ≥-5dBm
Output stability(dBm) ±0.04@20℃@15min
Modulation CW/270Hz/1KHz/2KHz
Fiber type SM
Optic Loss
Connector FC/ SC

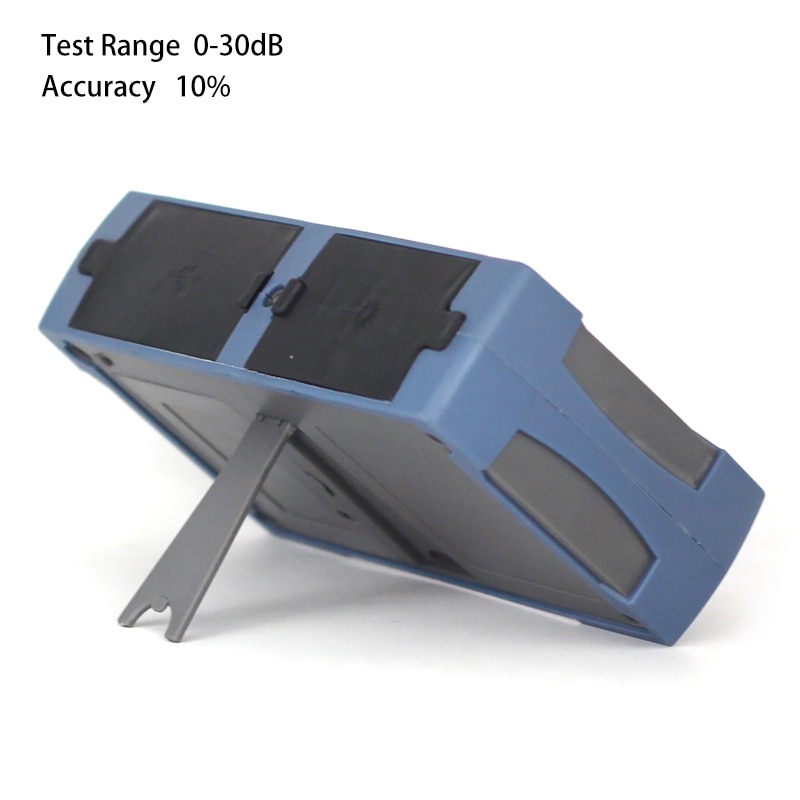

Test Range 0-30dB
Accuracy 10%
Others

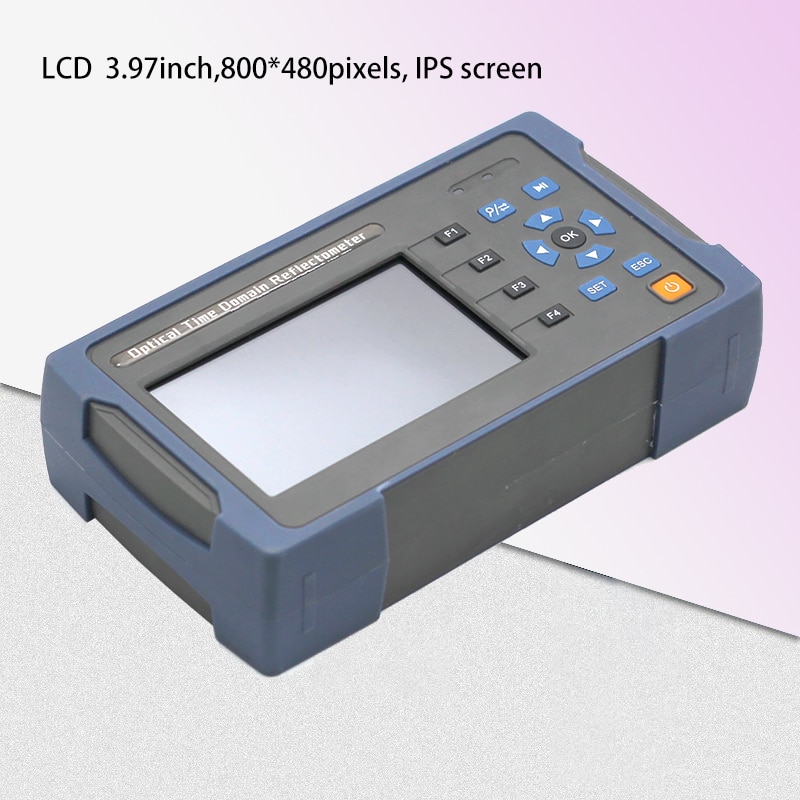

LCD 3.97inch,800*480pixels, IPS screen
Battery 7.4V/4400mAH Lithium-ion battery, >5000 tests
Temperature Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C
Humidity 0～85%(Non-condensing)
Dimensions（mm） 190×84×52
Weight(g) 375

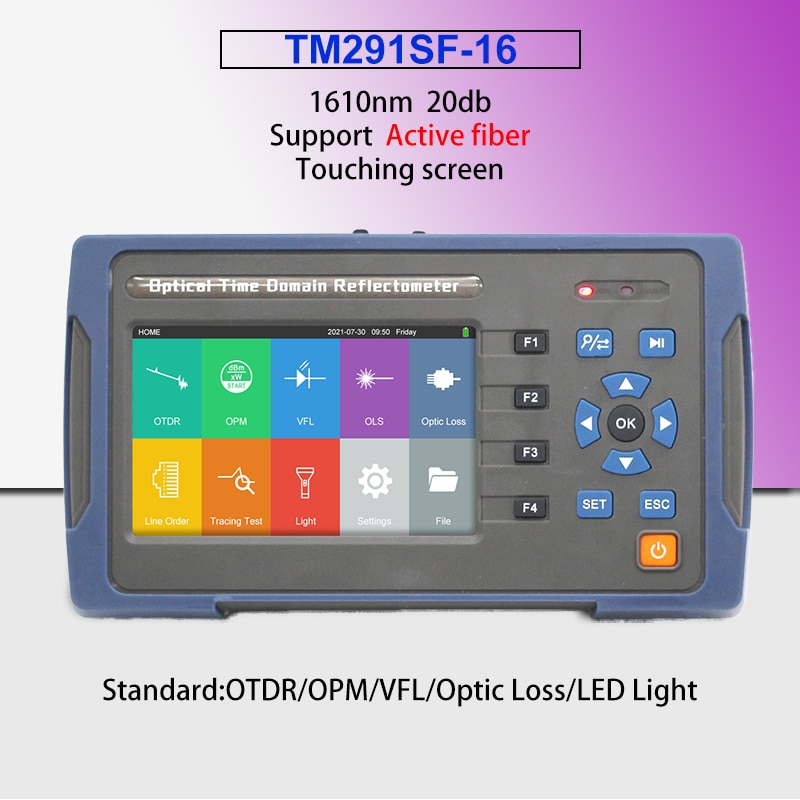

Standard Function OTDR, OPM, OLS, VFL, Optic Loss,Light
Optional Function Line Order, Tracing Test
