Description

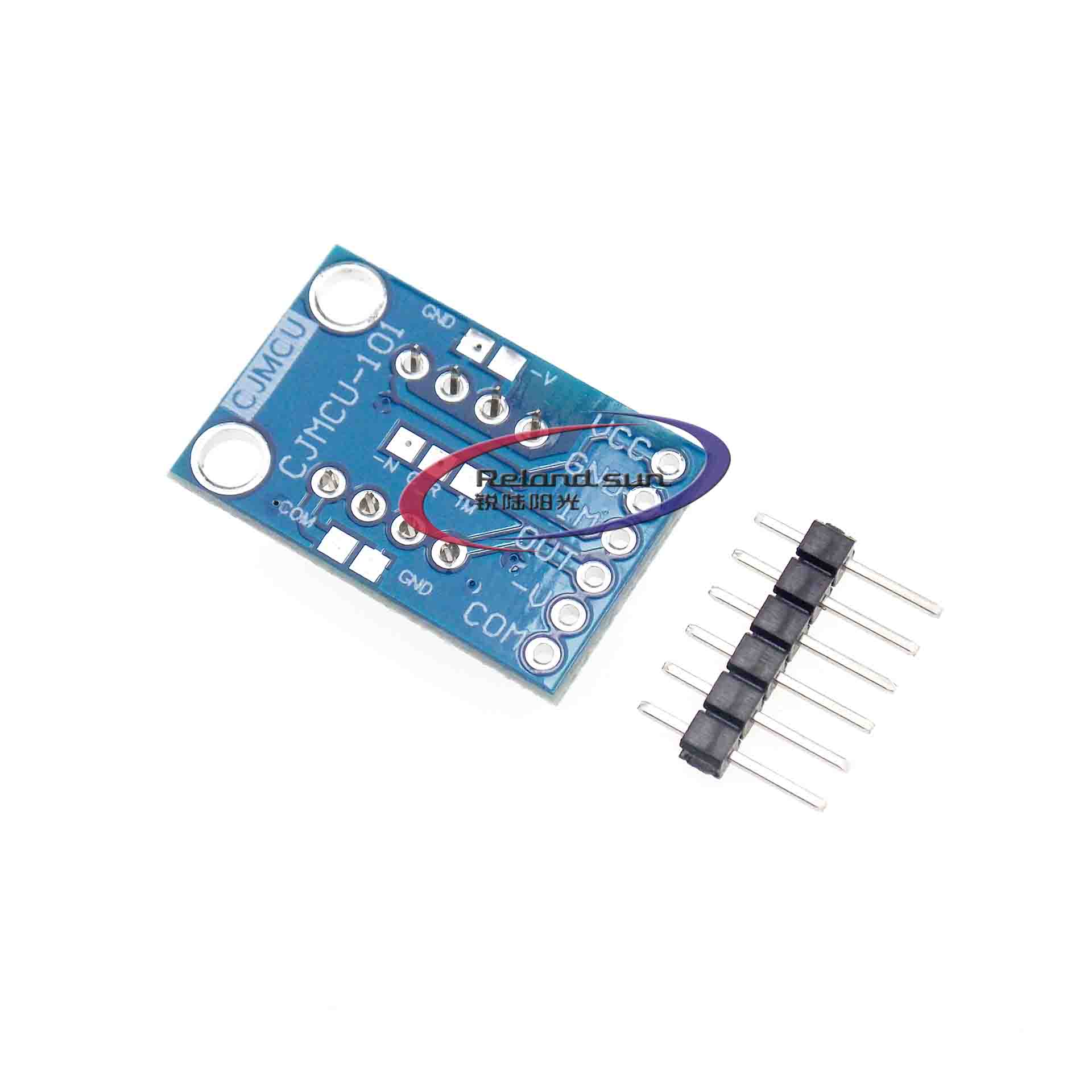

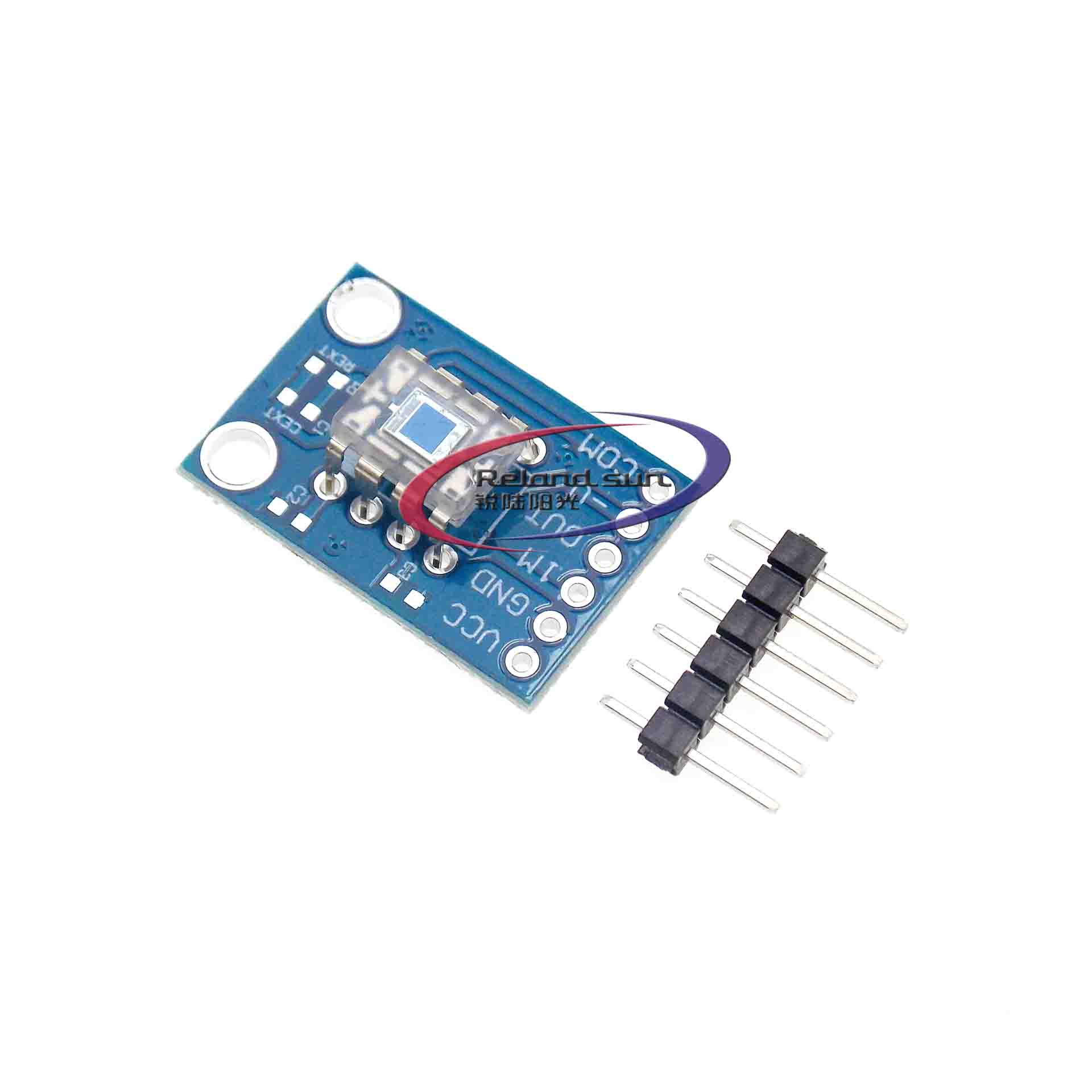

OPT101 CJMCU-101 analog light sensor light intensity module monolithic photodiode

The module has the advantages of simple structure, light chip and PCB customers to send pin plate welding.

Chip Manual address: ti.com/lit/ds/symlink/opt101.pdf

CJMCU-101 is a cross – resistance amplifier integrated with the photodiode and the chip, and the output voltage increases linearly with the intensity of the light. The amplifier is designed for single or double power supply, so that it can be used in battery operated equipment. Integrated photodiode and cross – resistance amplifiers in a single chip, in discrete design, can reduce the common problems, such as leakage current errors, noise and the gain peak due to stray capacitance. And 0.09*0.09inch photoelectric diode working in the light guide mode, can have very good linearity and extremely low dark current OPT101 working voltage is 2.7 to 36V, static current only 120uA.. Don’t need infrared.
