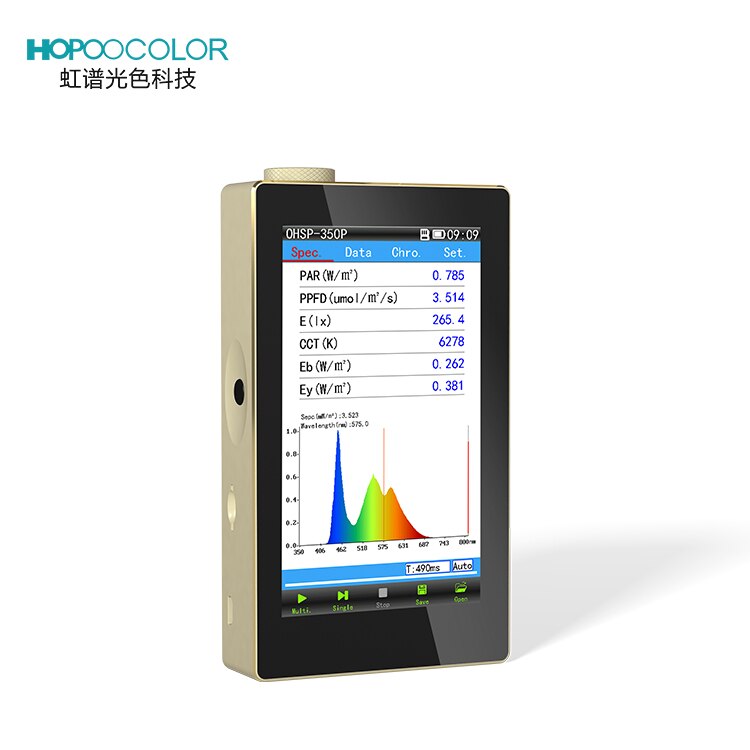

Description
The OHSP-350P: Plant lighting analyzer , add plant grow light parameters PAR, PPFD, YPFD and so on.especially designed for accurat measurement and analysis of Plant Lighting . It is widely used in light analysis, research and communication in plant growth light.
Meas parameters Wave range:350-800nm
| PPFD(umol/m2/s) | Illuminance E(lx) | PPFD |
| YPFD(umol/m2/s) | CCT(K) | SDCM |
| PAR(mW/cm2) | Candle Light E(fc) | coordinate x,y |
| Kppfv(umol/s/klm) | CRI Ra | coordinate u,v |
| Ech-A (mW/cm2) | Spectral Power Distribution | coordinate u',v' |
| Ech-B (mW/cm2) | Irradiance Ee(W/m2) |
OHSP350 bacis parameters |

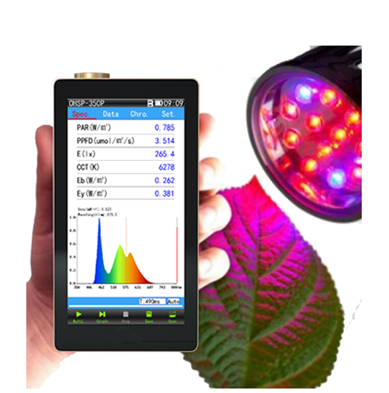

Application
TEST PARAMETER
| Model | OHSP350P Plant Light Version |
| Wavelength range |
350nm ~800nm |
| Light Splitting Mode |
long focal cross section |
| Sensor |
High precision CCD |
| Spectral Bandwidth (FWHM) |
2nm |
| Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy |
+ 0.5nm |
| Illuminantion Accuracy |
(±4% Reading +1 Digital) |
| Lighting Area |
10mm |
| Integrating Time |
50μs~10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
|
Illuminance Range |
5lx~200klx |

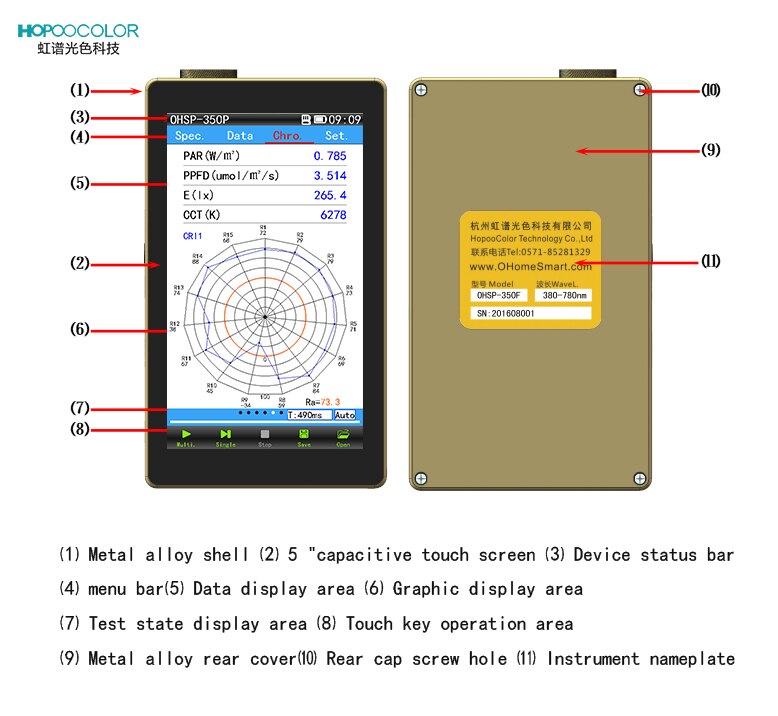

TEST INTERFACE
|
Model
|
Functional version
|
Wave Range
|
Function Description
|
|
|
OHSP350
|
Essence
|
380-780nm
|
Base parameters
|
|
|
OHSP350F
|
Flicker
|
380-780nm
|
Base + Flicker parameters
|
|
|
OHSP350P
|
Plant Light
|
350-800nm
|
Base + Plant light parameters
|
|
|
OHSP350S
|
Flagship
|
350-950nm
|
Base + Plant light+TM-30
|
|
|
OHSP350L
|
luminance
|
380-780nm
|
luminance (unitcd/m2)Base Parameters +Cd/m2
|
|
|
OHSP350B
|
Blue Light
|
380-780nm
|
Base + Blue light Parameters
|
|
|
OHSP350BF
|
BlueFlicker
|
380-780nm
|
Base + Blue light + Flicker Parameters
|
|
|
OHSP350BR
|
BlueReference
|
380-780nm
|
Base + Blue light + Reference Parameters
|
|
|
OHSP350FA
|
Flash lamp
|
380-780nm
|
Base + Flash Parameters
|
|
|
OHSP350M
|
Luminous flux
|
380-780nm
|
Luminous flux of matching sphere
|
|
|
OHSP350Z
|
Multi-function
|
380-780nm
|
Illuminance, Luminance, LuminousFlux, Intensity
|
|
|
OHSP350I
|
Industry
|
380-780nm
|
IO Control, RS485
|
|
|
OHSP350UV
|
UV
|
230-850nm
|
Base + UV Irradiation Parameters
|
|
|
OHSP350SF
|
Full function
|
350-950nm
|
Base +Flicker+ Plant Parameters
|
|
|
OHSP350C
|
Economics
|
380-780nm
|
No PC software
|
|
