Description
Top Quality OEM 12W RGB Laser Module Multi-wavelength Red Green Blue DPSS Laser Diode High Power CW Diodes With Power Adapter Driver Board For Stage Laser Show
Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show
Specifications:
Wavelength: 635/520/447nm ( error range 5nm)
Operating mode: CW
Output power:12W
Ratio power: Red laser 3.4W, Green laser 2.5W, Blue laser 6W
Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)
Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)
Beam divergence: less than 2.3 (full angle, mrad)
Polarization direction: Horizontal + Vertical
Warm-up time: less than 5 minutes
Beam height from base plate: 30mm
Operating temperature: 25 degrees celsius (error range 3)
Power supply: 90-240V AC
Modulaton option: TTL / Analog
Expected liftetime: 10000 hours
Warranty: 1 year

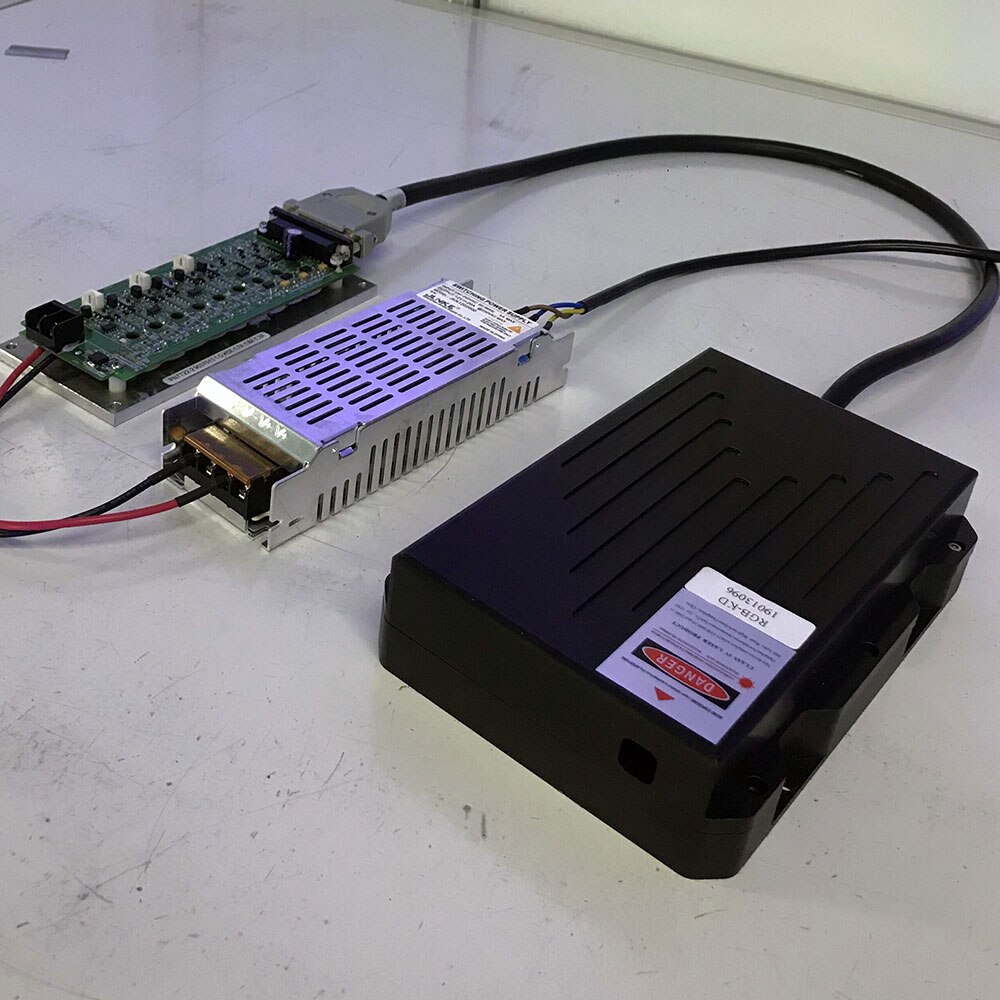

Packing Lists:

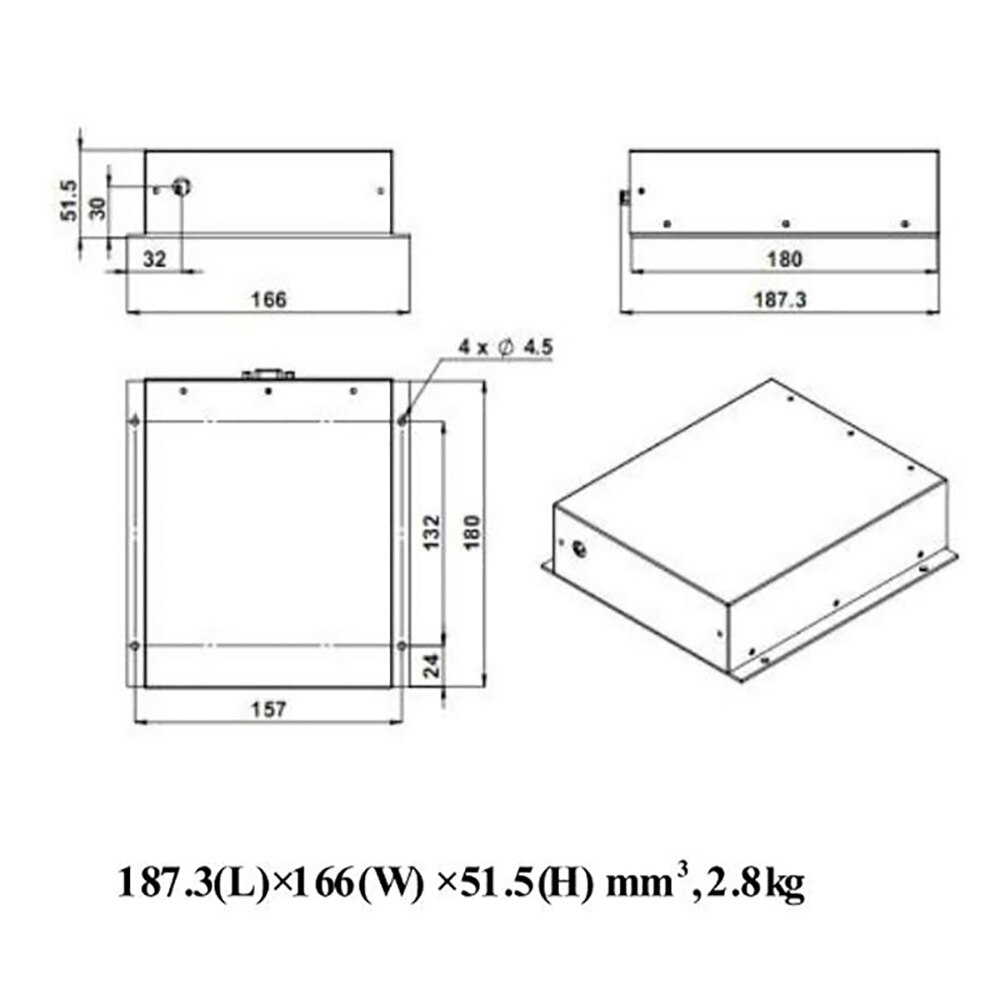

1pcs 12W RGB Laser Head

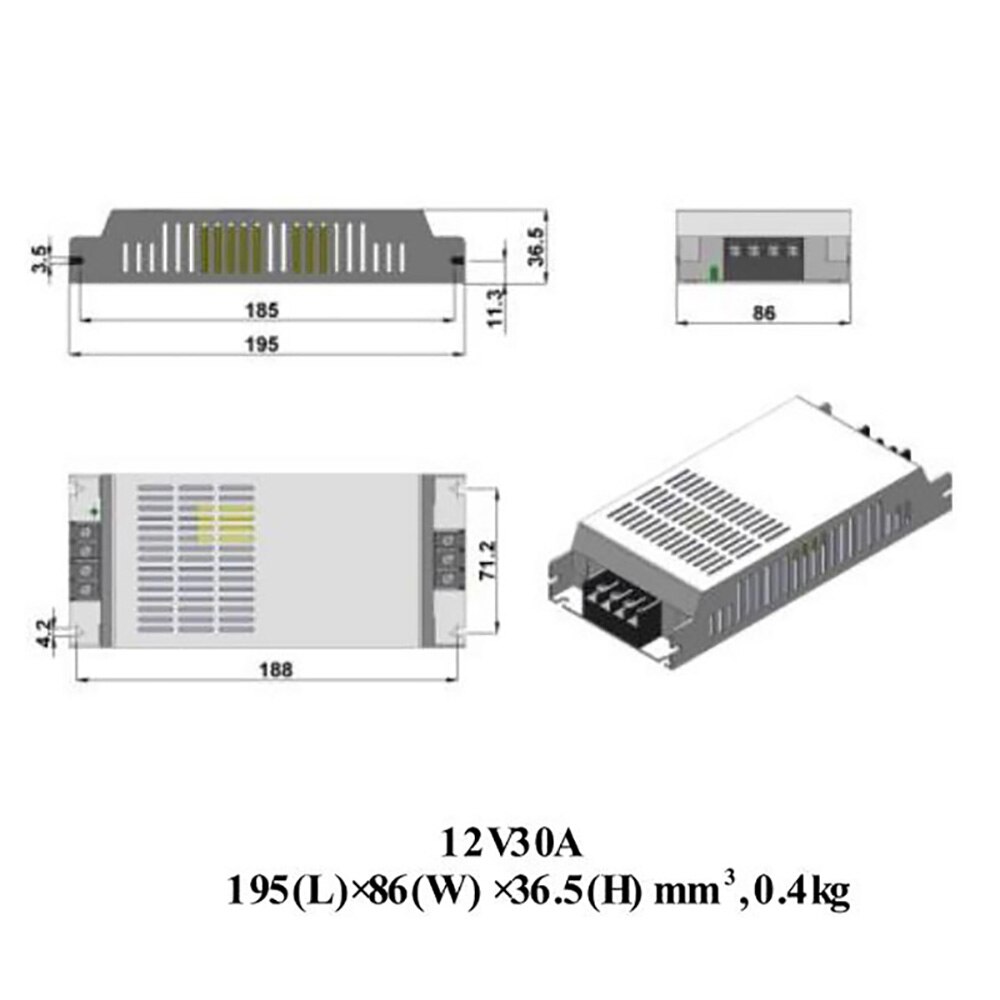

1pcs Power Supply

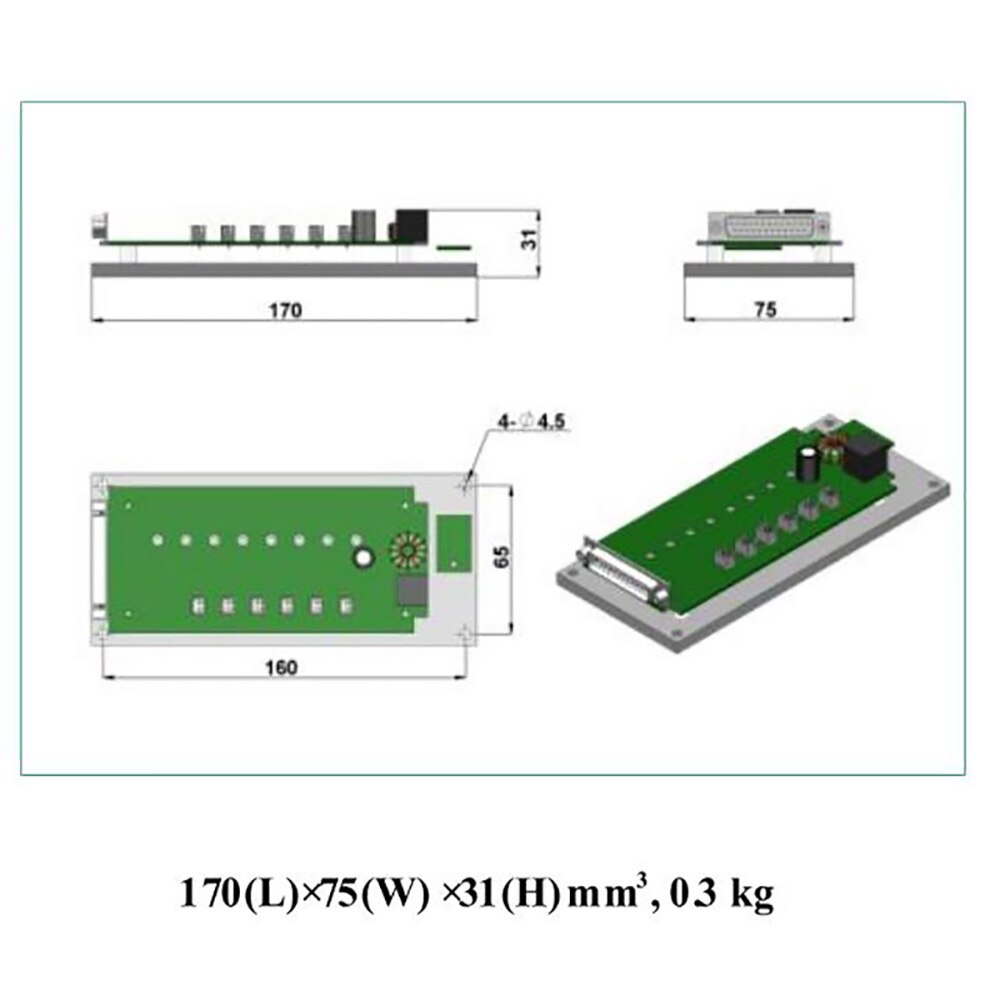

1pcs Driver Board
