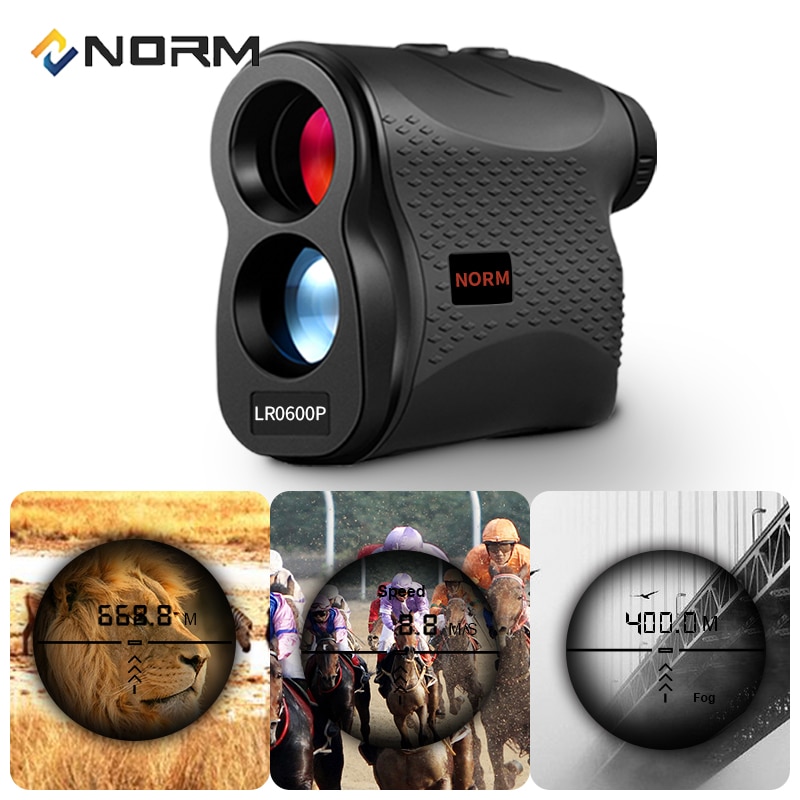

About Mode: LR600/LR900/LR1200/LR1500

Measuring Range: 5-600m/5-900m/5-1200m/5-1500m
Functions: Distance Measure Mode, Scan Measure Mode, Golf Pinseeker Mode, Speed Measure Mode, Fog Mode;

About Mode: LR900H 1200H 1500H

Functions: Distance Measure Mode, Scan Measure Mode, Speed Measure Mode, Fog Mode; Height-Measurement, And Ange-Measurement (-60 to 60 degrees).
H-model is with Height-Measurement, And Ange-Measurement (-60 to 60 degrees).

4 Mode Selections

A Fog Mode
B Speed Mode
C Distance Mode
D Pinseeker Mode or Height/Angle finder Mode

A Fog Mode

Aim at target object and short press power button. Then, the distance value will be displayed on lens.

B Speed Mode

Aim at the object and short press the power button. Keep aiming as the object moves until the speed value displays on the screen.

C Distance Mode

Single distance measuring: Aim at target object and short press power button to start measuring. The measuring result would be displayed on the lens.

Continuous distance measuring: Long press the power button. The distance value would be displayed in real-time according to where you are pointing at.

D Pinseeker Mode

(For LR600 LR900 LR1200 LR1500)
Pinseeker mode is designed for measuring the distance to a flagpole. Under this mode, the product is able to separate the flagpole (point D) from the clutter (such as trees and bushes) in the background. Only the distance to point D would be displayed.

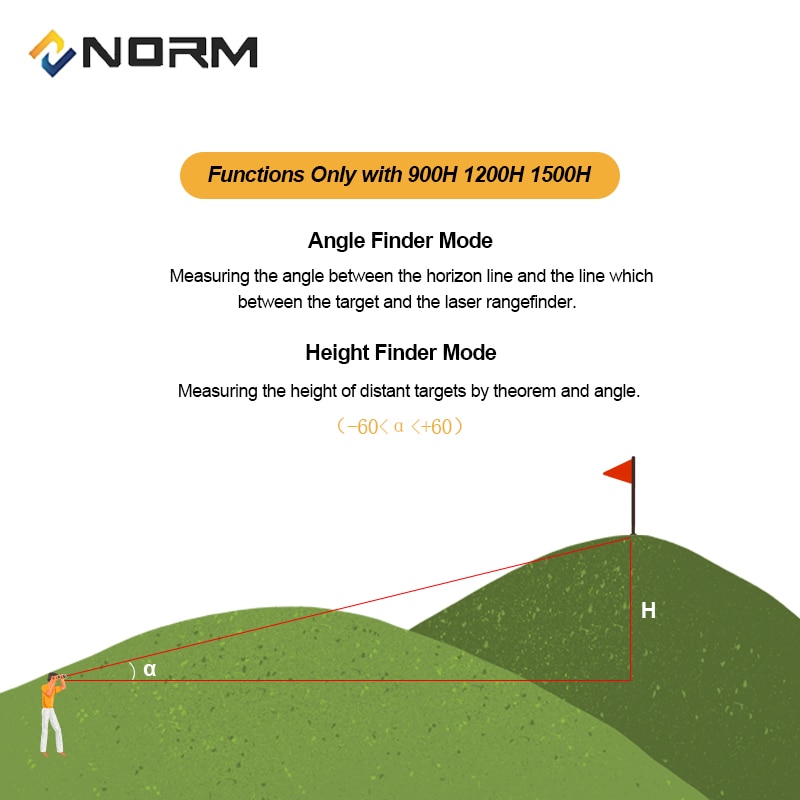

D Height/Angle finder Mode

(For LR900H LR1200H LR1500H)
Height/Angle finder Mode is designed for measuring the height or angle of the buliding or trees.
