Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL

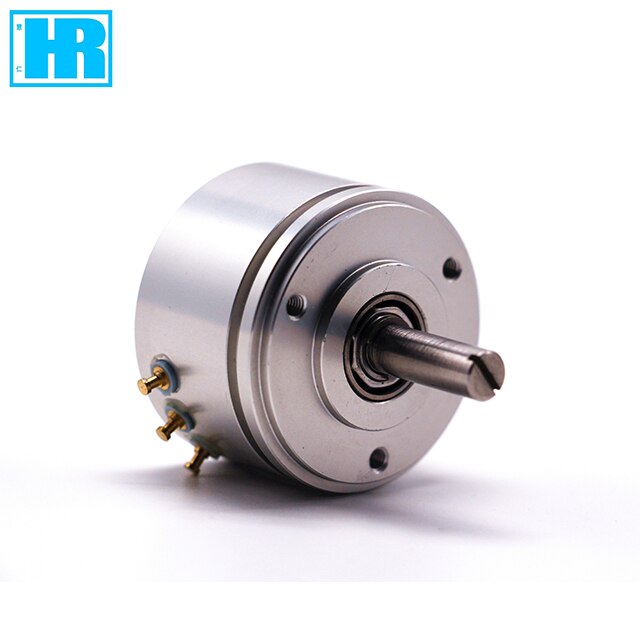

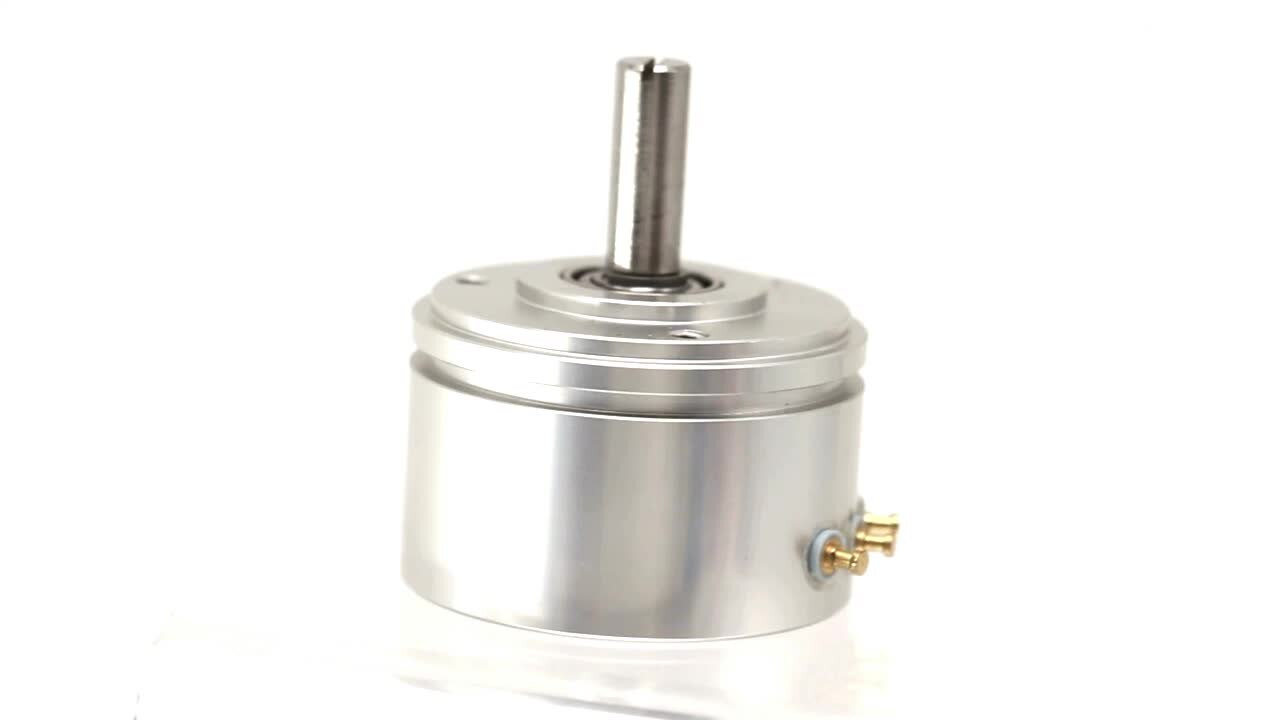

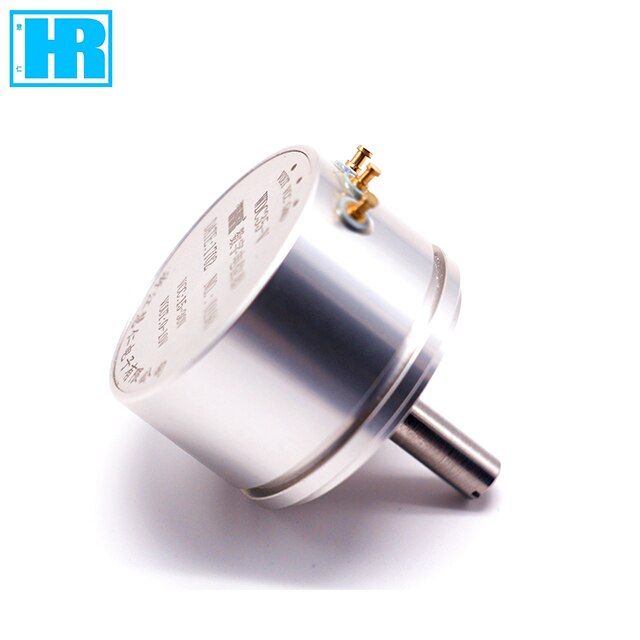

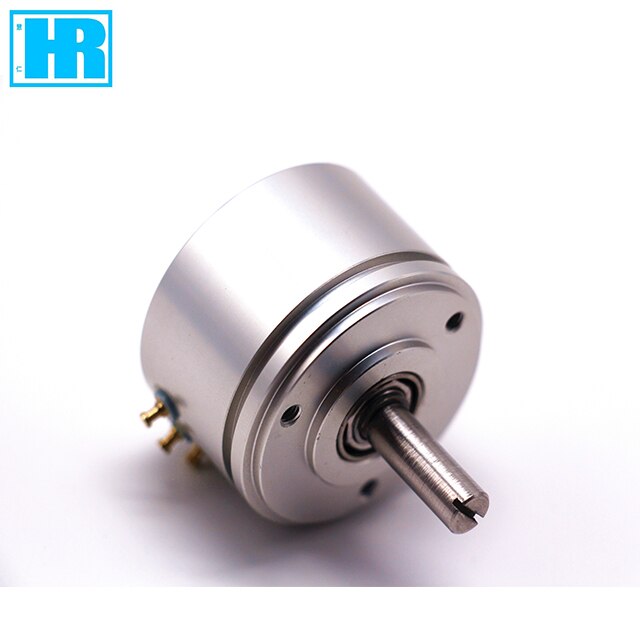

- Model Number: WDC35
- Type: Rotary Potentiometer
- Place of Origin: Zhejiang, China
- Brand Name: HR
- Technology: Carbon Film
- Resistance Tolerance: ±15%
- Operating Temperature: -30℃~ 80℃
- Working current: 5V±10%
The digital potentiometer is consisted by the angle sensor circuit, data processing circuit and a signal conversion circuit.
Angle sensor circuit is the most important part in the digital potentiometer.It will turn the angle variation into analog signals.
The data processing circuit is a special kind of analog / digital conversion circuit, the digital quantity after conversion on behalf
of 0 – 360 degrees angle values. Signal conversion circuit will turn the angle values into the analog quantity (voltage / current)
signal or a serial digital signal to output.
Potentiometer specifications

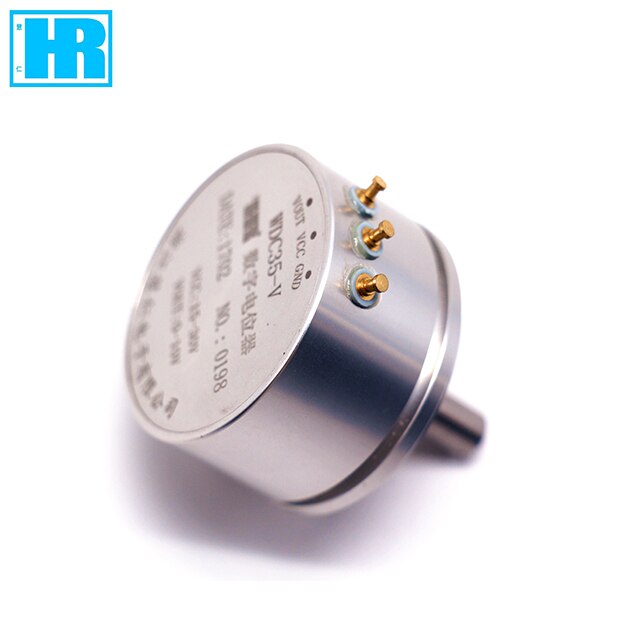

Wiring instructions
|
VCC |
GND |
OUT |
General specifications
|
Theory electrical corner |
360° |
Mechanical life |
Theoretically infinite (depending on the bearing life) |
|
Use environment |
-30℃~+80℃ |
Weight |
About 60g |
|
Storage temperature |
-30℃~+80℃ |
Shell |
Aluminum alloy, anodized surface |
|
Levels of protection |
IP54 |
Shaft |
Stainless steel |
|
Axial torque |
<5mN·m |
Bearing |
2 sets of precision ball bearings |
Electrical properties
|
Theory electrical corner |
360° |
|
|
Independent linear degrees |
standard level:0.3%; precision level:0.2%;Ultra precision stage :0.1% |
|
|
Resolution |
4096 bit(12bit) |
|
|
Sampling rate |
384us/96us(high speed) |
|
|
Working current |
5V±10% |
15~30V |
|
Output signal |
0~5V(ratio) |
4~24mA |
|
Maximum operating current |
<16mA |
<35mA |
|
Output deviation from the beginning to the end |
<1%·VCC |
<0.05mA |
|
Load resistance |
>10KΩ |
<600Ω |
Optional features
|
Electrical |
output range |
Standard output 0~100%: |
|
Output direction |
Standard for clockwise signal output, also can be set to counterclockwise signal output. |
|
|
Other output mode |
Can realize the special wide voltage 9~30V input, 4~20mA/0~20mA output; wide voltage 0~5V, PWM output. |
|
|
Special shaft type |
According to customer requirements to make the special shaft length, special shaft diameter, or shaft special processing. |
|
|
Mechanical |
Special mechanical rotation |
With a stop bit (345 degree), can provide 270°,180°,90°and other special mechanical angle and also can be customized. |
|
Special moment |
Producing light torque products <0.5mN m ang high torque products or <30mN – M. |
|
|
Special protection grade |
Provide products with special protection grade more than IP54. |
