Description

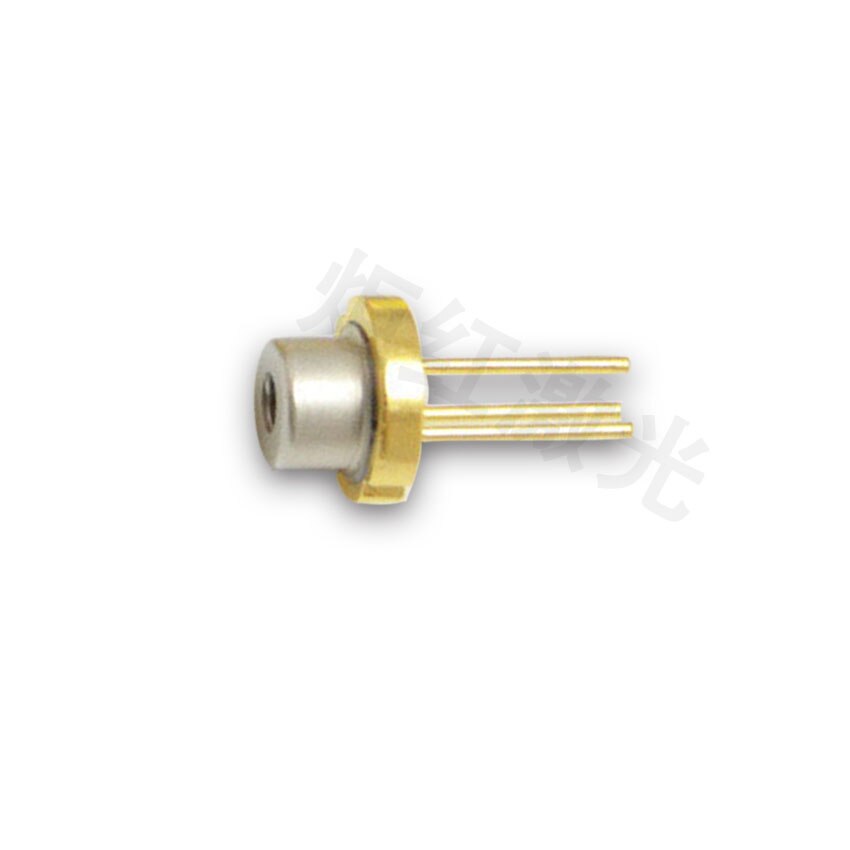

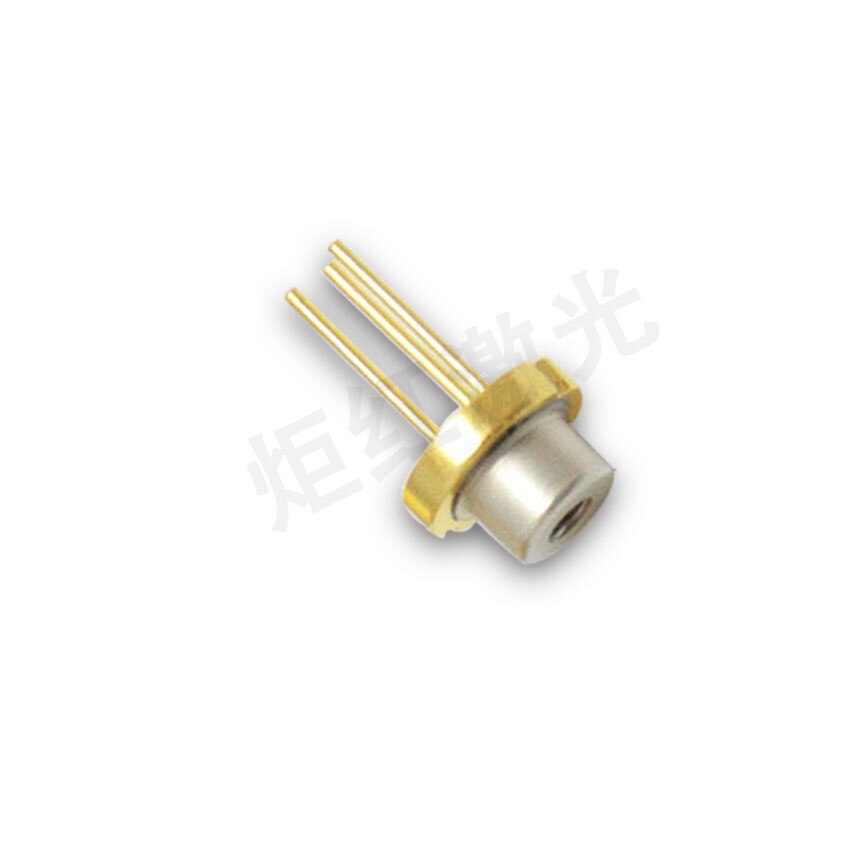

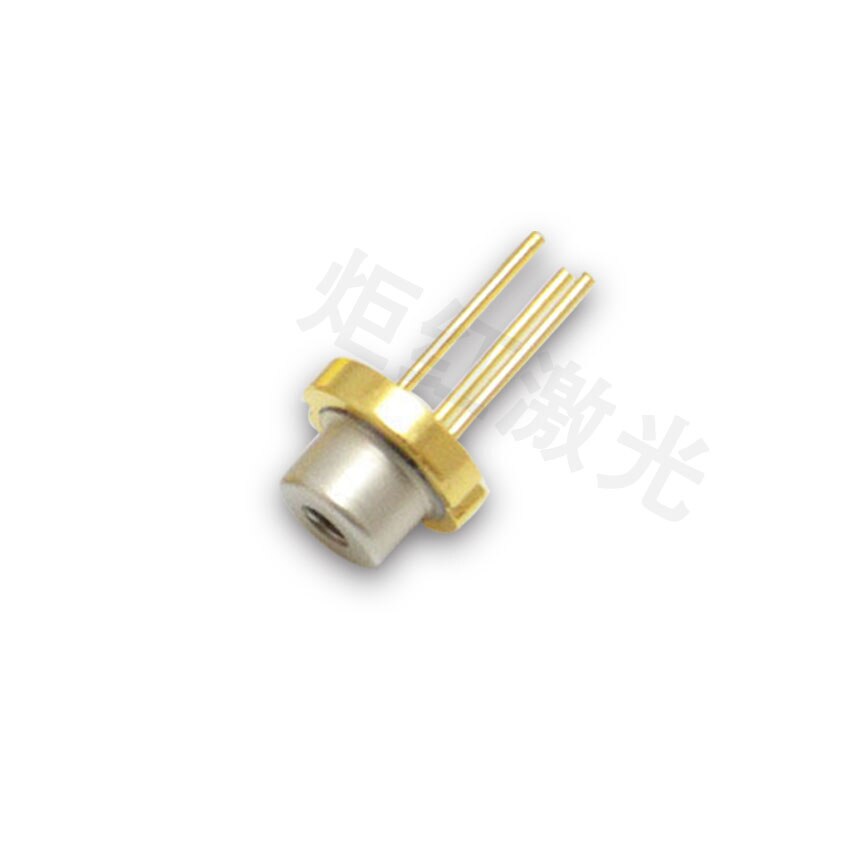

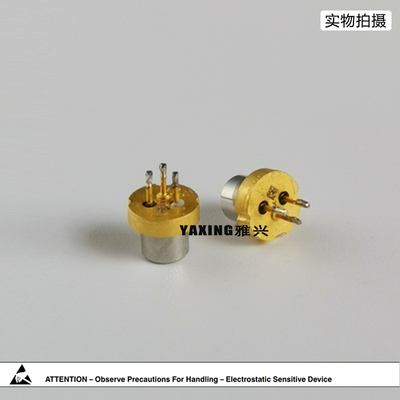

Nichia NDV4542 TO38-3.8mm Blue-violet UV 405nm 200mW Laser Diode Pulse 400mW

Product Name: Imported disassembled Nichiya violet laser diode

Place of origin: Nichia

Product model: NDV4542
Working band: 405-410nm (blue-violet)

Output power: CW 200-250mW

Operating current: less than 250mA (measured parameters)

Working voltage: 4.6-5.5V Test without heat dissipation, the voltage should not exceed 5.6V

Package type: T0-18 (3.8mm)

Working temperature: 10°C~+40°C

Working life: more than 10000 hours
