Description

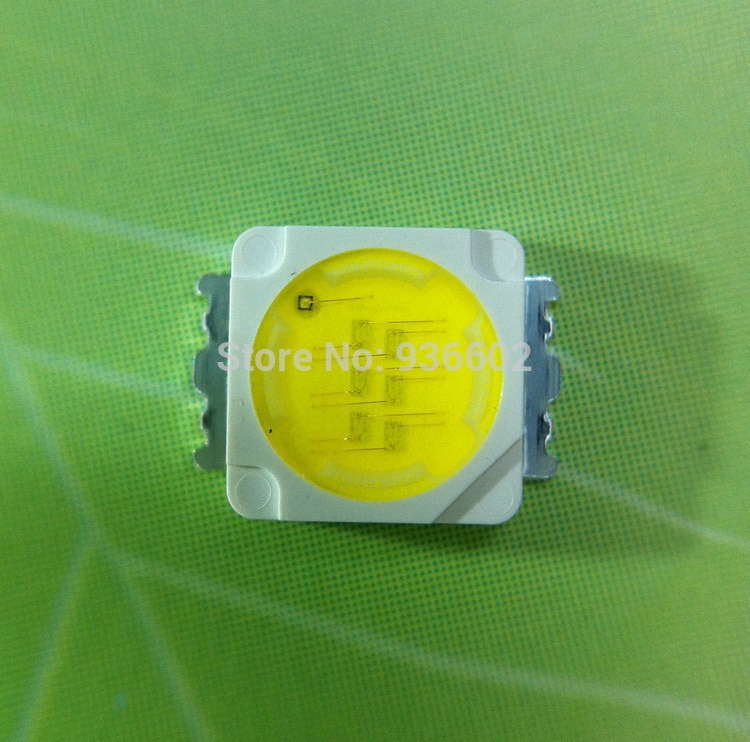

MODEL NAME : NS6W083BT LED
Manufacturer : NICHIA
Origin : Japan
Package Model:Loaded Quantity PCS Per Reel
Forward Current (IF ): 350mA
Pulse Forward Curren t1 (IFp): 600mA
Reverse Current (IR): 85mA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): 1.4W
Operatin Tgemperature (Topr): -30 – +85 °C
Storage Temperature (Tstg): -40 – +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 3.3-4.0V (300mA)
Luminous Flux (LM): 100lm (300mA)
Luminous Intensity ( IV ) : cd (300mA)
Wavelength (nm) : -nm mA
CIE : x=0.344 y=0.355 (300mA)
Color Correlated Temperature (CCT):
CRI : 85°
Viewing angle : 120°

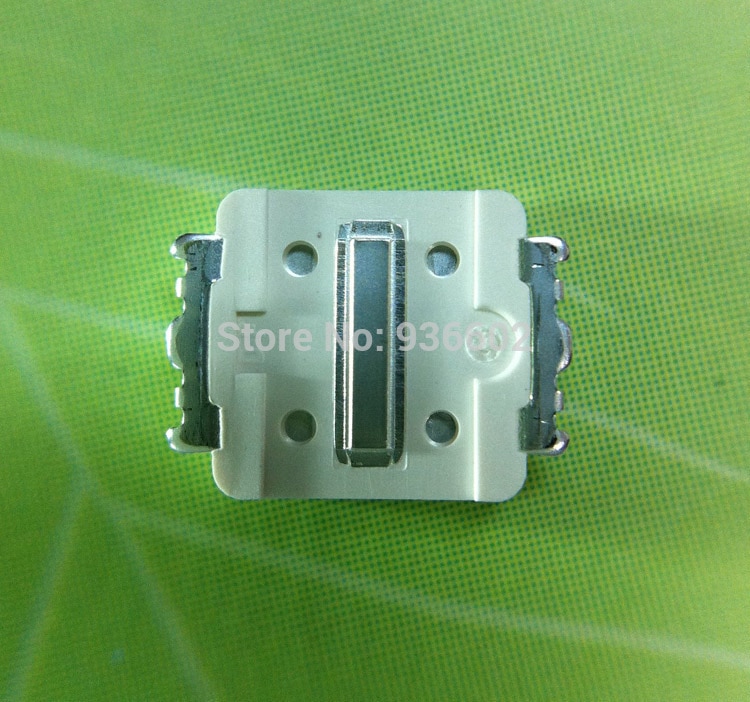

Lead Frame Type LED Package: 6.5×5.0×1.35 mm L×W×H d=4.3mm
