Description

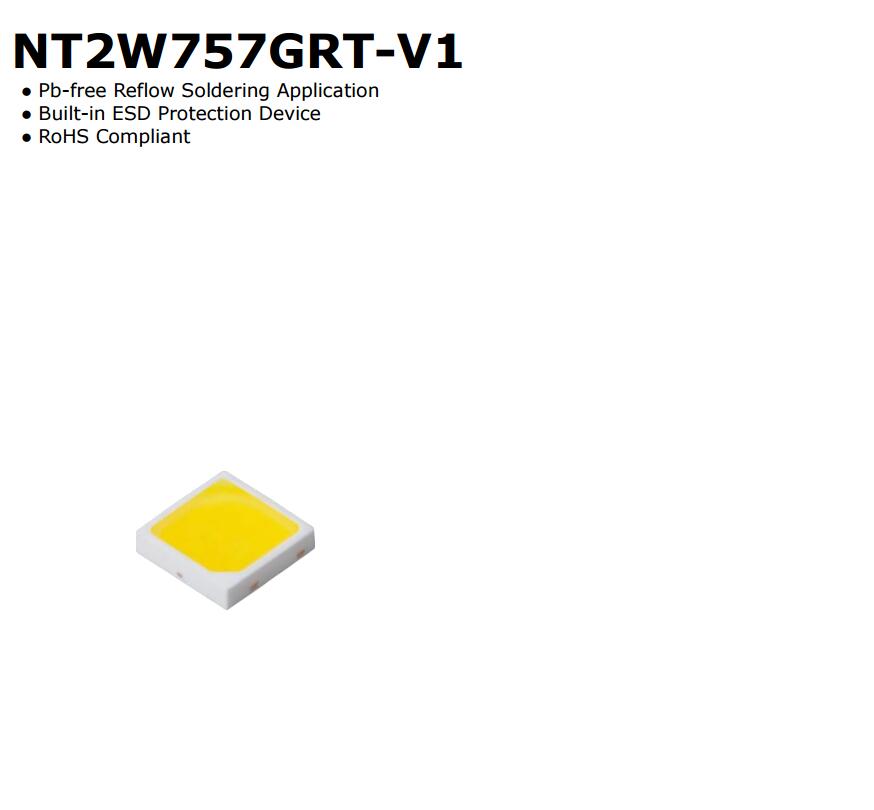

MODEL NAME : NT2W757GRT-V1
Manufacturer : NICHIA
Origin : Japan
Package Model:Loaded Quantity PCS Per Reel
Forward Current (IF ): 150mA
Pulse Forward Curren t1 (IFp): 300mA
Reverse Current (IR): 85mA
Reverse Voltage (VR): 0.8-1.2V (5mA)
Power Dissipation (PD): 960mW
Operatin Tgemperature (Topr): -40 – +100 °C
Storage Temperature (Tstg): -40 – +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 5.4-6.4V (75mA)
Luminous Flux (LM): 72-85.6lm (75mA)
Luminous Intensity ( IV ) : cd (75mA)
Wavelength (nm) : -nm mA
CIE : x=0.3287 y=0.3417 (75mA)
Color Correlated Temperature (CCT): 5700k
CRI : 70
Viewing angle : 120°
Lead Frame Type LED Package: 3.0×3.0×0.65mm L×W×H d=2.6mm
