Description

Nichia NVSW219BT R8000 D240 5000K CRI80 LED Emitter

Forward Voltage: L2 3.0V – 3.2V

Max Forward Current: 1500mA

Max Power Dissipation: 5.4W

Luminous Flux: D240 240 Lumens – 260 Lumens @ 700mA

Thermal resistance: 6 – 11 C/W

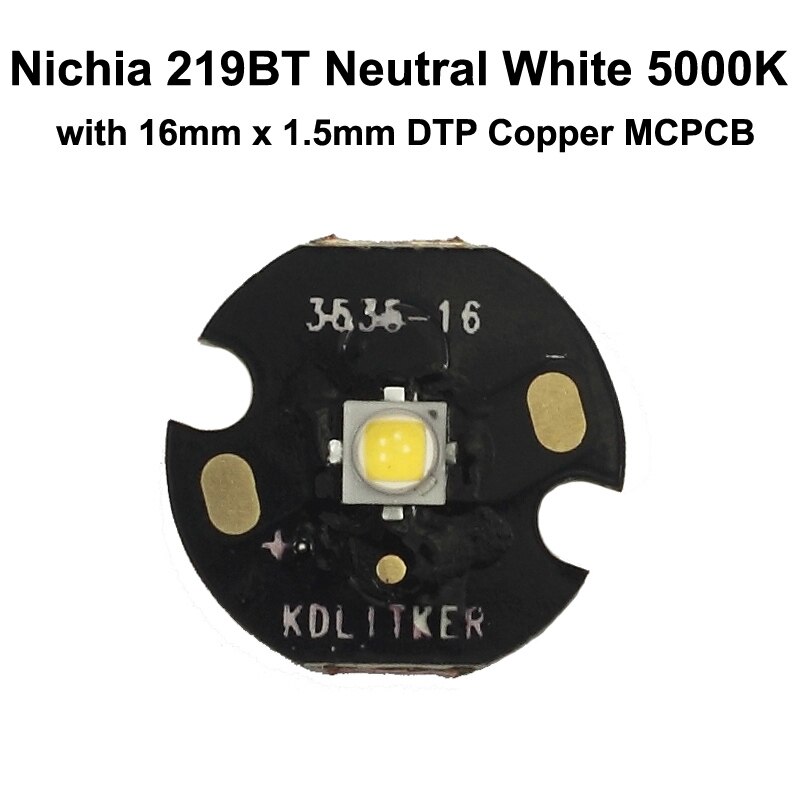

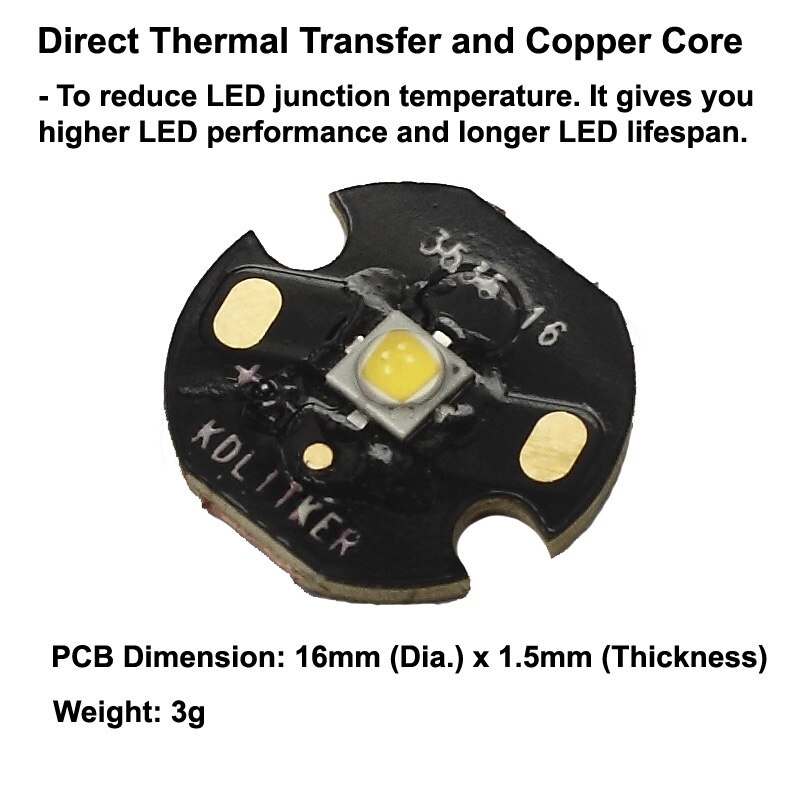

With KDLITKER DTP Copper MCPCB

Product Specifications:

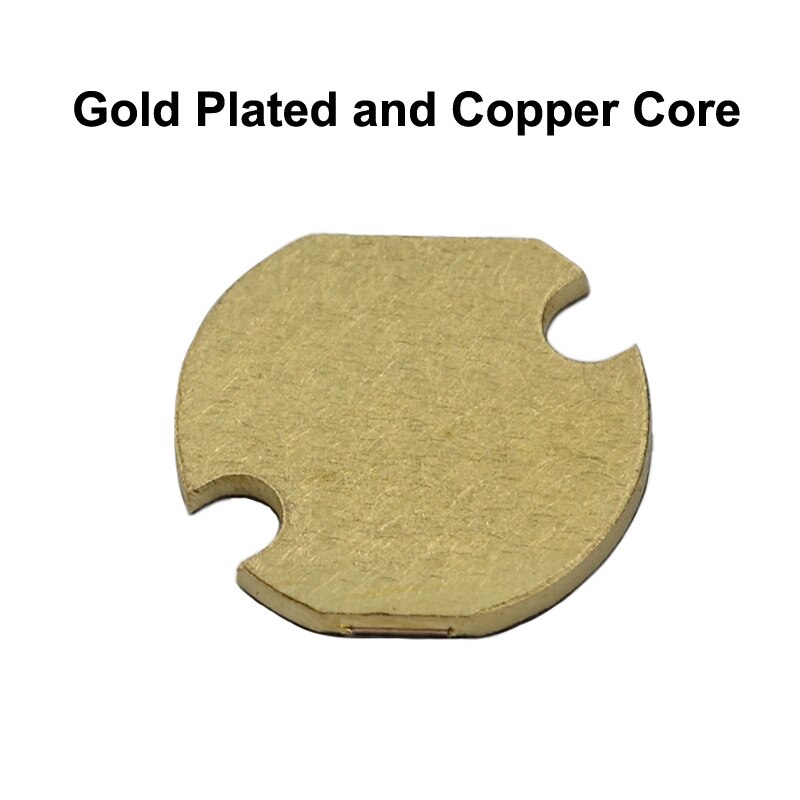

Material:	Copper
LED:	Nichia NVSW219BT R8000 D240 5000K CRI80

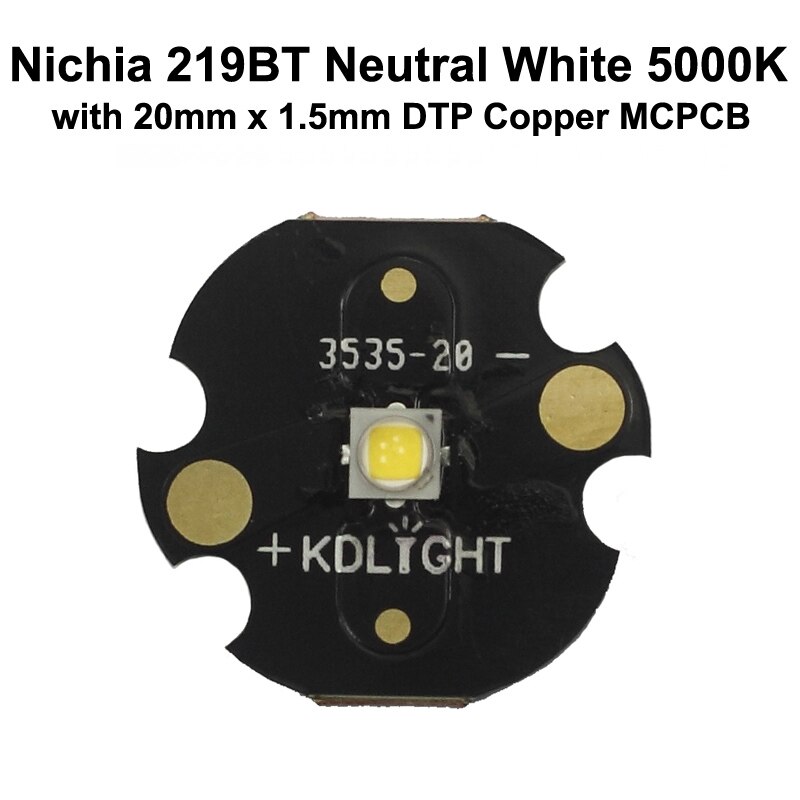

Base Plate Dim.:	10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm  (Dia.) x 1.5mm (Thickness)
Weight:	3g
Package Content:	1 x LED Star



With KDLITKER Triple DTP Copper MCPCB (Parallel)

Product Specifications:

Material:	Copper
LED Bulb:	Nichia NVSW219BT R8000 D240 5000K CRI80
Base Plate Dim.:	20mm (Dia.) x 1.5mm (Thickness)
Weight:	5g
Package Contect	1 x LED Emitter
