Sale!

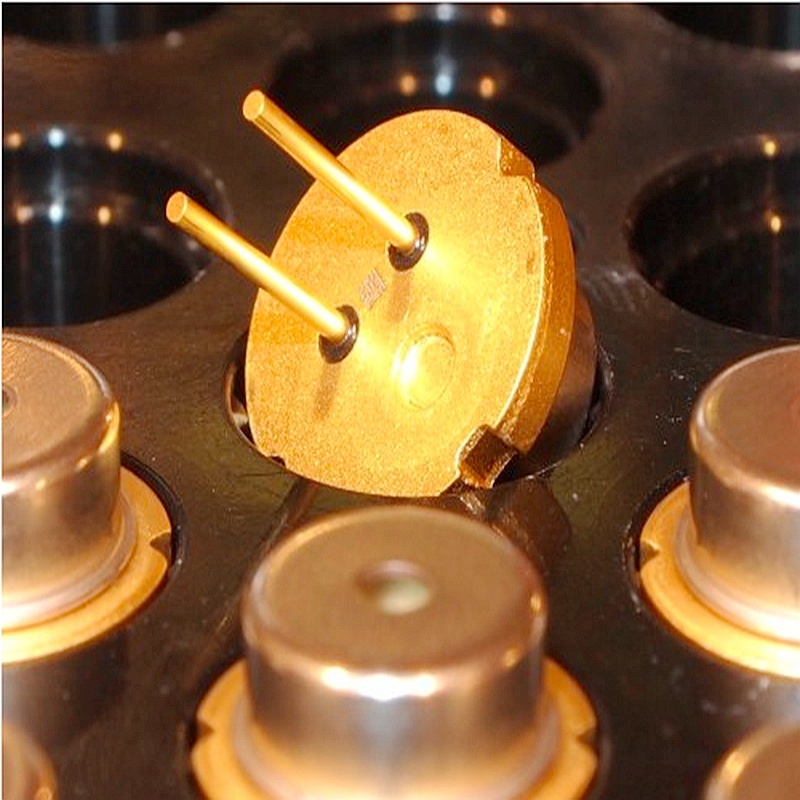

Nichia 1W 520nm Green Laser Diodes NDG7475

$299.00 $190.00

Description

Nichia 1W 520nm Green Laser Diodes NDG7475

Datasheet for NDG7475

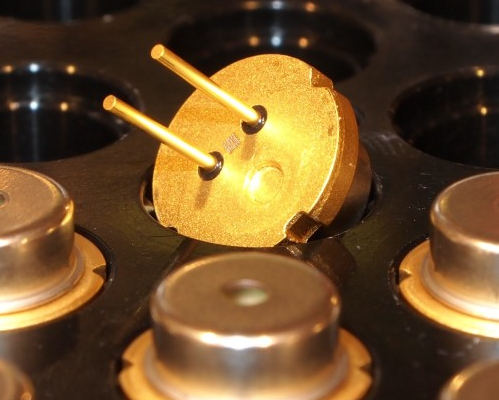

New Nichia  High Power 1W (1000mW) Green Laser Diode TO-5 9mm Package. It has off center pins.The beam specs are similar to Nichia 445nm diodes. It can be customized according to your needs.
Module Number: NDG7475
Wavelength: 510nm, 515nm , 520nm
Max. Reverse Voltage: 2V
Operating current1,7 A @ 25*C
Threshold current0,3 A
Operating voltage4,6 V @ 1,5 A
Optical output power1 W @ 1,5 A
Wavelenght520 nm
PackageTO-5
Lifetime10000 h
Storage temperature-40 ~to 85 *C
Beam divergence parallel5 – 25 deg @ 1,5 A
Beam divergence perpendicular35 – 55 deg @ 1,5 A
Slope efficiency0,83 W/A
Allowable reverse current85 mA @ 25*C
Operating current1,7 A @ 25*C
Threshold current0,3 A
Operating voltage4,6 V @ 1,5 A
Optical output power1 W @ 1,5 A
Wavelenght520 nm
PackageTO-5
Lifetime10000 h
Storage temperature-40 ~to 85 *C
Beam divergence parallel5 – 25 deg @ 1,5 A
Beam divergence perpendicular35 – 55 deg @ 1,5 A
Slope efficiency0,83 W/A
Allowable reverse current85 mA @ 25*C
Operating temperature0 to +50 *C
Diode typeMulti transverse mode

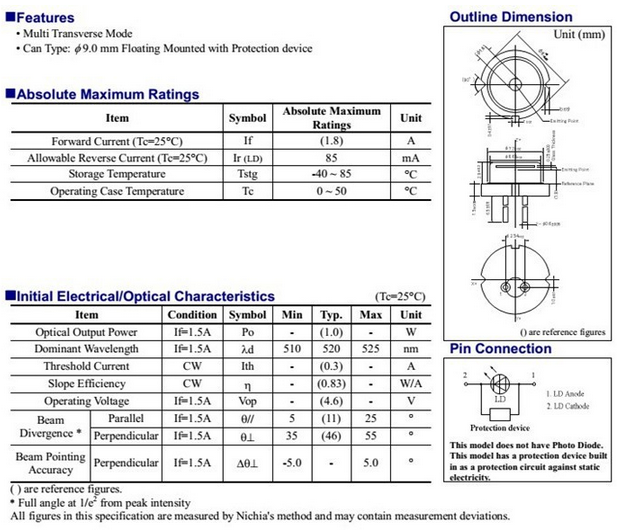

Check the datasheet as following :
Nichia 1W 520nm Green Laser Diodes NDG7475
