Description:

The CC1101 is a 868 MHz transciever module. In conjunction with an ATMega328 microcontroller, you can build your own CUL for a FHEM system. The CC1101 module has a maximum range of 300 meters in the open field and a sensitivity of approx. -112 dBm. For communication, an SPI interface is available.

Specifications:

IC: CC1101

Operating voltage: 1.8V – 3.6V

Current consumption: max. 25mA (load), 200nA (sleep)

Logic level: 3.3V

Interface: SPI

Radio frequency: 868MHz

Range: 300m free field

Sensitivity: about -112 dBm

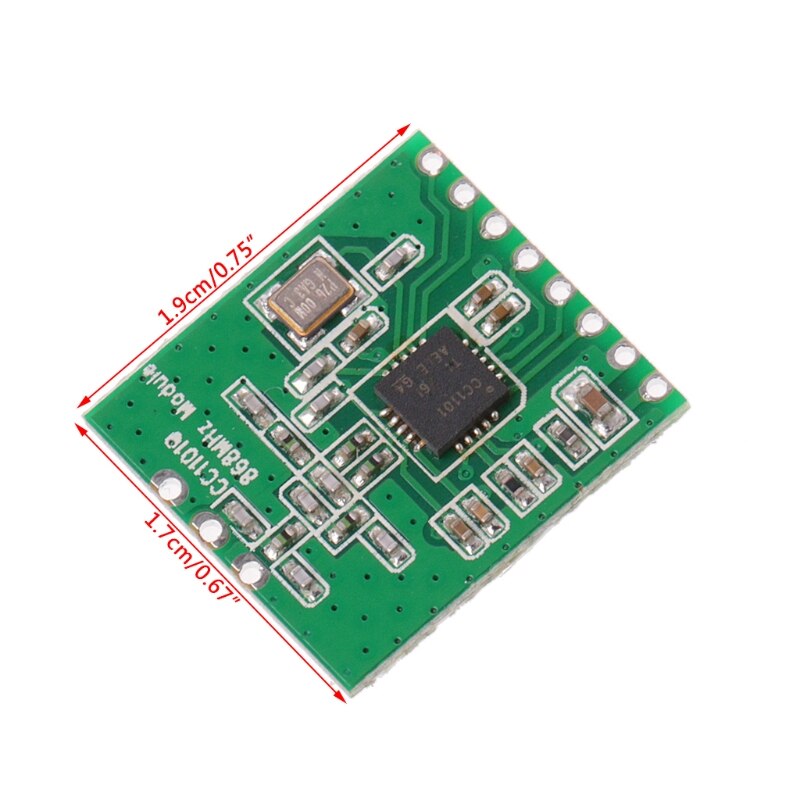

Size: 1.9×1.7cm/0.75×0.67″

Quantity: 1 Set

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package

Package Includes:

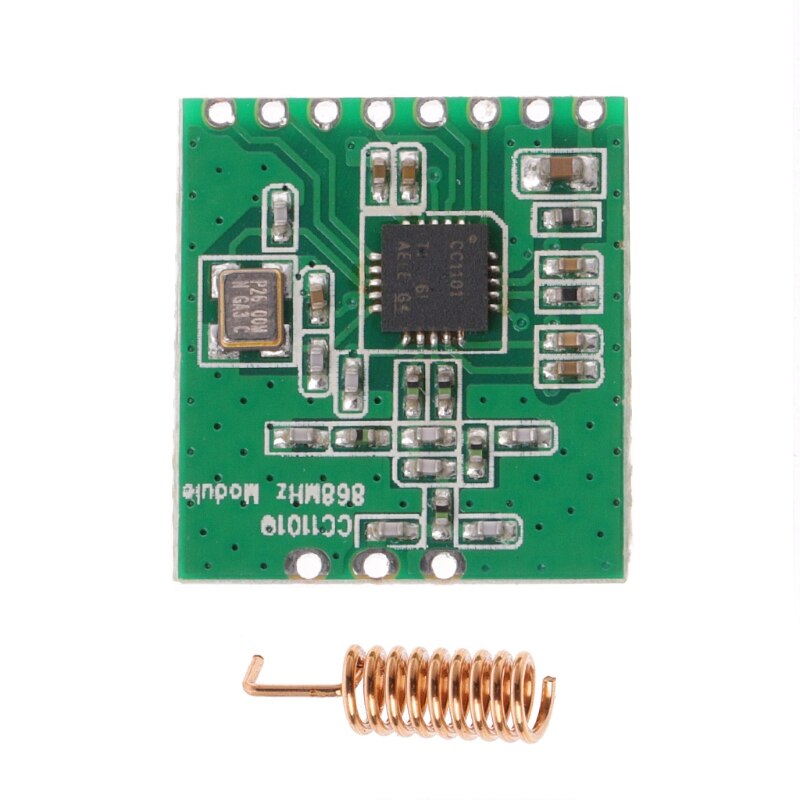

1 x 868 MHz Module

1 x 868 MHz Antenna
