Description
Description:
7000mW 445nm blue laser module, designed with longer heat sink shell which make sure a better heat dissipation performance is suitable for EleksMaker laser engraver, and also other engraver that ensures XH2.54-3P+2P interface and DC 12V input voltage. 7000mW fixed focus laser module can engrave on metal surface.
Specification:
| General Specification | |
| Model | XSB15D |
| Heatsink Material | Aircraft Aluminum |
| Section Size | 40mm x 40mm |
| Cooling Mode | Heat Sink Groove, Cooling Fan |
| Dimension | 116 x 40 x 40mm |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V |
| Adapter Output Voltage | DC 12V 2.5A |
| Can Engrave | Metal/Stainless Steel/ MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum |
| Can Not Engrave: | Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material |
| Technical Parameters | |
| Laser Power | 7000mW |
| Laser Wavelength | 445nm (Blue) |
| Beam Shape | Dot (Focusable) |
| Power Supply | DC 12V |
| TTL/PWM Modulation | YES |
| Input Interface | 2.54-3P+2P |
| Drive Mode | External ACC |
Features:
1. XSB15D new series of laser modules, exquisite workmanship and nice appearance.
2. 445nm 7000mW focusable blue laser module, with TTL/PWM functions.
3. Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
4. Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
5. 3 pins plug, 2.54-3P+2P input interface, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
6. Can Engrave: Metal, Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
Can Not Engrave: Stone, Ceramics, Glass, Reflective or Transparent Material.
* This module can be compatible with TTL and PWM modulation while TTL can control the switch on/off and PWM can control the adjustment of laser power.
Protective Lens Cleaning Method:
1. Prepare cotton swab and lens cloth.
2. Wrap one or two layers of lens cloth around the head of the swab and dip a small amount of water of cleaning agent in the head.
3. Use the cotton swab head wrapped in the cleaning cloth to gently press the protective lens and wipe the area back and forth until the lens is clean.
Notice:
1. Never engrave the mirror metal, otherwise the reflected light will damage the laser.
2. Please wear laser goggles during usage, avoid to touch the laser directly to the eyes and skin! Keep away from children and pets.
3. Usually used for EleksMaker laser machine, 3 pins connector cable is needed to connect to the EleksMaker Board. This item will come with the cable, and the cable from your A3 machine is also suitable.
4. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
5. The product has been installed the protective lens. It can be cleaned by yourself. Please avoid the lens be dirtied by smoke when you carve the surface of producing smoke. If this happened, please clean the lens with lens cloth or lens paper.
Package Included:

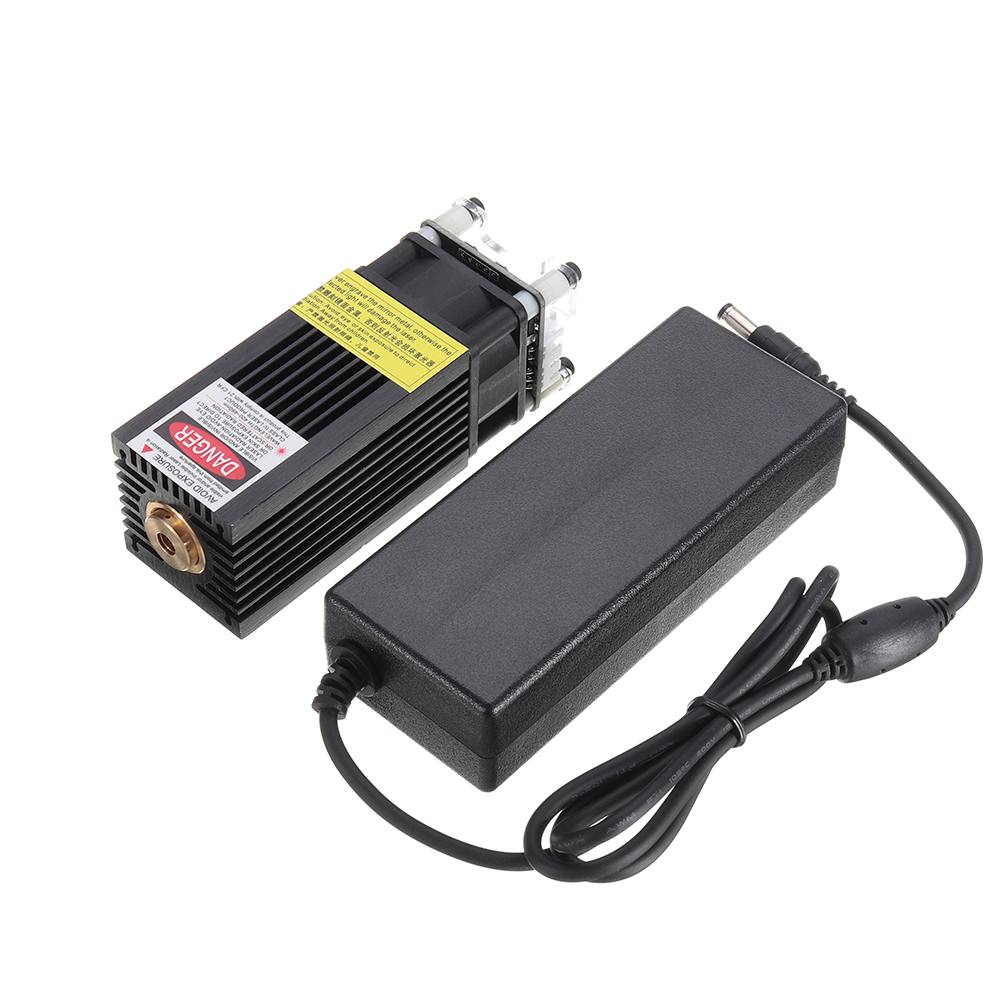

1 x 7000mW Blue Laser Module

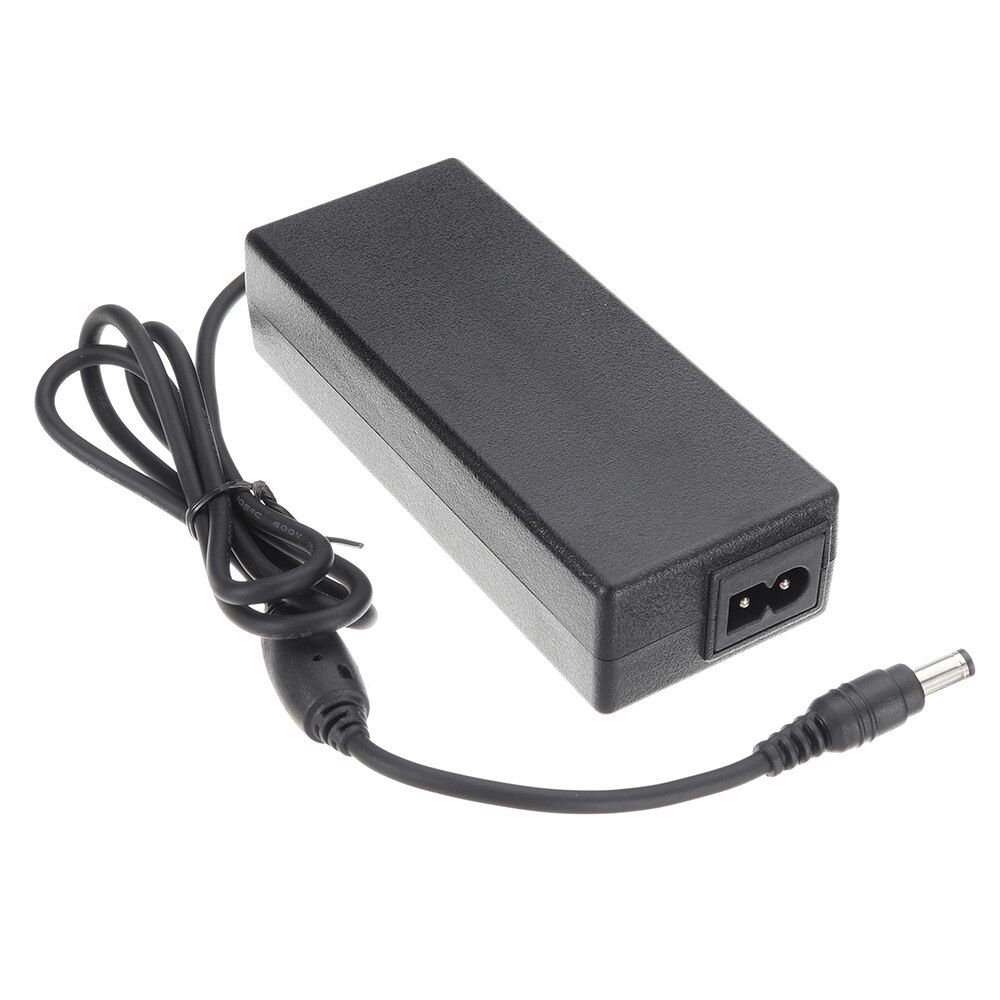

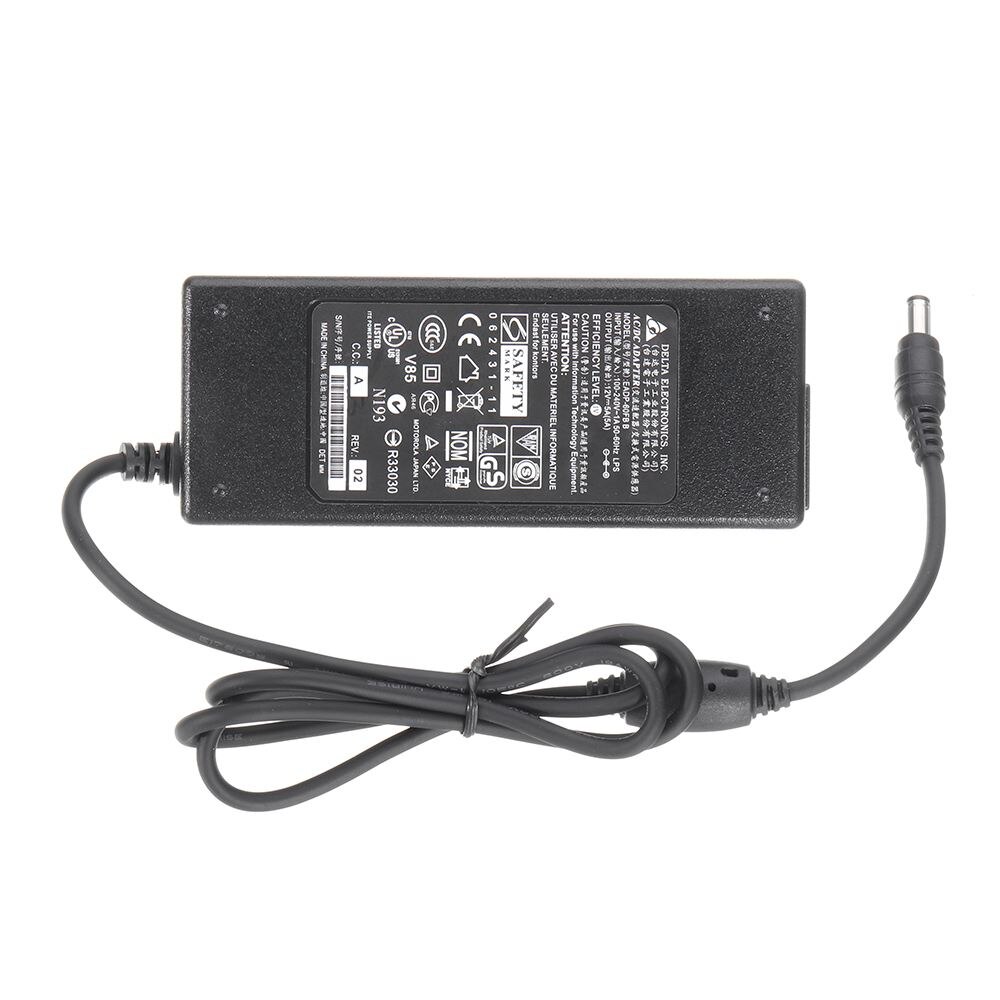

1 x Power Adapter
1 x 3 Pin Plug

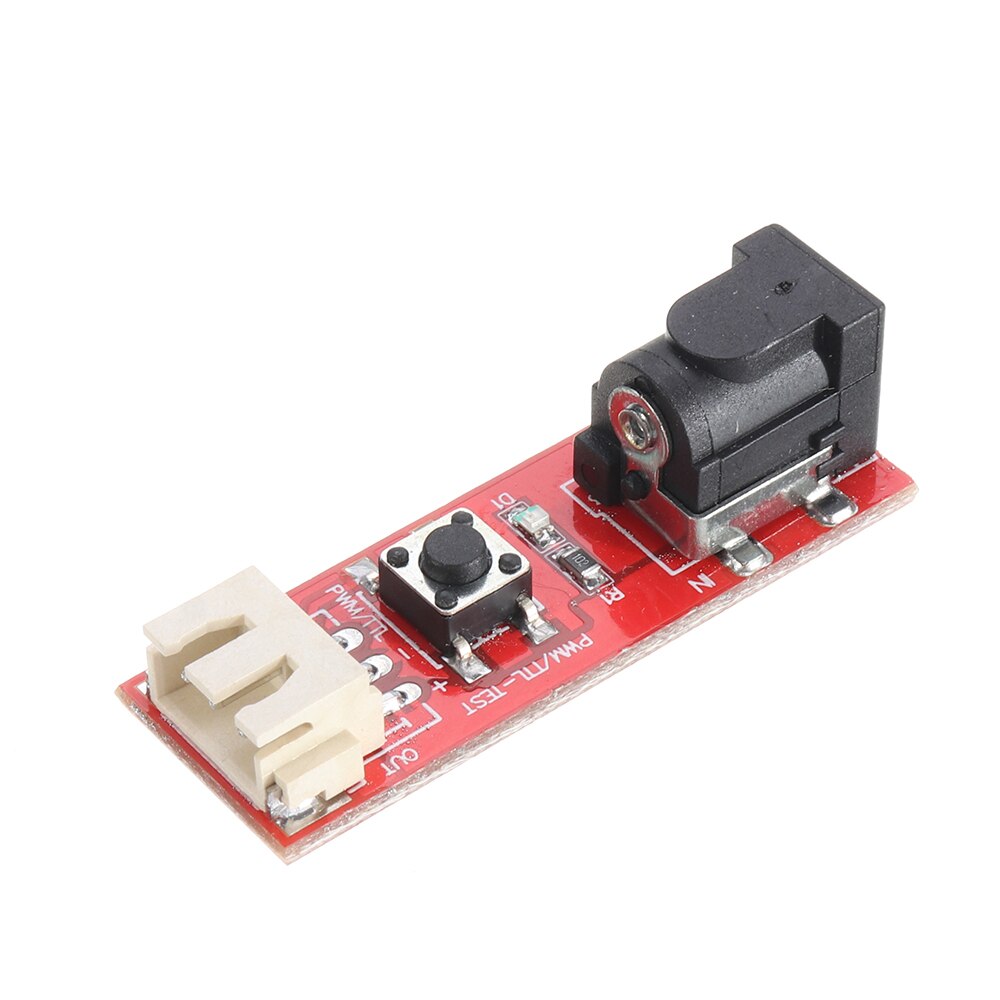

1 x Mini Test Controller Board
2 x Fixed Focal Columns
