Description
- Item Type: Stage Lighting Effect
- Style: Mini
- Voltage: 90-240V
- Model Number: AT-20 galvo scanner
- Power: 25W
- Occasion: Professional Stage & DJ
- Brand Name: DYUE
- Input voltage: 15V
- Peak current: 1A
- Rated current: 0.5A
- Scanning speed: 20Kpps
- Test standard: ILDA 20Kpps galvo scanner
- Laser galvanometer: Laser Scanning Galvo
- Apply: DJ Laser Light Show
Welcome to seven star light store

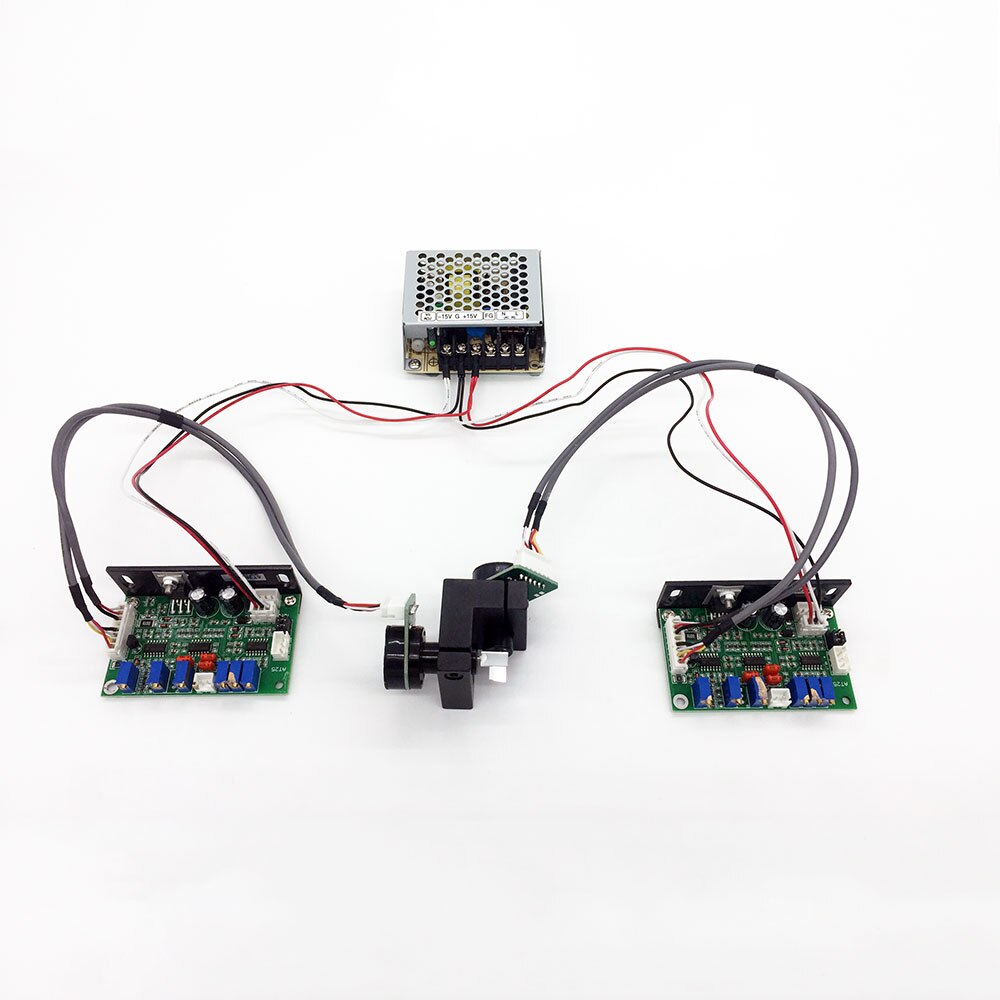

New 15V 20Kpps Laser Scanning Galvo Galvanometer Based Optical Scanner Set For DJ Laser Light Show Stage Lighting
Specifications：
-Input voltage：15V
-for Peak current: 1A
-Rated current：0.5A
-Operating temperature：0~50℃
-Rated scanning angle：± 20 °
-Maximum scanning angle: ± 30 °
-Drive plate size:76mm × 48mm × 26mm
-Wavelength:380nm-700nm
-Analog signal input impedance: 200K ± 1% Ω (differential input)
-Analog position input range: ± 5 V.
-Scanning speed:20Kpps
-Lens reflectivity:> 98% @ 45 ° incidence (coverage wavelength: 380nm-700nm）

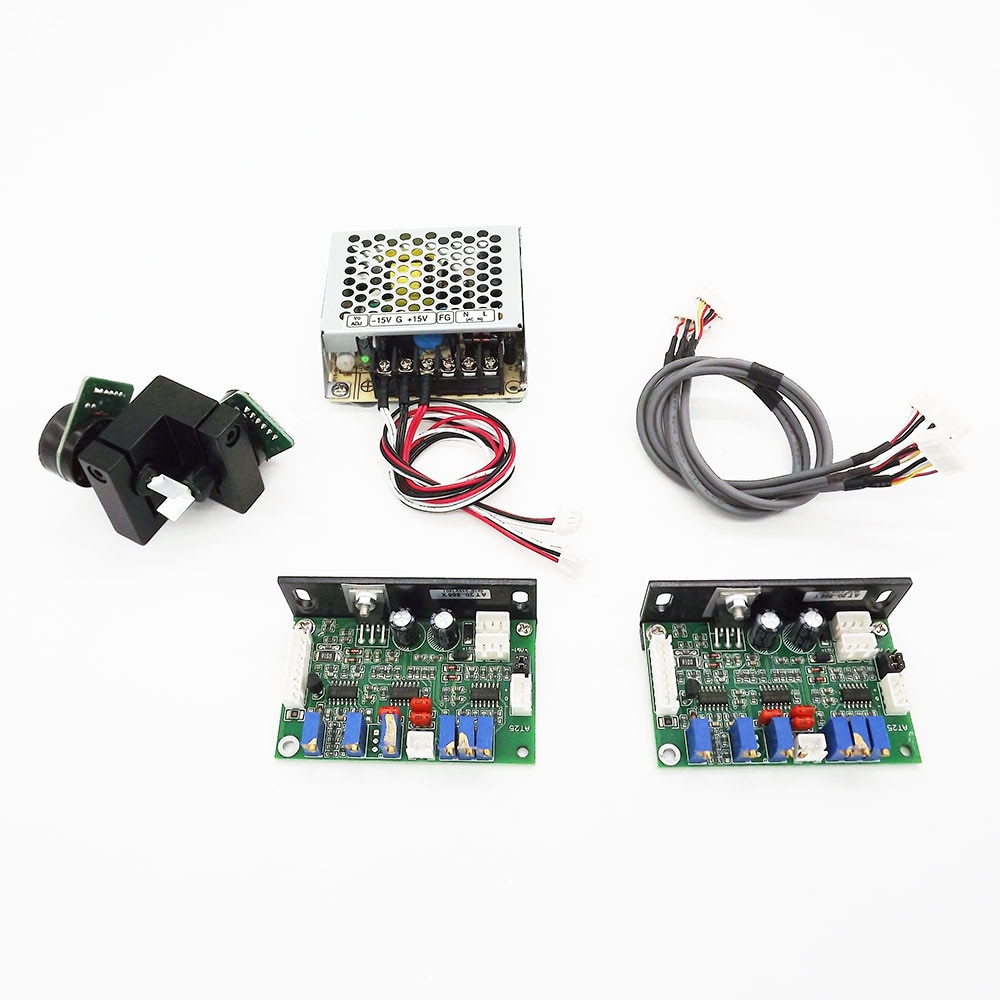

Package included：
1X Set Galvanometer Scanner
Optional parts:
Scanfail board is optional
DMX board is optional
ILDA board is optional
Multifunctional ILDA&DMX Control Board is optional
LCD display is optional
SD memory function is optional
If you need the other accessories, please contact us before place your order!
Scanning Angle:
