Description

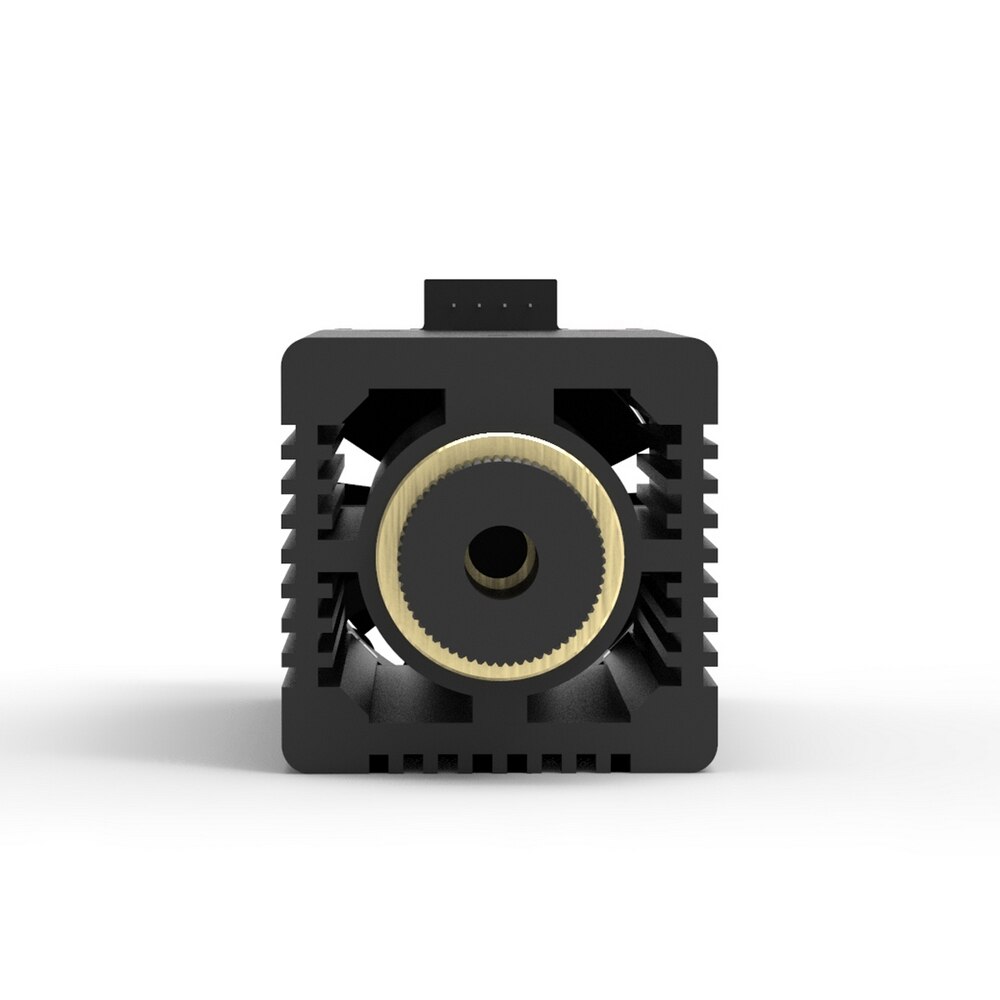

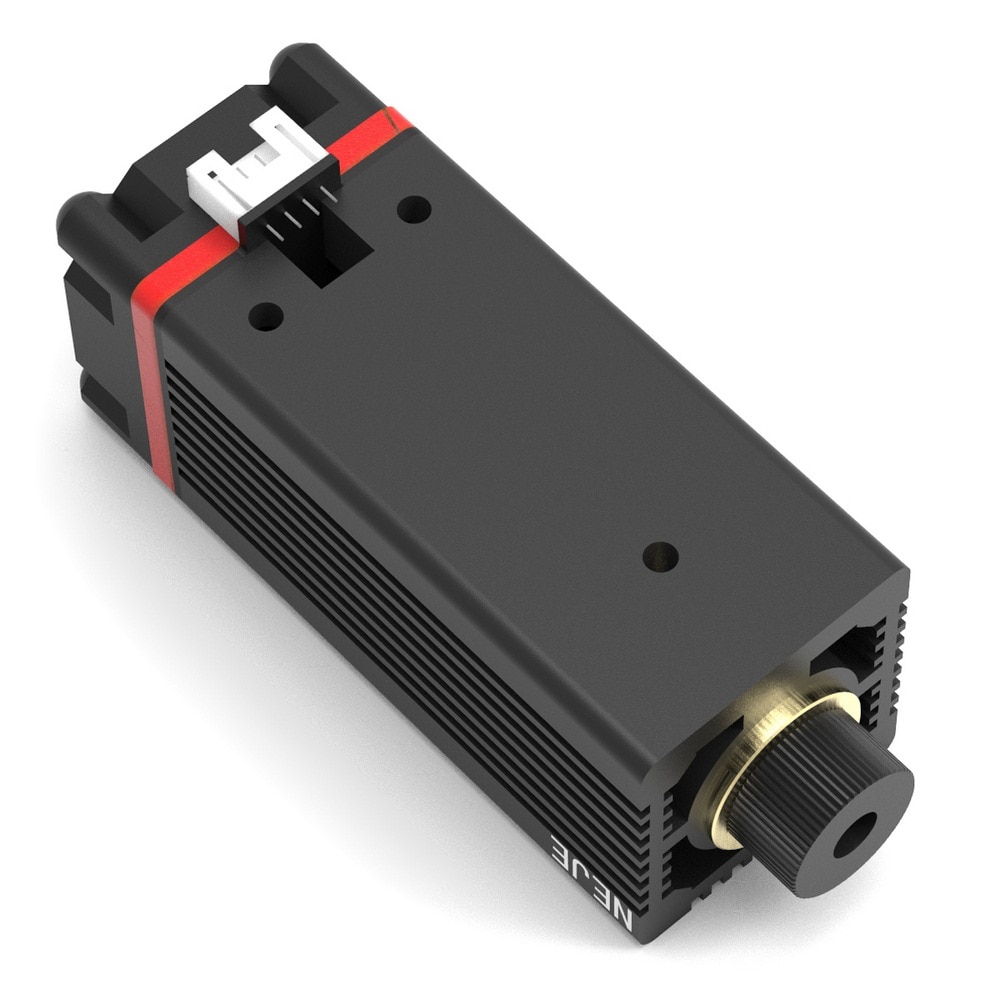

NEJE Nozzle Laser Head 1500MW 3000MW 3500MW 7W Fiber Laser Head Tube Module NEJE Master Accessories Laser Machine DIY Tools

Main applications: grayscale engraving, drawing, simple depth engraving, simple cutting, etc.



Details:

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)

Wavelength: 405nm

Radiator size: 30*60mm

Material: copper + aluminum

Weight: 121g

Drive position: built-in

Is the power adjustable: PWM can be adjusted

Drive protection: surge protection, overvoltage protection

Input power: approx. 12V280ma (including fan power)

Line length: 300mm

Control line installation method: integrated

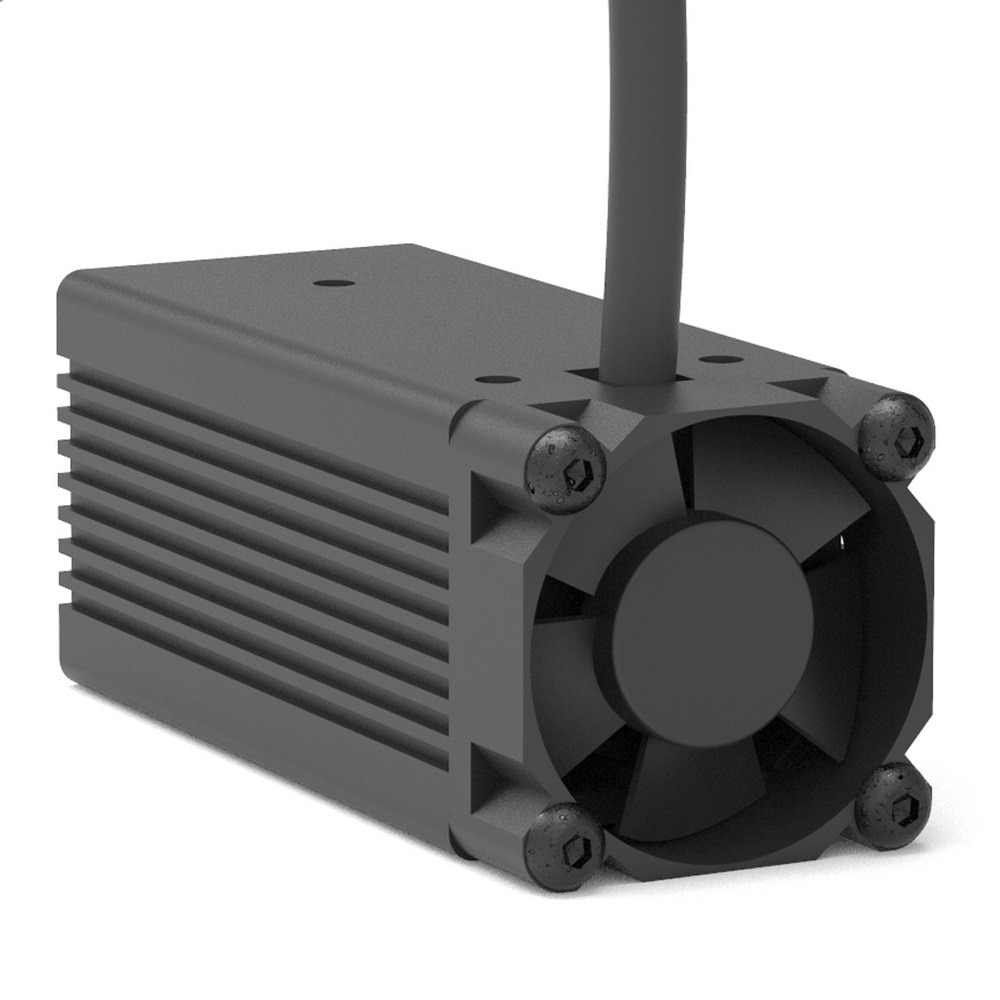

Fan size: 30*10mm

Fan speed: 10,000 rpm

Controllable temperature: less than 60 degrees Celsius

Focus range: 10-100mm

Best focal length: 50mm from the light exit

Safety Warning: Please apply this module under the premise of safety protection!

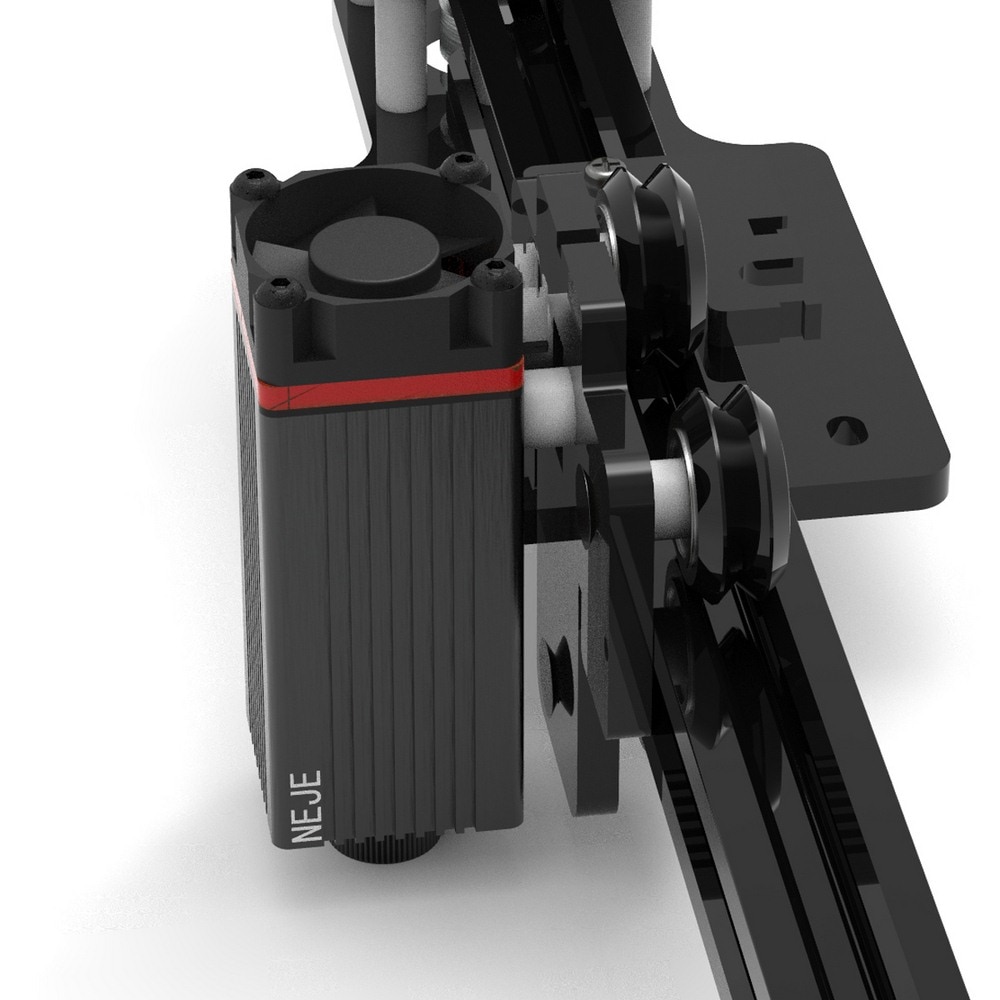

Recommended application machine: NEJE Master



Packing list:

1 x module

2 x screw

2 x gasket
