Description

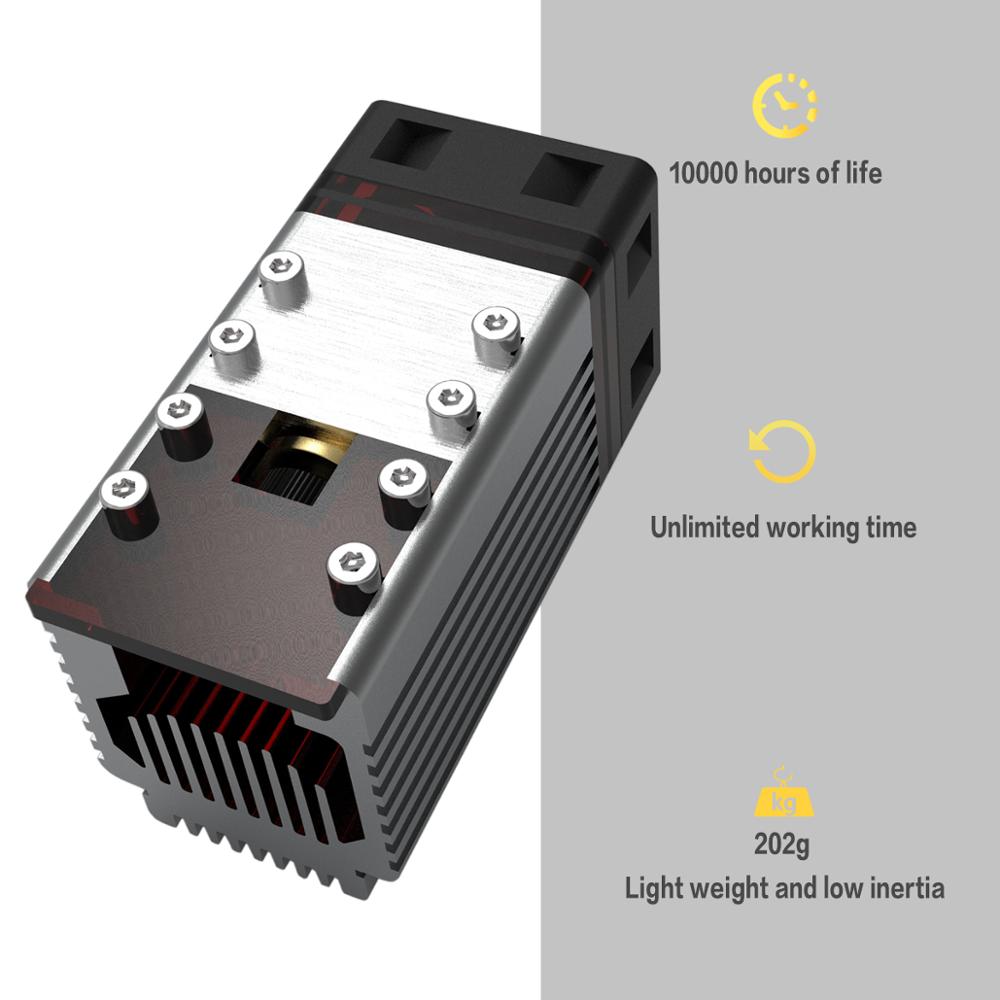

NEJE A40630 New 50W Laser Moudle Feature：

– Designed for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, arduino project.

– 2 in 1 focus, adjustable lens and fixed focal length in one module.

– 7.5W Optical power output, Suitable for engraving and cutting.

– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

– Modified laser air assist, avoid smoke damage to the lens.

– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

– Sliding slot is provided for easy adjustment of focus.

NEJE A40630 New 50W General Specification:

Model：NEJE Module 50W (A40630)

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：40-50W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3-4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

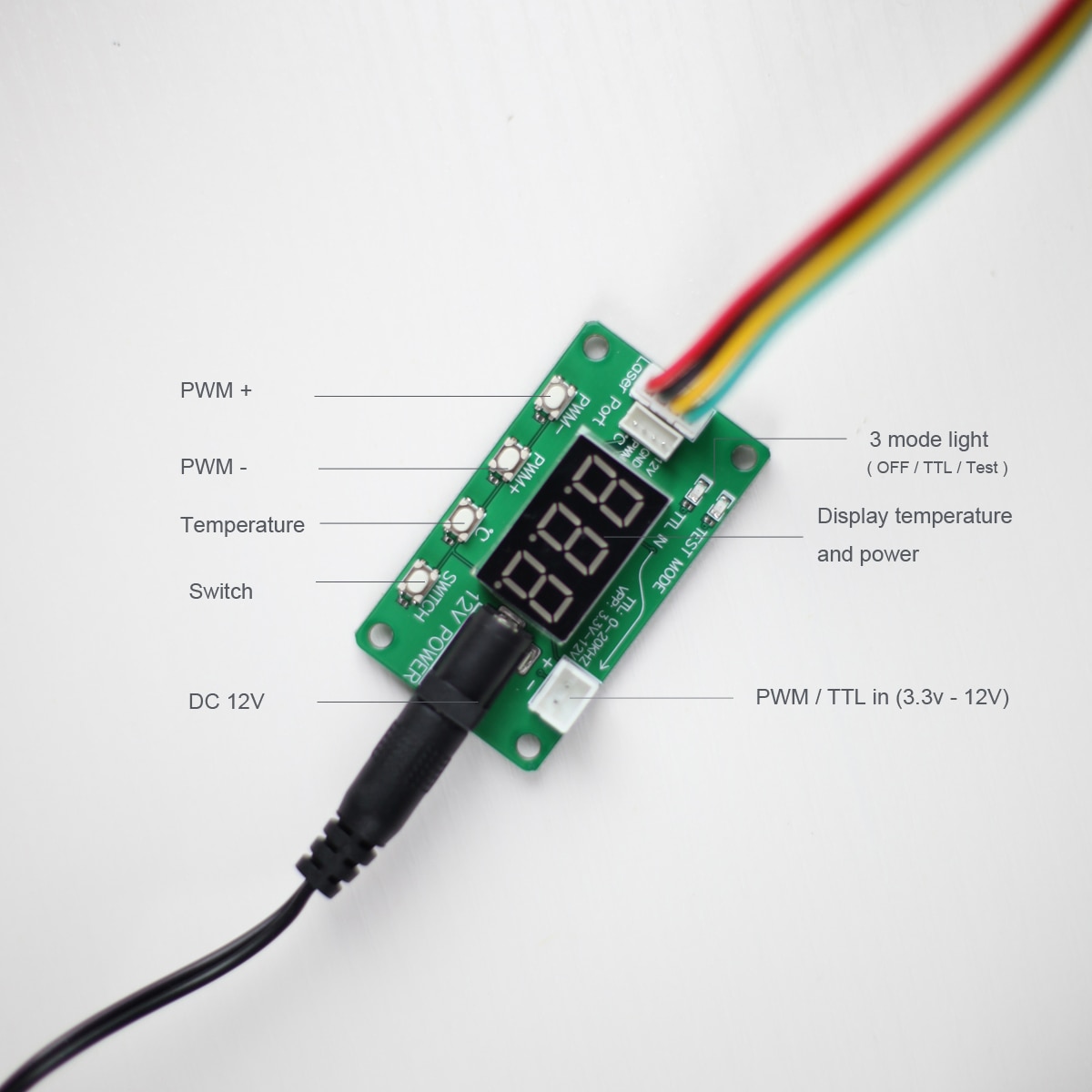

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！

3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.

4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.

5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.

6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.

7. It can also be compatible with other cnc equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of pwm waveform control.

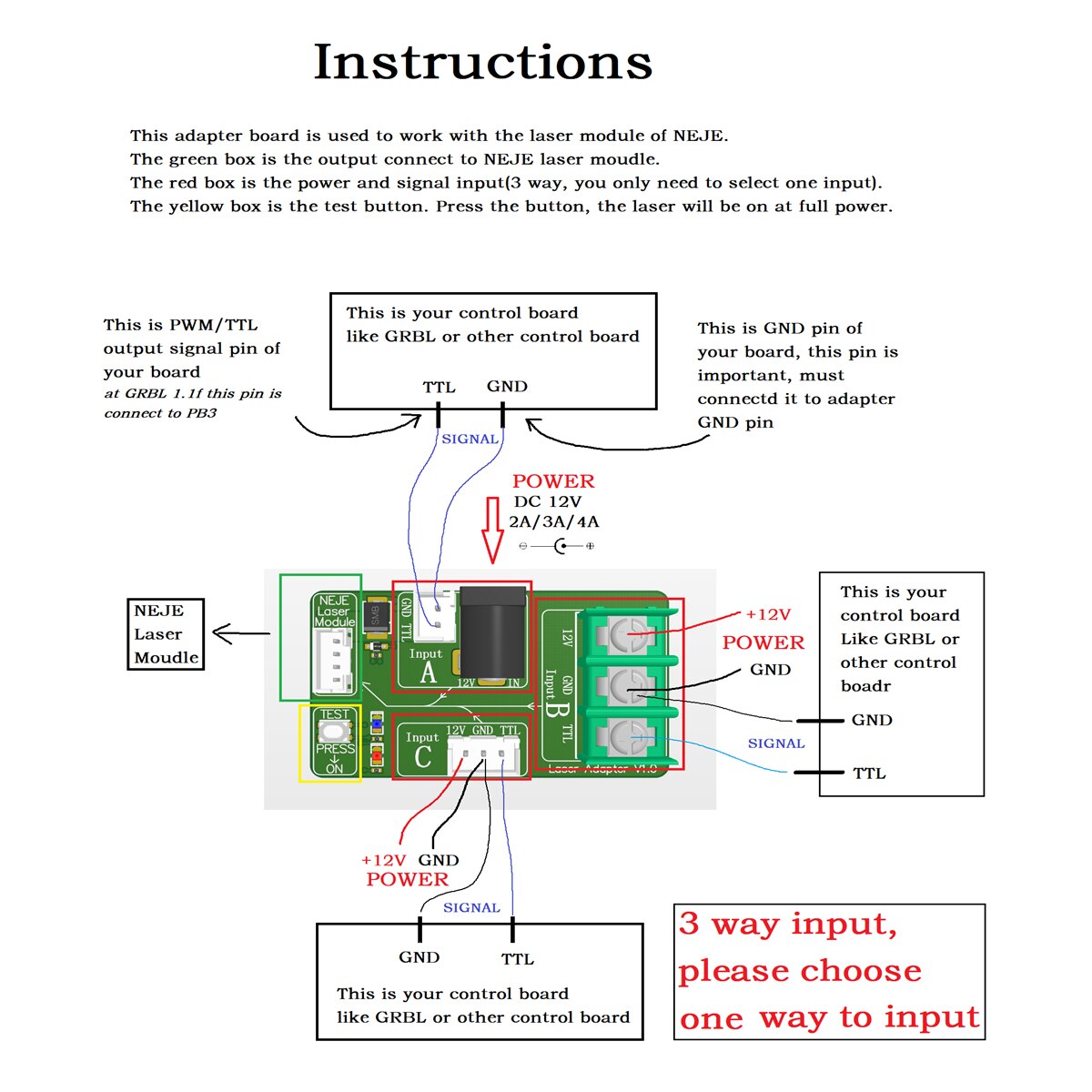

50w Module +interface adapter board Package List

1 x laser module （A40630）

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x interface adapter board

1 x 4pin laser line

1 x 3pin 2.54 interface output cable

1 x 2pin TTL control line

(This kit does not include 12V4A power supply and goggles)

50w Module +digital tube display test board List

1 x laser module （A40630）

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x digital tube display test board

1 x 4pin laser line

1 x 2pin TTL control line

(This kit does not include 12V4A power supply and goggles)

50w Module Kits Package List

1 x laser module （A40630）

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x interface adapter board

1 x digital tube display test board

1 x 4pin laser line

1 x 2pin TTL control line

1 x 12V power adapter

1 x goggles

(This kit does not include 12V4A power supply and goggles)

N40630 Small Package List

1 x Laser Engraving Module N40630

1 x Laser Module Sliding fixture

1 x 4 Pin Cable(300mm Sports Cable)

1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

1 x 2.5mm L-shaped wrench

1 x 5mm L-shaped wrench

(This kit does not include 12V3A power supply and goggles)

50W (A30130) List

• 1 x laser module

• 1 x sliding card slot

• 1 x L wrench

• 1 x L-shaped small wrench

• 1 x interface adapter board

• 1 x 4pin laser line

• 1 x 3pin 2.54 interface output cable

• 1 x 2pin TTL control line
