Description
- Brand Name: Oakeroo
- Origin: CN(Origin)
- Certification: ce
- Model Number: 50W module
- Certification: CE
- Is Smart Device: Yes
- Product name: LASER MOUDLE HEAD
- Optical Power: 450nm 7.5W
- Warranty: 2 years
- safety protection: MEMS
- Laser Type: diode
- Wood Router: Laser Engraver
- cnc machine: laser cutting machine
- laser gravur: laser graviermaschine
- graviermaschine: laser cutter
Friend Remind
Please notice that our price doesn’t include the customs tax, it charged by your customs, we don’t accept dispute or negative feedback for this reason. Thank you for your kindly understanding.
Share Some Interesting Craftes from Customes

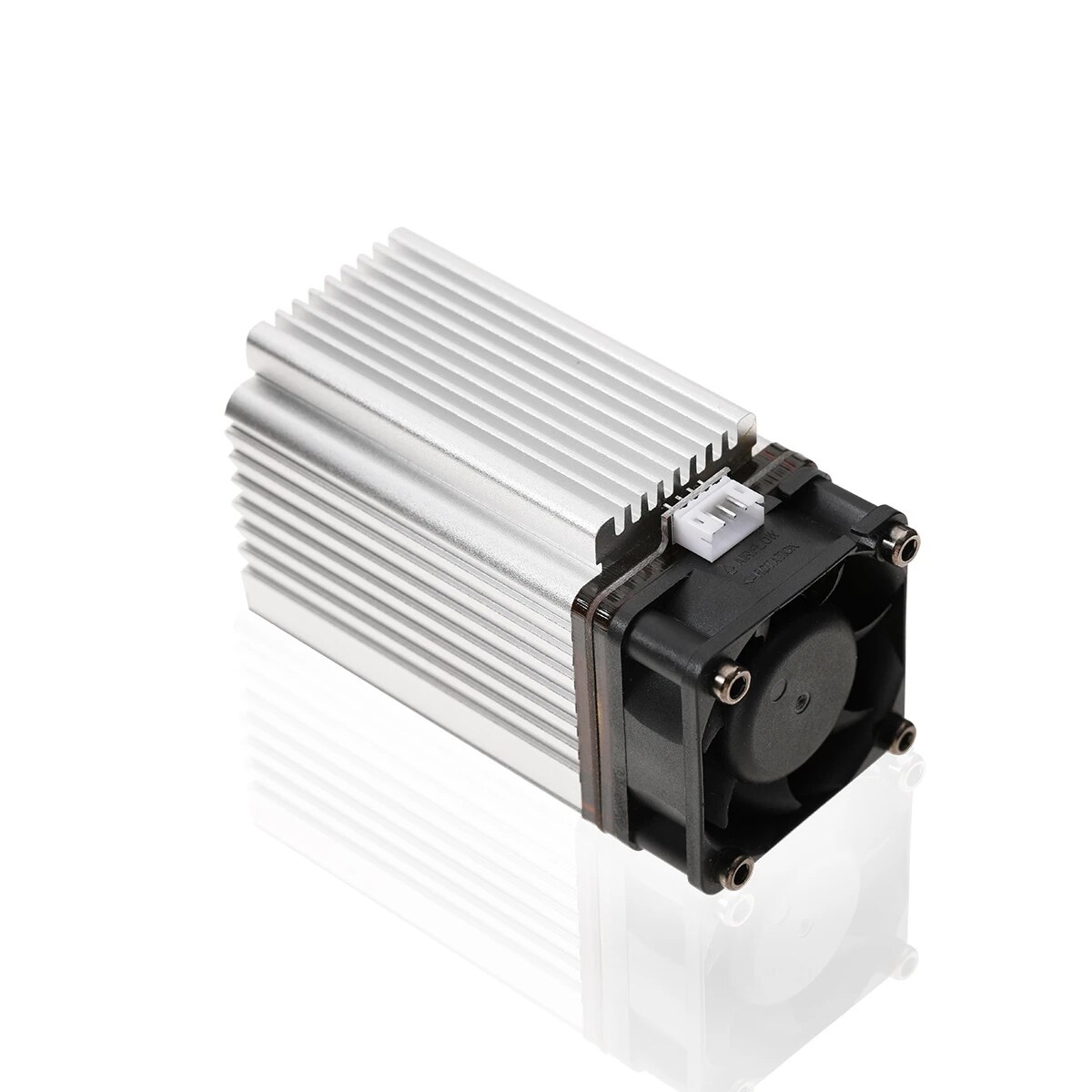

50W Double beam Laser Moudle Feature：
50W General Specification:
Model：NEJE Module 50W
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm

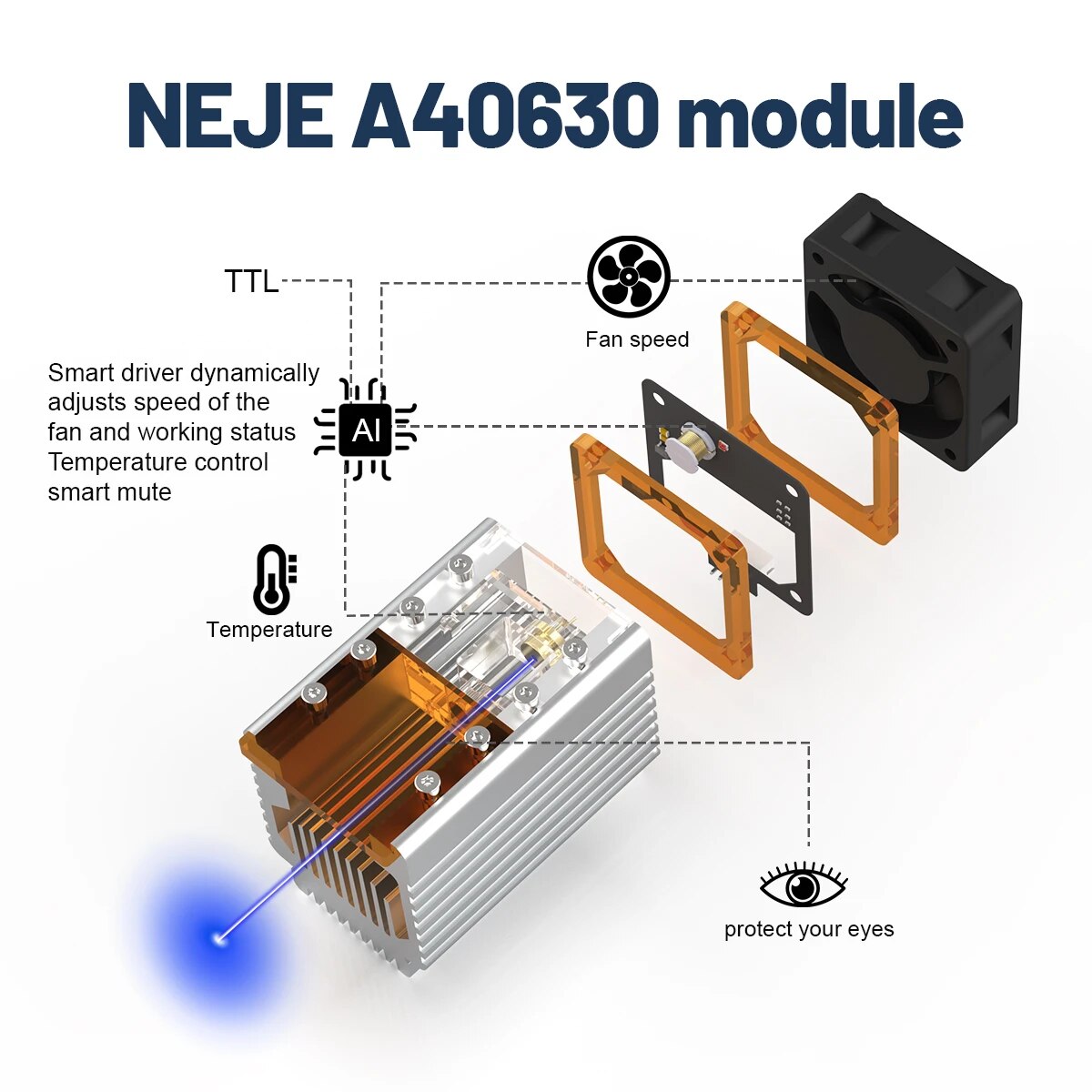

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum /Stainless Steel

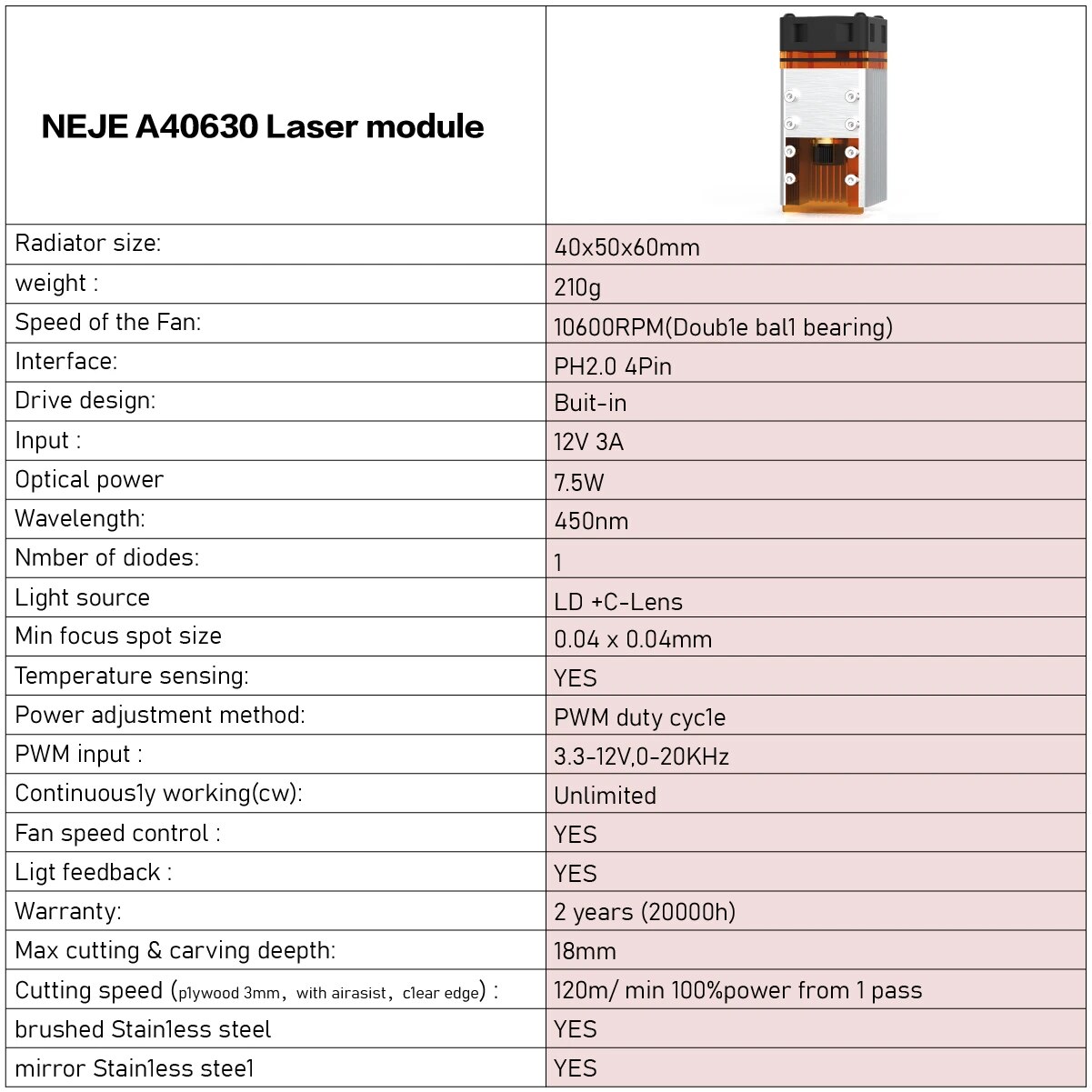

Technical Parameters：
Module Input：50W
Optical power output：7.5W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 5A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours
A40630 50W Module kit
1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x digital tube display test board
1 x interface adapter board
1 x 4pin laser line
1 x 2pin TTL control line
1 x 3pin 2.54 interface output cable
