Description
Product Specifications
- Heatsink Material： Aircraft Aluminum + Brass Shell
- Luminous Color： Blue
- Section Size： 30mm x 30mm

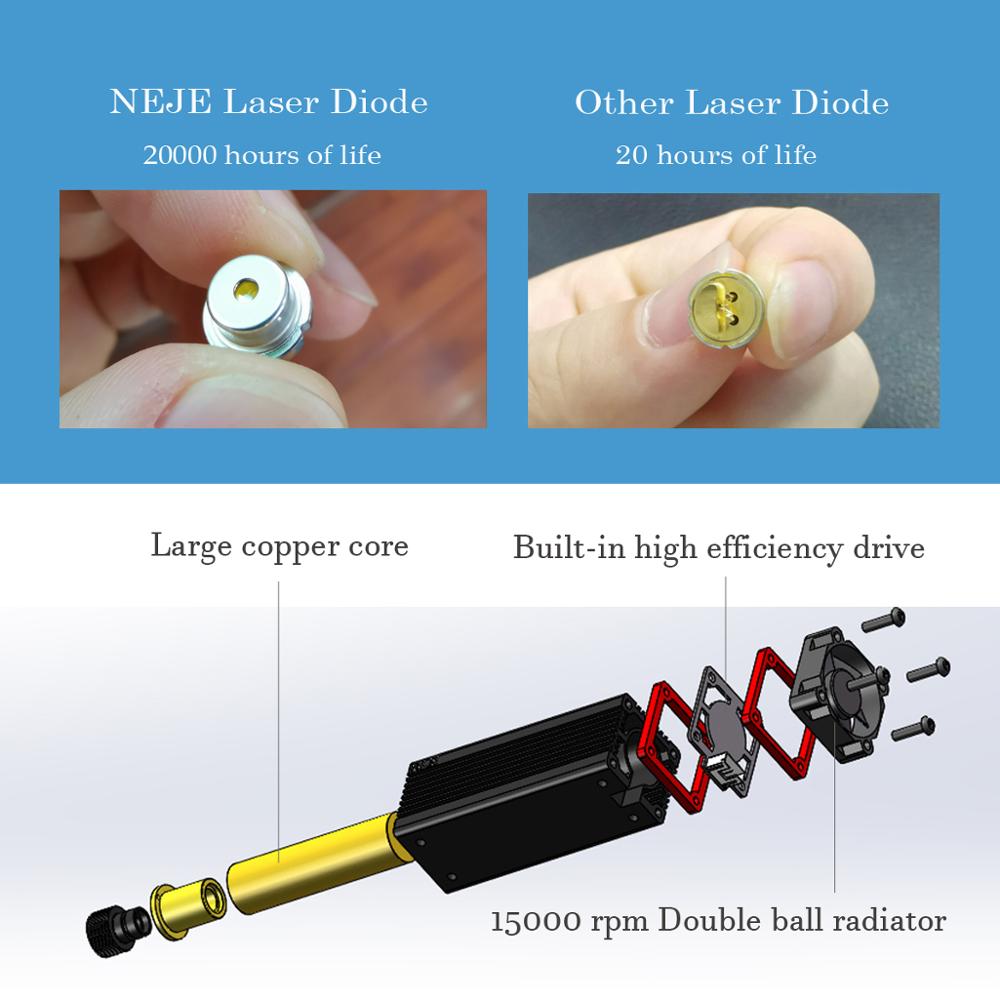

- Cooling Mode： 40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan
- Dimension： 80 * 30 * 30mm
- Adapter Plug： US Plug
- Adapter Input Voltage： AC 100-240V UL certification high quality
- Adapter Output Voltage： DC 12V 2A
- Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
- Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
- Technical Parameters：
- Module Input： 18-20W
- Laser Output Power： 5.5W (5500mW)
- Wavelength： 445-450nm
- Beam Shape： Dot (Focusable)
- Working Voltage： DC 12V
- TTL&PWM Modulation： YES, Compatible with Both TTL & PWM Modulation
- Input Voltage： DC12V
- PWM/TTL Input： DC3.3V-12V

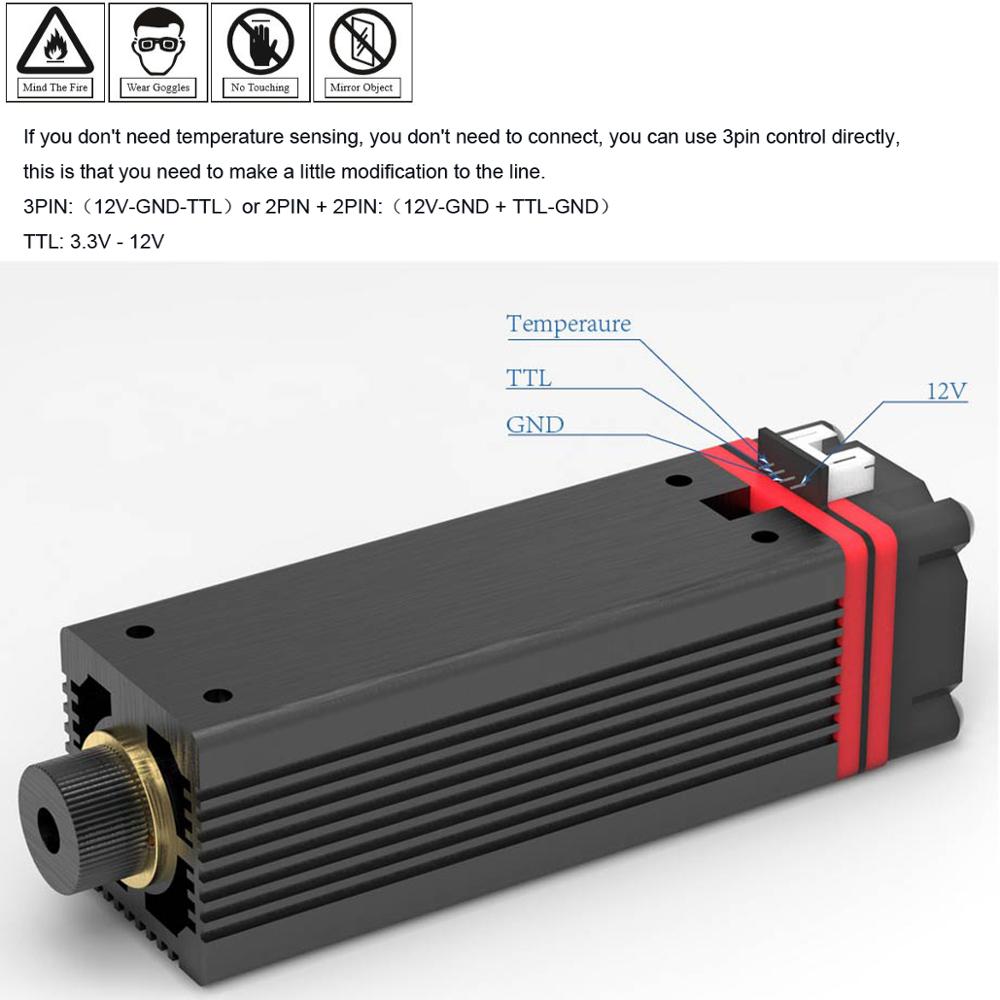

- Input Interface： PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
- NOTE： Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
- Drive Mode： External ACC
- Safe temperature range： <70 ℃
- Module weight： 202g ( The lighter the weight, the smaller the move inertia, the better the performance )
-
Life Time： 20,000 hours

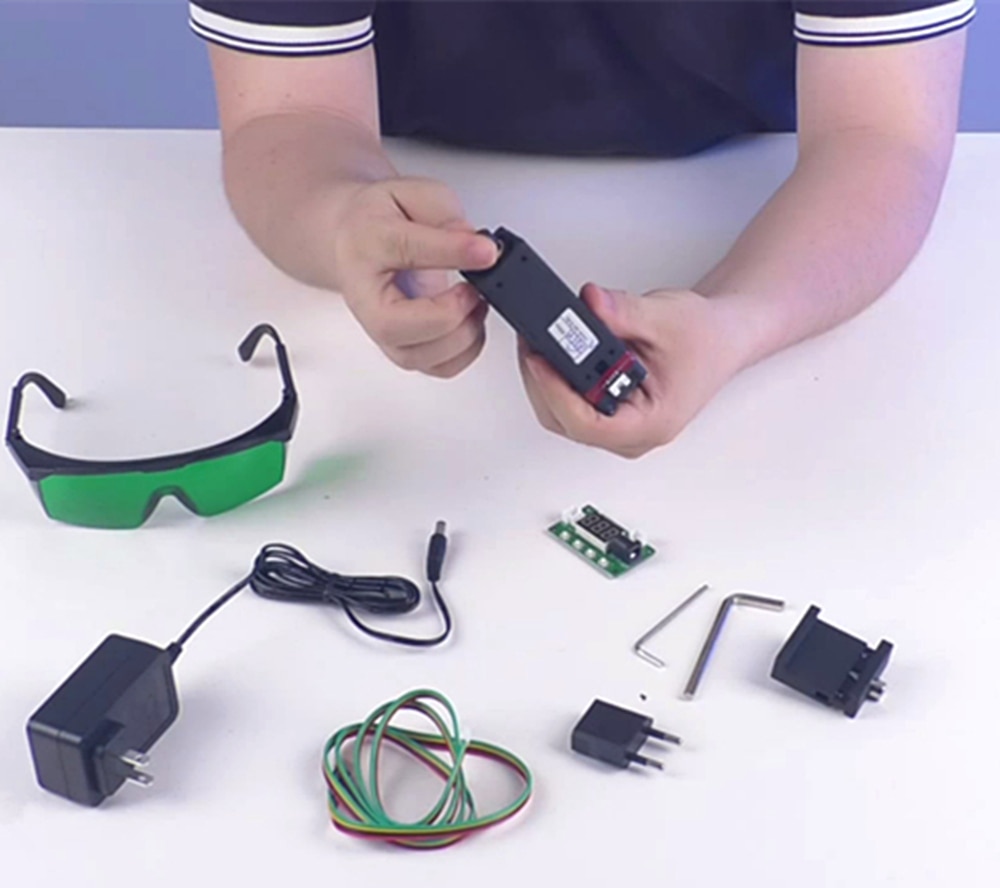

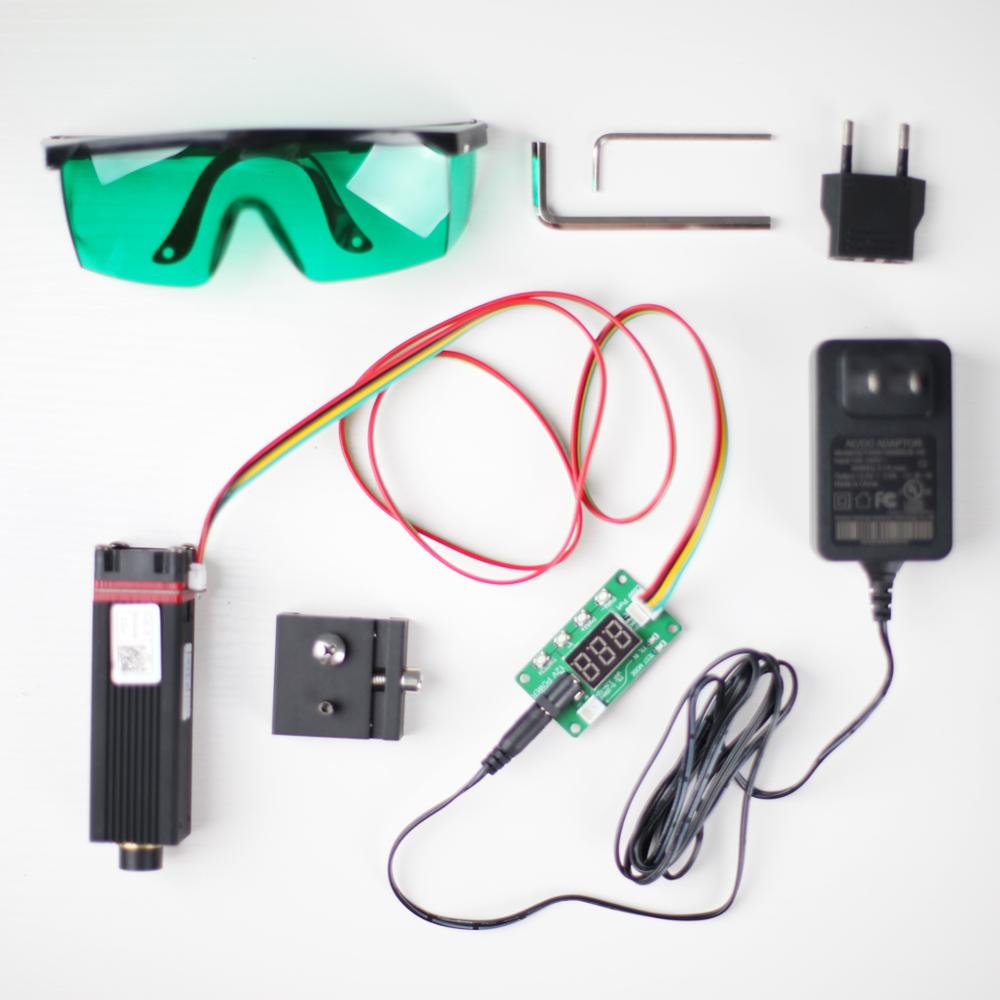

Package List
1 * 20W/7W/3.5W Laser Engraving Module
1 * Laser Module Sliding fixture
1 * 4 Pin Cable(1000mm)

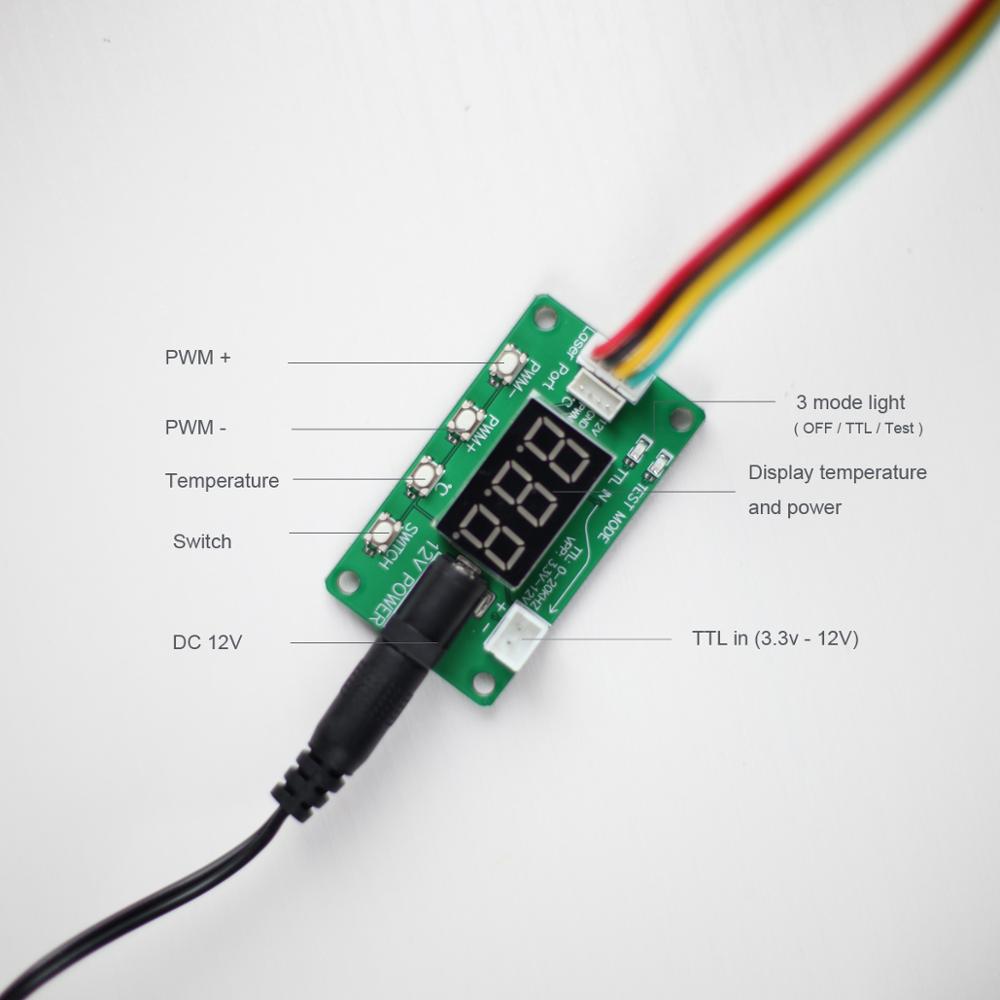

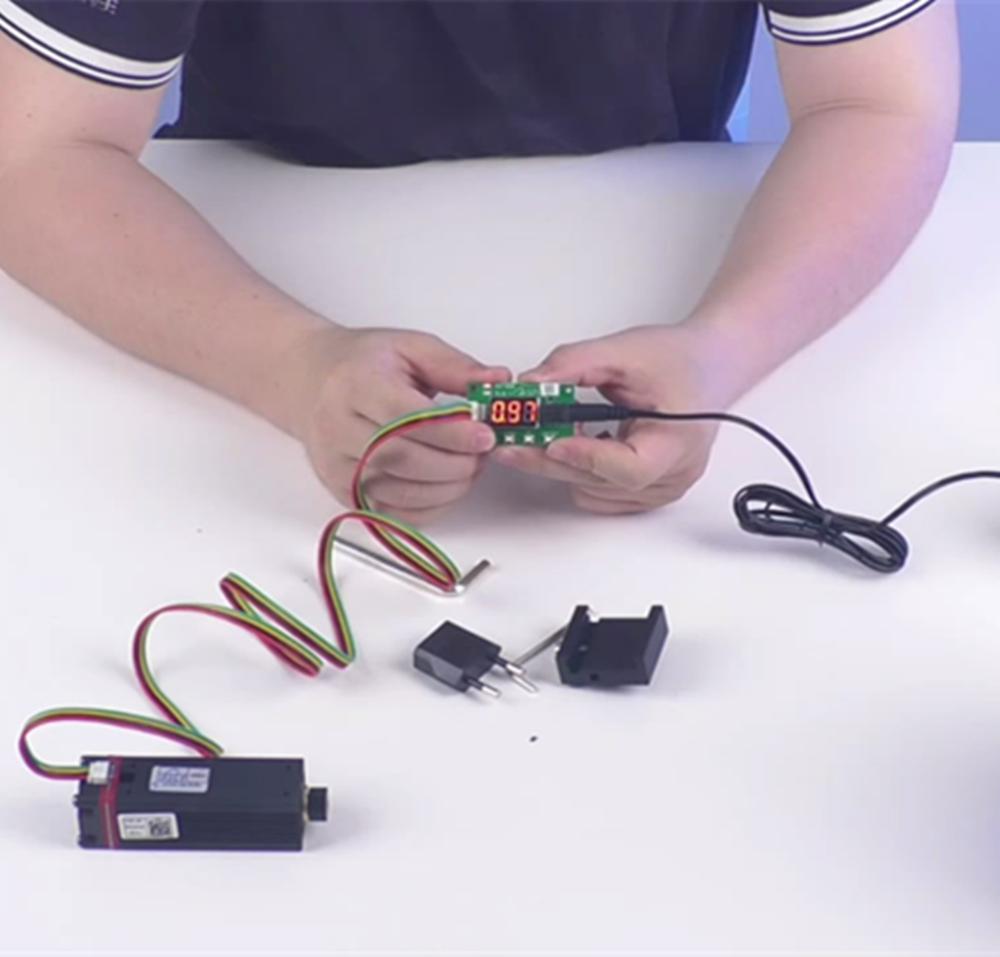

1 * NEJE PWM/Temperature tester board
1 * 110V-240V 12V2A UL certified power supply
1 * Euro adapter
1 * 2.5mm L-shaped wrench
1 * 5mm L-shaped wrench
1 * goggle
