Description
- Brand Name: TRENSBATTER
- Certification: NONE
- Origin: Mainland China
- Model Number: TB1000-D26
- Display: 4.3 inch touch-sensitive TFT Screen
- Data Storage: SD Card: 8GB (about 100,000 curves)
- Lauguage: English,French,Korean,Spanish,Italian
- Pulse Width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns,500ns,1us,2us,5us,20us
- Distance Range: 100m,500m, 2km, 5km, 10km, 20km, 40km,60km,90km
- Sampling Resolution: Minimum 0.2m
- Sampling Point: Maximum 64,000 points

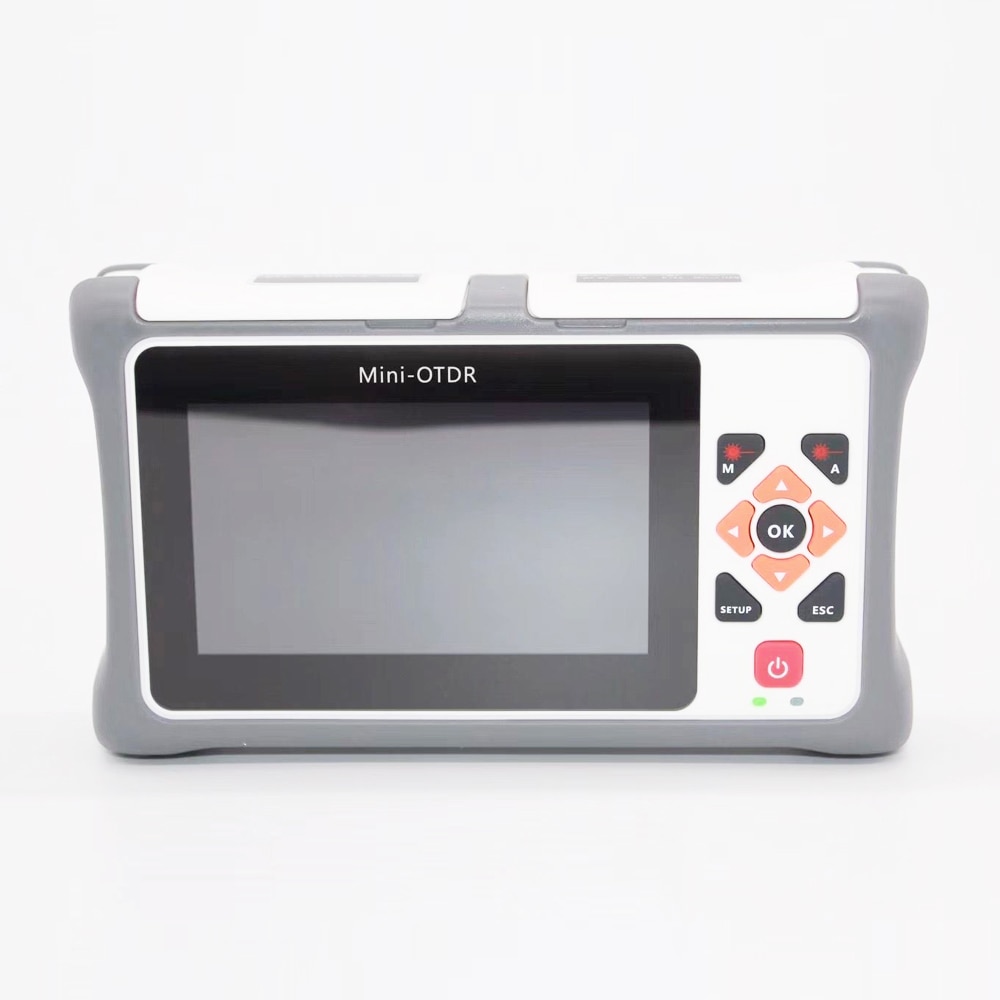

Multi-language SM 26/24dB mini OTDR Reflectometer with OPM OLS VFL Touch Screen 1310nm 1550nm or 1625nm Fiber Optic OTDR
Features:
1、Nine-in-one function
2、The 4.3-inch full-view capacitive touch screen supports multi-touch
3、Cover plate type tempered glass panel, don’t worry about screen scratch
4、Support horizontal version, vertical version, perfect fusion of the two habits of user operations
5、Support charging treasure charging, do not worry about the battery is not enough
6、In line with the international standards of test data with perfect simulation software, so that your report more simple

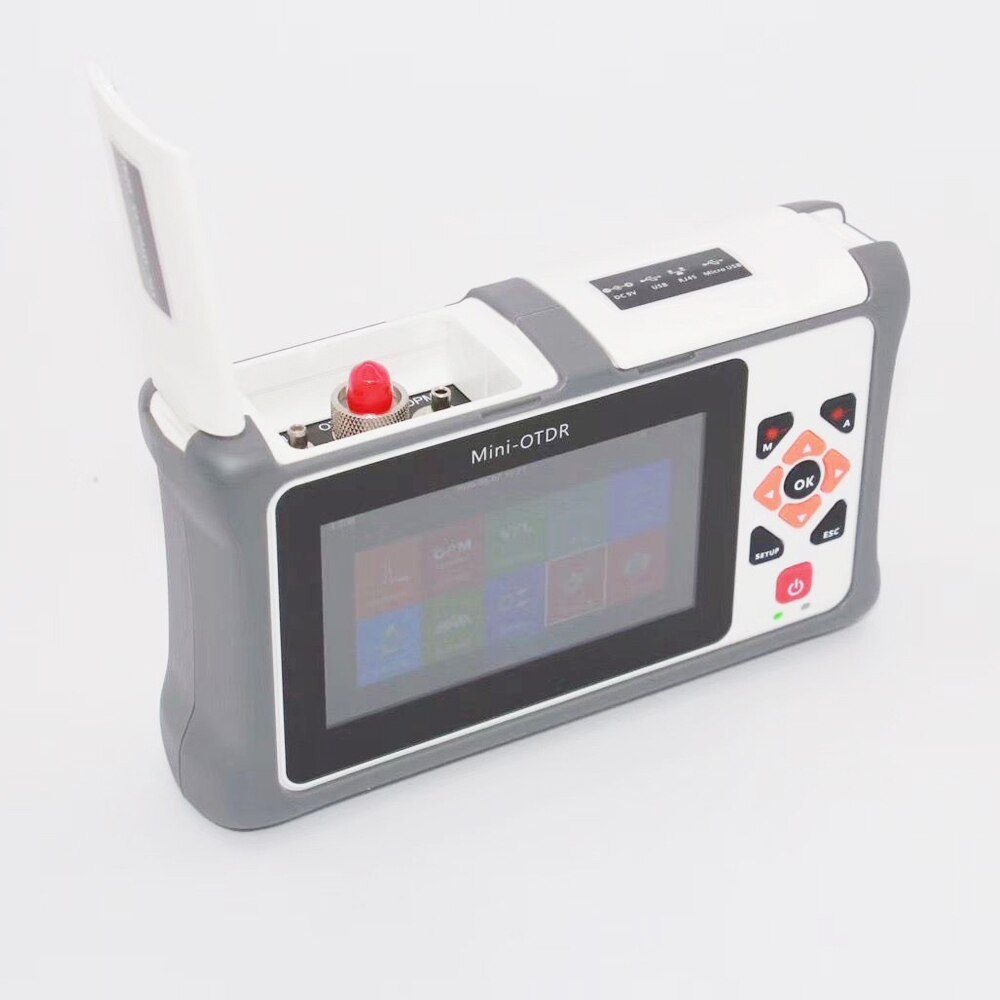

7、Sink type light port design, so that the instrument light port to get better protection
8、Support U disk, SD card and Micro USB export data protection
9、Any interface supports screen capture
10、Support :English,French,Korean,Spanish,Italian
Physical indicators：
1、4.3-inch capacitive touch screen with full viewing , TFT 800×480 resolution
2、CPU frequency 1GHz, equipped with 1g DDR and 8g memory card
3、Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
4、Size: 175x105x45mm, weight: 560g (including battery)
5、Working temperature: -10~+55°C, storage temperature: -20~+80°C

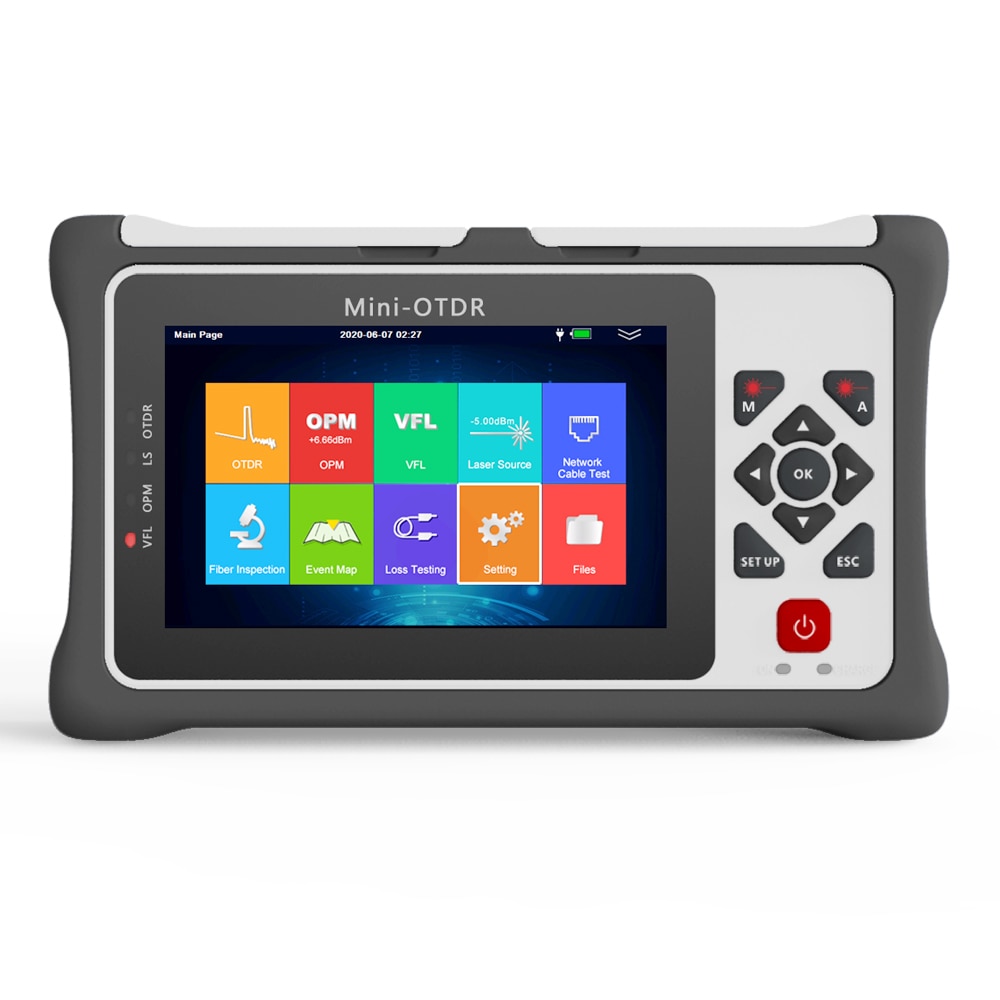

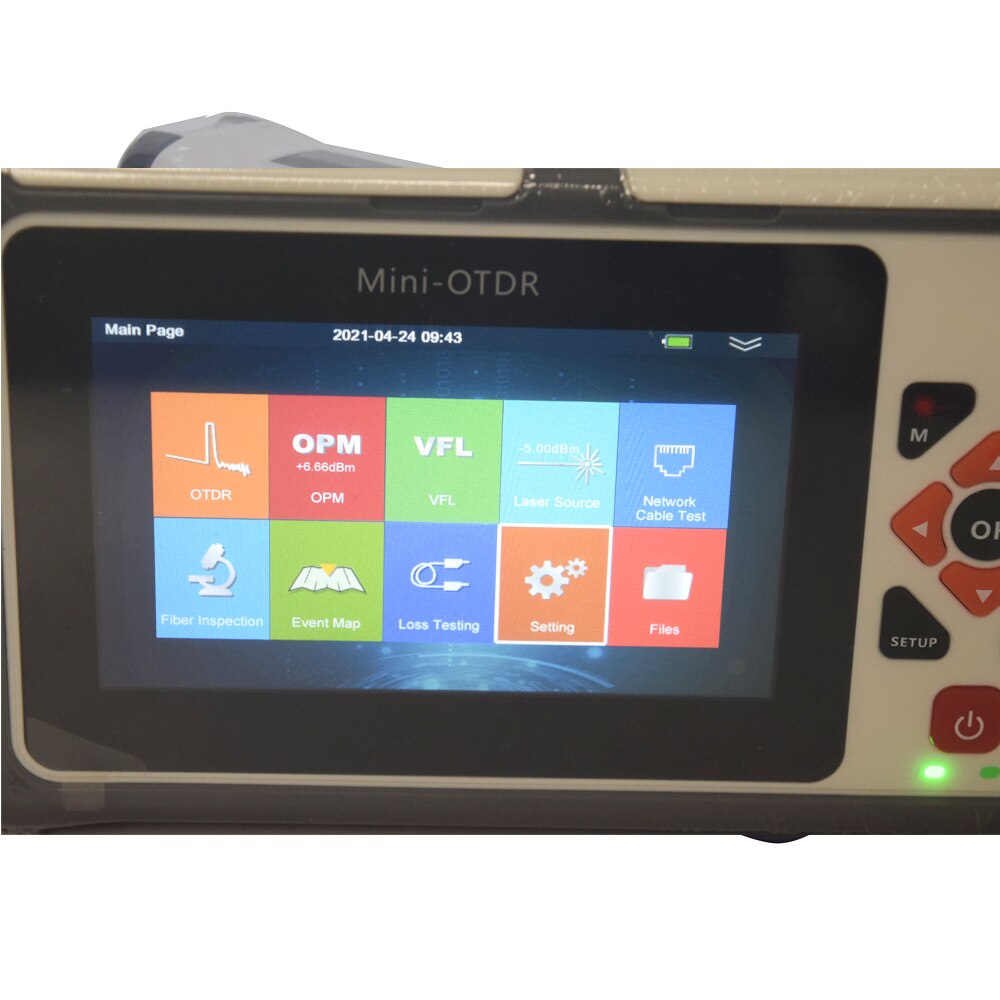

1 OTDR
2 EVENT MAP
3 Optical Light Source
4 Optical Power Meter
5 Visual Fault Locator (VFL)
6 Insertion Loss Testing
7 Fiber Endface Inspection (Probe sold separately , need additional price)
8) Ethernet Cable Testing
9) LED Light
Models :
Model: TB1000-D26 Wavelength: 1310/1550nm
Dynamic Range: 26/24dB Testing Range: 3m to 90km
Model: TB1000-S22 Wavelength: 1550nm
Dynamic Range: 22dB Testing Range: 3m to 80km
Model: TB1000-S26F Wavelength: 1625nm (with filter ,test active fiber)
Dynamic Range: 26dB Testing Range: 3m to 80km
Specification:
Specification:
| Model# | Testing Wavelength | Dynamic Range | Measurement Range |
| TB1000-D26 | 1310/1550nm | 26/24dB | 90km |
| TB1000-D24 | 1310/1550nm | 24/22dB | 80km |
| TB1000-D22 | 1310/1550nm | 22/20dB | 70km |
| TB1000-S20 | 1550nm | 20dB | 70km |
| TB1000-S22 | 1550nm | 22dB | 80km |
| TB1000-S26F | 1625nm | 26dB | 80km |
