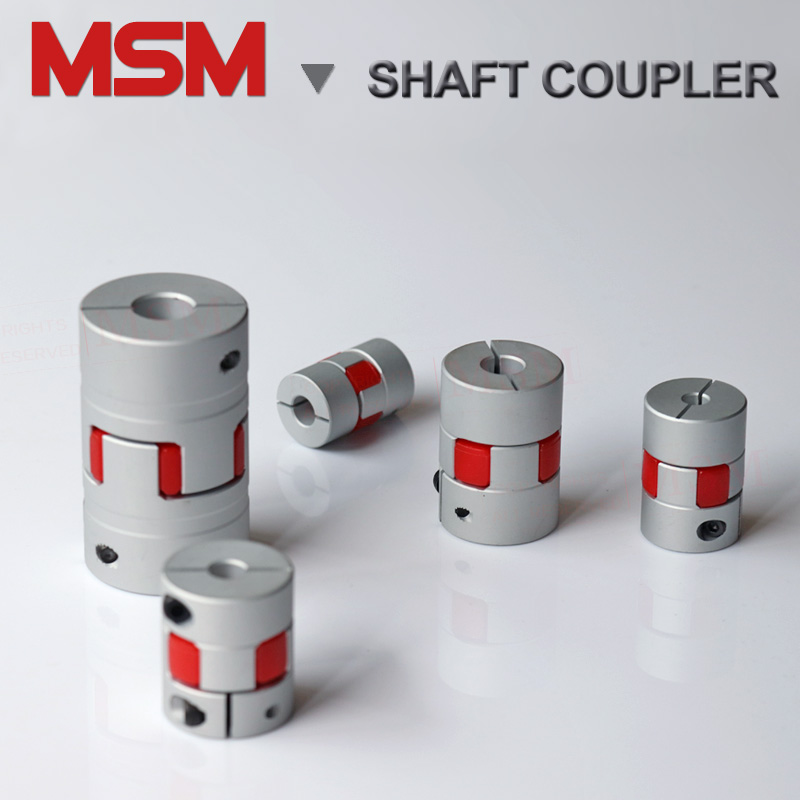

MSM Shaft Couplers BF-D20L25 D20L30 D25L30 D25L35 D30L35 D30L42 JAW Couplings Motor Connectors Flexible Coupler Spider Coupling

$4.55$13.00

SKU: 4000169390207 Category:

Description

  • Structure: Jaw / Spider
  • Material: Aluminium
  • Flexible or Rigid: Flexible

product-info

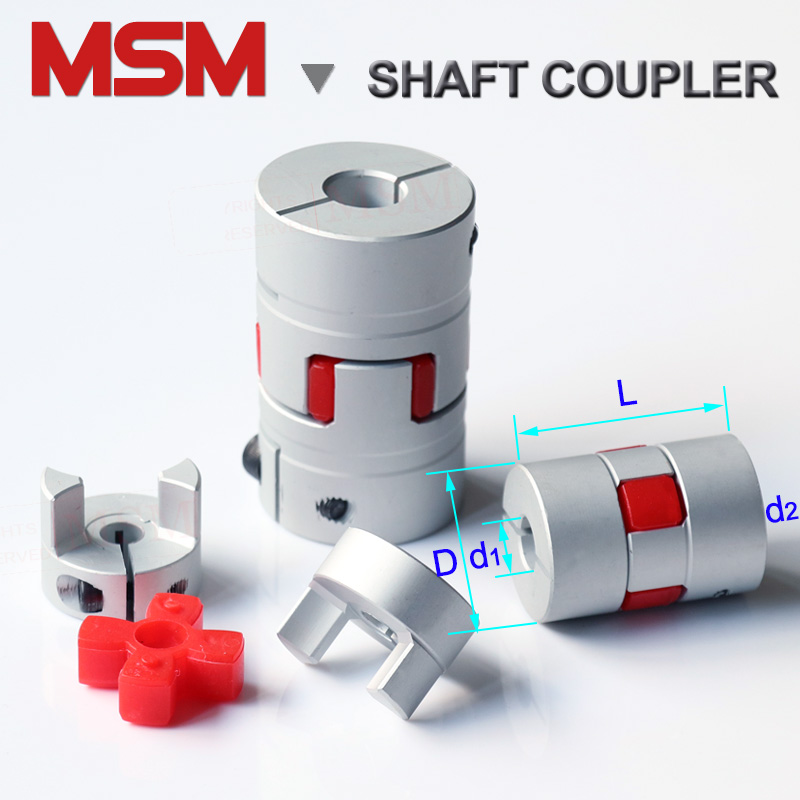

Item Name: JAW Spider Coupling / BF Series

Model No. : Please Select   (Please write the d1,d2 when you place order)

Material: Aluminium Body + Polyurethane Spider

Surface Treatment: Anodic Oxidation

Main Applications: Servo Motor, Step Motor, Ballscrew

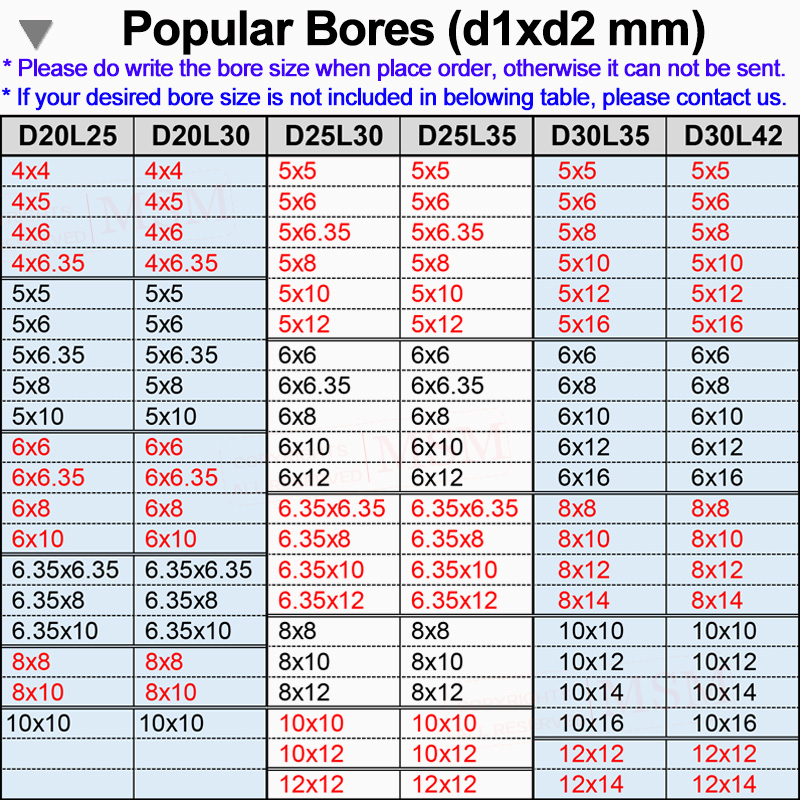

Hole Range of d1 and d2:

hole range

* Please do write the bore1, bore2 size when place order, otherwise it can not be sent.

* If your desired bore size is not inlcuded in the popular bore table list, please contact us.

!!! Attention: Coupling Overall Length ( L ) may have a tolerance of 1-2mm due to the degree of tightness, please don’t buy it if you are strict with it.

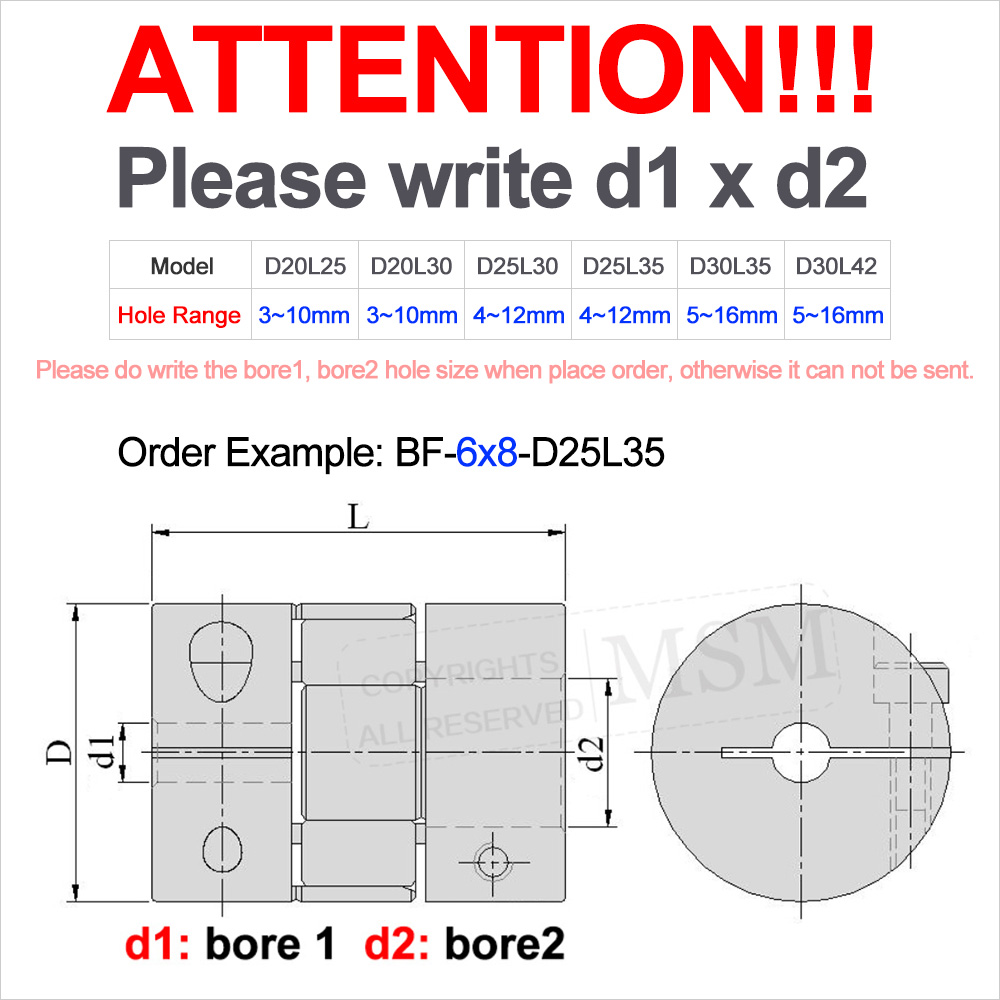

Order Example: BF-6×8-D25L35
