Description
- Brand Name: Eiechip
- Type: Gas Sensor
- Output: Digital Sensor
- Model Number: MQ9
- Material: Polymer
| The following is Top Selling products buy navigation Recommend – Best Match |
| Follow the store to get fan coupons and exclusive fan discounts! You can click here |
|
|
|
Electrolytic Capacitor |
||
|
100pcs 1N4148-1N5408Rectifier Diode set |
|
|
|
|
50pcs Transistor 10Values LM317T-L7824

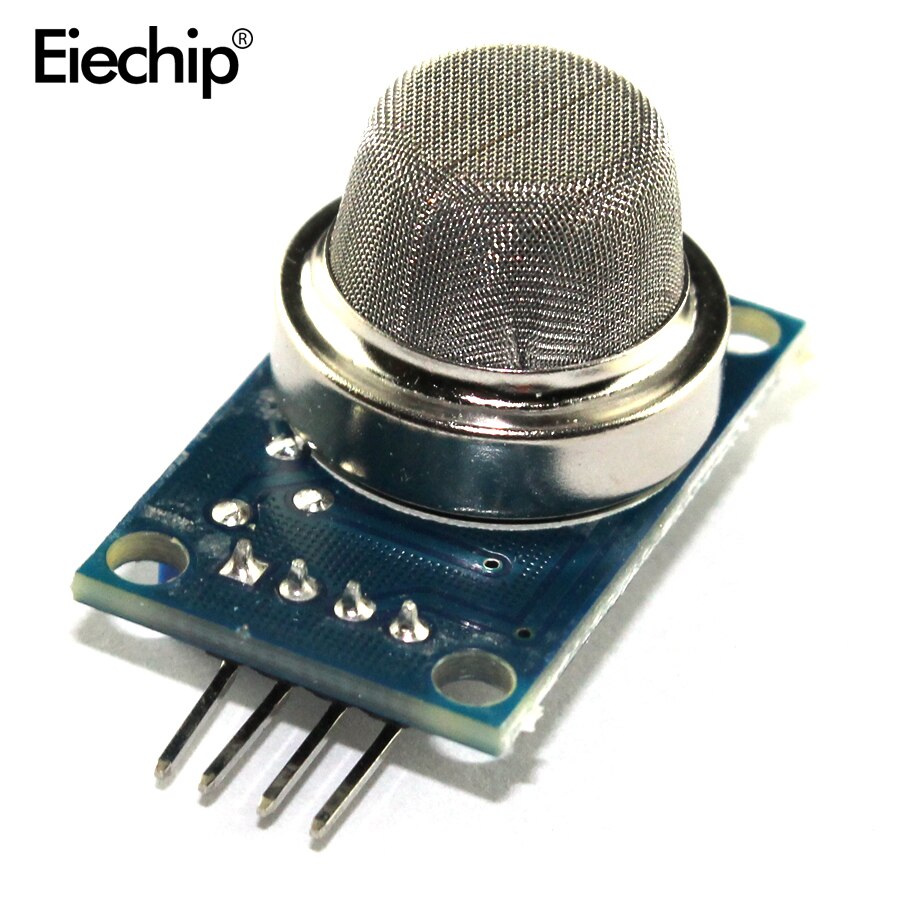

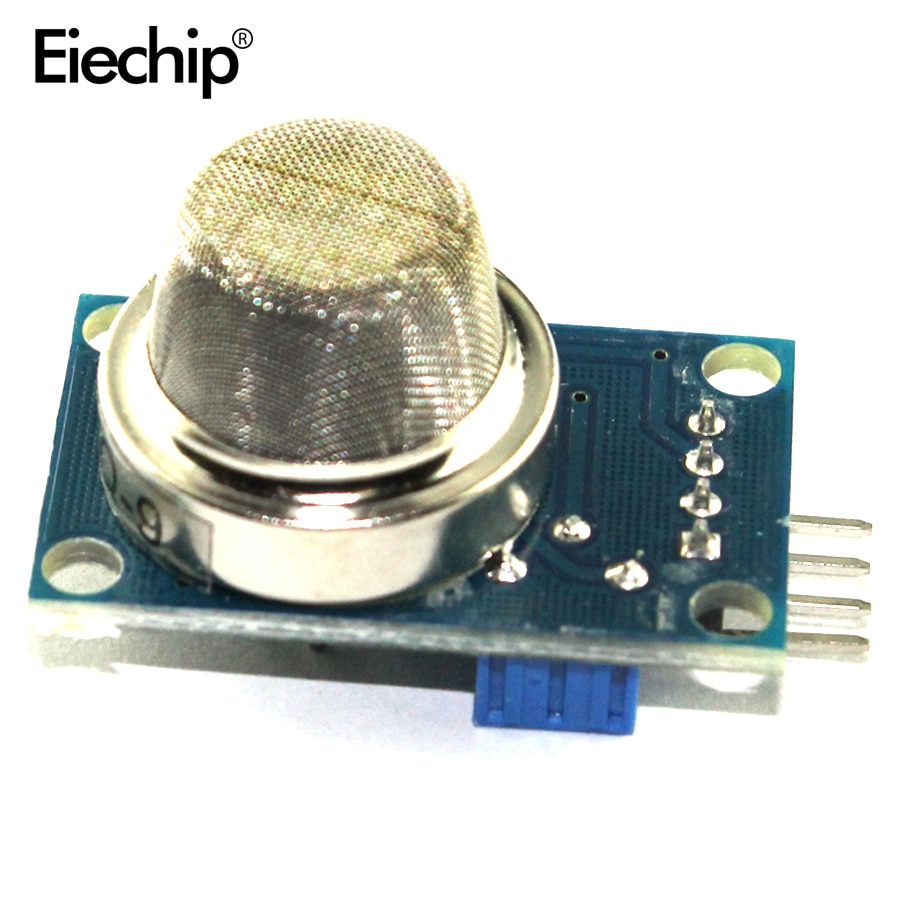

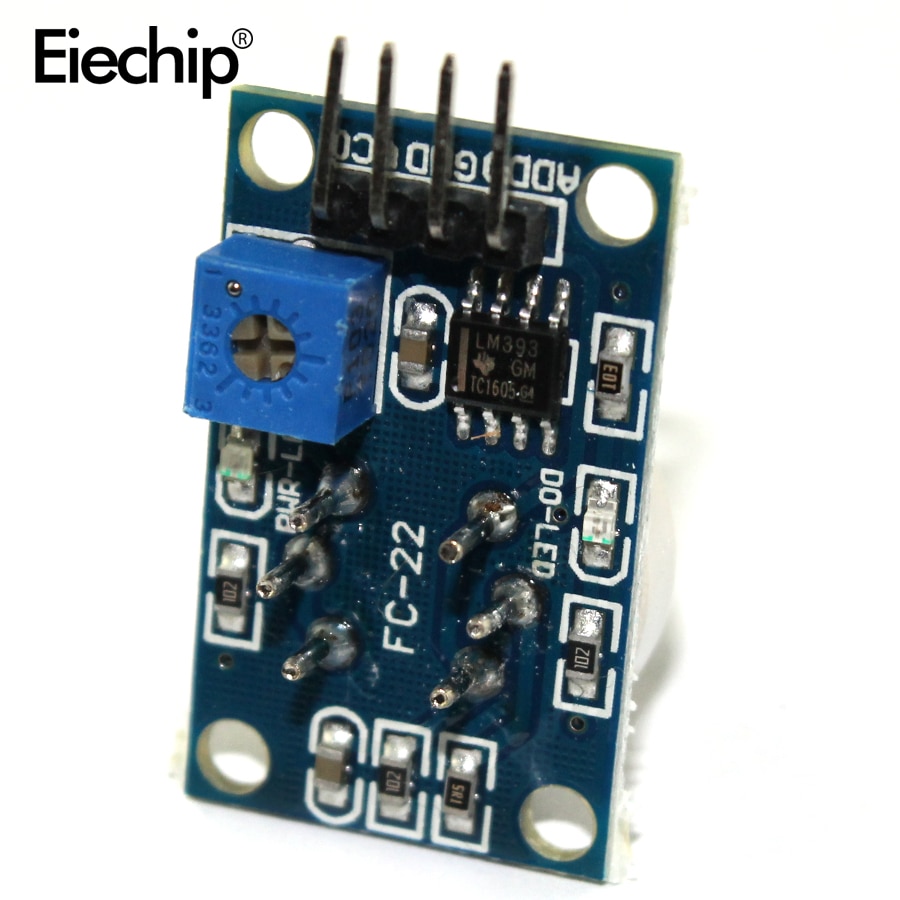

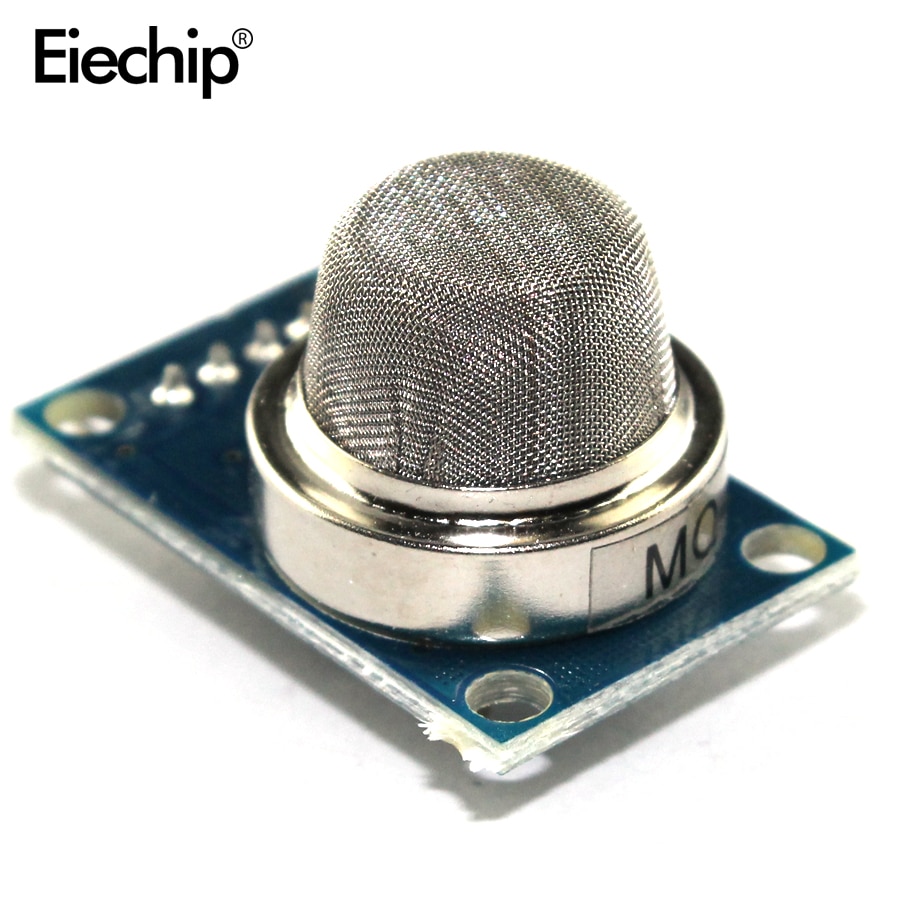

1 , using high-quality dual-panel design, with power indicator and TTL signal output instructions;
2 , the switching signal having a DO (TTL) output and analog output AO ;
3, TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
4 , the higher the voltage of the analog output voltage with concentration higher .
5 , for the carbon monoxide detector has good sensitivity.
6 , there are four screw holes for easy positioning ;
7 Product dimensions : 32 (L) * 20 (W) * 22 (H)
8 , has a long life and reliable stability
9 , rapid response and recovery characteristics
Electrical properties:
Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .
