Description

Low frequencies to 40 GHz Phase Modulators for Side Bands Generation

FEATURES
• High Bandwidth
• C & L bands
• Low insertion loss
• Low Vπ

APPLICATIONS
• Side bands generation
• Interferometric sensing
• Frequency shifting / broadening
• Quantum key distribution
• High data rate telecommunications

OPTIONS
• 1310 nm versions
• 800 nm, 1000 nm, 2.0 µm versions
• Low residual intensity modulation

RELATED EQUIPMENTS
• Matched RF amplifiers

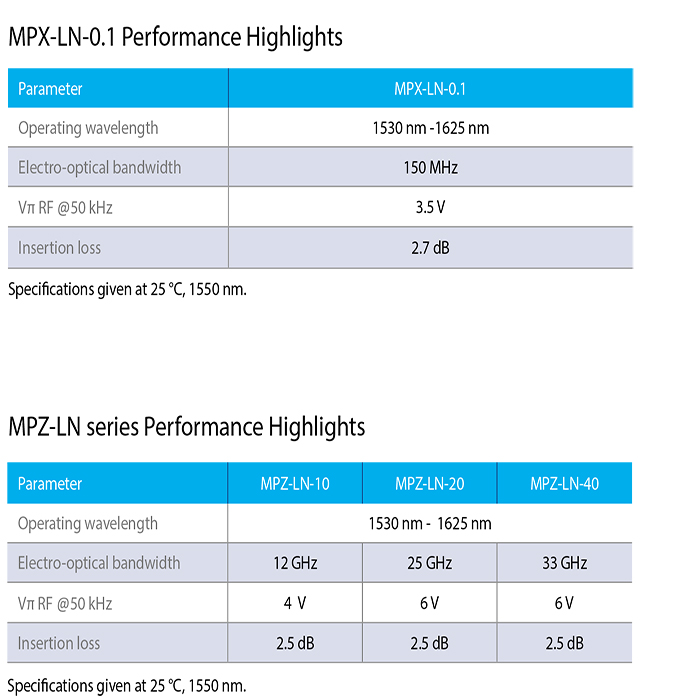

Operating wavelength:1530 nm -1625 nm
Electro-optical bandwidth:150 MHz
Vπ RF @50 kHz:3.5 V
Insertion loss:2.7 dB

The Photline MPX-LN and MPZ-LN series make up the most comprehensive
range of electro-optic phase modulators available on the market for the
1550 nm wavelength band.
• The MPZ-LN series are ideally suited for high bandwidth operation at
10 GHz, 20 GHz and up to 40 GHz.

• The MPX-LN-0.1 has a high impedance input optimized for modulation
frequencies below 150 MHz.
Designed using state-of-the-art and proven lithium niobate technology,
MPX-LN and MPZ-LN phase modulators are easy to operate and to integrate.
They offer the highest performance for a wide range of applications from
laboratory experiments to demanding industrial systems.

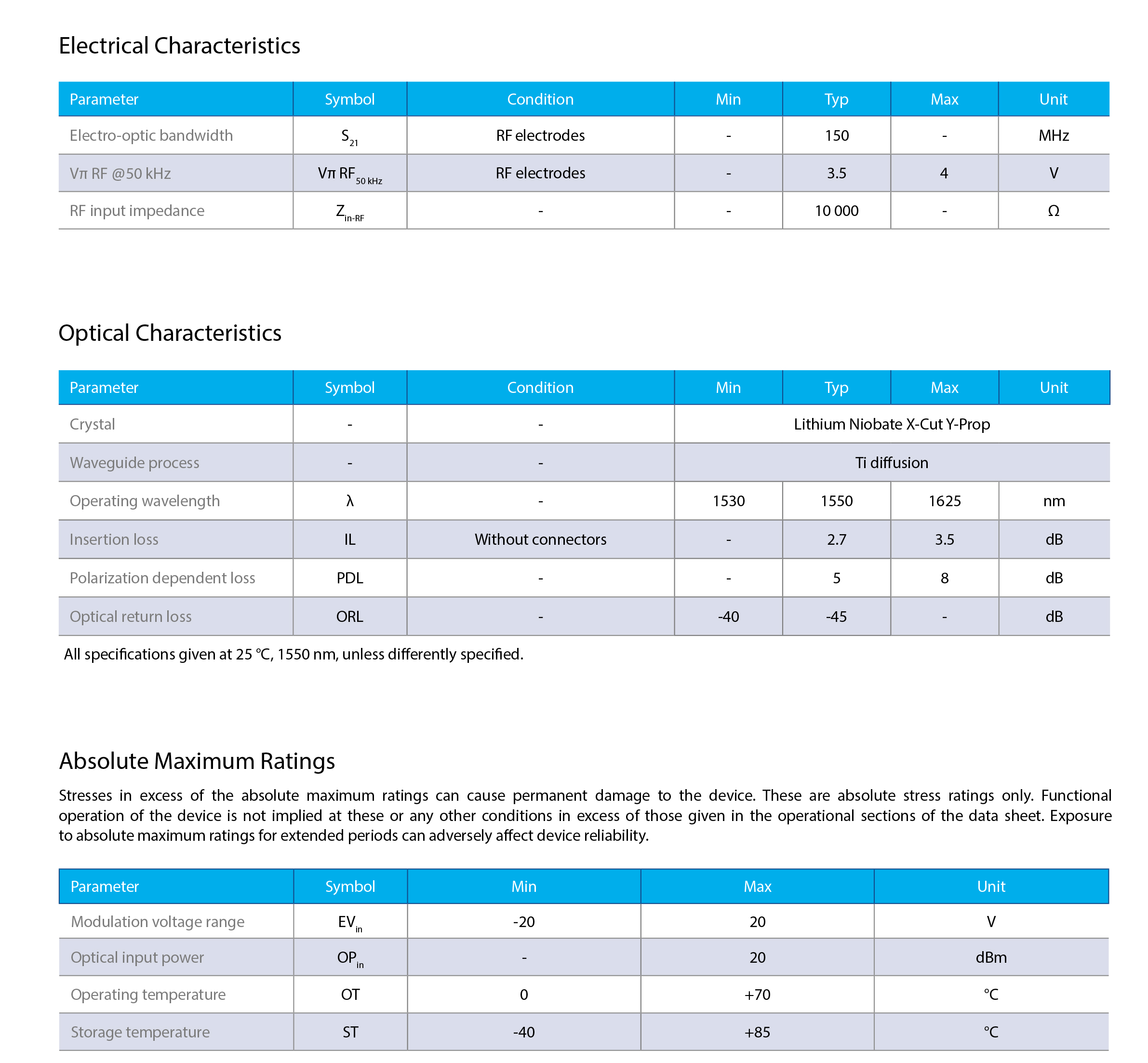

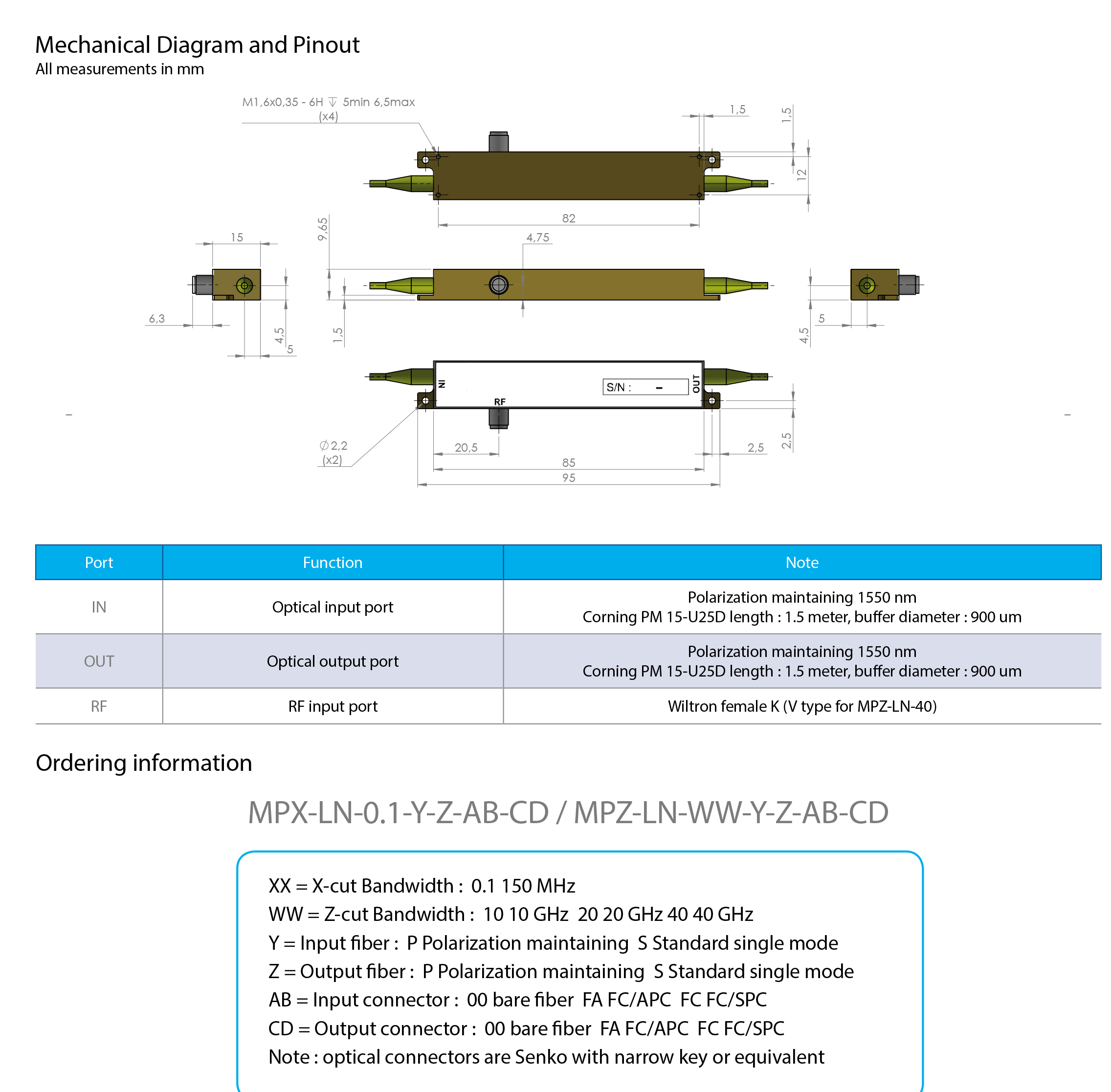

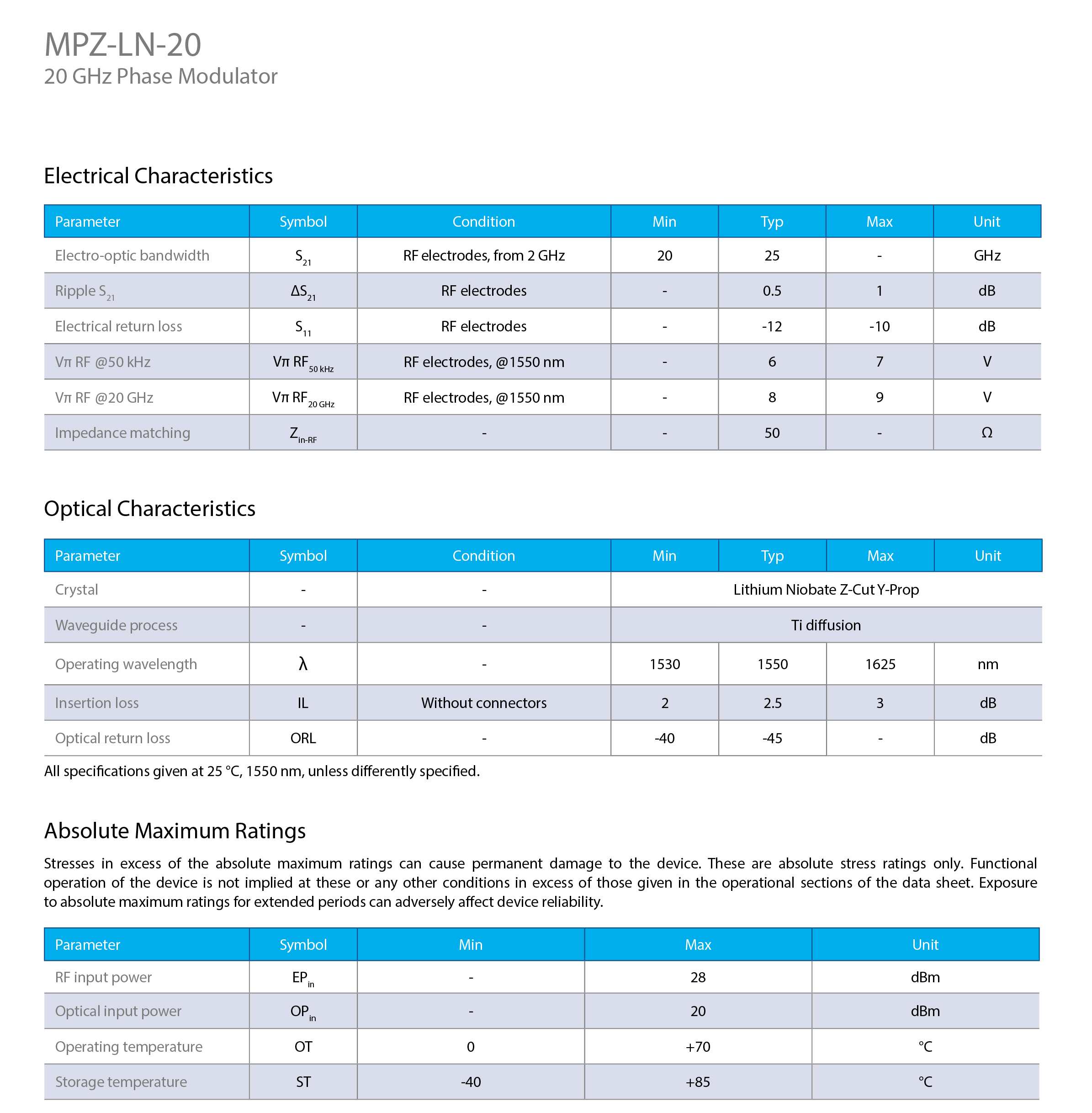

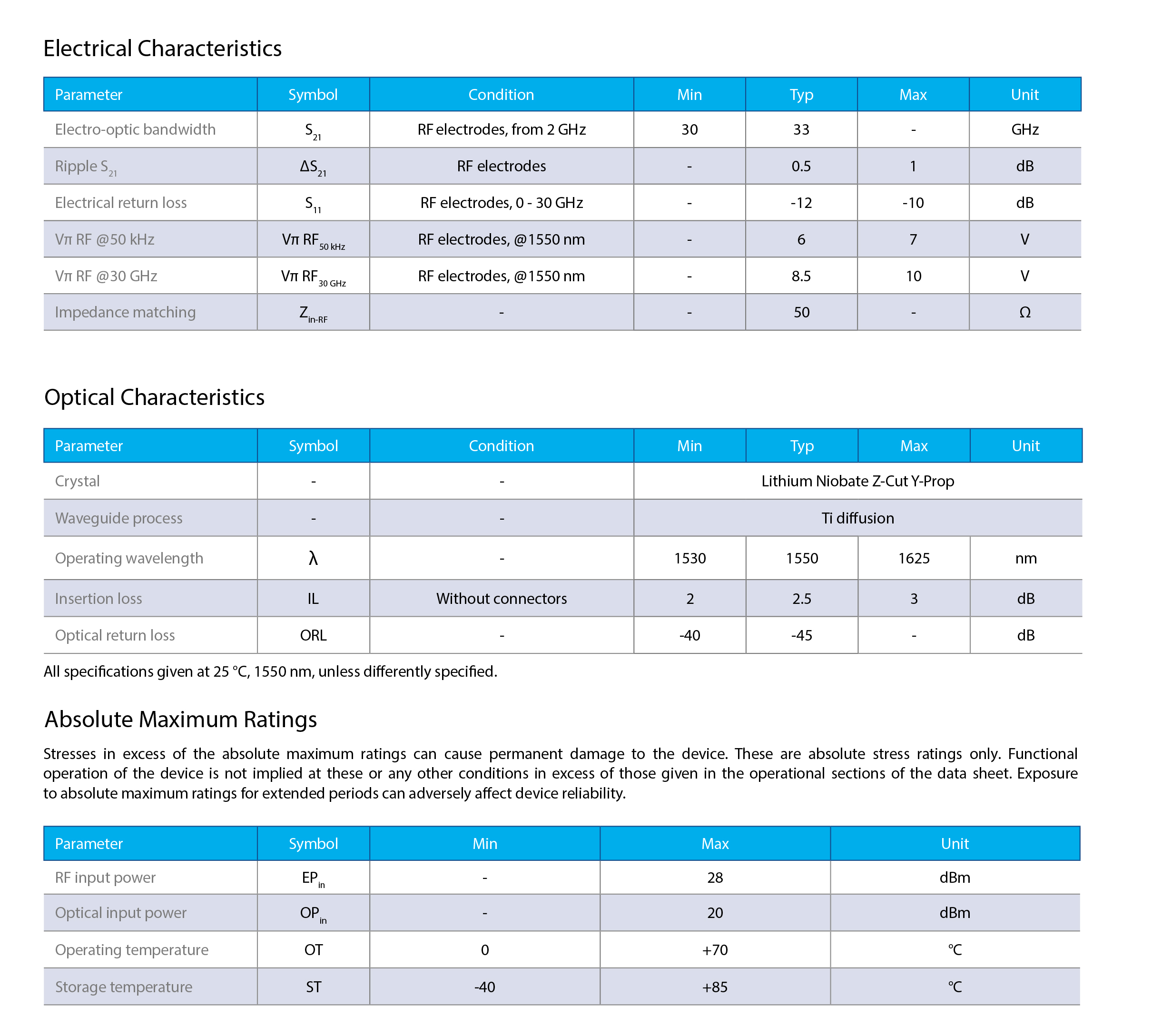

Please kindly check the attached datasheet:

MPX and MPZ Series Low Frequencies to 40 GHz Phase Modulators for Side Bands Generation
