Product Description

Easy Driver stepping motor drive is very easy to use, can with any can 0-5 V (3 V please short circuit SJ2) pulse signal with the use of equipment. EasyDriver through the access 7-30 V voltage to motor power, and can drive almost any stepping motor. The EasyDriver voltage on-board chips can be set to 3.3 V or 5 V, can be directly and 4 line stepping motor and micro controller directly connected and precise control the step motor action.

Note: when the drive is connect with electricity, please do not connect or disconnect the motor. This will lead to the A3967IC permanent damage.

Parameters

A3967 motor drive chip

MS2 MS1 feet used to control motor subdivision (2, 4, 8).

The default is 8 subdivision.

Compatible with any of the 4, 6 and 8 voltage line stepping motor.

Adjustable current control

The power input range 7-30 V, high speed torque is higher when the voltage get higher

Package:

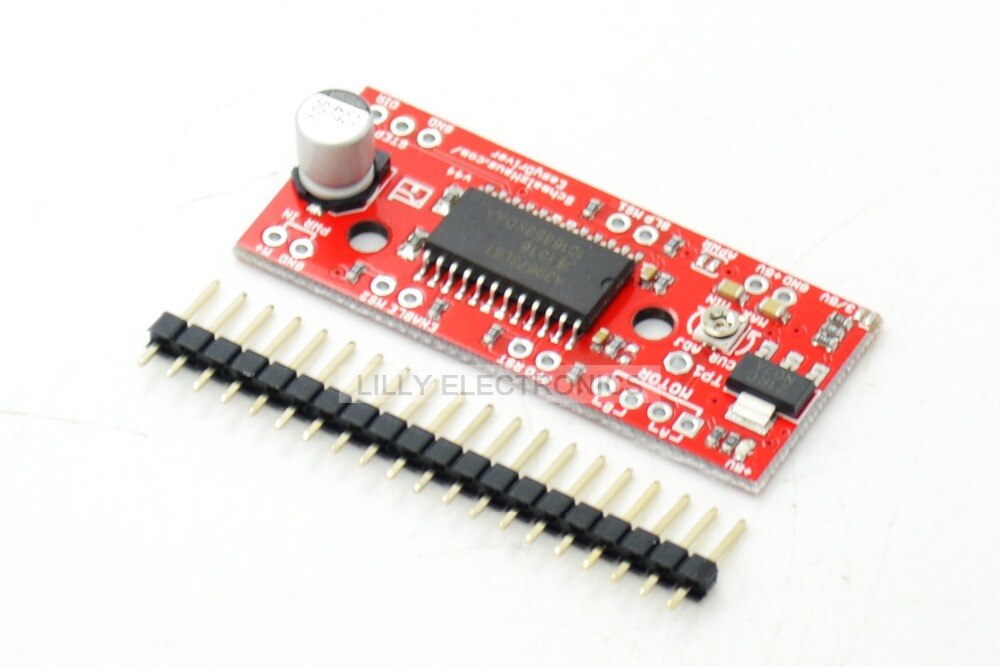

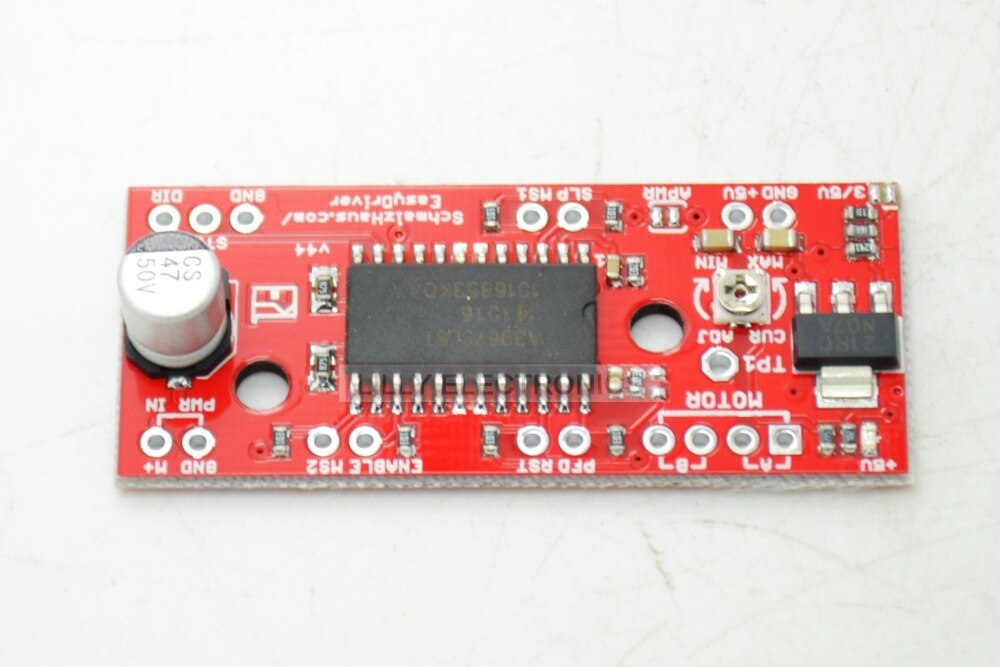

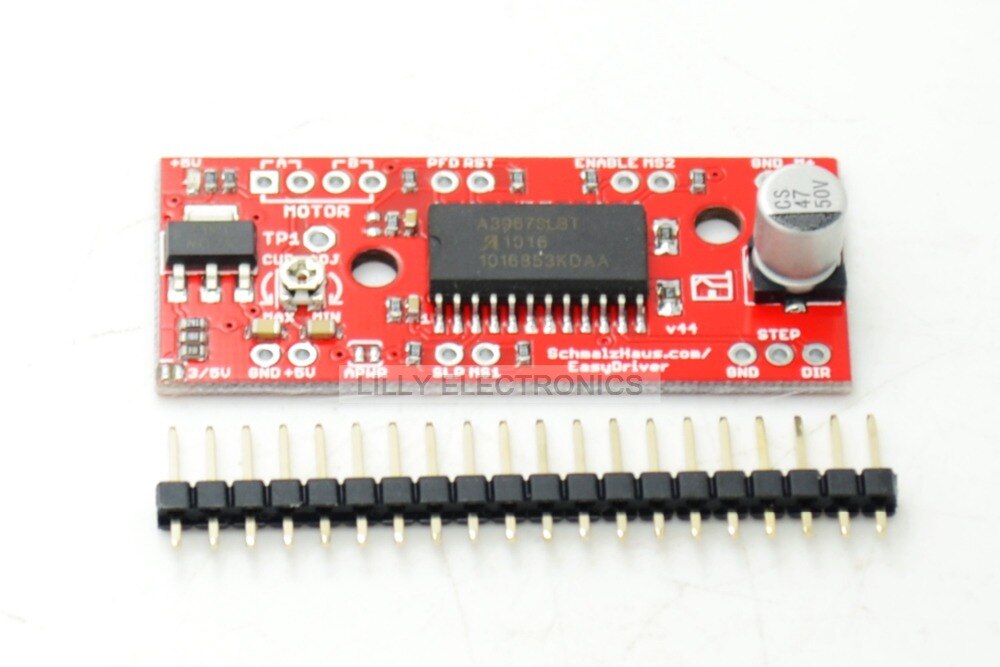

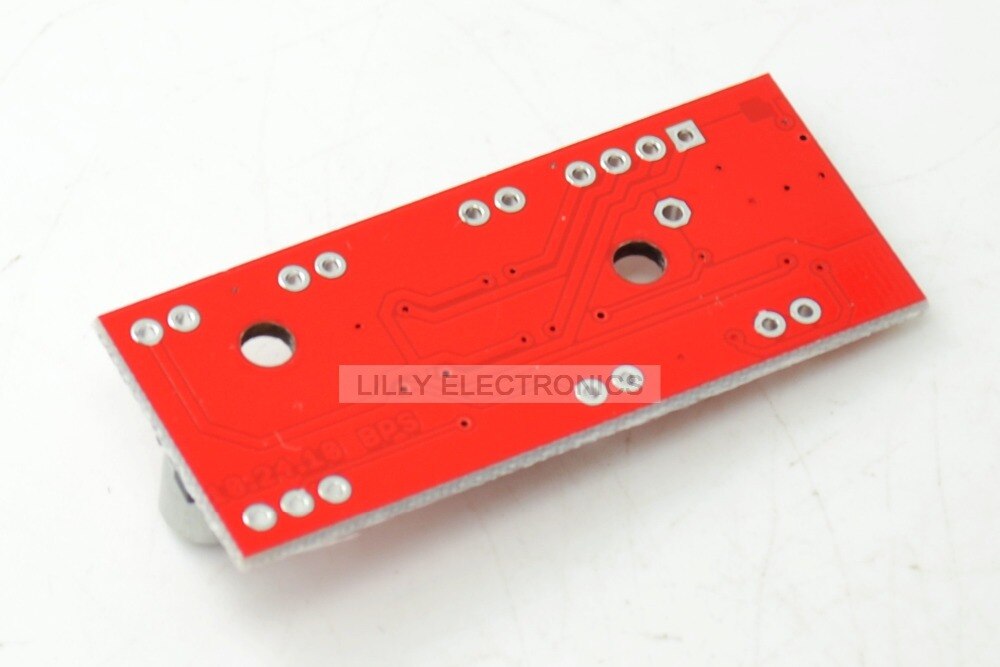

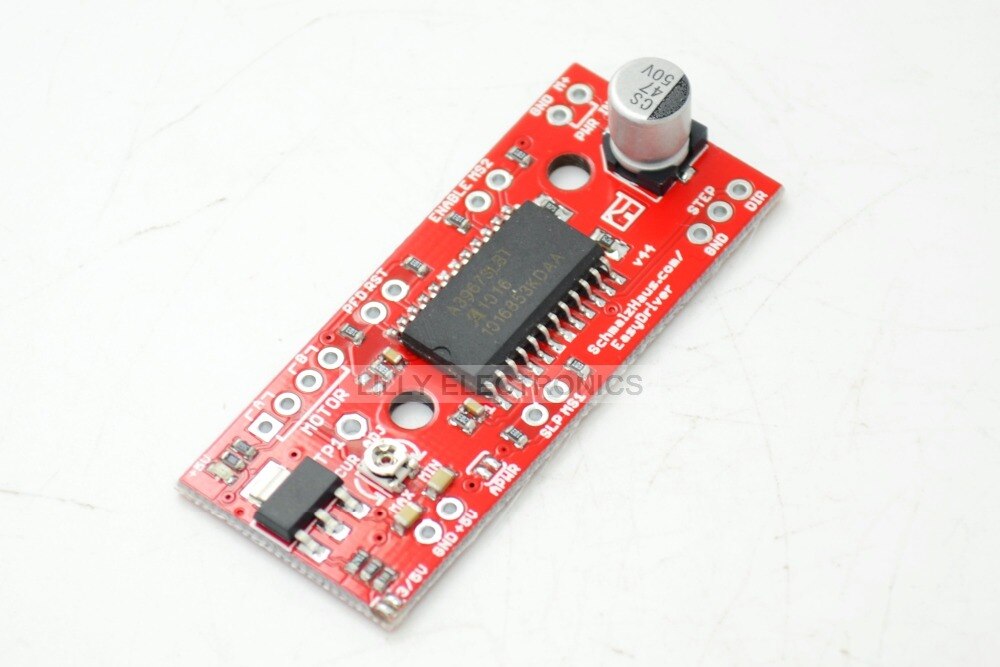

1pc Motor Controls A3967 Stepper Stepping Motor Easy Driver Shield Drives Board
