Description

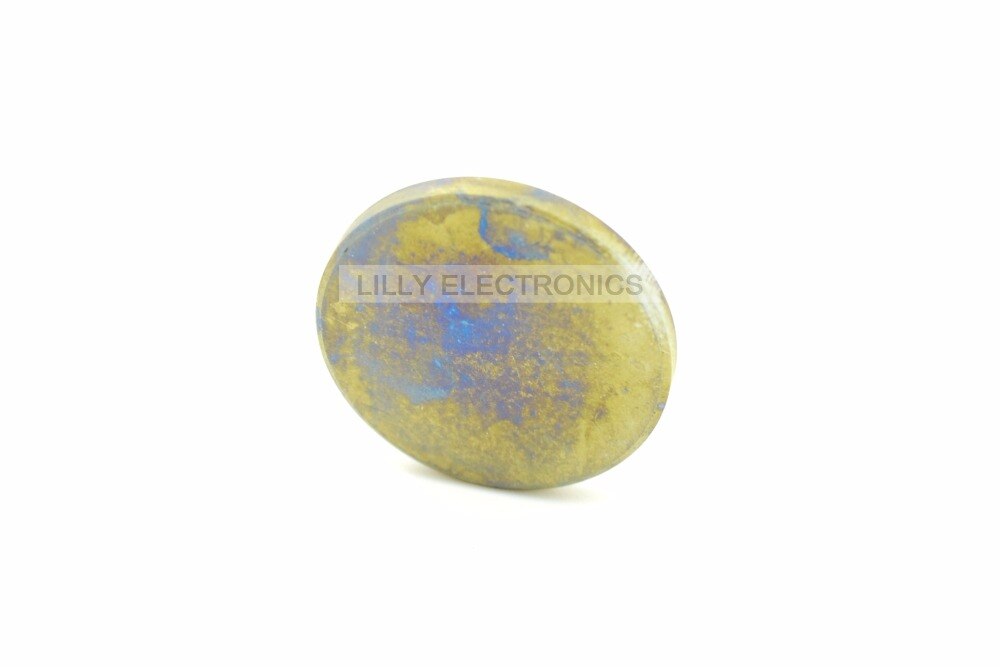

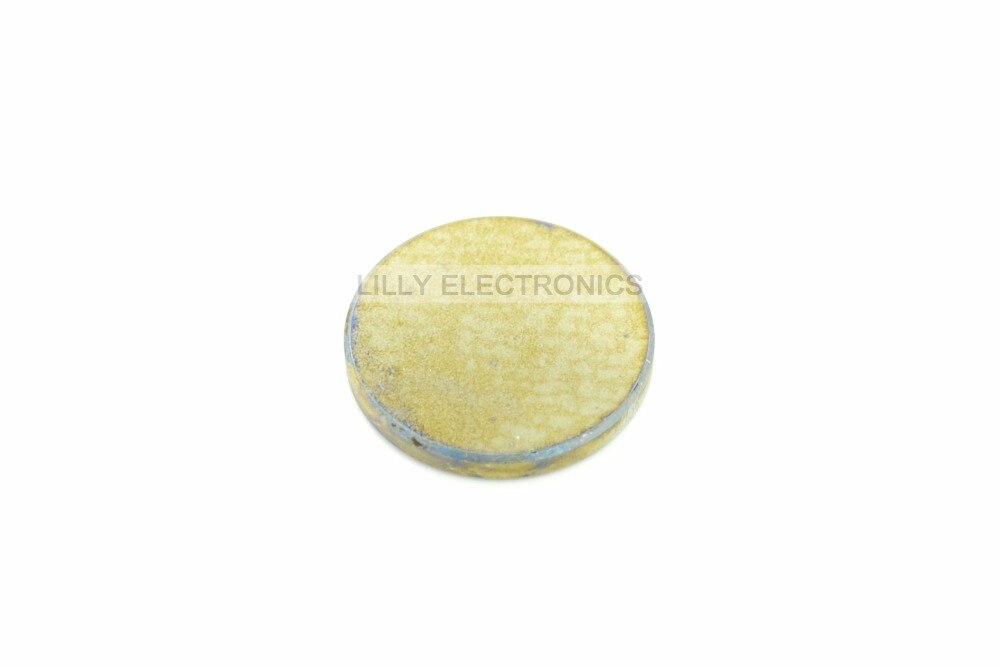

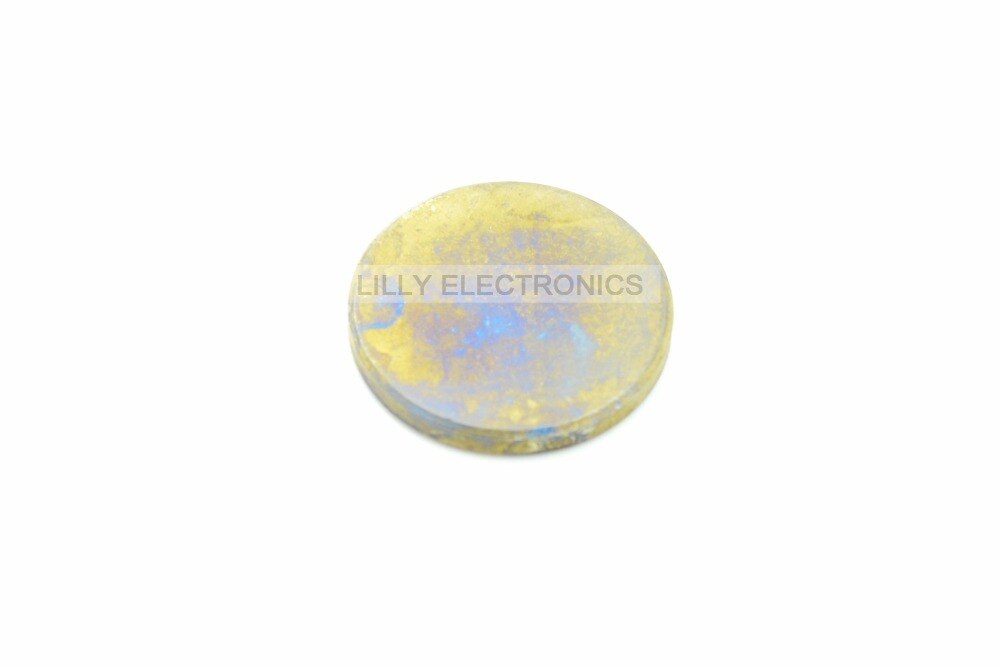

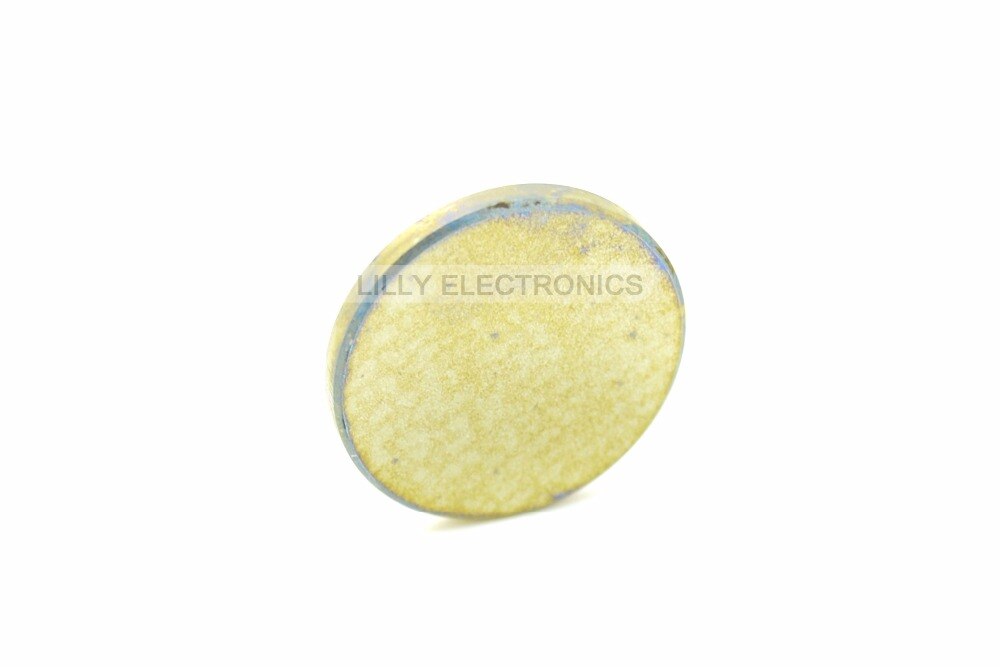

Molybdenum MO Reflection Lens Diameter 25mm for 10600nm CO2 Laser Engraving Cutting
Specification:
Material:molybdenum
Wave length: 10.6um
Diameter tolerance: +0/-0.1mm
Reflectance: >99%
Thickness tolerance: -0/0.1mm

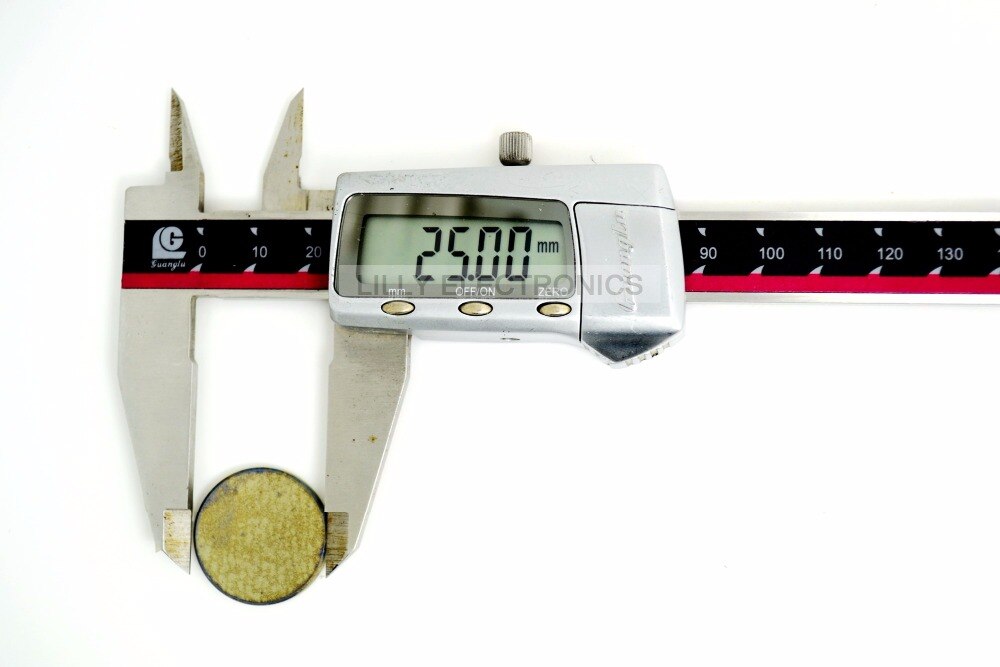

Lens diameter: 25mm
Aperture: >90%
Thickness: 3mm
Flatness: /4 10.6um
incidence angle: 0o
Surface Quality: 60-40
High damage threshold;
High reflectivity;
Resistance to wear
Adapted to work in abominable environment;
Long service life..
Feature:
This optical element is used for planar reflecting the laser beam and is an important component of the laser system.
The biggest advantage of molybdenum mirror is it has high damage threshold.
So it can be used in some high power laser systems such as laser engraving machines and laser cutting machines.
As a kind of high quality molybdenum mirrors, it has high reflectance and low flatness.
Using the high quality surface coating will protect the layer of molybdenum not to damage, and increases the molybdenum layer reflection efficiency.
It has countless applications, such as Astronomy, Industry, Medicine, Optical Communication, etc…
This product can be customized according to customer demand for different diameters of silicon mirror, in addition to providing drilling, cutting edge and other special-shaped silicon lens.
Package:
1 x Dia. 25mm Molybdenum MO Reflection Reflective Lens for 10600nm CO2 Laser Engraving Cutting
