Description
- Brand Name: lxshow
- Condition: New
- Model Number: LXC-100W
- CNC or Not: CNC
- Laser Type:: Fiber laser
- Laser Head Brand:: HIGHYAG
- Certification:: CE, ISO, SGS, FDA
- Laser Source Brand:: Coherent, MAX/RAYCUS/IPG/JPT
- Laser wavelength:: 1064nm
- Laser Power:: 50W/100W/200w/300W
- Function:: Metal Rust Surface Cleaning
- Control System Brand:: Beckhoff
- Scan width:: 10-60mm
- Optional:: Hand/automatic

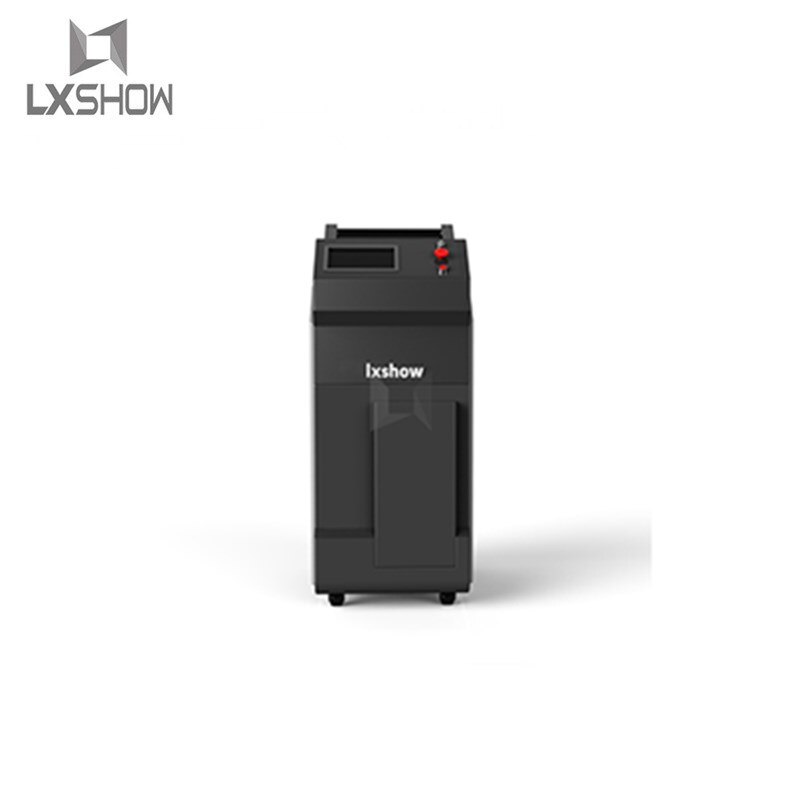

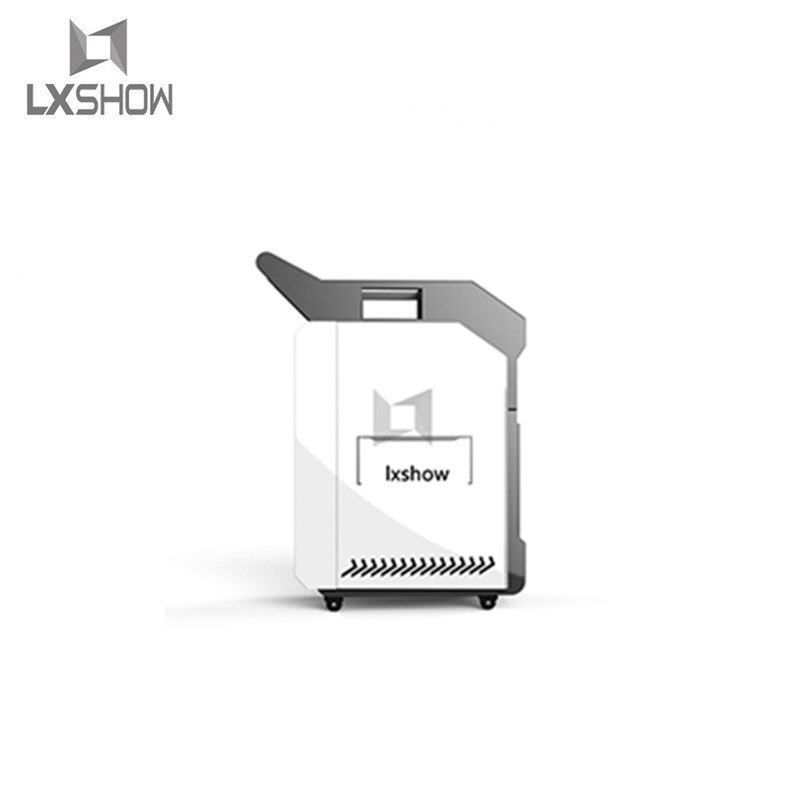

Metal Rust Remove oil clean Laser Cleaning Machine
Contact: Maggie
It is suitable for the cleaning of the rust layer, thick-layer paint, deep oil stain, rough surface and weld cleaning, which will affect the surface of the substrate. The efficiency is very high.
| Application | |||
| Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
| Coatings Removal | Weld Pre-treatment | Gluing Pre-treatment | Removal of Oil and Grease |
| Paint Removal | Surface Cleaning | Stain Removal | Surface Roughening |
| Tool Cleaning | Historic Restoration | Selective Paint Removal | Precise Cleaning |
1)Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2)The focused laser beam is capable of accurately evaporating surface objects or dirt.
3)Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4)By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Technology Parameter
|
Equipment model |
LXC-50W |
LXC-100W |
LXC-200W |
LXC-500W |
LXC-1000W |
|
Laser working medium |
Yb-doped fiber |
||||
|
Laser power |
50W |
100W |
200W |
500W |
1000W |
|
Laser wavelength |
1064nm |
||||
|
Pulse frequency |
20-100KHz |
20-100KHz |
20-200KHz |
20-50KHz |
20-50KHz |
|
Cooling method |
Air cooling |
Air cooling |
Water cooling |
Water cooling |
Water cooling |
|
Dimension |
760mmX780X790mm |
1100x950x700mm |
|||
|
Total Weight |
56kg |
60kg |
65kg |
130kg(Including Water tank) |
140kg |
|
Total power |
350W |
600W |
1000W |
1800W |
2000W |
|
Scan width |
10-60mm |
||||
|
Optional |
Hand/automatic | ||||
| Working temperature |
5-40℃ |
||||
Application
|
Application |
|||
|
Rust Removal |
Oxide Removal |
Molding Cleaning |
Surface Preparation |
|
Coatings Removal |
Weld Pre-treatment |
Gluing Pre-treatment |
Removal of Oil and Grease |
|
Paint Removal |
Surface Cleaning |
Stain Removal |
Surface Roughening |
|
Tool Cleaning |
Historic Restoration |
Selective Paint Removal |
Precise Cleaning |

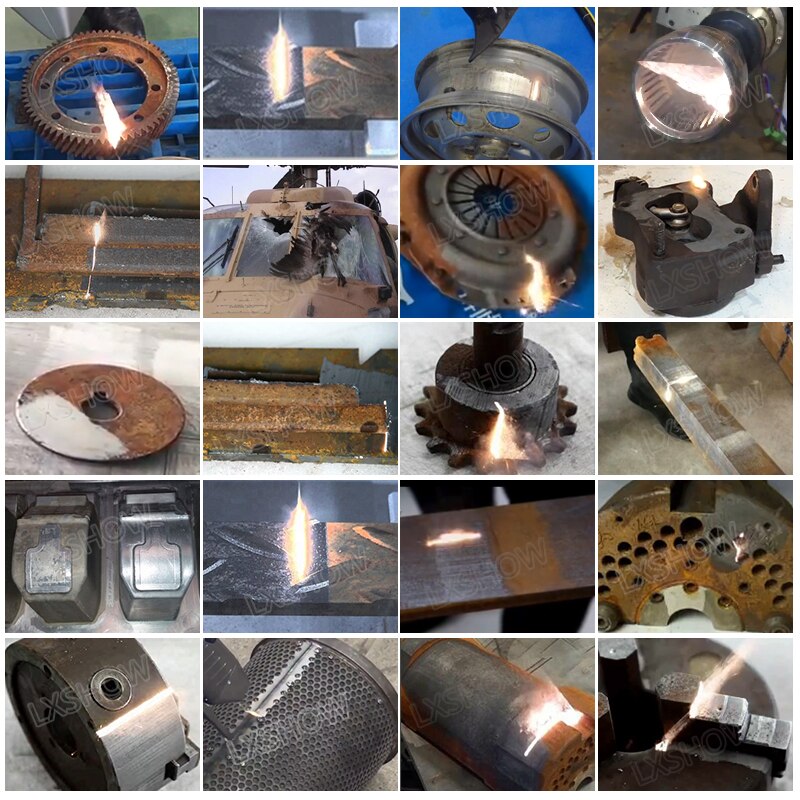

Samples
Characture
1). Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2). The focused laser beam is capable of accurately evaporating surface objects or dirt.
3). Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4). By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Company Information
Jinan Lingxiu Laser
Is established in July 2004 ,owns more than 500 square meters of researching and office space,
more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,
more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of :
1. Laser cleaning machine
2. Laser welding machine
3. CNC knife cutting machine
4. Laser marking machine(Fiber/CO2/UV/Green light) .
5. Fiber cutting machine and so on.
FAQ
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:I don’t know which one is suitable for me ?
A2:Please tell me
1). your materials.
2). what kind impurity.
3). the thickness of your impurity.
Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don’t know how to use after i receive or i have problem during use,how to do?
A5:
1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2). If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer /Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
If you want know more details about the machine, please contact me any time, i will help you choose a suitable machine and give you a best price.
Please contact Maggie
