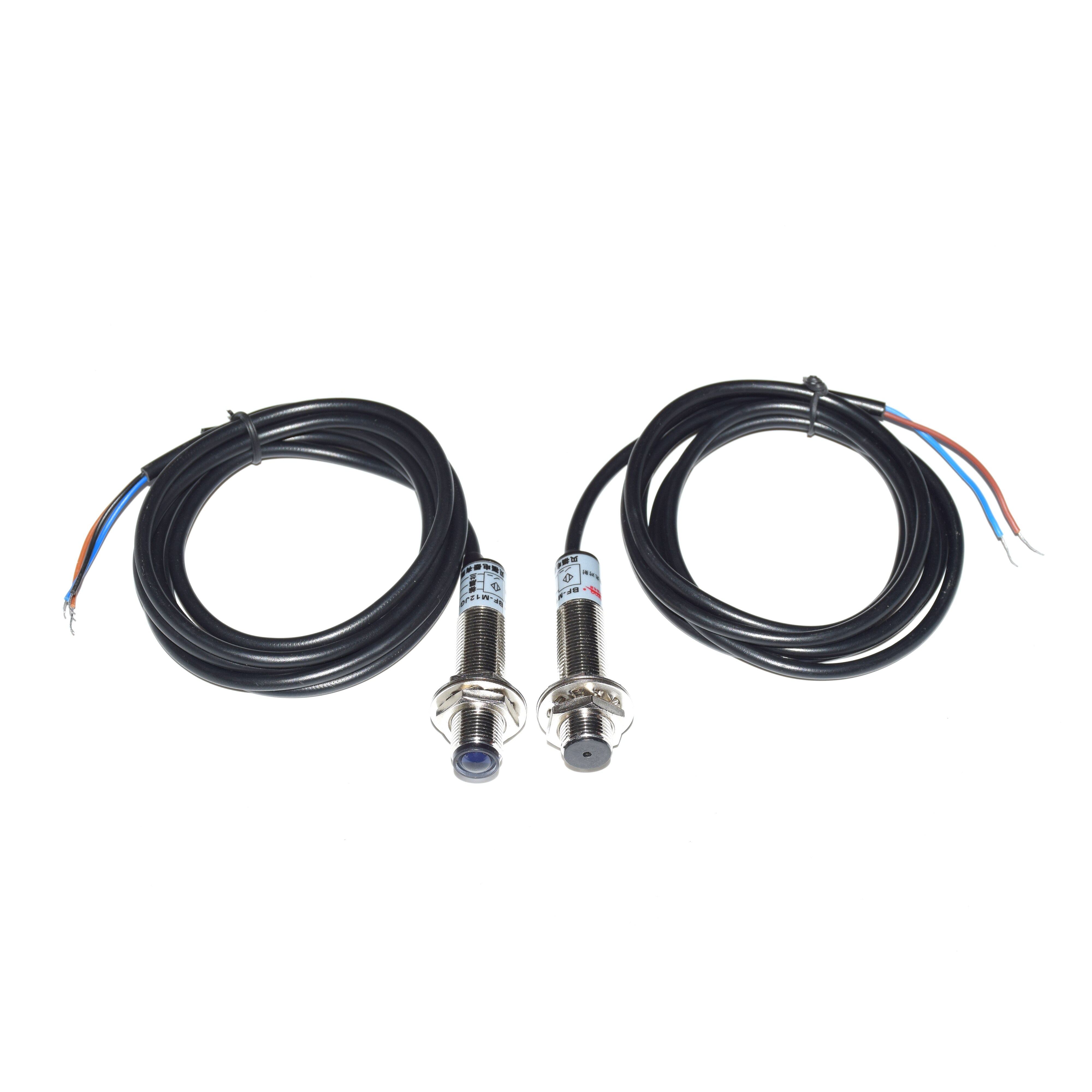

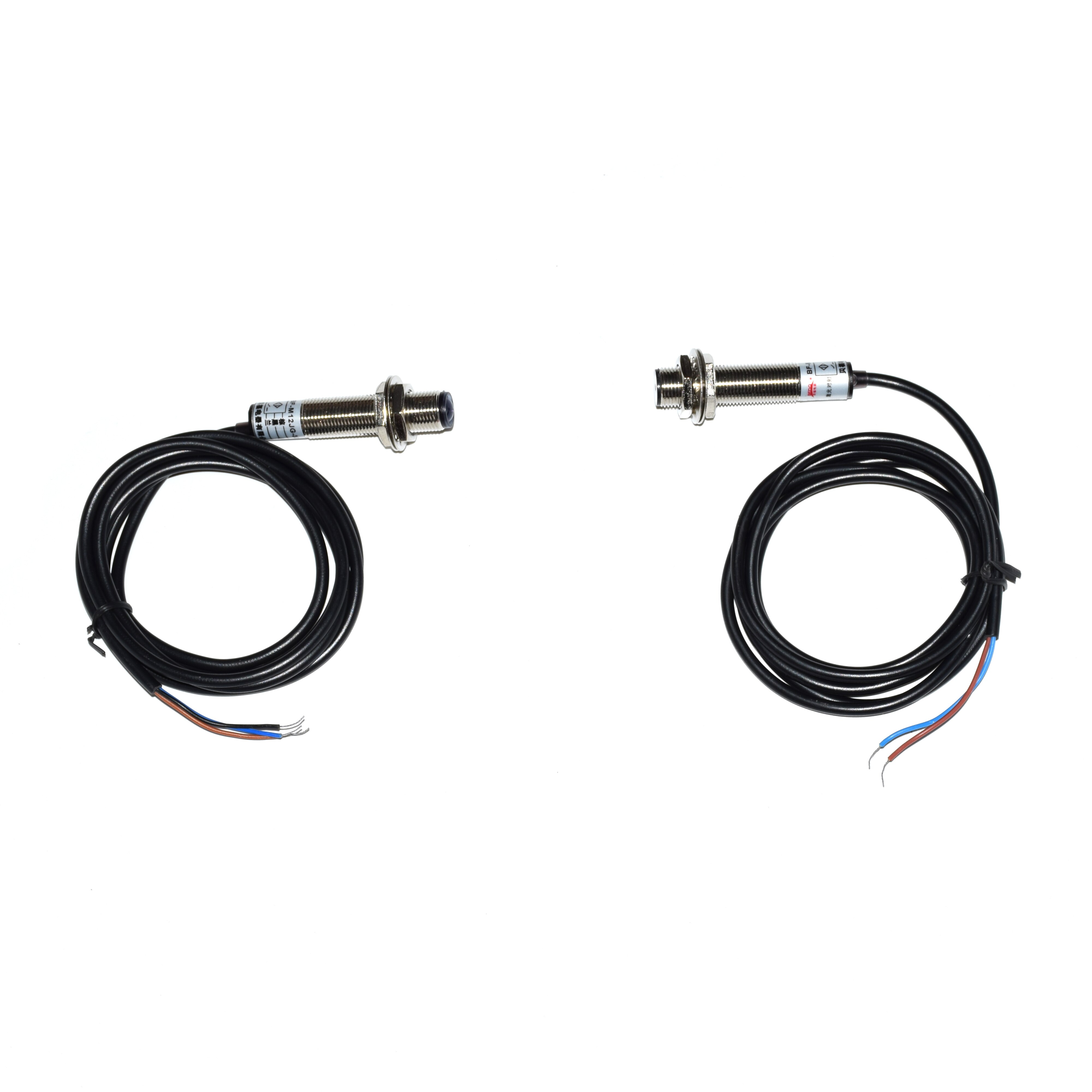

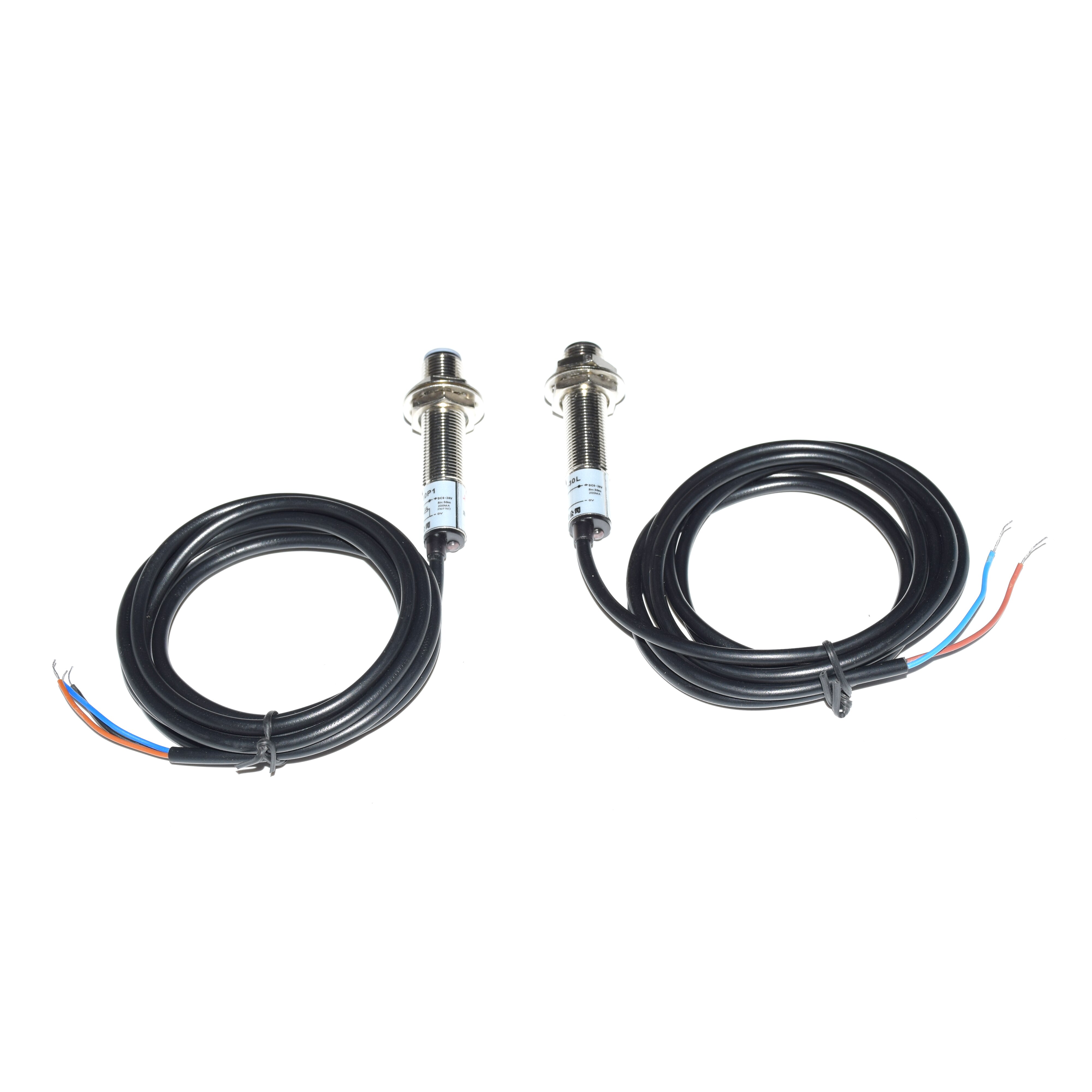

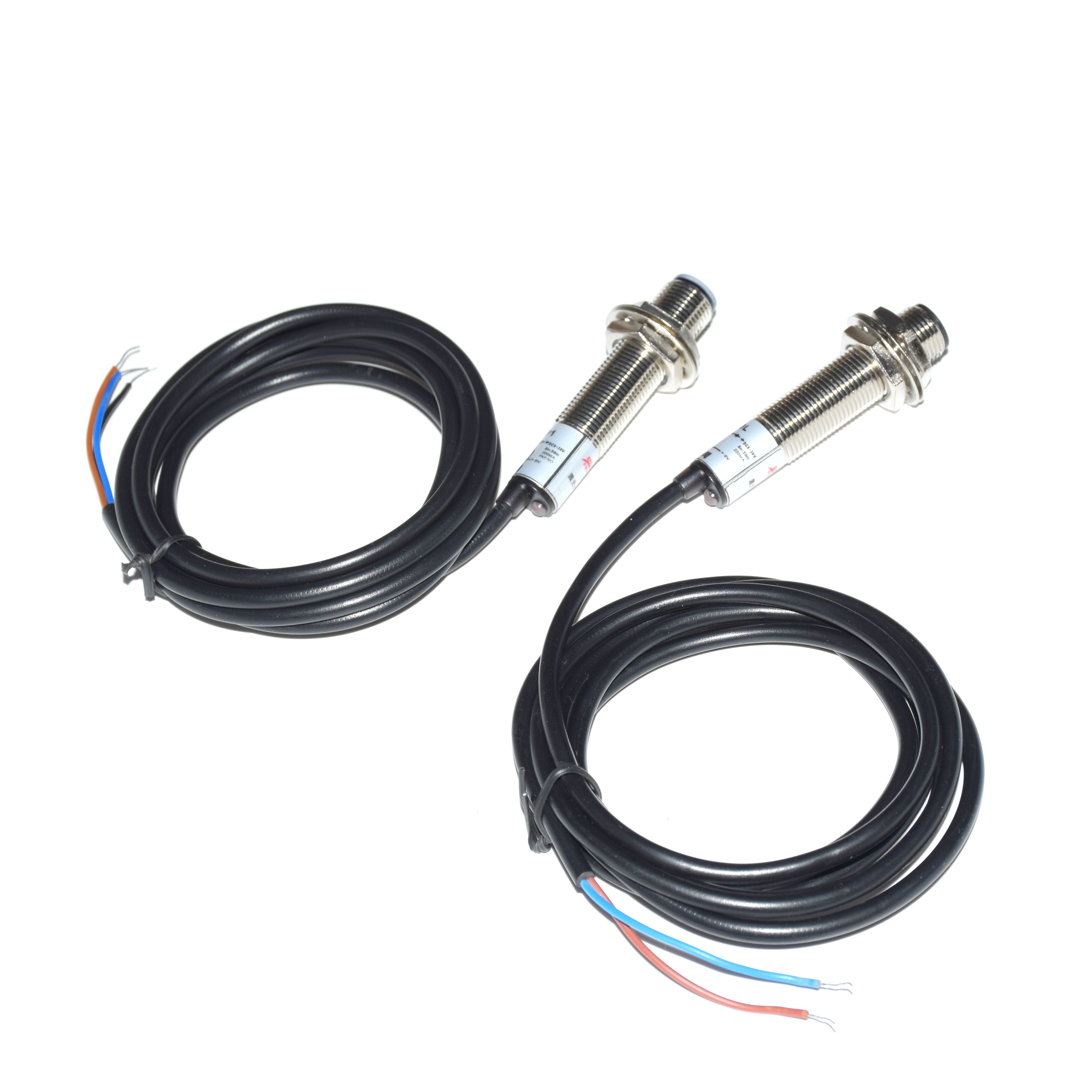

M12 Laser Photoelectric Switch NPN M12JG-30N1 Laser Sensor Switch Waterproof DC 20 meters Distance Normally Open B-NPN-O
Product Description
GMA series of laser-type photoelectric sensor, the use of laser beam emission angle is small, the beam concentration and the energy characteristics of the unit beam, can penetrate the hazy rain snow snowstorm environment, greatly improving the receiving Accuracy, reduce the error rate. Can be widely adapted and machine automation as a limit, positioning, testing, counting, speed, staff through other industrial sensing purposes.
Product Features
1. Laser on the radio photoelectric switch performance and stability, fast response, impact resistance, vibration resistance, small interference, long life
2. Laser detection of shooting distance, high accuracy
3. Visible laser beam debugging convenience
4. Straight beam can detect tiny objects
5. Can detect different objects, such as glass iron plastic wood liquid
Product Parameters
1. Model: M12JG-30N1(B-NPN-O)
2. Dimensions: transmitter M12 * 55mm, receiver M12 * 55mm
3. Detection methods: red visible laser (640 ~ 650nm)
4 working voltage: DC10 ~ 30V / 200mA
5. Output Type: NPN normally open
Packing List :
1 Pair Switch ( Don't included the installation bracket )
Precautions
1. The power is turned on instantly (within 100ms) can not use this product;
2. When there is near the source of the surge, please add a surge absorbing device;
3. Installed in the vicinity of high-frequency electromagnetic fields, use shielded wire type;
4. Laser sensor can not use autotransformer power supply, should use isolation transformer;
5. The laser sensor cable should be as short as possible to reduce noise interference.
