Description
- Origin: DE(Origin)
- Usage: Gas Sensor
- Material: Polymer
- Type: Gas Sensor
- Output: Analog Sensor
- Model Number: M-03/GO-03
Product Description:

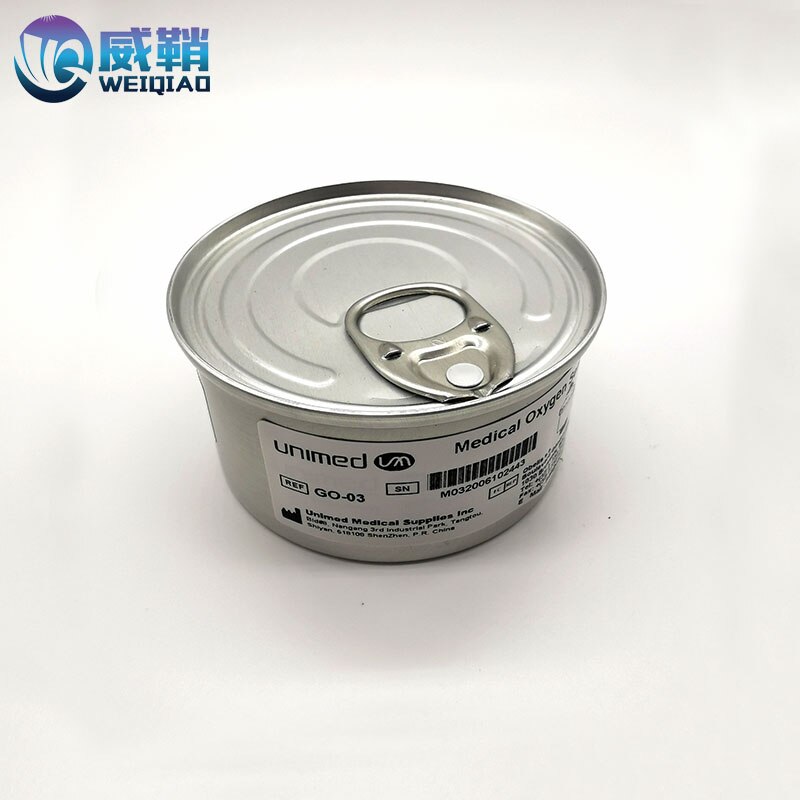

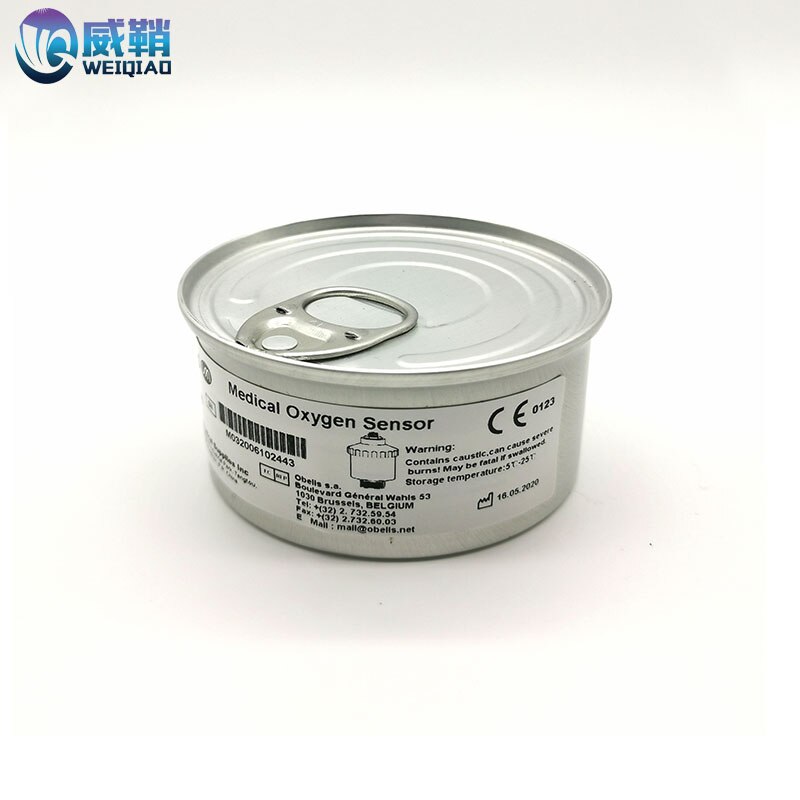

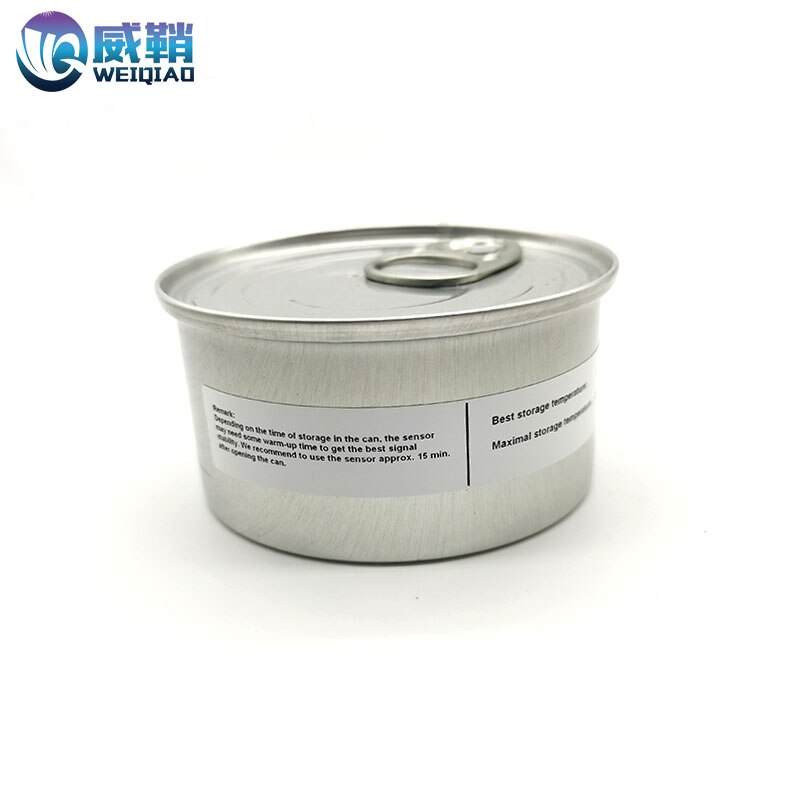

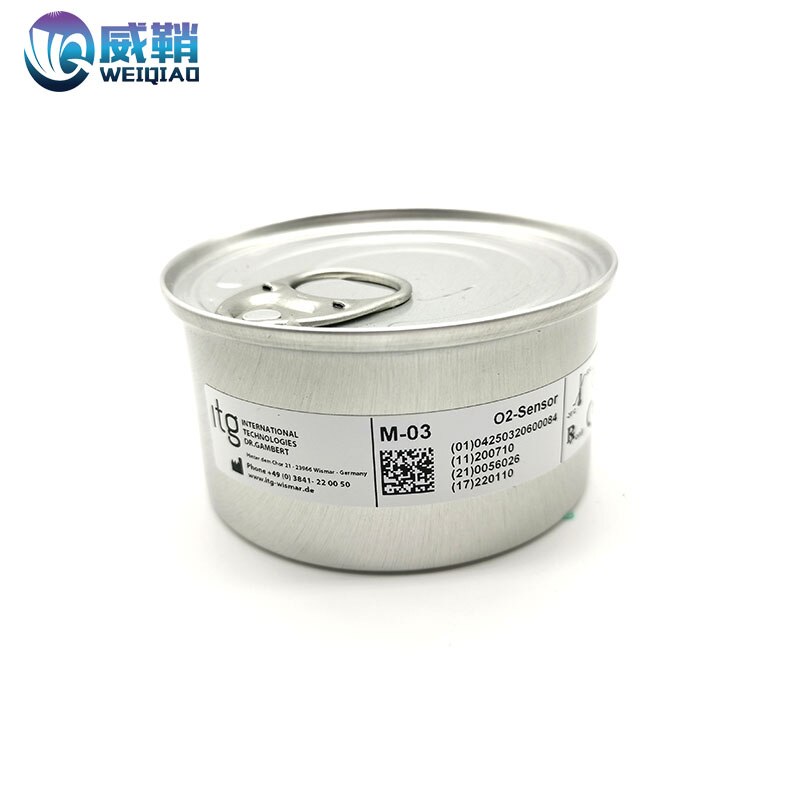

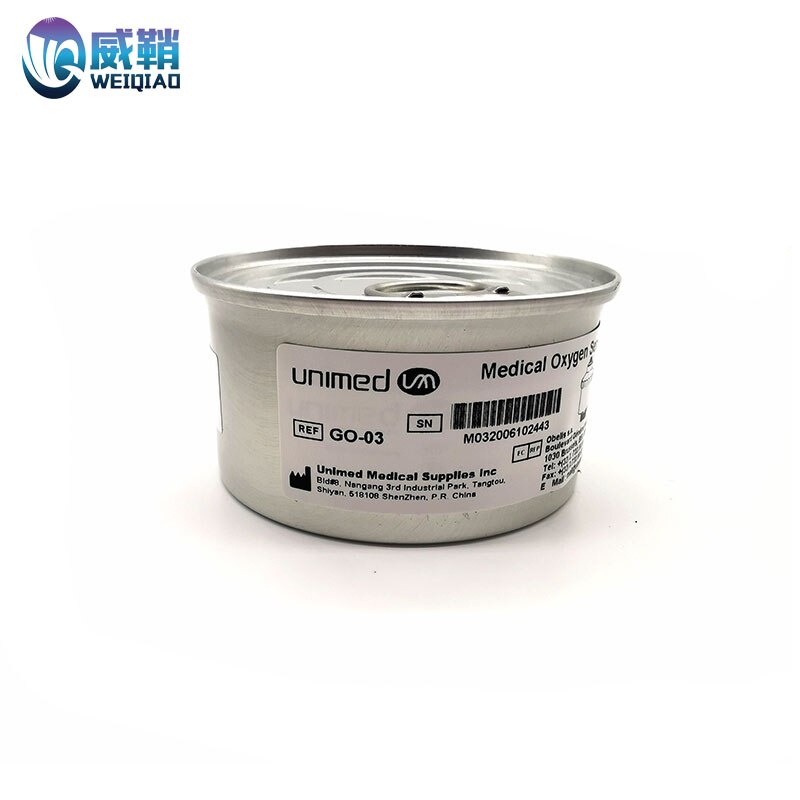

The IT medical oxygen sensor M-03 is designed to meet the requirements of modern medical rescue and surgical operation and other high safety standards, with high reliability, long life, fast response time, good linearity and zero stability
Main product parameters:
Measurement range: 0-100vol. %
Theoretical life of sensor: > 1000000 vol. %
Working life: 6 years in the air
Output signal: 13-17mV
Response time T90: <12 seconds
Operating temperature: 0℃ to 40℃
Pressure range: 750 to 1250 hPa
Wiring port: 3.5mm independent socket
Recommend a load value: 10 Ω
Drift: in the air & LT;1% / month
Repeatability: ±1%
