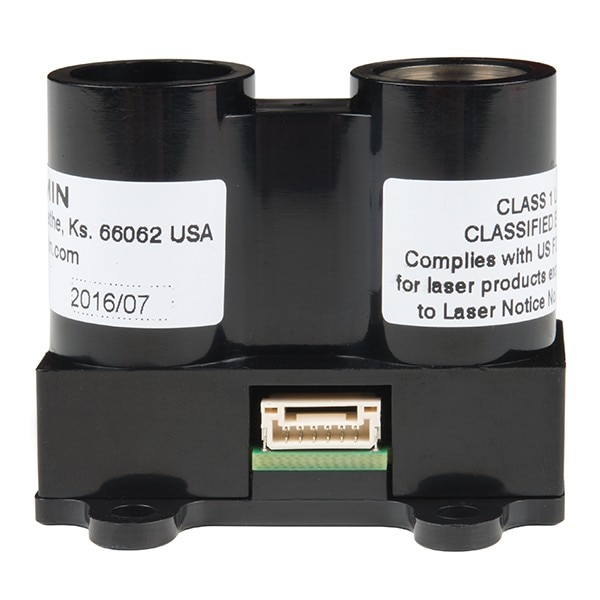

LIDAR Lite V3 Pixhawk lite Laser sensor optical distance measuring sensor Rangefinder Drone Floating

$194.42

SKU: 32903026145 Category: Tag:

Description

LIDAR Lite V3 Pixhawk lite Laser sensor optical distance measuring sensor Rangefinder Drone Floating

Note: The LIDAR-Lite v3 is available, but there have not sufficient quantity. Please ask before you order it. thanks

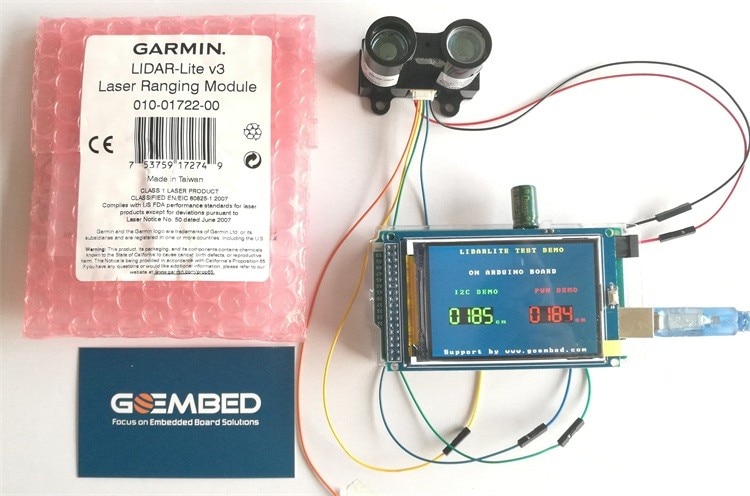

Please click to download test code with Arduino and document:

http://www.goembed.com/index.php/Community/post/tpoId/131





High-performance Optical Distant Measurement Sensor

  • Reliable and powerful ranging and proximity sensor for drone, robot or unmanned vehicle applications
  • Compact, lightweight with low power consumption
  • User-configurable allows adjustment between accuracy, operating range and measurement time

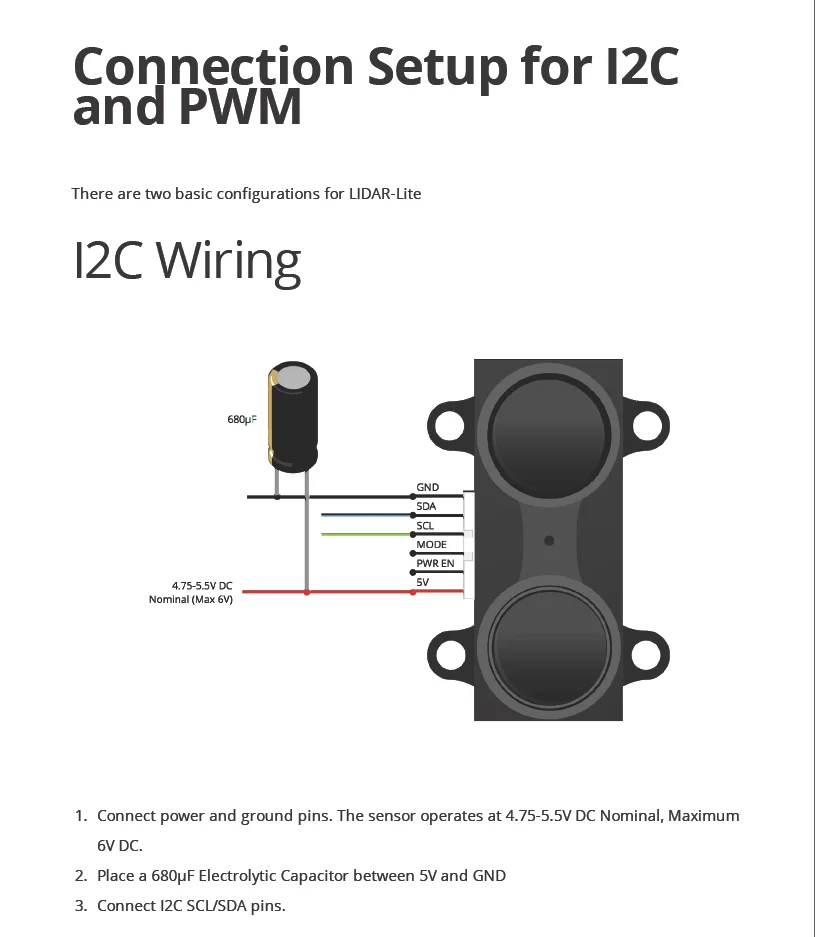

  • Communication via I2C and PWM
  • Requires a power source and an external micro-controller running an application



When space and weight requirements are tight, the LIDAR-Lite v3 soars. It’s the ideal compact, high-performance optical distant measurement sensor solution for drone, robot or unmanned vehicle applications. Using a single chip signal processing solution along with minimal hardware, this highly configurable sensor can be used as the basic building block for applications where small size, light weight, low power consumption and high performance are important factors.



Features:

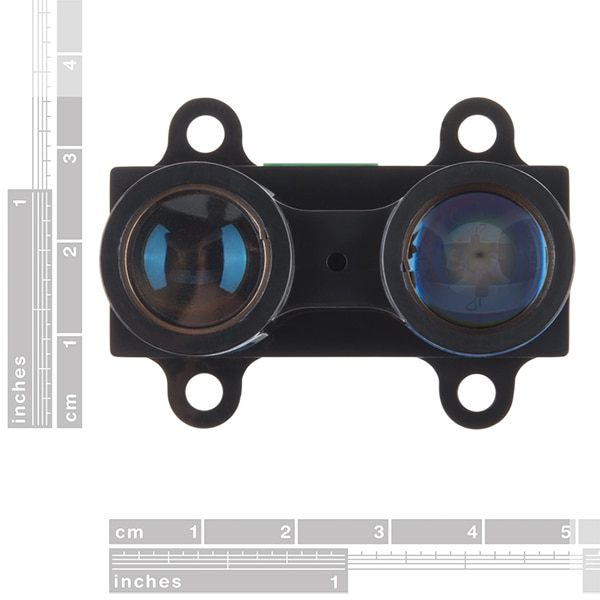

  • Unit size (HxWxD): 40 x 48 x 20 mm
  • Weight: 22 g (0.77 oz)
  • Resolution: 1 cm
  • Accuracy: +/- 2.5 cm at distances greater than 1 meter. Refer to operating manual for complete operating specifications.
  • Range: 0-40 meters
  • Update rate: up to 500 Hz
  • Interface: I2C or PWM
  • Power (operating voltage): 4.75-5 VDC; 6 V Max
  • Current consumption: 105ma, idle; 130ma, continuous
  • Operating temperature: -20 to 60° C
  • Laser wave length/Peak power: 905 nm/1.3 watts
  • Beam divergence: 4 m Radian X 2 m Radian
  • Optical aperture: 12.5 mm



LidarLite V3 05

LidarLite V3 07

TB27nTmaxeJ.eBjy1zdXXXfmFXa_!!2337166574

TB2Ke5HaUOO.eBjSZFLXXcxmXXa_!!2337166574

HTB1bw8oNpXXXXbkXVXX760XFXXXxHTB1ejtRNpXXXXXuXXXX760XFXXXY











TB28gCsar5K.eBjy0FnXXaZzVXa_!!2337166574

TB20nltaOGO.eBjSZFPXXcKCXXa_!!2337166574

Application recommendation



pl-3d-plotterpl-drone
