Description
- Brand Name: QDHWOEL
- Origin: CN(Origin)
- Is Smart Device: NO
- Application: CO2 Laser Engraving Cutting Machine
- Model Number: LFS-AM-T43-AP01(S)

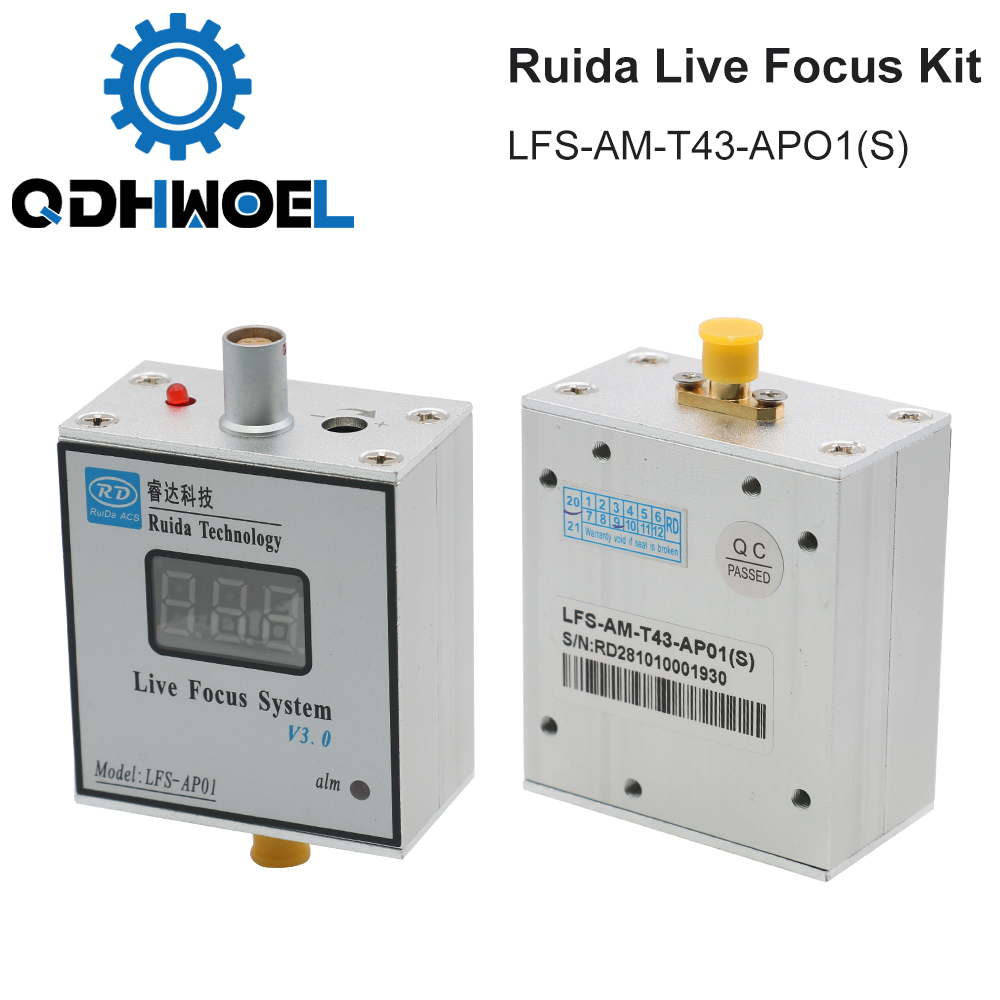

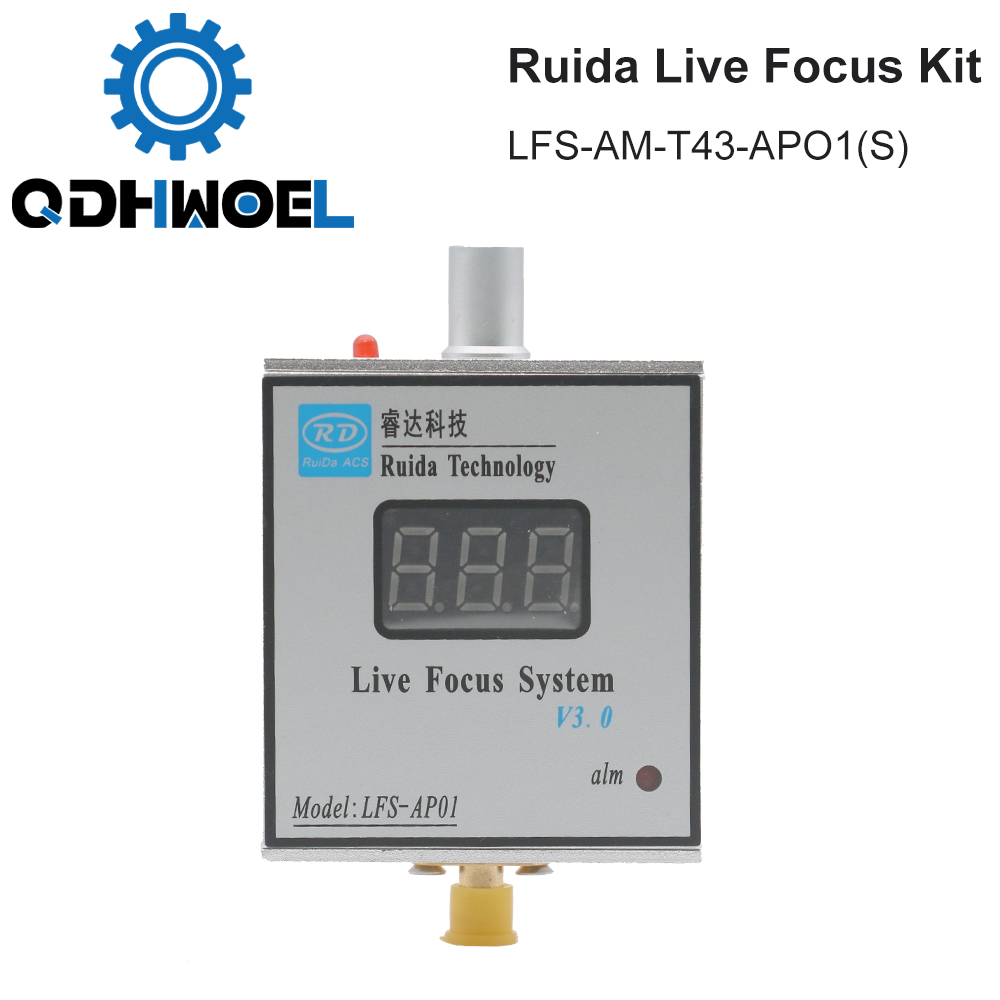

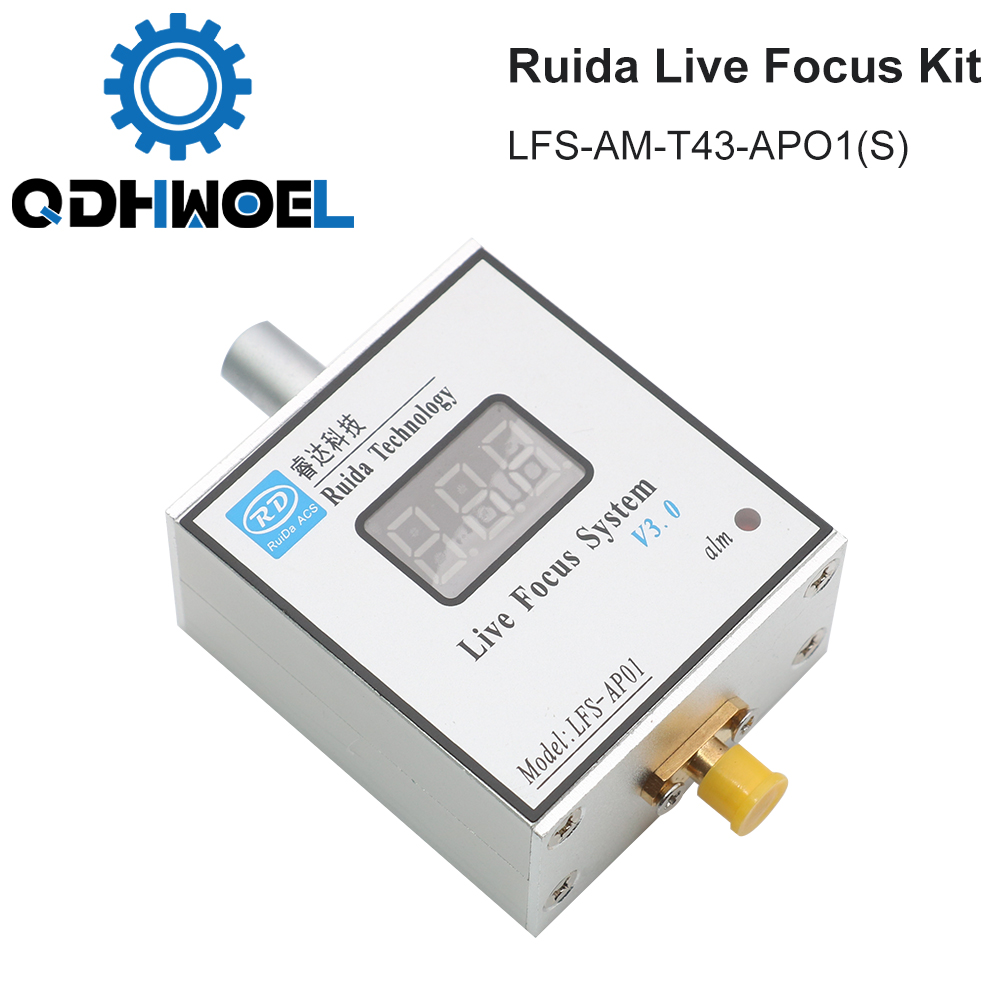

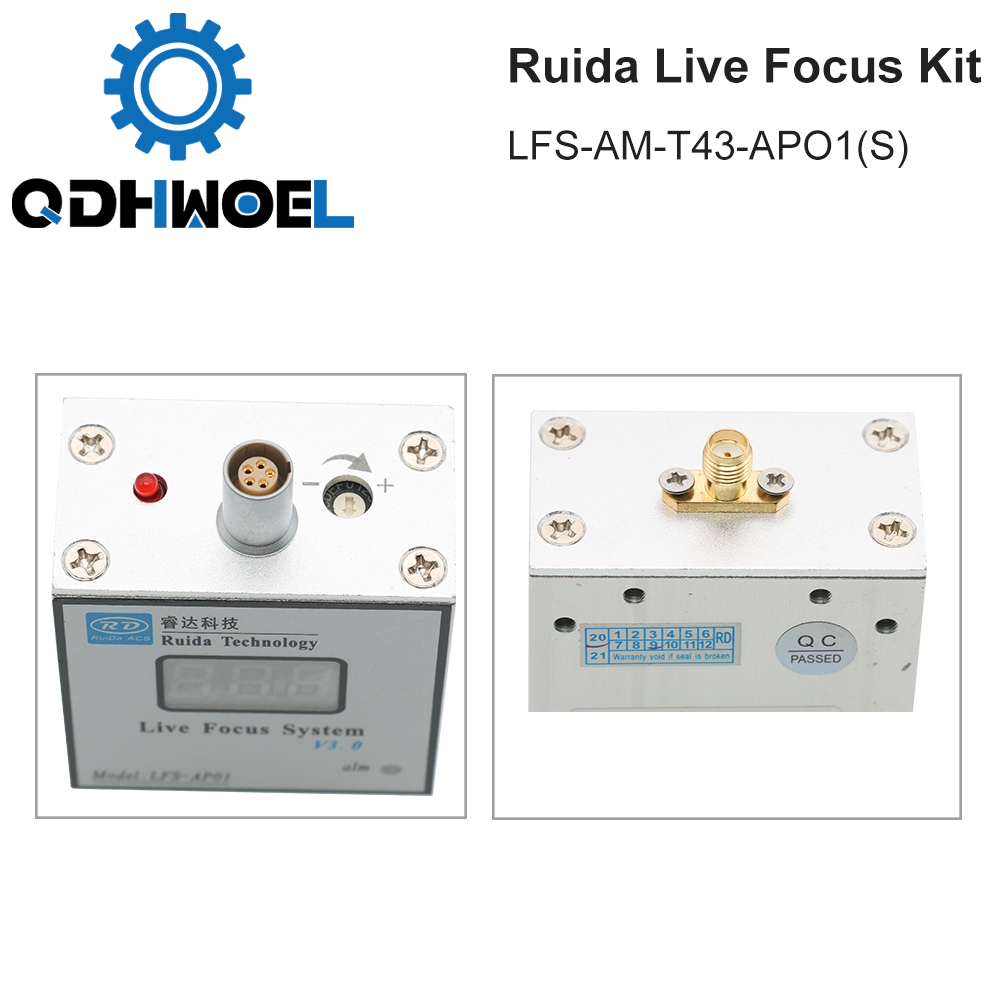

LFS-AM-T43-AP01(S) Ruida metal cutting live focus system amplifier and amplifier connecting line for laser machine
Technical Parameter
1.Power supply voltage:DC 24V±20%,20.5 A,ripple wave noise< 1o0mvp-p
2.Interval setting range:0.1~10 mm(diameter of the nozzle port is中5)
3.Measurement repeat accuracy:<±0.05 mm
4.Temperature drift is less than o.01 mm
5.Response time:<2ms
6.5core o 9 aviation connection plug provides power input and output

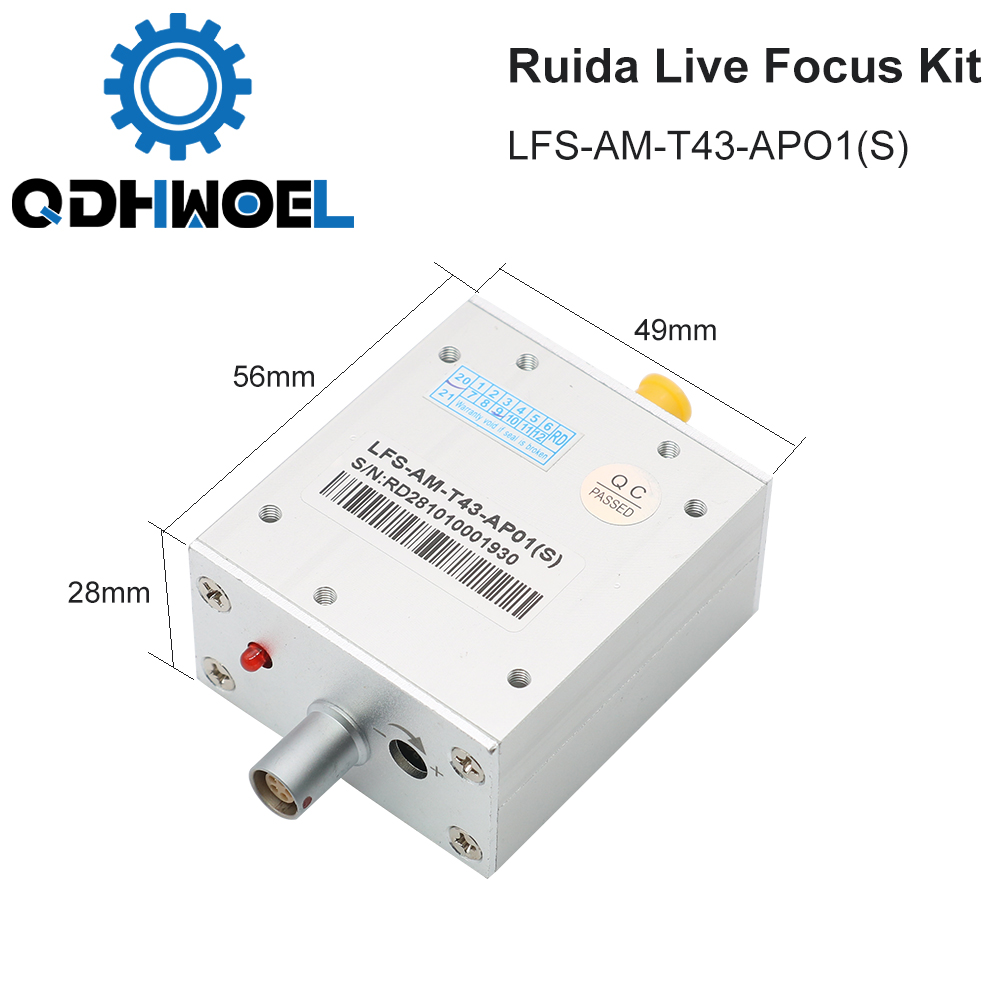

7.Main electrical cabinet dimension:43mm length)x50mm (width)x 20mm (height)
8.Working environment:Electrical cabinet working temperature:-40 C,60 ℃;
Relative humidity<80%;No strong electromagnetic interterence
9.Alarm protection and status output.
